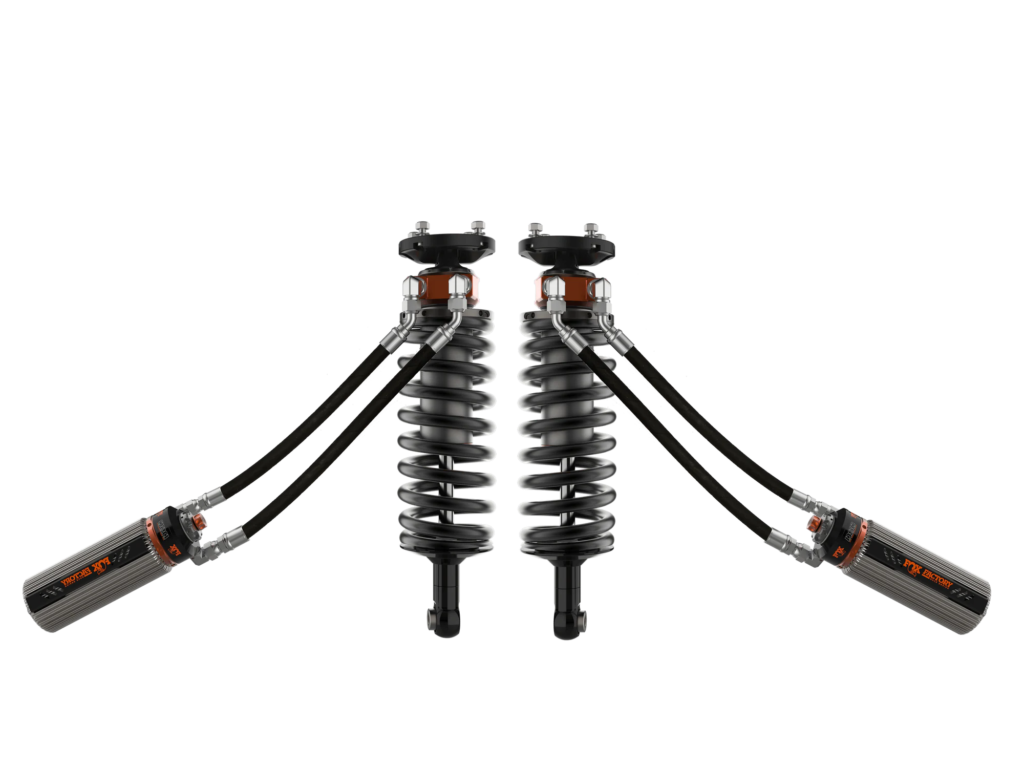

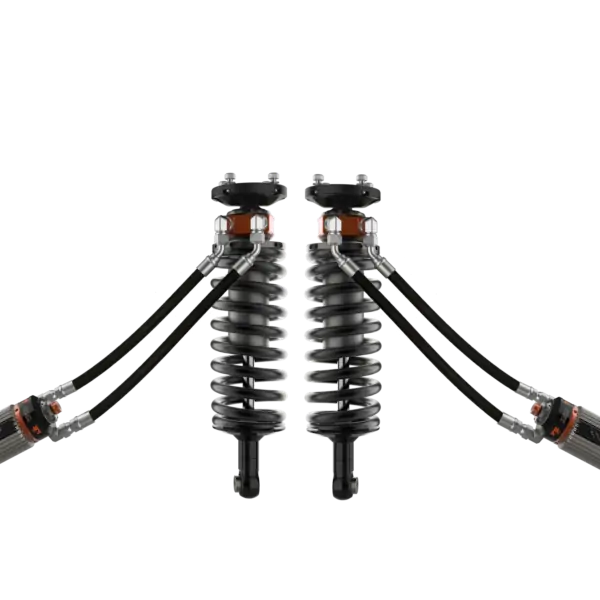

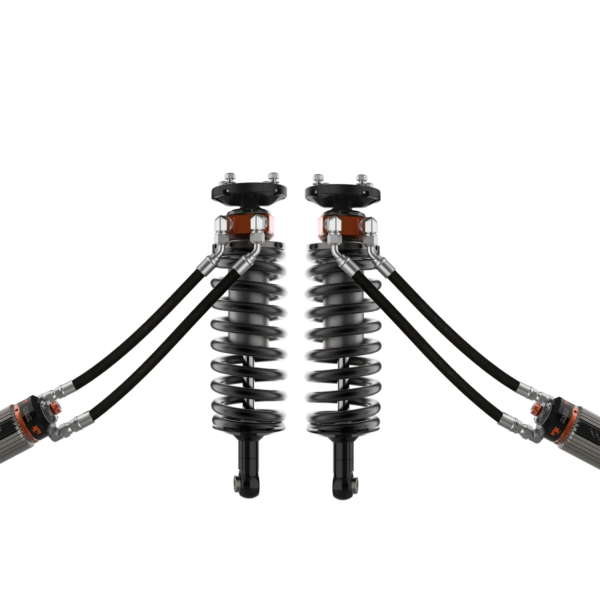

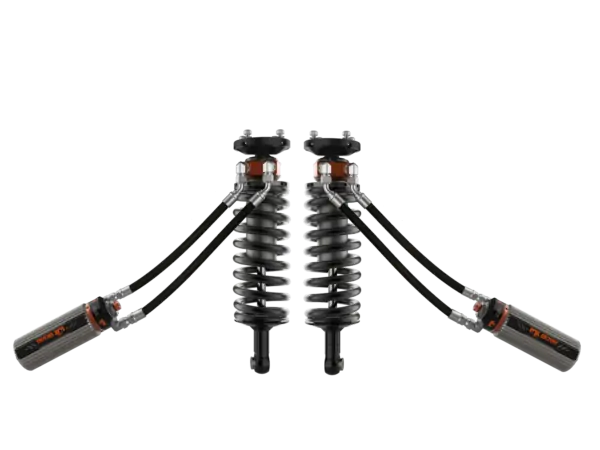

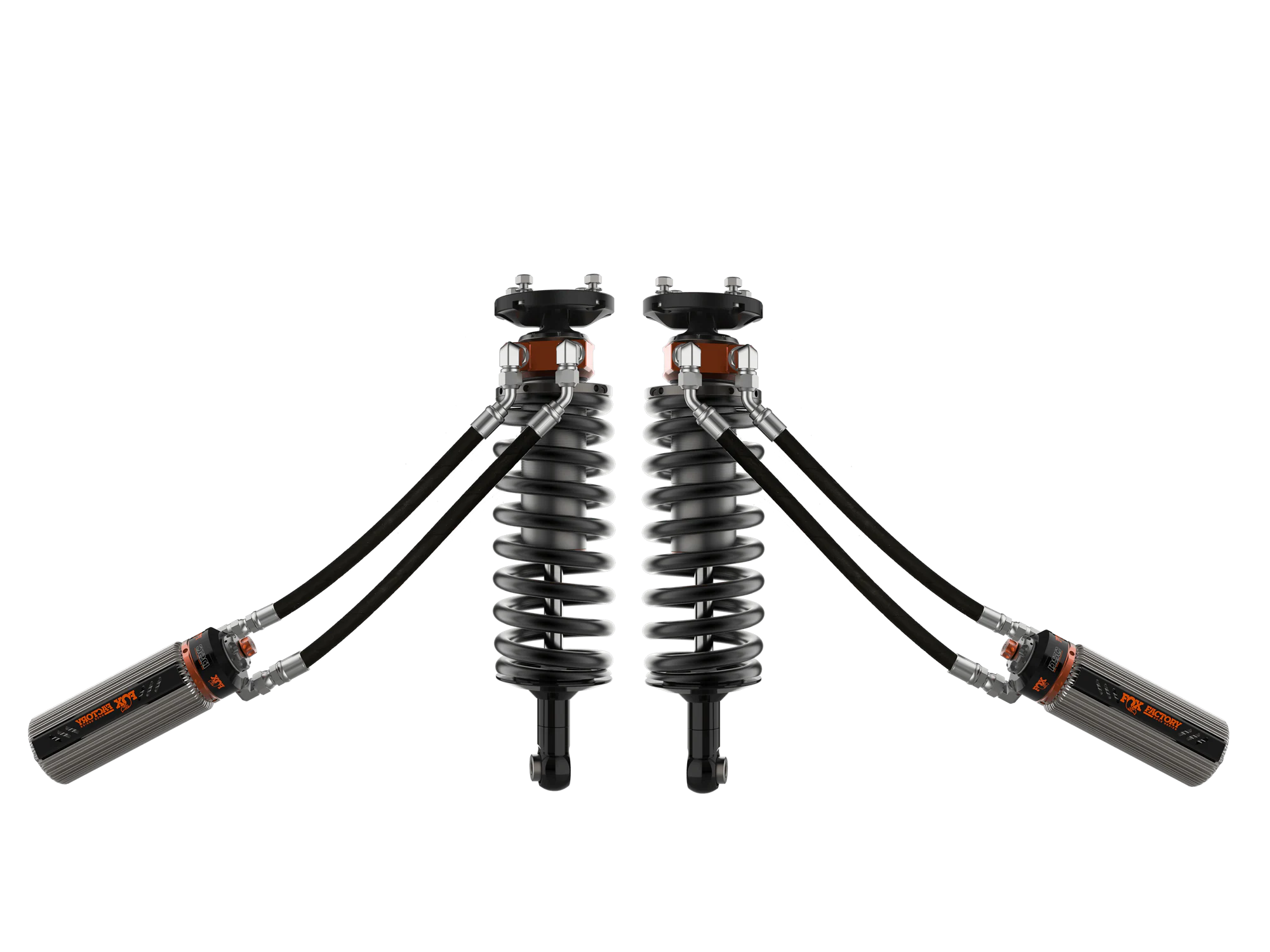

FOX 3.0 Body Bypass 2-2.5″ Front Lift DSC Reservoir Coilovers for 2022-2024 Toyota Tundra

Description
FOX 3.0 Body Bypass 2-2.5″ Front Lift DSC Reservoir Coilovers for 2022-2024 Toyota Tundra

FOX 3.0 Body Bypass 2-2.5 inches Front Lift DSC Reservoir Coilovers for 2022-2024 Toyota Tundra

Part Number: 883-06-219

Summary: The FOX Factory Race Series 3.0 Internal Bypass coilovers provide the Toyota Tundra with race-bred performance and position-sensitive damping technology. By utilizing Internal Bypass technology and a Dual Speed Compression (DSC) adjuster, these shocks address the need for increased damping capacity through rough terrain while maintaining a comfortable ride. The system is designed for high-speed operation, featuring a finned external reservoir to manage heat during sustained off-road use.

Features

• Internal Bypass Technology: Patented design allows for multiple zones of damping control to provide a comfortable ride and increased capacity through rough terrain.
• Dual Speed Compression (DSC): The DSC adjuster allows the user to dial in the shock for load, environment, and driving style to ensure versatile performance.
• Recirculating Reservoir Bridge: A checked port enables continuous exchange of fluid between the finned external reservoir and body to ensure shock temperatures stay cool.
• Aluminum Body: 3.0-inch impact extruded and CNC machined 6061-T6 aluminum with Type III anodization provides corrosion resistance to ensure long-term durability.
• Redundant Sealing Pack: A system including a main seal, wiper seal, and scraper seal provides protection against debris to ensure seal integrity.

Technical Specifications

Fitment

• 2022-2024 Toyota Tundra
• Note: Front Lift : 2-2.25 inches Requires Upper Control Arm Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle)

What’s Included

• Sold Individually
• Application-specific springs
• Finned reservoir

Why Choose This Product?

• Engineering Advantage: The patented Internal Bypass design forces fluid through the main piston only as it exits the ride zone, creating progressive force to control bottom-outs and top-outs.
• Performance Benefit: Drivers experience increased support and confidence during high-speed driving through rugged terrain without sacrificing initial ride comfort.

Frequently Asked Questions

What does the Internal Bypass technology do?
It allows shock fluid to bypass the main piston through bleed holes in the ride zone for comfort, then forces fluid through the piston as the shock extends to control hard impacts.

Can I adjust the damping on these shocks?
Yes, these coilovers feature a Dual Speed Compression (DSC) adjuster that allows you to dial in the settings for different loads and environments.

What is the benefit of the finned reservoir?
The finned external reservoir, combined with the recirculating bridge, helps keep shock fluid temperatures cool for better performance during high-speed operation.
