Bilstein 5100 0-1.8″ Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy/GMC Silverado/Sierra 1500

SKU: 5100BILCS07S
5 out of 5 based on 5 customer ratings
(5 customer reviews)
Sale!
Bilstein 5100 0-1.8 Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy-GMC Silverado-Sierra 1500
Bilstein 5100 0-1.8 Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy-GMC Silverado-Sierra 1500

Description
Bilstein 5100 0-1.8″ Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy/GMC Silverado/Sierra 1500

Bilstein 5100 0-1.8″ Front Lift Pre-Assembled Coilovers + 0-1″ Rear Shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013 Chevy/GMC Silverado/Sierra 1500

Part: 5100BILCS07S

Level your Chevy/GMC Silverado/Sierra 1500 with a matched front and rear package. The front Bilstein 5100 coilovers arrive fully assembled with OE-style coils and new top mounts, so you skip the spring compressor. Rear 5100 shocks are sized for 0-1″ rear lift to keep the truck composed and controlled.

What’s Included

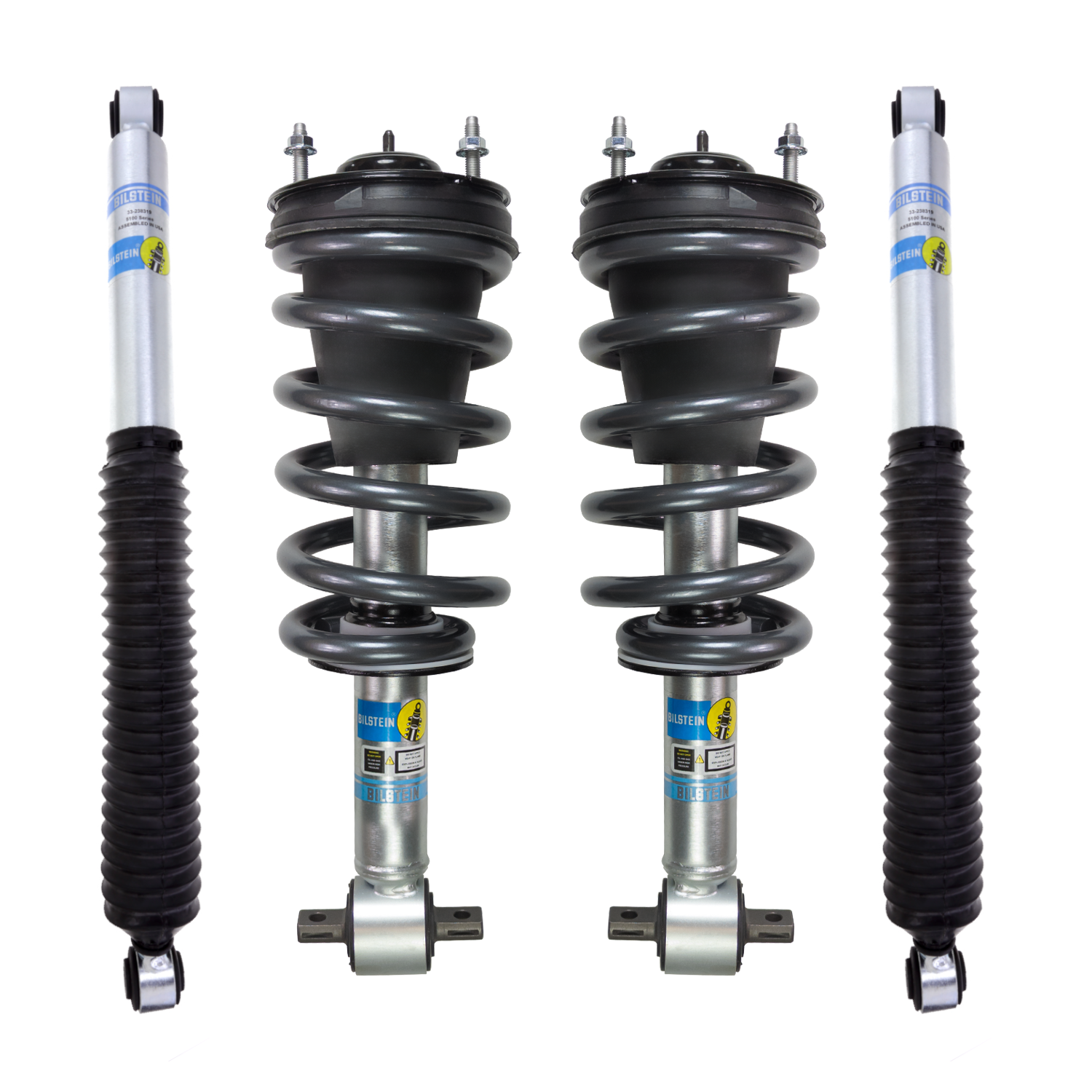

  • Front (pre-assembled): 2 x Bilstein 5100 ride-height-adjustable struts 24-317818 (old 24-186940) with OE/OEM-style replacement coils, new top mounts, isolators, dust covers, and hardware
  • Rear: 2 x Bilstein 5100 shocks 24-293082 for 0-1″ rear lift

Front perch settings (clip positions)

  • Clip 4: ~1.77″ lift
  • Clip 3: ~1.18″ lift
  • Clip 2: ~0.59″ lift
  • Clip 1: 0″ stock

Actual lift varies with bumper/winch weight, accessories, and spring condition.

Why you’ll like it

  • No spring compressor needed – fronts come fully assembled
  • Adjustable 0-1.8″ front lift – set a level stance or mild lift for tire clearance
  • Bilstein 5100 control – 46 mm monotube, digressive valving for consistent, fade-resistant damping
  • OE-style comfort – tighter body control while keeping daily ride quality

Fitment

  • Vehicles: Chevrolet Avalanche 1500 2007, 2008, 2009, 2010, 2011, 2012, 2013
  • Drivetrain: 2WD or 4WD
  • Heights: front adjustable 0-1.8″ rear shocks matched to 0-1″ rear lift components

Technical notes

  • Snap-ring grooves set front spring seat height within the stated range
  • Monotube, nitrogen gas-charged, 46 mm piston
  • Alignment is required after installation
  • Coilover assembly time: 3-10 business days

FAQ

Do these come assembled? Yes. New coils, mounts, and hardware are installed up front.

Which clip should I choose? Start at Clip 2 or 3 for a typical level; adjust for added front weight or preferred rake.

Will the rear shocks lift my truck? No. They are sized and valved to work with up to 1″ rear lift springs or spacers.

Customer reviews

Rated 5 out of 5 stars
5 reviews
5 stars 5 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

5 reviews for Bilstein 5100 0-1.8″ Front Lift Assembled Coilovers with OE Replacement coils and Rear Shocks for 2007-2013 Chevy/GMC Silverado/Sierra 1500

Add a review

Add photos from your phone or computer. We’ll prepare them automatically. Up to 20 MB each.

    Questions and answers of the customers

      Which UCAs do you recommend? My truck is a 2012 chevy Silverado 1500 4WD
    1. 0 votes
      Q Which UCAs do you recommend? My truck is a 2012 chevy Silverado 1500 4WD
      A Here are a couple of good options https://www.suspensionlifts.com/shop/chevy-gmc/silverado-1500/chevy-1500-14-18/other-parts-chevy-1500-14-18/bilstein-b8-upper-control-arm-kit-for-2007-2016-chevrolet-silverado-1500/ https://www.suspensionlifts.com/shop/chevy-gmc/silverado-1500/chevy-1500-14-18/other-parts-chevy-1500-14-18/readylift-2007-2016-chevroletgmc-1500-leveling-and-big-lift-upper-control-arms-w-forged-steel-oe-uca/ https://www.suspensionlifts.com/shop/chevy-gmc/silverado-1500/chevy-1500-14-18/other-parts-chevy-1500-14-18/total-chaos-uniball-ucas-for-2007-2018-chevrolet-silverado-1500-2wd-4wd-cast-steel/ Some UCAs require maintenance, some don't.    Total Chaos upper control arms need some maintenance. The uniball  is exposed end needs to be cleaned every couple of weeks to decrease metal sounds. The sounds will still come out of it even during normal use. TotalChaos control arm is designed to give the vehicle proper caster and more articulation on the front end, but it is not adjustable. These UCAs offer great offroad performance.
      2. 2010 Silverado crew cab 1500 has factory rancho shocks with spacer at at bottom of strut what option do I order to replace these?
    2. 0 votes
      Q 2010 Silverado crew cab 1500 has factory rancho shocks with spacer at at bottom of strut what opt...... Read more
      A To achieve a proper level look with the Bilstein 5100 coilovers, you should choose either the 3rd or 4th clip setting. Setting #4 (1.77" - 1.8" Lift): This is the most popular choice for a true "leveled" look. It brings the front up almost perfectly even with the rear, leaving just a tiny bit of rake so the truck doesn't sag when loaded. Setting #3 (1.18" Lift): Choose this if you prefer to keep a slight forward lean or if you frequently carry heavy loads in the bed.
      3. I have a 2007 Chevy Silverado last 4x4. It has a rough control leveling kit on front. Will these keep it leveled of I remove the spacers ant just use these. Thanks
    3. 0 votes
      Q I have a 2007 Chevy Silverado last 4x4. It has a rough control leveling kit on front. Will these ...... Read more
      A Yes, this kit will completely replace your current Rough Country leveling kit and will allow you to maintain a level body position without the use of spacers
      4. I have a 2.5 inch lift on my Silverado right now. To keep it the same level which size of front shocks do you recommend?
    4. 0 votes
      Q I have a 2.5 inch lift on my Silverado right now. To keep it the same level which size of front s...... Read more
      A front 1,8'' and keeping a light rake is recommended to compensate for sagging under heavy load
      5. Will these work on a 2103 silverado 1500 extended cab....and can I adjust the hight settings once they are installed or do they need to be adjusted while Uninstalled
    5. 0 votes
      Q Will these work on a 2103 silverado 1500 extended cab....and can I adjust the hight settings once...... Read more
      A Yes Everything will work, but adjustments should only be made when the coilover is removed, and only if you have a special tool that compresses the spring.
      6. I currently have a 2.5 inch spacer on top of my stock strut. Can I use this 2.5 inch spacer on top of the bilstein strut? I need 2.5 of lift to level it. Or does bilstein have an option for 2.5 of lift?
    6. 0 votes
      Q I currently have a 2.5 inch spacer on top of my stock strut. Can I use this 2.5 inch spacer on to...... Read more
      A

      With the Bilstein 5100 kit for 2007-2013 Silverado/Sierra, the front lift is adjustable from 0 to 1.8 inches via the clip positions (approximately 0.59", 1.18", 1.77"). It does not provide a 2.5" lift option. A 2.5" spacer on top of a Bilstein strut would not be supported by this kit. If you need ~2.5" total front lift, you’d need a different setup or a kit that offers that lift range. We can double-check current options or compatible kits for a 2.5" lift if you’d like.
      A you can use your spacer if you'll order coilovers assembled on the lowest notch setting (0'' - stock height)
      7. Can I use this kit to replace the air ride on my 2013 chevy avalanche z71 black diamond?
    7. 0 votes
      Q Can I use this kit to replace the air ride on my 2013 chevy avalanche z71 black diamond?
      A you will need some custom items for electronic sensors disabling
      8. Will they fit 2012silverrado stock with no modifications
    8. 0 votes
      Q Will they fit 2012silverrado stock with no modifications
      A yes sure can be mounted and will work
      9. SKU: 5100BILCS07S will these fit my 2013 Chevy avalanche z71 black diamond
    9. 0 votes
      Q SKU: 5100BILCS07S will these fit my 2013 Chevy avalanche z71 black diamond
      A mountings will but lifting characteristics and damping will be not for stock suspension for Avalanche we can offer https://www.suspensionlifts.com/shop/chevy-gmc/avalanche/2007-2013/shocks-2007-2013/bilstein-4600-assembled-front-coilovers-with-oe-replacement-coils-rear-shocks-for-2007-2013-chevrolet-avalanche-2wd-4wd/ https://www.suspensionlifts.com/shop/chevy-gmc/avalanche/2007-2013/shocks-2007-2013/bilstein-4600-assembled-front-coilovers-with-oe-replacement-coils-rear-shocks-for-2007-2013-chevrolet-avalanche-2wd-4wd/ https://www.suspensionlifts.com/shop/chevy-gmc/avalanche/2007-2013/front-lifts-2007-2013/bilstein-6112-assembled-front-0-9-2-65-lift-coilovers-for-2007-2013-chevy-avalanche-2wd-4wd/
      10. Drop down only list crew cab and standard cab. What do you do for an extended cab?
    10. 0 votes
      Q Drop down only list crew cab and standard cab. What do you do for an extended cab?
      There are no answers for this question yet.
      11. What size tire could I fit on a 17” wheel with this kit?
    11. 0 votes
      Q What size tire could I fit on a 17” wheel with this kit?
      A 1'' taller than stock
      12. What are the height eqivalents in inches on a set of front struts for a 2008 sierra from the four notches on the strut
    12. 0 votes
      Q What are the height eqivalents in inches on a set of front struts for a 2008 sierra from the four...... Read more
      A about 1.7-1.8'' depending on cab and engine weight
      13. Will this fit 2009 gmc denali to remove air system and replace with this set up
    13. 0 votes
      Q Will this fit 2009 gmc denali to remove air system and replace with this set up
      A yes but as for electronics disabling you will need some extra resistors or something
      14. Would I have to replace my upper control arm if the clip setting was at either 1.18 or 1.77 setting?
    14. 0 votes
      Q Would I have to replace my upper control arm if the clip setting was at either 1.18 or 1.77 setting?
      A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      15. Does it fit on yukon denali 2007
    15. 0 votes
      Q Does it fit on yukon denali 2007
      A Will not fit for 2007 GMC Yukon Denali
      16. is the lift adjustable with the coils if i order it set at 1.8” lift could i always revert it to stock height ? ( 2013 gmc sierra 1500 4wd )
    16. 0 votes
      Q is the lift adjustable with the coils if i order it set at 1.8” lift could i always revert it to ...... Read more
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png you can remove it from the truck and reassemble on lower notches
      17. would this set fit in a Chevy Tahoe 2013 RWD?
    17. 0 votes
      Q would this set fit in a Chevy Tahoe 2013 RWD?
      A The front will fit but the rear no We can offer separately Front https://www.suspensionlifts.com/shop/chevy-gmc/silverado-1500/chevy-1500-14-18/shocks-chevy-1500-14-18/bilstein-5100-0-1-75-front-lift-assembled-coilovers-with-oe-replacement-coils-for-2007-2013-chevy-gmc-silverado-sierra-1500/ rear https://www.suspensionlifts.com/shop/chevy-gmc/avalanche/2007-2013/shocks-2007-2013/07-14-chevygmc-avalanche-2wd-bilstein-5100-0-1-rear-lift-shocks/ All will fit for 2013 Chevrolet Tahoe  RWD
      18. Does this set work for an 09 tahoe 4x4
    18. 0 votes
      Q Does this set work for an 09 tahoe 4x4
      A yes will fit on the lowest notch adjustmen. please add to the order details "I need rear 24-187237 part number instead"
      A Front will fit the rear not We can offer for 09 Tahoe 4x4 front https://www.suspensionlifts.com/shop/chevy-gmc/silverado-1500/chevy-1500-14-18/shocks-chevy-1500-14-18/bilstein-5100-0-1-75-front-lift-assembled-coilovers-with-oe-replacement-coils-for-2007-2013-chevy-gmc-silverado-sierra-1500/ and rear https://www.suspensionlifts.com/shop/chevy-gmc/avalanche/2007-2013/shocks-2007-2013/07-14-chevygmc-avalanche-2wd-bilstein-5100-0-1-rear-lift-shocks/
