Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002-2009 Chevrolet Trailblazer

SKU: 2x24-267014-ASBS
5 out of 5 based on 1 customer rating
(1 customer review)
Sale!
Bilstein 5100 0-2.25 Front Lift Assembled Coilovers with 0-1 Rear Lift Shocks For 2002-2009 Chevrolet Trailblazer
Bilstein 5100 0-2.25 Front Lift Assembled Coilovers with 0-1 Rear Lift Shocks For 2002-2009 Chevrolet Trailblazer

Description
Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002-2009 Chevrolet Trailblazer

Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Chevrolet Trailblazer

Part: 2×24-267014_ASBS

Product Description:

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Suspension: Front: Coil Rear: Coil
Type: Nitrogen Gas Charged
Internal Design: Monotube
Adjustable: Yes
Rod Finish: Zinc Plated
Body Color: Silver
With Reservoir: No
Includes Boot: Yes
Quantity: Pair
Collapsed Length: (IN)11.26
Extended Length: (IN)16.41
Collapsed Length: (MM)286.1
Extended Length: (MM)416.9
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm

Features:

  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Practical Alternative To Coil Spring Spacers, With The Benefit Of BILSTEIN Monotube Technology
  • Adjustable Spring Perch For Vehicle Lift Up To 2.75 Inch
  • Increases Suspension Travel
  • Utilizes Vehicle’s Stock Front Coil Springs And OEM Mounting Hardware
  • Vehicle Specific Tuning
  • Limited Lifetime Warranty

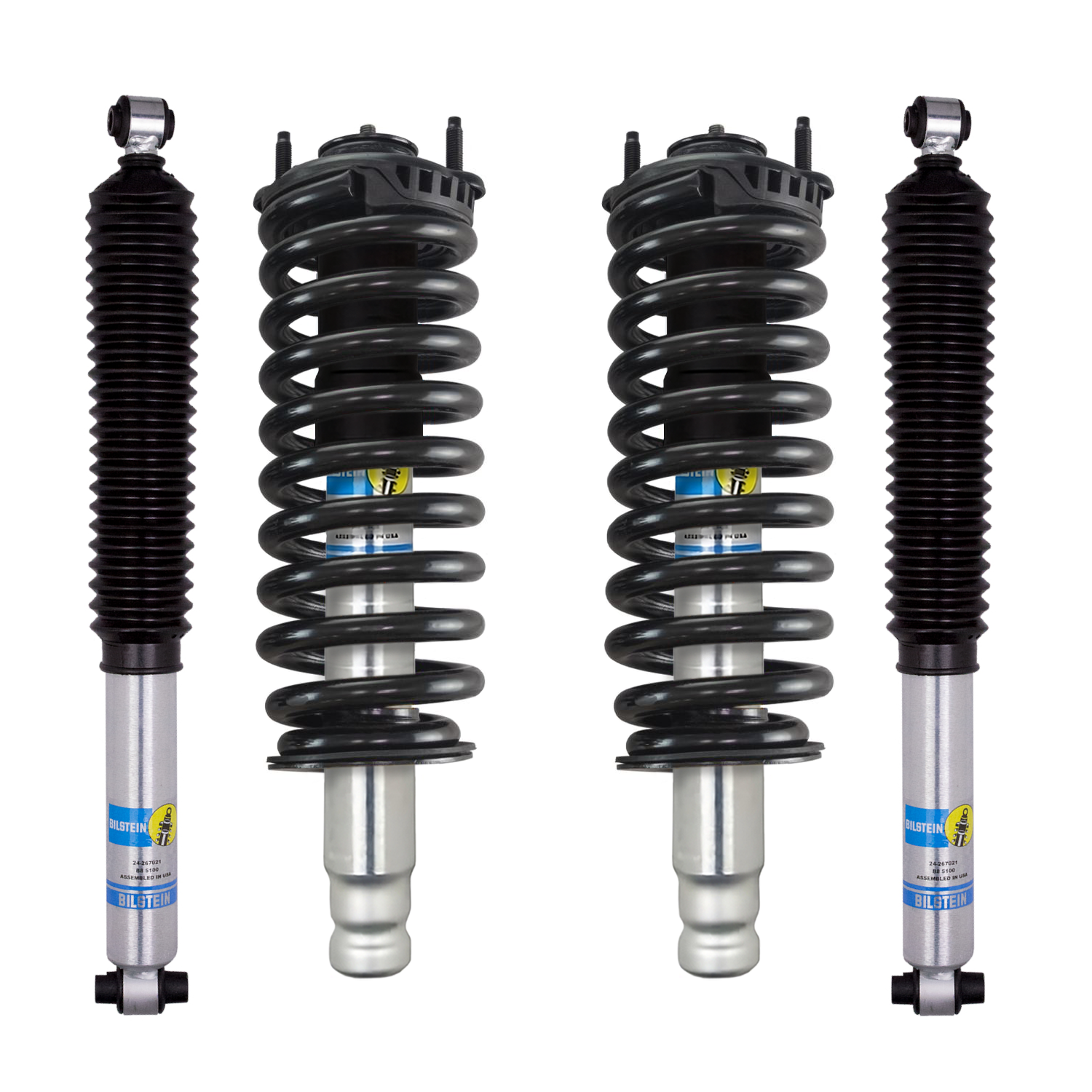

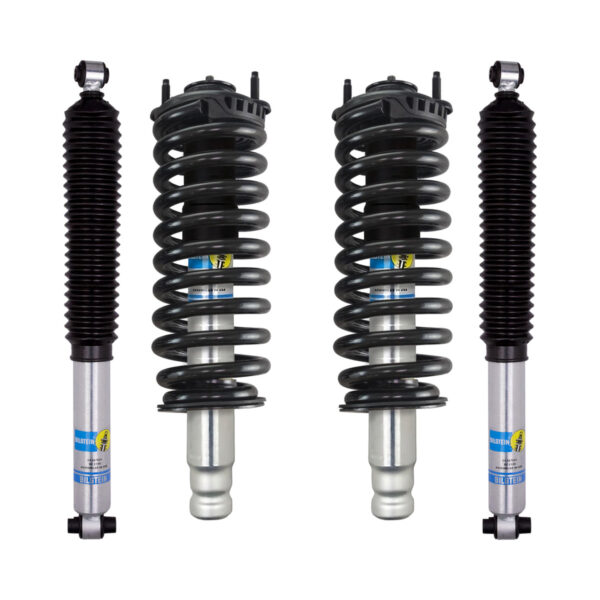

Includes Shocks exactly as pictured

Rear Shocks:

Part: Qty 2 of 24-267021

Product Description:

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Suspension: Front: Coil Rear: Coil
Collapsed Length: (IN)14.63
Extended Length: (IN)23.3
Collapsed Length: (MM)371.5
Extended Length: (MM)591.7
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Type: Gas Charged
Internal Design: Monotube
Adjustable: No
Upper Mounting Style: Loop
Lower Mounting Style: Loop
Body Color: Silver
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Quantity: Pair
Features:
  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Patented Digressive Valving Instantly Reacts To Changing Surface Conditions
  • OEM Certified Mounting Hardware Allows For Easy Installation
  • Zinc Plated For Resistance Against Harsh Elements
  • Durable Vulcanized Neoprene Rubber Bushings
  • Limited Lifetime Warranty

Includes Shocks exactly as pictured

Customer reviews

Rated 5 out of 5 stars
1 review
5 stars 1 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

1 review for Bilstein 5100 0-2.25″ Front Lift Assembled Coilovers with 0-1″ Rear Lift Shocks For 2002-2009 Chevrolet Trailblazer

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Hello from my understanding this kit provides a 1 inch lift in the rear standard, and a couple inch adjustment in the front? Correct? If so any idea what level setting would level out the vehicle with the added lift in the rear? Also what brand springs come on the front I could not find info in the description on them or the spring rate compared to stock? Thank you!
    1. 0 votes
      Q Hello from my understanding this kit provides a 1 inch lift in the rear standard, and a couple in...... Read more
      A Rear shocks can work with existing lift within 0-1" of the rear lift. Front coilovers can lift your truck automatically. Standard springs were used here. In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
      2. Can this trailblazer kit be ordered with rear shocks for 2 inch rear lift ?
    2. 0 votes
      Q Can this trailblazer kit be ordered with rear shocks for 2 inch rear lift ?
      A Unfortunately no
      3. Would this fit a 2002 gmc envoy
    3. 0 votes
      Q Would this fit a 2002 gmc envoy
      A yes, sure will fit
