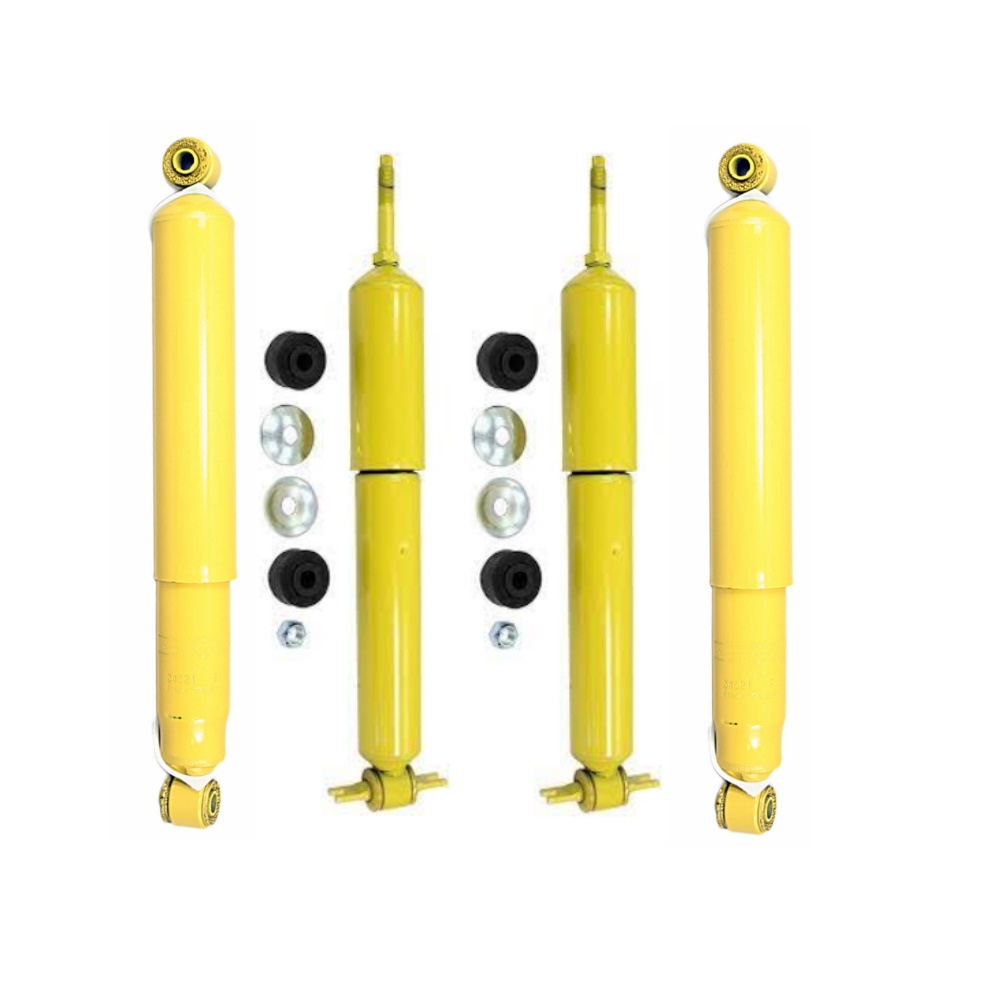

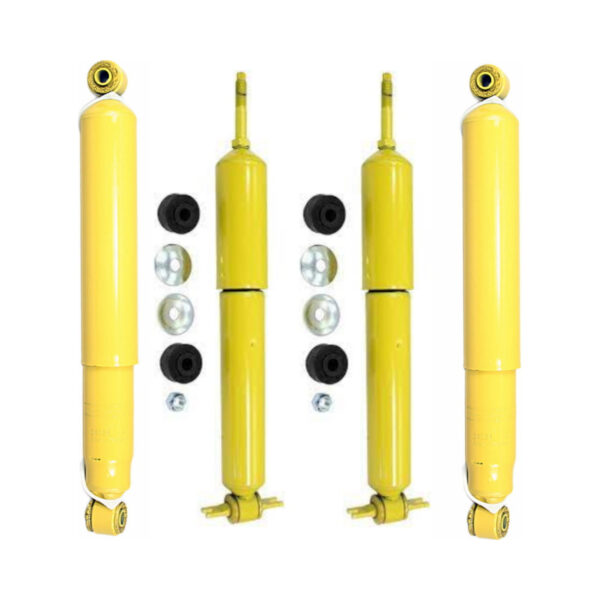

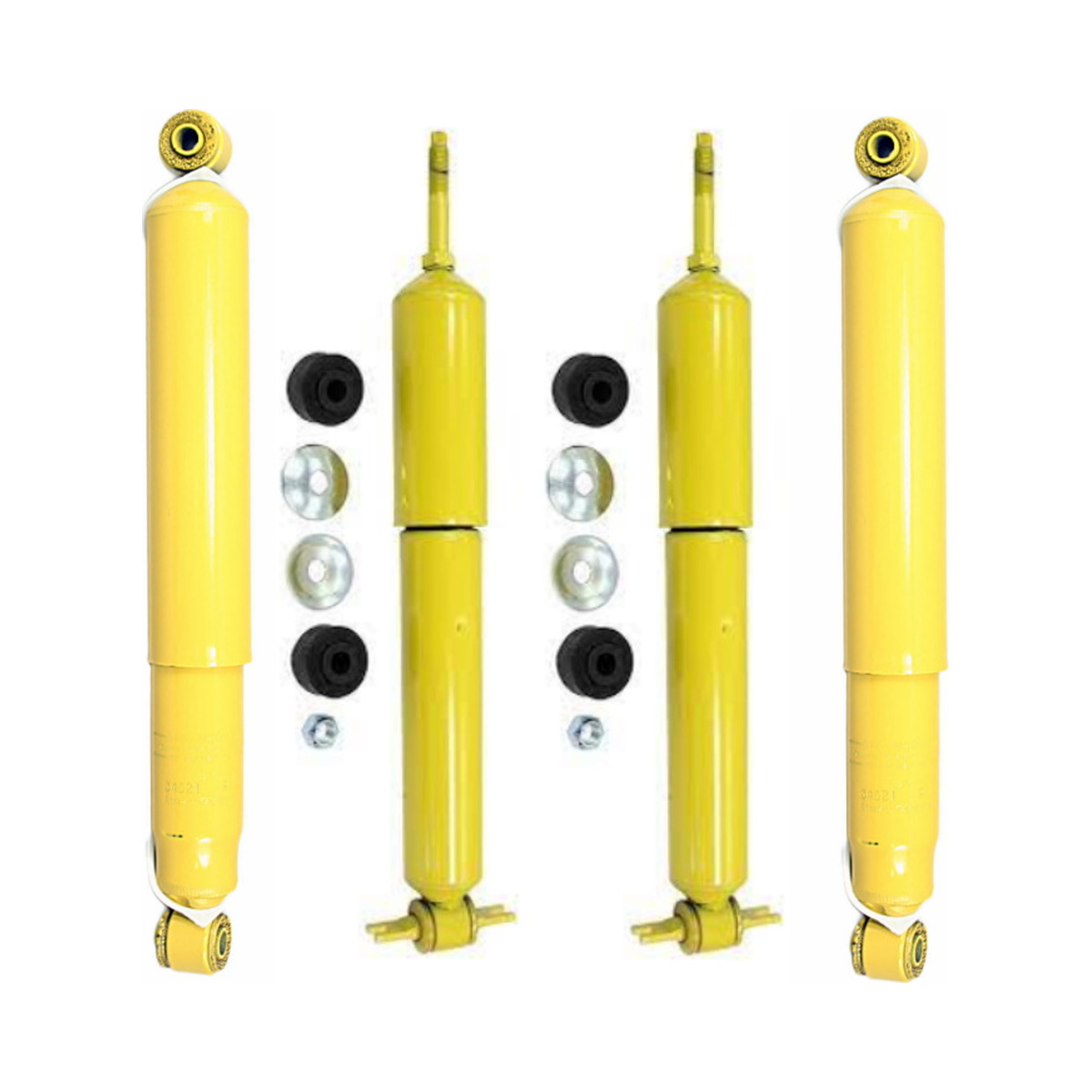

Monroe Gas-Magnum Front and Rear Shocks for 2006-2008 Dodge Ram 1500
Description
Monroe Gas-Magnum Front and Rear Shocks for 2006, 2007, 2008 Dodge Ram 1500
Part: 2x34520_2x34521
Also fit for 2012 Ram 1500
Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.
- DESIGNED FOR TRUCKS AND VANS — Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST — Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE — OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE — Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE — Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE — Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference Guarantee
Front Shock Absorber Dimensions
Compressed Length (IN)Â Â Â 11
Extended Length (IN)Â Â Â Â Â Â 16.375
Travel Length (IN)Â Â Â Â Â Â Â Â Â 5.375
Lower Mount Type        Cross Pin Mount – Open Ended, 3/8″ Hole ID (Both Ends) X 3.3/16″ Pin Length (Hole Center To Center)
Lower Mount Code        XP12
Upper Mount Type        Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch
Upper Mount Code        S5
Dust Shield Included       Yes
Dust Shield Material       Metal
Includes Bump Stop        No
Hydraulic Lockout         No
Gas Charged               Yes
Parts Pack(S)Â Â Â Â Â Â Â Â Â Â Â Â Â Â P01167
Part Description            Shock Absorber
Internal Rebound Bumper   Yes
Rear Shock Absorber Dimensions
Compressed Length (IN)Â Â Â 16.5
Extended Length (IN)Â Â Â Â Â Â 27.5
Travel Length (IN)Â Â Â Â Â Â Â Â Â 11
Lower Mount Type         Loop Bushing And Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Lower Mount Code         LS47
Upper Mount Type          Loop Bushing And Sleeve Mount – 9/16″ Sleeve ID X 1.5/8″ Sleeve OAL
Upper Mount Code          LS47
Dust Shield Included        Yes
Dust Shield Material         Metal
Includes Bump Stop         No
Hydraulic Lockout           No
Gas Charged                Yes
Parts Pack(S)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â None
Part Description             Shock Absorber
Internal Rebound Bumper    No
