Bilstein 5100 0-2.75″ Front Assembled Coilovers and 0-1″ Rear Lift Shocks 2009-2010 Dodge Ram 1500 4WD

Description
Bilstein 5100 0-2.75″ Front Assembled Coilovers and 0-1″ Rear Lift Shocks 2009-2010 Dodge Ram 1500 4WD

Bilstein 5100 0-2.75″ Front Lift Pre-Assembled Coilovers + 0-1″ Rear Lift Shocks – 2009-2010 Dodge Ram 1500 4WD

Part: B5100DR09S

Level your 2009-2010 Dodge Ram 1500 4WD with a matched front and rear Bilstein 5100 package. The front Bilstein 5100 ride-height-adjustable struts arrive fully assembled with OE-style replacement coils and new top mounts, so you skip the spring compressor and get a true bolt-on install. Rear 5100 shocks are valved and sized for 0-1″ rear lift components, giving you a balanced stance and controlled ride on and off road.

Need front assembled coilovers only?
Bilstein 5100 0-2.75″ Front Assembled Coilovers – 2009-2010 Dodge Ram 1500 4WD

Want shocks only and plan to reuse your front coils/mounts?
Bilstein 5100 0-2.75″ Front 0-1″ Rear Lift Shocks – 2009-2010 Dodge Ram 1500 4WD

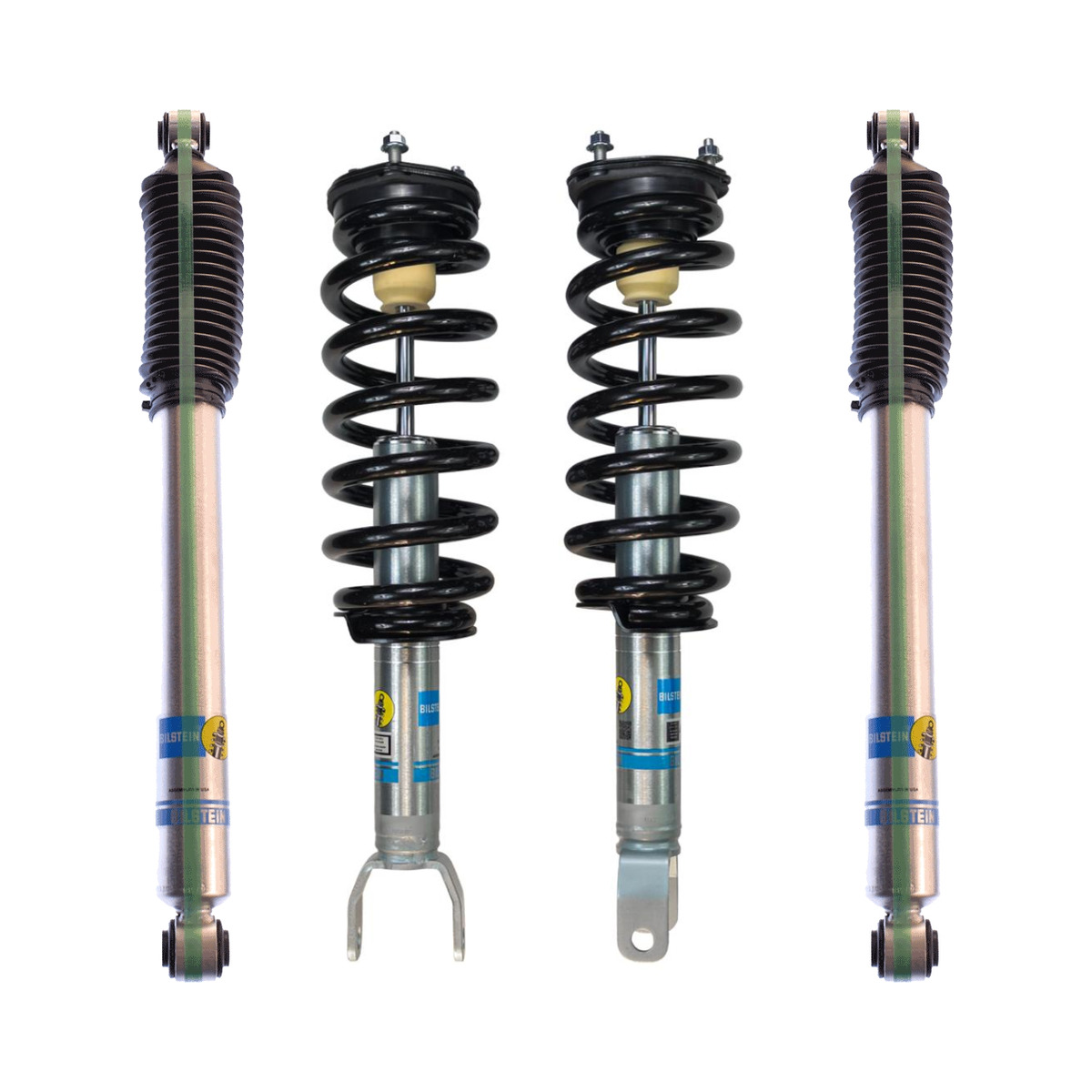

What’s Included

• Front: 2 x Bilstein 5100 ride-height-adjustable struts 24-317887, pre-assembled with:
  • OE-style replacement coil springs
  • New top mounts and insulators
  • New bump stops and dust covers
  • New mounting hardware
• Rear: 2 x Bilstein 5100 shocks 24-187374 for 0-1″ rear lift components

Front Perch Settings

• Clip 5: approx. 2.8″ front lift
• Clip 4: approx. 2.1″ front lift
• Clip 3: approx. 1.4″ front lift
• Clip 2: approx. 0.7″ front lift
• Clip 1: 0″ stock height

Actual lift will vary based on vehicle weight, bumper or winch, accessories, and spring wear.

Why You’ll Like It

• No spring compressor needed – front coilovers come fully assembled and ready to bolt in
• Adjustable 0-2.75″ front lift – dial in a level stance or mild lift for tire clearance
• Bilstein 5100 performance – 46 mm monotube design with digressive valving
• Better control with OE-style comfort – tighter body control while keeping daily ride quality
• Matched rear shocks – 5100 rears are sized for stock height to 1″ rear lift components

Front Shock Specs – 24-317887

• Series: Bilstein 5100
• Extended length: 21.40 in
• Collapsed length: 15.12 in
• Design: snap-ring grooved body, monotube, nitrogen gas-charged
• Piston diameter: 46 mm

Rear Shock Specs – 24-187374

• Series: Bilstein 5100
• Extended length: 26.73 in
• Collapsed length: 16.75 in
• Design: smooth body, monotube, nitrogen gas-charged
• Piston diameter: 46 mm
• Rear lift support: 0-1″ rear lift components – shocks do not add lift by themselves

Fitment

• Vehicle: Dodge Ram 1500
• Model years: 2009, 2010
• Drivetrain: 4WD only
• Front height range: adjustable 0-2.75″
• Rear height range: shocks designed for 0-1″ rear lift components

Processing Time

• Coilover assembly time: typically 3-9 business days

Technical Notes

• Multiple snap-ring grooves on the front strut body set the spring seat height within the stated 0-2.75″ range
• Monotube design with self-adjusting deflective-disc valving improves handling and ride control
• Professional alignment is required after installation
• Tire clearance depends on wheel width and offset – always verify after install

FAQ

Do these come assembled?
Yes. The front coilovers are fully assembled with new coils, top mounts, bump stops, dust covers, and hardware. You do not need a spring compressor.

Which clip should I choose?
Most customers start around Clip 2 or Clip 3 to get a near-level stance with stock rear height. If you have extra front weight, such as a bumper or winch, you may need a higher clip to achieve the same look.

Will the rear shocks lift my truck?
No. The rear Bilstein 5100 shocks are sized and valved to work with 0-1″ rear lift springs or spacers. They do not add height by themselves.

Does this fit my 2009-2010 Dodge Ram 1500?
This kit is for 2009-2010 Dodge Ram 1500 4WD trucks with standard front coilover suspension.
