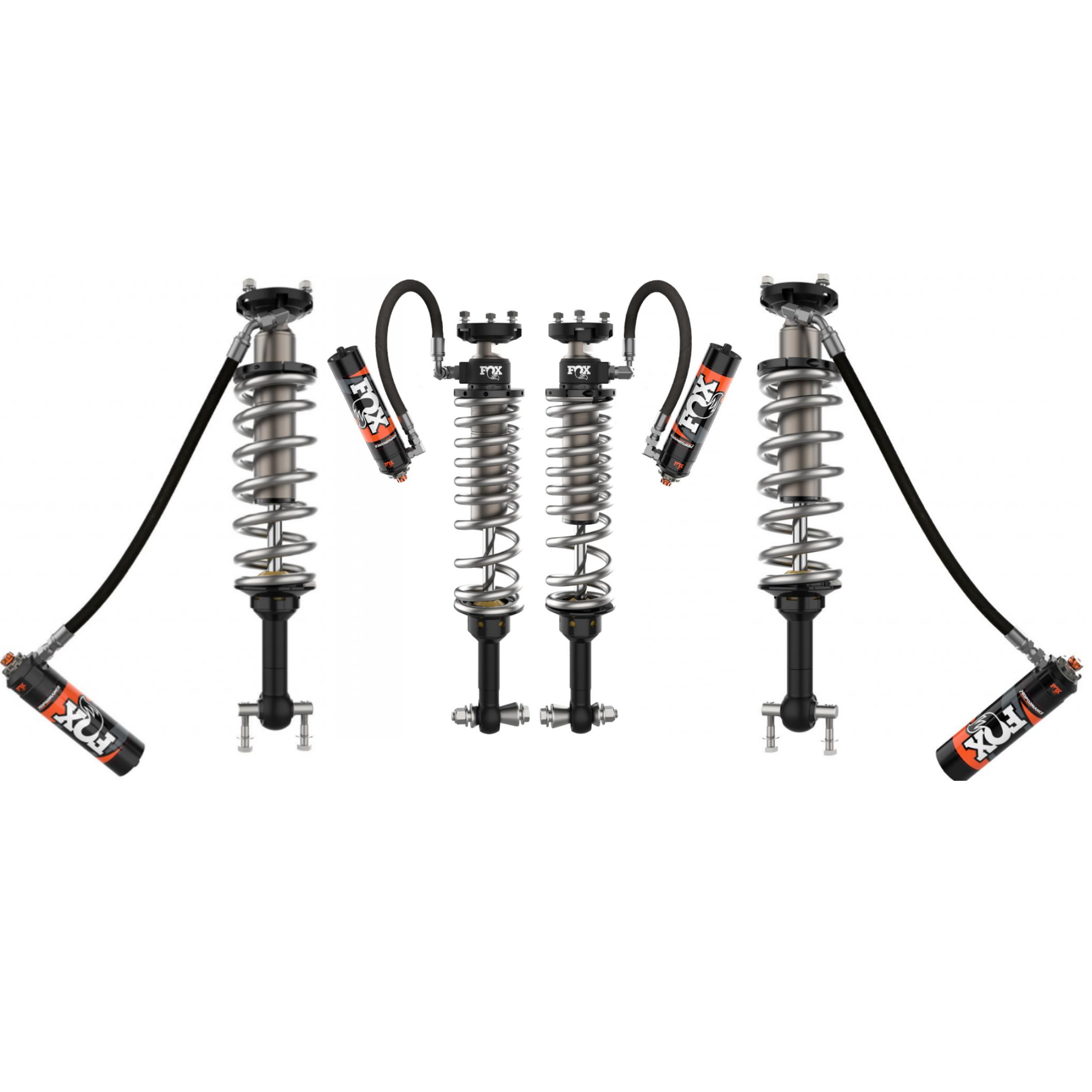

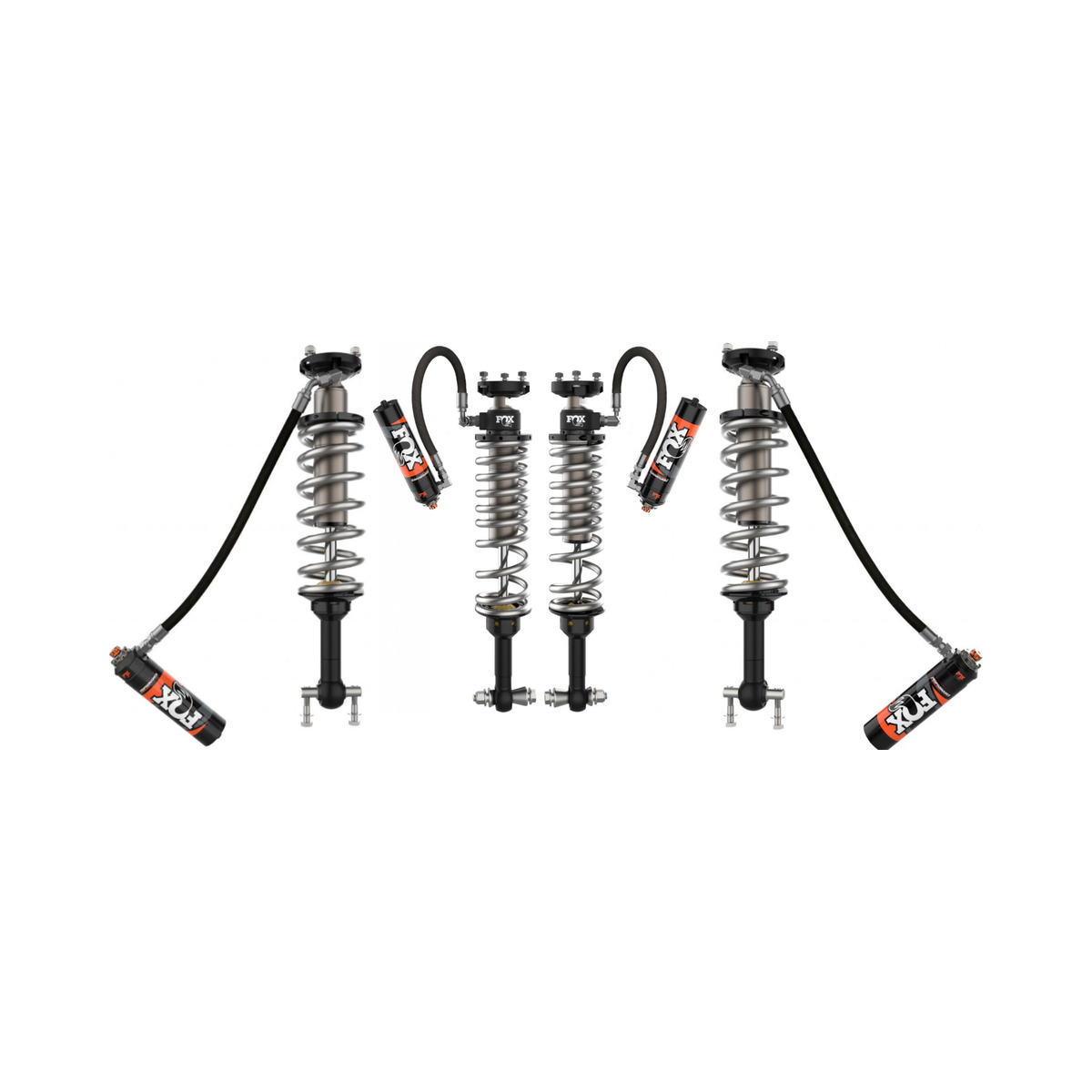

Fox Perf 2.5 Elite Series 3-4″ Front and 2-3″ Rear Lift Coilovers for 2021-2024 Ford Bronco 2WD/4WD 4Door

Description
Fox Perf 2.5 Elite Series 3-4″ Front and 2-3″ Rear Lift Coilovers for 2021-2024 Ford Bronco 2WD/4WD 4Door

Fox Perf 2.5 Elite Series 3-4 inches Front and 2-3 inches Rear Lift Coilovers for 2021-2024 Ford Bronco 4Door

Part Number: 883-06-212_883-06-213

Summary: The FOX Performance Elite 2.5 Series is engineered for the Ford Bronco to enhance comfort and maximize articulation during off-road use. These coilovers utilize Dual Speed Compression (DSC) adjusters, allowing users to tune the suspension for specific loads, environments, and driving styles. By combining 2.5-inch aluminum bodies with external reservoirs, this system manages heat efficiently for consistent control across varied terrain.

Features

• Dual Speed Compression (DSC): Remote reservoirs with DSC adjusters provide user-tunable damping for load and environment to ensure stability through all types of terrain.
• Aluminum Body: 2.5 inches Impact extruded 6061-T6 hard anodized aluminum provides rust resistance and heat dissipation to ensure consistent performance over time.
• Progressive Springs: Application-specific custom springs provide extra clearance and movement to ensure the Bronco’s entire range of usable travel is unlocked.
• External Reservoir: 2.5 inches Smooth bore seamless alloy reservoirs provide increased oil capacity to ensure efficient heat management and fade resistance.
• Hard Chrome Shafts: 7/8 inches hard chrome plated steel shafts provide a durable surface to ensure long-term seal integrity.

Technical Specifications

Fitment

• 2021-2024 Ford Bronco
• Note: 3-4 inches Lift on Bronco without Sasquatch Package 4Door. Requires Upper Control Arm.

What’s Included

• Includes Full Set (See Below)
• (2) 3 inches Front Coilovers
• (2) 2 inches Rear Coilovers
• Remote Reservoirs with DSC Adjusters

Why Choose This Product?

• Engineering Advantage: The integration of Dual Speed Compression (DSC) adjusters and 2.5-inch aluminum bodies allows for high-capacity damping and precise manual tuning that standard shocks cannot offer.
• Performance Benefit: Drivers gain the versatility to navigate backcountry terrain on weekends while maintaining a comfortable and controlled daily commute.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows you to manually adapt your shocks for different loads and driving styles by controlling the damping settings.

Are these coilovers compatible with the Sasquatch Package?
The provided data specifies these are for the Bronco 4-Door without the Sasquatch Package to achieve the 3-4 inches lift height.

Do I need any other parts for installation?
Yes, the manufacturer states that an Upper Control Arm (UCA) is required for this coilover installation.
