Total Chaos UCAs for Ford 2004-2008 F150 4WD/2WD

Description

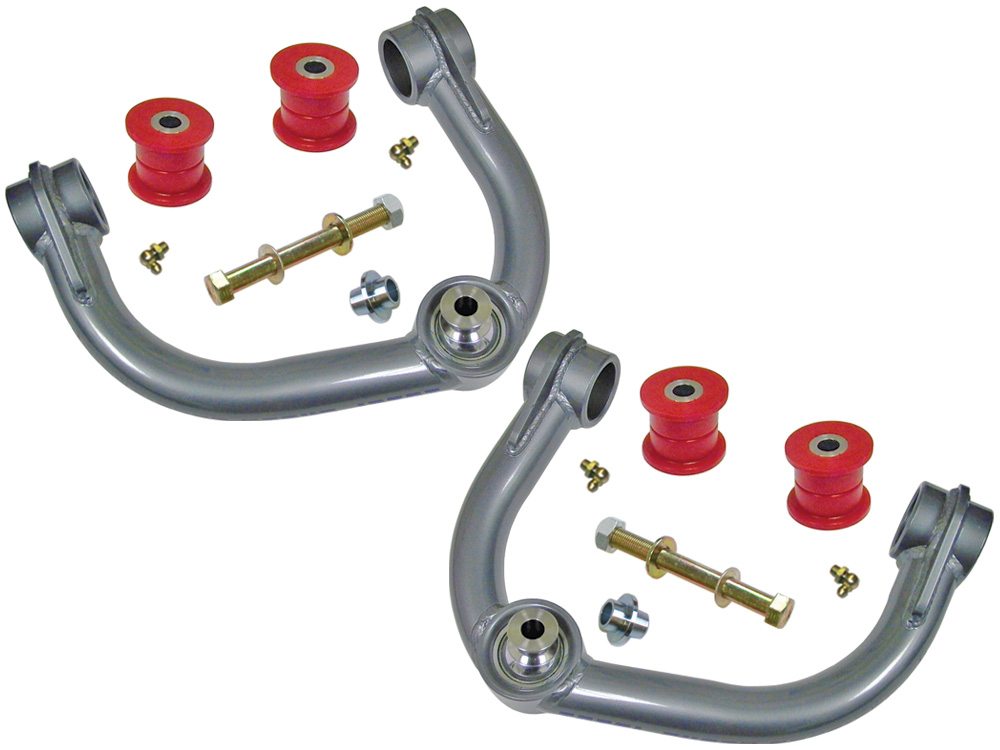

Total Chaos UCAs for Ford 2004-2008 F150 4WD/2WD

Fits Ford F150 4WD/2WD 2004, 2005, 2006, 2007, 2008

Part: TCFUCA0408 or 80501

• 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.
• CNC machined tapered spindle adapters convert the factory ball joint to a 1″ uniball for added component strength & maximum wheel travel.
• TOTAL CHAOS includes 1″ I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball’s also features a military grade PTFE woven fabric liner that helps prevent noise.
• Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.
• Upper control arms combined with extended length coil over shocks will allow for up to 1″ of additional wheel travel.
• Urethane bushings reduce bushing deflection compared to stock rubber bushings.
• Control arm pivots include zerk fittings to grease the urethane bushings & inner sleeves without disassembly.
• 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Complete grade 8 hardware kit is included.

Kit Includes: Upper Control Arms, Urethane Bushings, Inner Sleeves, Tapered Spindle Adapters, 1″ I.D. Stainless Steel Uniballs, Upper & Lower Hi-Misalignment Spacers, Grade 8 Mounting Hardware

OPTIONAL HEIM PIVOT UPGRADE

• TC includes 3/4″ chromoly heim joints for the pivots.
• Heim upper control arms are fully adjustable to allow maximum tuning of caster and camber. Shipped preset to O.E. location.
• Designed for vehicles with a 6″ or higher drop bracket lift kit.
• *Not compatible with lift kits from RIZE Industries.
