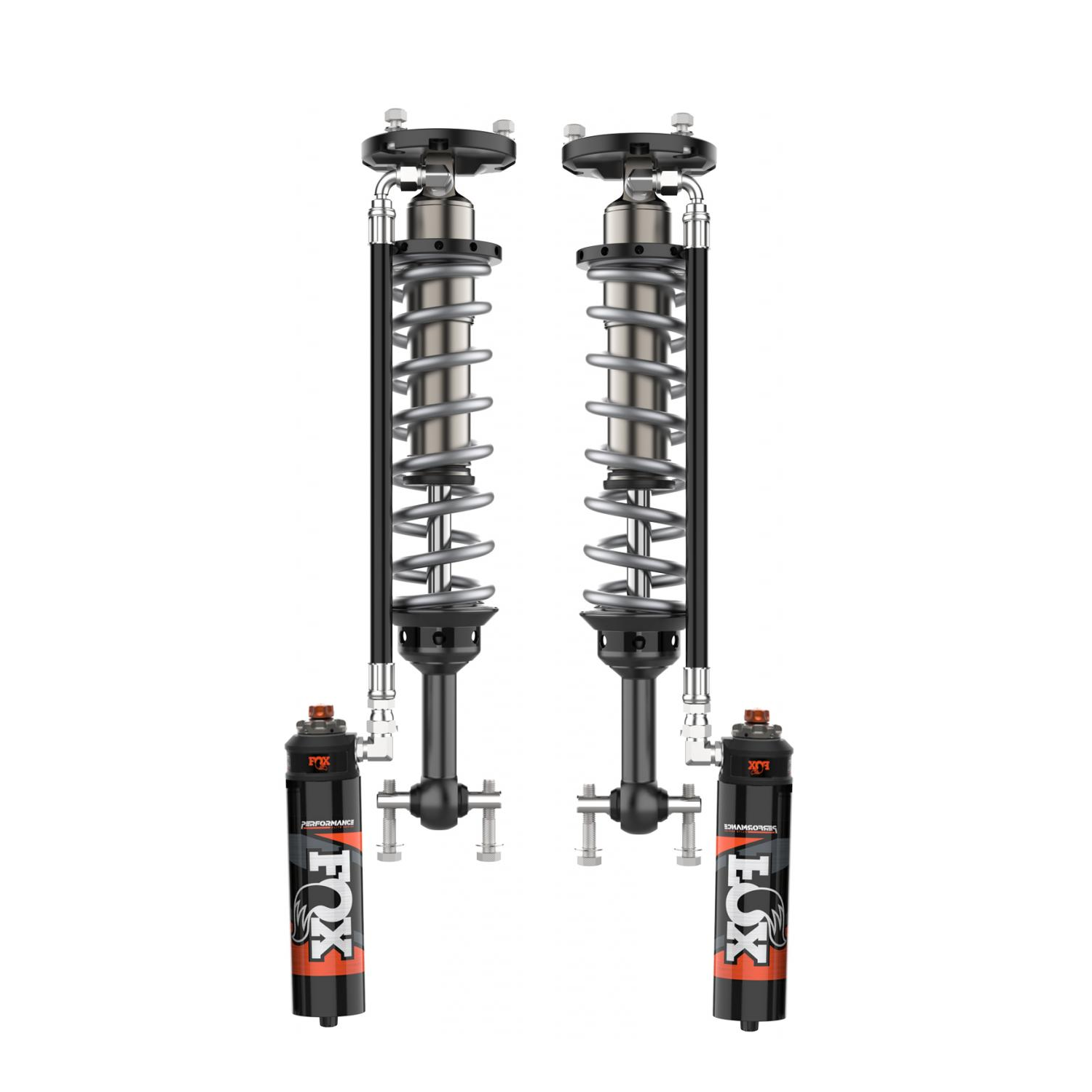

Fox 2.5 Perf Elite Series 0-2″ Front Lift Reservoir Adjustable Coilovers for 2015-2020 Ford F-150 4WD

Description
Fox 2.5 Perf Elite Series 0-2″ Front Lift Reservoir Adjustable Coilovers for 2015-2020 Ford F-150 4WD

Fox 2.5 Perf Elite Series 0-2 inches Front Lift Reservoir Adjustable Coilovers for 2015-2020 Ford F-150 4WD

Part Number: 883-06-181

Summary: The FOX Performance Elite Series 2.5 coilovers are engineered to improve the 13th generation Ford F-150 4WD platform by providing a level ride height and increasing suspension articulation. These coilovers utilize external reservoirs and Dual Speed Compression (DSC) adjusters to manage heat and allow for precise tuning based on load and terrain. The 2.5-inch aluminum bodies feature Type III anodization to prevent corrosion while delivering consistent damping forces for both off-road navigation and on-road comfort.

Features

• Dual Speed Compression (DSC) Adjuster: A 2.5 inches smooth bore and honed seamless alloy reservoir with DSC provides user-tunable damping to ensure the vehicle can quickly adapt for load, environment, and driving style.
• Aluminum Body: 2.5 inches impact extruded and CNC machined 6061-T6 Type III anodized aluminum provides high-strength cooling and corrosion resistance to ensure long-term durability and wear protection.
• External Reservoir: An external oil reservoir increases oil capacity and removes dead space from the shock body to ensure cooler shock temperatures and decreased harshness associated with nitrogen ramp-up.
• Hard Chrome-Plated Steel Shafts: 7/8 inches shafts provide heavy-duty strength and resistance to damage to ensure reliable performance under various activities.
• Redundant Sealing Pack System: A multi-stage system including a main seal, wiper seal, and scraper seal provides superior protection against contaminants to ensure internal components remain clean.

Technical Specifications

Fitment

• 2015-2020 Ford F-150 4WD
• Note: Designed to eliminate forward rake and provide a level ride height. DSC adjusters are strategically mounted to eliminate interference with aggressive tires at full lock.

What’s Included

• Sold Individually
• Includes Application-specific springs
• Includes External Reservoirs with DSC Adjusters

Why Choose This Product?

• Engineering Advantage: The combination of a 2.5-inch Type III anodized aluminum body and Dual Speed Compression (DSC) technology allows for superior heat management and high-flow piston stability across diverse terrains.
• Performance Benefit: Drivers gain the versatility to navigate rough off-road environments while maintaining comfortable, controlled on-road manners and improved suspension articulation.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows you to quickly adapt the shocks for specific loads, environments, and driving styles by tuning the damping performance.

How much lift do these coilovers provide?
These coilovers are designed to provide 0-2 inches of front lift, helping to eliminate the factory forward rake and level the vehicle’s stance.

How does the external reservoir improve performance?
The external reservoir increases oil capacity and removes dead space from the shock body, which results in cooler operating temperatures and more consistent damping forces.
