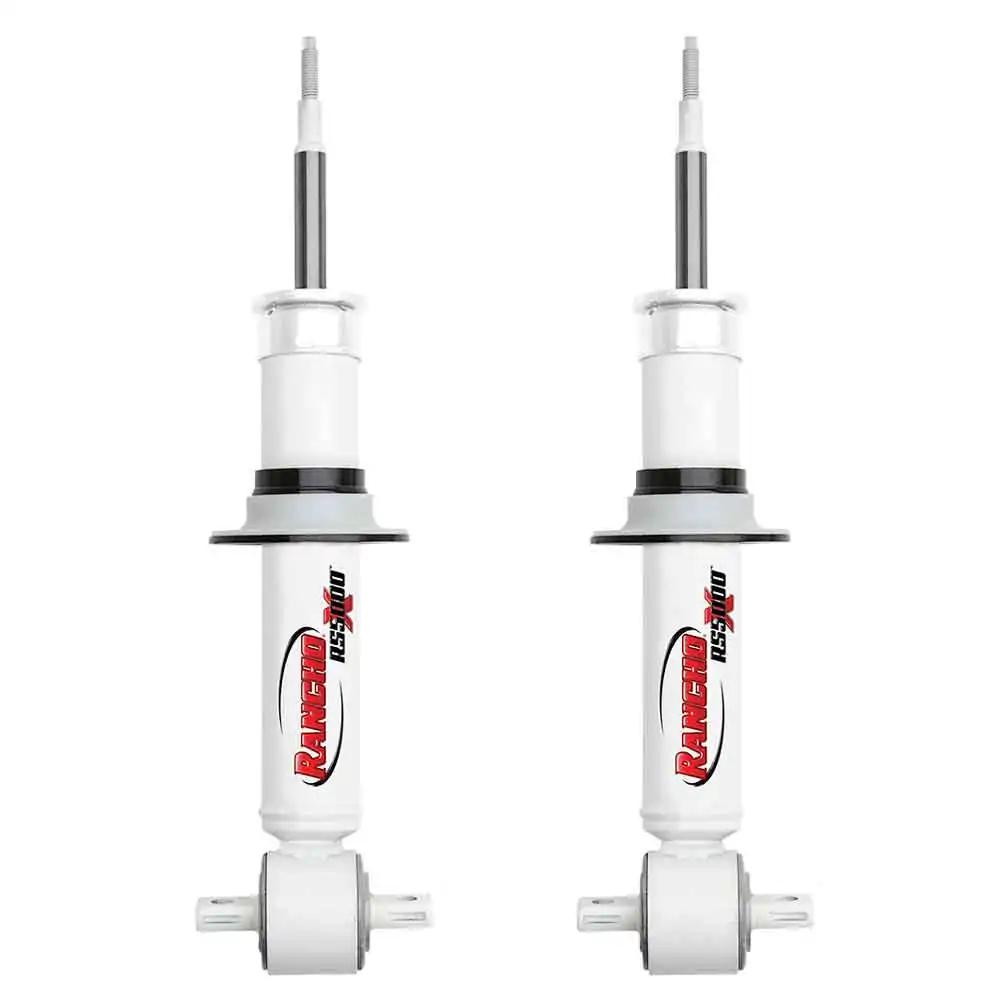

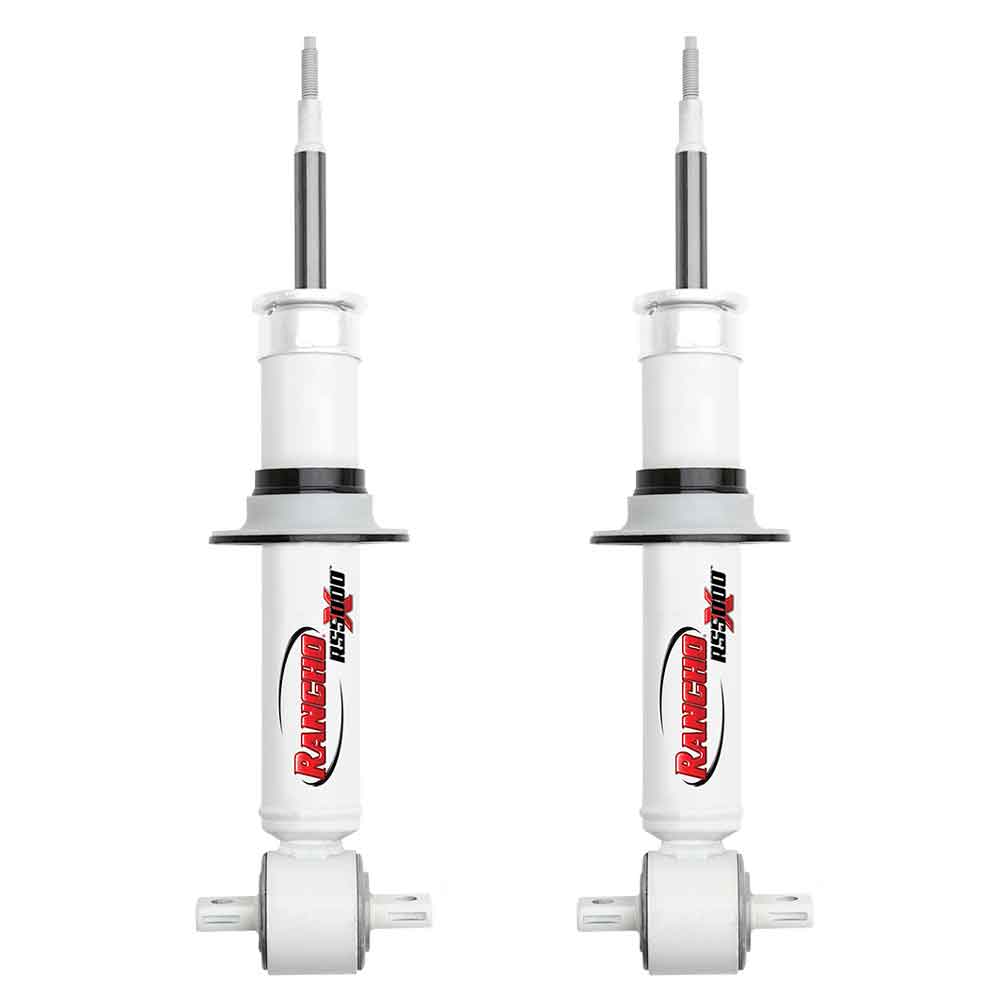

Rancho RS5000X 4.5″ Front Lift Shocks for 2015-2016 Ford F-150 4WD

Description
Rancho RS5000X 4.5″ Front Lift Shocks for 2015-2016 Ford F-150 4WD

Rancho RS5000X 4.5″ Front Lift Shocks for 2015-2016 Ford F-150 4WD

Part Number: RS55838

Summary: The Rancho RS5000X series utilizes a patented progressive engagement valving system to deliver a smooth, controlled ride for your lifted Ford F-150. Engineered with a rugged twin-tube design, these shocks provide exceptional durability and dent resistance during off-road excursions. Configured for 4.5-inch lift heights, they solve the problem of poor ride quality and limited travel often found in lifted applications by optimizing the damping curve for both street comfort and trail stability.

Features

• Progressive Engagement Valving: Custom-tuned internal discs provide early flow at low speeds to ensure a smooth, comfortable ride on paved surfaces.
• Twin-Tube Gas Pressure Design: The 2.25-inch reserve tube provides increased oil capacity to ensure consistent performance and reduced shock fade under load.
• Nitro-Carburized Piston Rod: A 16mm heavy-duty rod construction provides superior corrosion resistance to ensure long-term seal integrity in harsh environments.
• Polyurethane Bushings: High-performance mounting material provides enhanced durability and vibration dampening to ensure a quiet, rattle-free driving experience.

Technical Specifications

Fitment

• 2015-2016 Ford F-150 4WD
• Note: For use with Rancho Suspension systems.

What’s Included

• Includes 2 Shocks
• Mounting Hardware
• Protective Shock Boots

Why Choose This Product?

• Engineering Advantage: Rancho’s Cross-Tuned technology balances the internal forces of the shock to prevent aeration, a common failure point in standard twin-tube shocks.
• Performance Benefit: Drivers experience reduced body roll and improved towing stability without the harshness associated with high-pressure monotube designs.

Related Products

RS90000XL (Rear):
Rancho RS90000XL 4.5" Rear Lift Shocks for 2015-2016 Ford F-150 4WD

RS90000XL (Front):
Rancho RS90000XL 4.5" Front Lift Shocks for 2015-2016 Ford F-150 4WD

RS90000XL (Kit):
Rancho RS90000XL 4.5" Lift Shocks for 2015-2016 Ford F-150 4WD

Frequently Asked Questions

Will these shocks lift my Ford F-150?
No, these shocks do not create lift. They are specifically configured for vehicles already equipped with a 4.5-inch lift kit to ensure proper suspension travel.

What is the benefit of the RS5000X over a standard shock?
The RS5000X features a larger 2.25-inch body and progressive valving, which provides better heat dissipation and a more refined ride compared to stock replacements.

Do I need to purchase boots separately?
No, these shocks include protective boots to shield the piston rod from dirt, debris, and moisture.
