Fox Factory Race 3.0 Internal Bypass 2.5″ Front Lift Res. Adj. Coilovers, 0-1″ Rear Lift Piggyback Res. Adj. Shocks for 2021-2025 Ford F-150

Description
Fox Factory Race 3.0 Internal Bypass 2.5″ Front Lift Res. Adj. Coilovers, 0-1″ Rear Lift Piggyback Res. Adj. Shocks for 2021-2025 Ford F-150

Fox Factory Race Series 3.0 Internal Bypass 2.5 inches Front Lift Reservoir Adjustable Coilovers with 0-1 inches Rear Lift Piggyback Reservoir Adjustable Shocks for 2021-2025 Ford F-150

Part Number: 883-06-191

Summary: The FOX Factory Race Series 3.0 Internal Bypass system provides the 14th generation Ford F-150 with race-bred damping technology and high-speed performance. This kit utilizes patented Internal Bypass technology to deliver position-sensitive damping, ensuring a comfortable ride that progressively firms up to handle hard bottom-outs and rough terrain. Equipped with Dual Speed Compression (DSC) adjusters and recirculating reservoirs, these shocks are engineered to maintain cool operating temperatures and consistent performance during aggressive off-road use.

Features

• Internal Bypass Technology: Patented position-sensitive design provides multiple zones of damping control to ensure a comfortable ride with increased force through rough terrain.
• Dual Speed Compression (DSC): External DSC adjusters provide user-tunable compression settings to ensure the vehicle is dialed in for specific loads, environments, and driving styles.
• Recirculating Reservoir Bridge: Checked ports circulate shock fluid between the finned external reservoir and the 3-inch aluminum body to ensure shock temperatures stay cool.
• Hard-Anodized Aluminum Body: 3.0 inches impact extruded and CNC machined 6061-T6 aluminum with Type III anodization provides corrosion resistance to ensure long-term durability.
• Redundant Sealing Pack: A specialized system including a main seal, wiper seal, and scraper seal provides maximum protection to ensure internal components remain free of debris.

Technical Specifications

Fitment

• 2021-2025 Ford F-150
• Note: Fitment notes: 1 inches lift on Tremor.

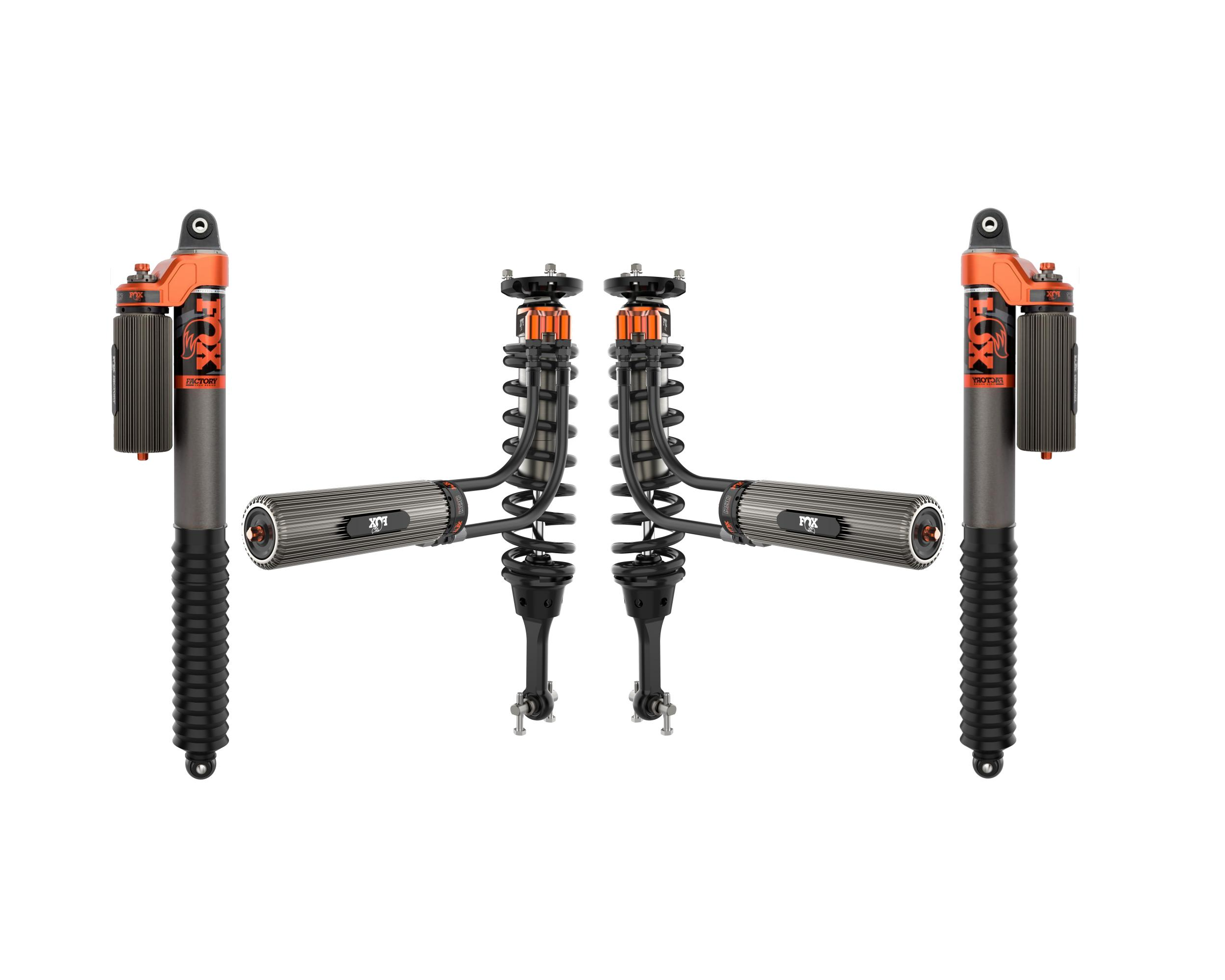

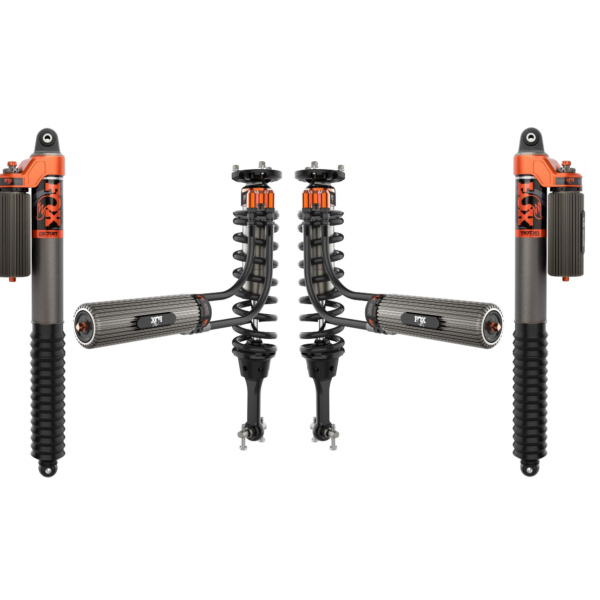

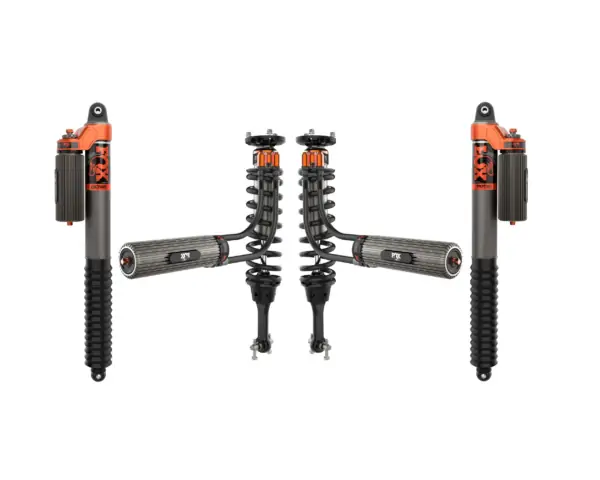

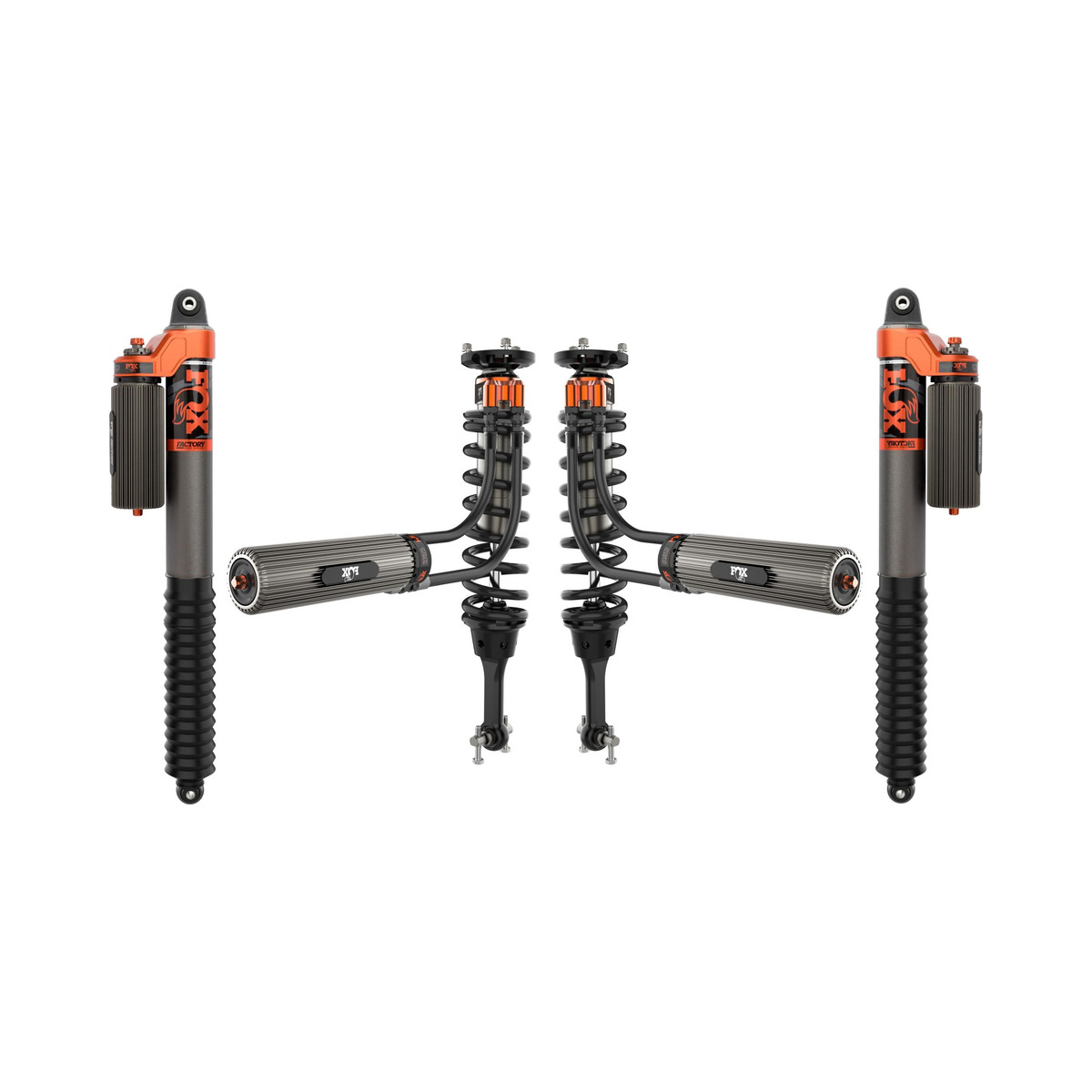

What’s Included

• Includes Full Set (See Below)
• Front 3.0 Internal Bypass Coilovers
• Rear 3.0 Internal Bypass Shocks
• Finned Reservoirs with DSC Adjusters
• Rear shaft guards

Why Choose This Product?

• Engineering Advantage: The combination of Internal Bypass technology and a Recirculating Reservoir Bridge allows the shock to manage heat and damping force simultaneously, bypassing fluid in the ride zone and forcing it through the main piston during deep suspension cycles.
• Performance Benefit: Drivers gain the ability to manually tune their suspension for high-speed desert running or heavy loads while maintaining a plush, controlled feel on the street.

Frequently Asked Questions

What does the Internal Bypass technology do?
It allows shock fluid to bypass the main piston through bleed holes during normal driving for comfort, while terminating those holes during deep compression to prevent bottoming out.

Can I adjust these shocks for different driving conditions?
Yes, the Dual Speed Compression (DSC) adjusters allow you to dial in the damping based on your specific environment, load, and driving style.

How do these shocks stay cool during high-speed use?
They utilize a Recirculating Reservoir Bridge and finned external reservoirs to circulate and dissipate heat more effectively than standard shock designs.
