Bilstein 5100 2-2.5″ Front, 0-1″ Rear Lift Shocks for 2017-2025 Ford F-250 4WD

Description
Bilstein 5100 2-2.5″ Front, 0-1″ Rear Lift Shocks for 2017-2025 Ford F-250 4WD

Bilstein B8 5100 2-2.5 inch Front, 0-1 inch Rear Lift Shocks for 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ford F-250 4WD

Built for leveled Super Duty trucks that still tow, haul, and see real backroads.
Bilstein B8 5100 shocks are a direct-fit upgrade for 2017-2025 Ford F-250 4WD models running a 2 to 2.5 inch front leveling kit and a stock or mildly lifted rear. Expect tighter control, reduced float, and better stability under load compared to factory dampers.

Need a kit with a steering stabilizer?

Bilstein 5100 2-2.5 inch Front, 0-1 inch Rear Lift Shocks with Steering Stabilizer for 2017-2025 Ford F-250 4WD

Kit Includes: 2 front shocks for 2 to 2.5 inch front lift height, plus 2 rear shocks for 0 to 1 inch rear lift height.

Target Vehicle Setup

• 2017-2025 Ford F-250 4WD
• Designed for trucks with a 2 to 2.5 inch front leveling lift (via suspension components)
• Rear compatible with stock height to 1 inch rear lift
• Non-adjustable damping, factory tuned by Bilstein

Bilstein 5100 Series Overview

Bilstein B8 5100 shocks use a high-pressure monotube design with a velocity-sensitive digressive piston. That combination delivers consistent damping control with less fade, especially on HD trucks that see towing, payload, and rough surfaces. Each application is valved specifically for the Super Duty platform to improve ride stability without turning the truck into a harsh-riding brick.

• Monotube design for consistent, fade-resistant performance
• Digressive valving for improved control and ride comfort
• Zinc-plated components for corrosion resistance
• Boot included
• Limited lifetime warranty (Bilstein)

Front Shock Details

• Series: Bilstein B8 5100
• Front Extended Length: 21.22 in
• Front Collapsed Length: 13.46 in
• Part Number: 24-274951
• Fitment Note: For front lifted height of 2 to 2.5 inches

Important: These shocks do not create lift by themselves. They are sized and valved to work correctly with existing front lift or leveling components.

Rear Shock Details

• Series: Bilstein B8 5100
• Part Number: 24-274968
• Type: Gas charged monotube shock
• Adjustable: No
• Rod Finish: Zinc plated
• Boot Included: Yes
• Mounting Style: Eyelet upper, eyelet lower
• Body Design: 46mm ID smooth body (non-coilover)
• Reservoir: No
• Bilstein Travel Length: 12.36 in
• Rear Fitment Note: Sized for stock to 1 inch rear lift

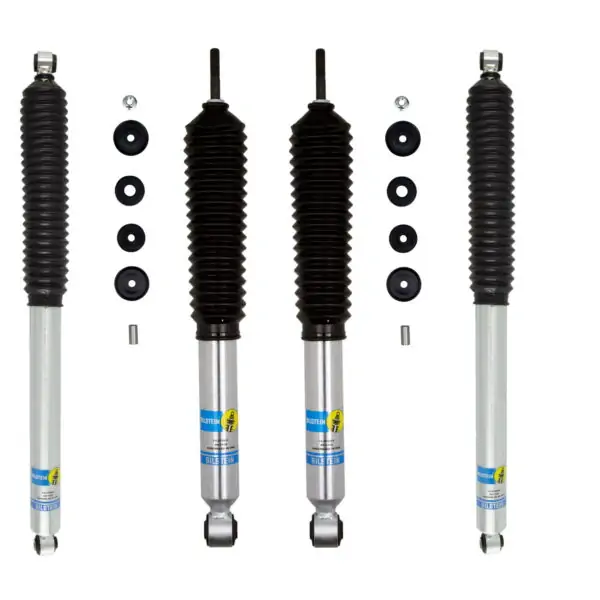

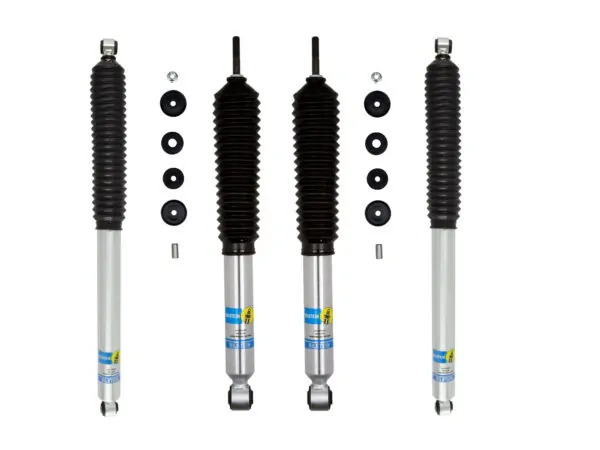

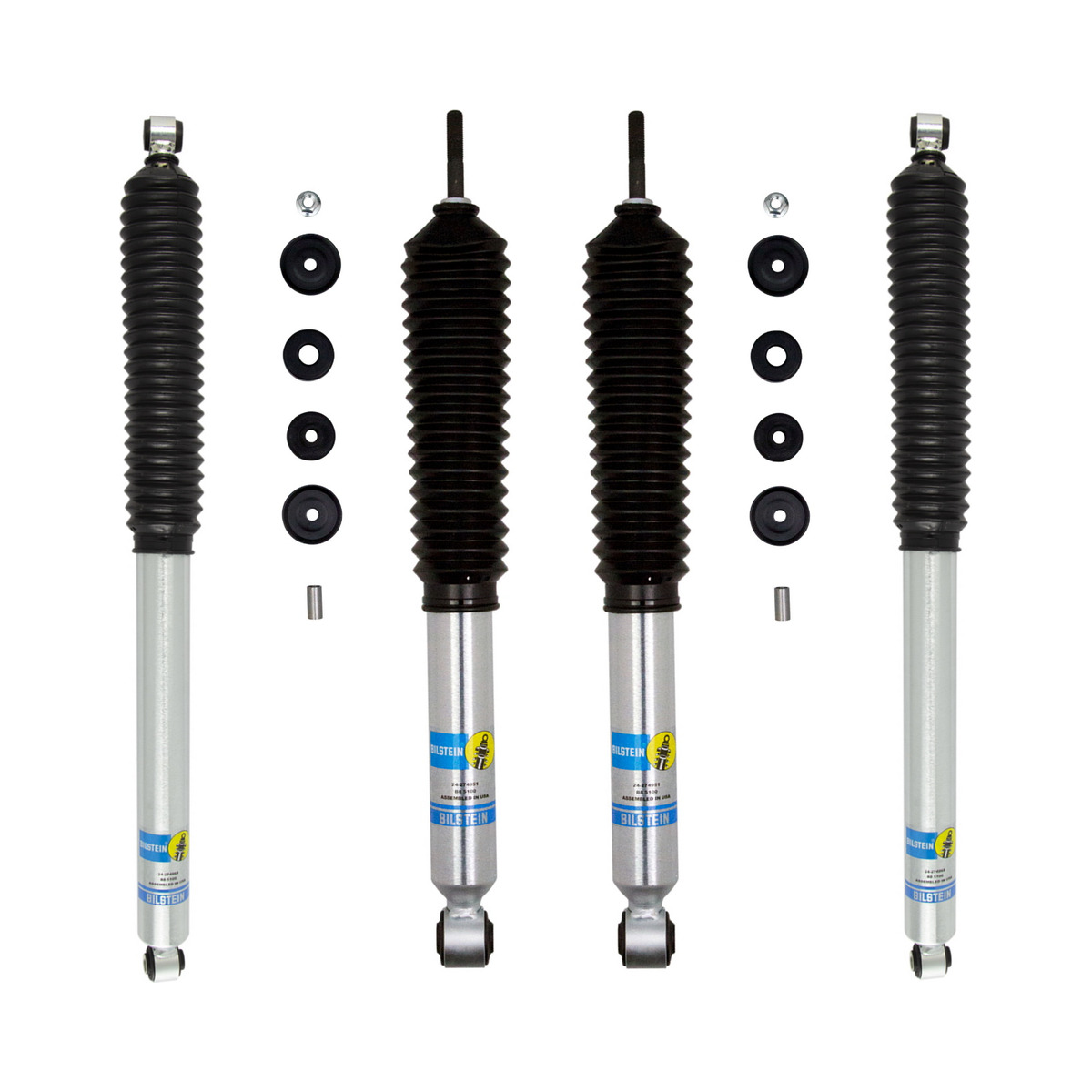

Note: Product photos may be generic. You will receive shocks matching the listed part numbers and fitment.

What Is Included

• 2 front Bilstein 5100 shocks (for 2 to 2.5 inch front lift height)
• 2 rear Bilstein 5100 shocks (for 0 to 1 inch rear lift height)

Frequently Asked Questions

Do Bilstein 5100 shocks add lift to an F-250?
No. These shocks are designed to match a truck that already has a 2 to 2.5 inch front leveling kit and up to 1 inch rear lift. They do not create lift on their own.

Is damping adjustable on these shocks?
No. Bilstein 5100 damping is non-adjustable and factory tuned for the Super Duty platform.

Are these good for towing and hauling?
Yes. Monotube construction and digressive valving improve stability, reduce body motion, and maintain control under load.

Should I get a steering stabilizer too?
If your truck runs larger tires, sees rough roads, or you want tighter on-center feel, a stabilizer can help. Use the linked kit if you want shocks plus a stabilizer in one package.
