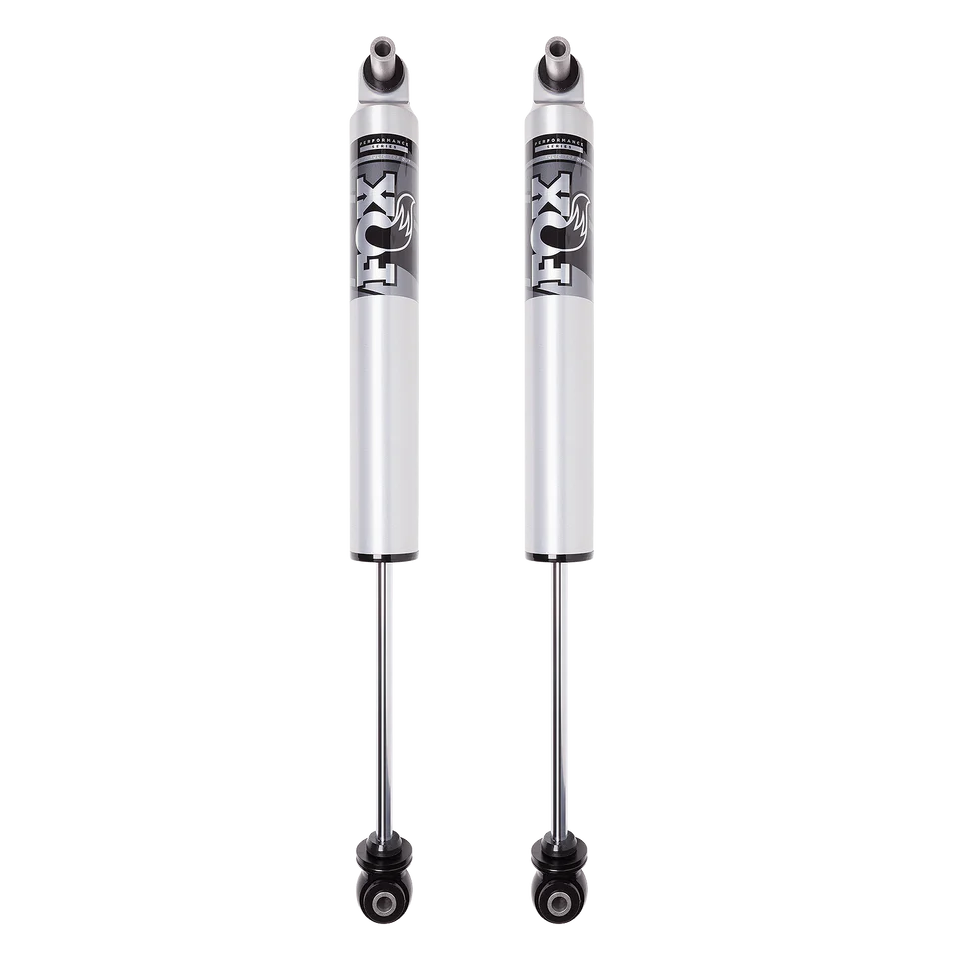

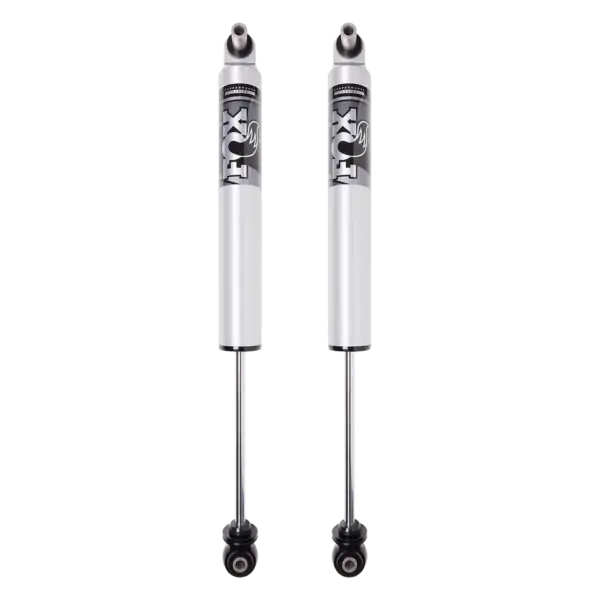

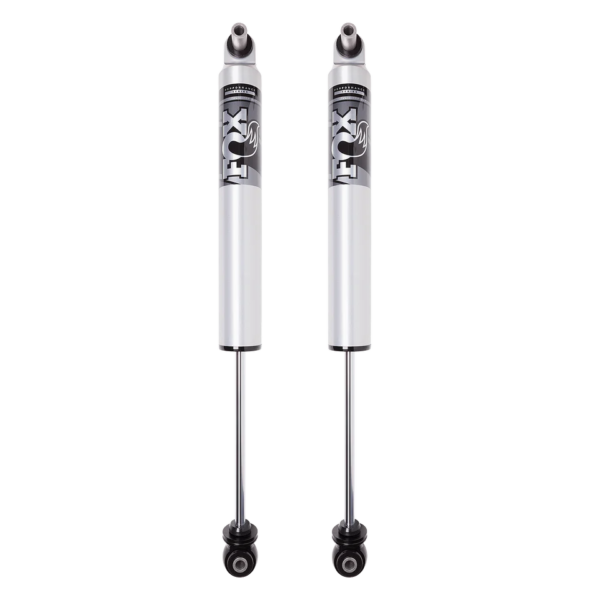

FOX 2.5 Performance HTO 0-1.5″ Front Lift Shocks for 2017-2025 Ford F-350 4WD Super Duty Extended Cab Pickup

Description
FOX 2.5 Performance HTO 0-1.5″ Front Lift Shocks for 2017-2025 Ford F-350 4WD Super Duty Extended Cab Pickup

FOX 2.5 Performance HTO 0-1.5 inches Front Lift Shocks for 2017-2025 Ford F-350 4WD Super Duty Extended Cab Pickup

Part Number: 987-24-000

Summary: The FOX 2.5 Performance Series HTO shock is a bolt-on solution designed to enhance the handling and ride quality of the Ford F-350 Super Duty. Featuring an Internal Floating Piston (IFP) and position-sensitive technology, these shocks address the need for improved damping on and off-road. The integration of Hydraulic Top Out (HTO) technology specifically manages rebound forces to ensure a more controlled and comfortable driving experience, especially for vehicles with heavier tires or modest lifts.

Features

• Hydraulic Top Out (HTO): Secondary rebound shim stack provides position-sensitive damping to ensure reduced harsh top-outs and increased comfort.
• Internal Floating Piston (IFP): Internal chamber design separates shock oil from high-pressure nitrogen to ensure optimal damping and consistent performance.
• Aluminum Shock Body: 2.5-inch 6061-T6 impact extruded aluminum construction provides efficient heat dissipation to ensure corrosion resistance and fade-free operation.
• Velocity-Sensitive Damping: High-flow internal valving provides rapid response to terrain changes to ensure improved vehicle stability.

Technical Specifications

Fitment

• 2017-2025 Ford F-350 4WD Super Duty Extended Cab Pickup
• Note: Lift: 0-1.5 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The use of Hydraulic Top Out (HTO) technology provides a secondary layer of rebound control that traditional shocks lack, specifically managing the energy of the suspension at full extension.
• Performance Benefit: Drivers experience a significant reduction in harsh “clunking” or top-out sensations when navigating obstacles or running aggressive tire setups.

Frequently Asked Questions

What is the benefit of the HTO technology?
Hydraulic Top Out (HTO) technology reduces harsh top-outs by forcing shock oil through a secondary shim stack, slowing down the shaft speed at the end of its travel for increased comfort.

Does this shock help with heat management?
Yes, the 2.5-inch Type II clear-anodized aluminum body is designed to efficiently dissipate heat and prevent corrosion during operation.

Is this shock compatible with lifted trucks?
This specific model is configured for Ford F-350 Super Duty applications with 0 to 1.5 inches of front lift.
