Zone Offroad 2″ Spacer Lift Kit 2011-2016 Ford F250

Description

Zone Offroad 2″ Spacer Lift Kit 2011, 2012, 2013, 2014, 2015, 2016 Ford F250

Part: F45

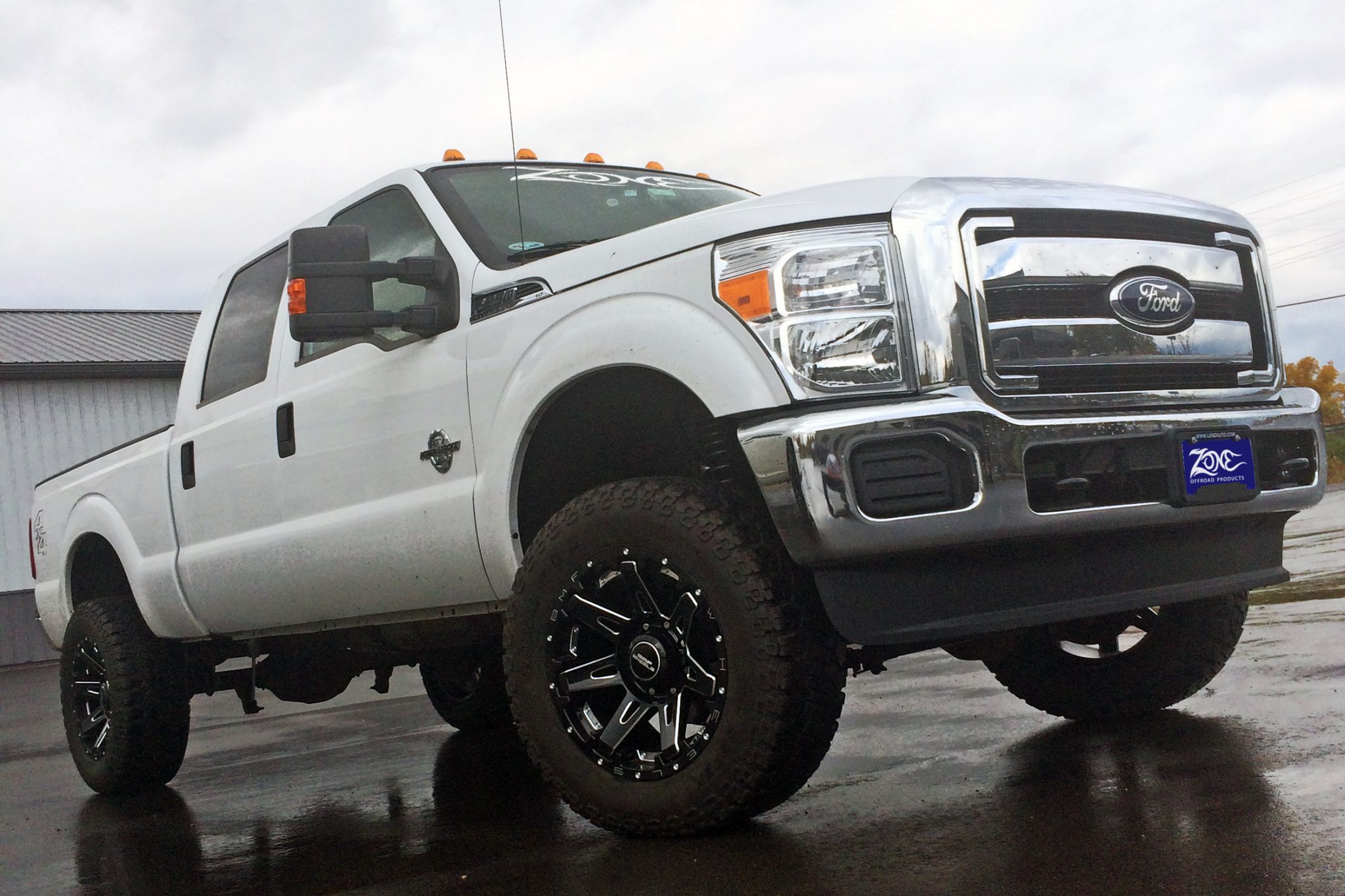

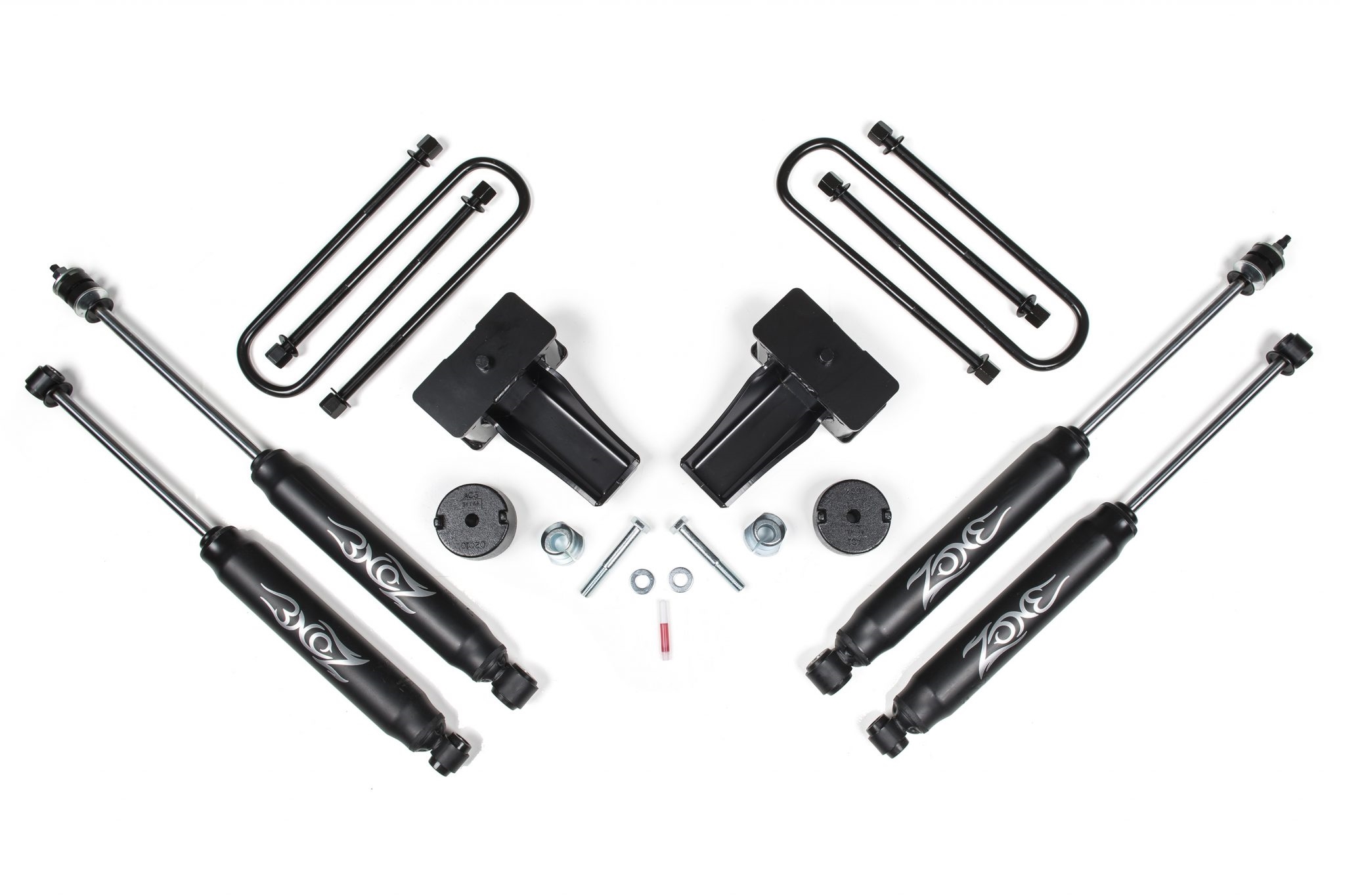

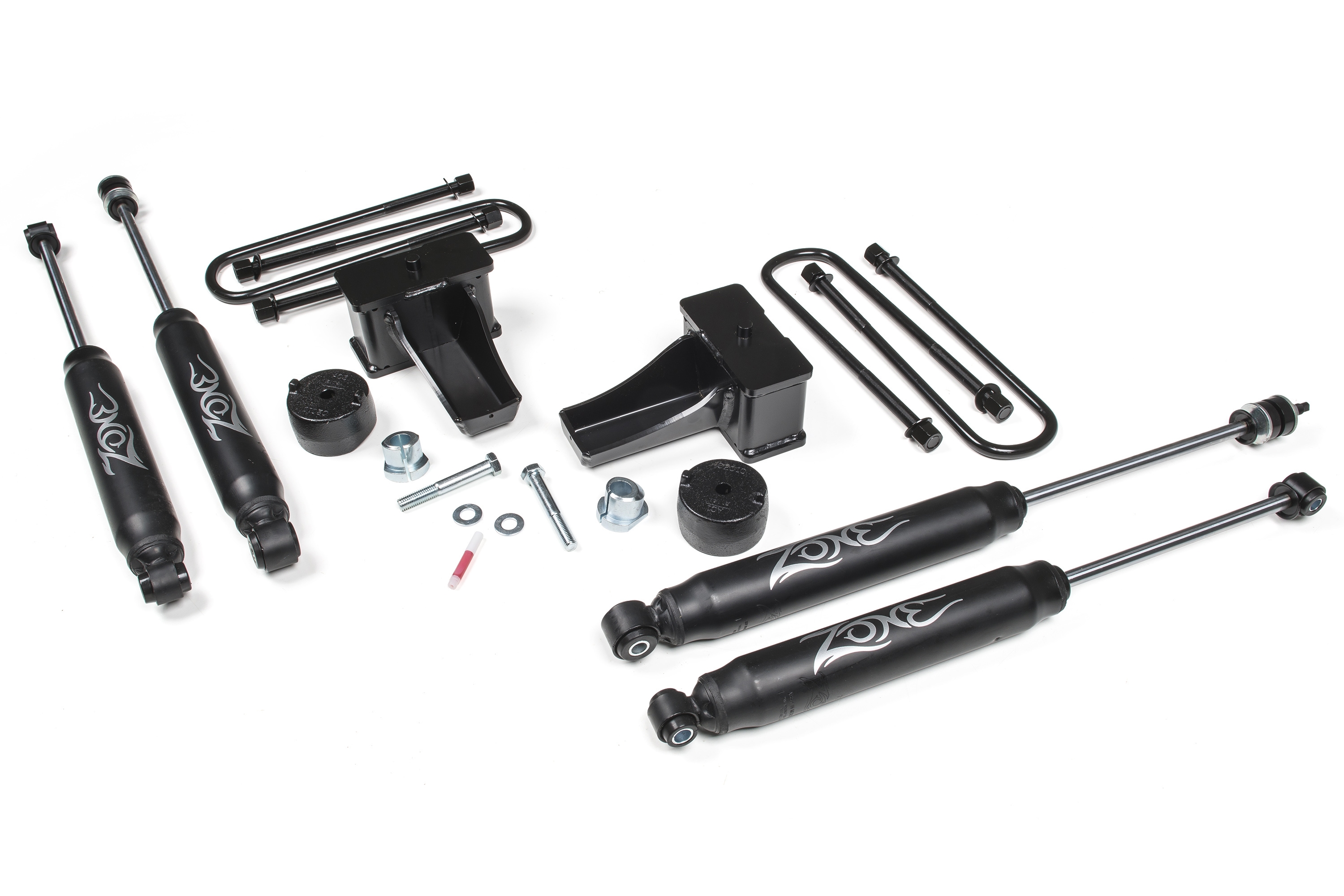

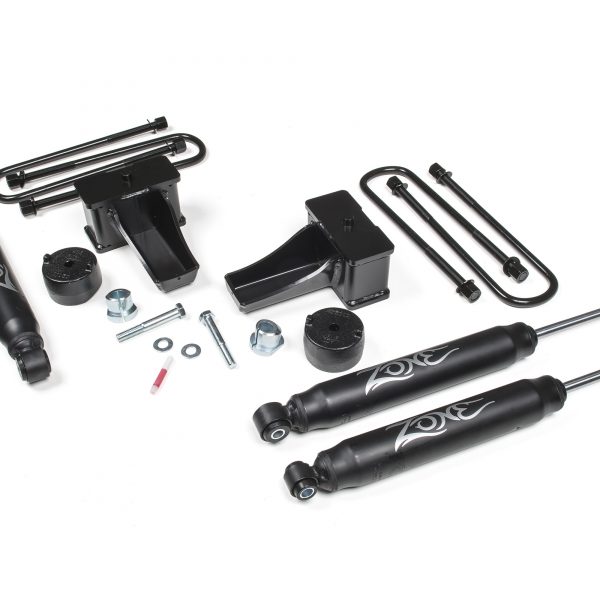

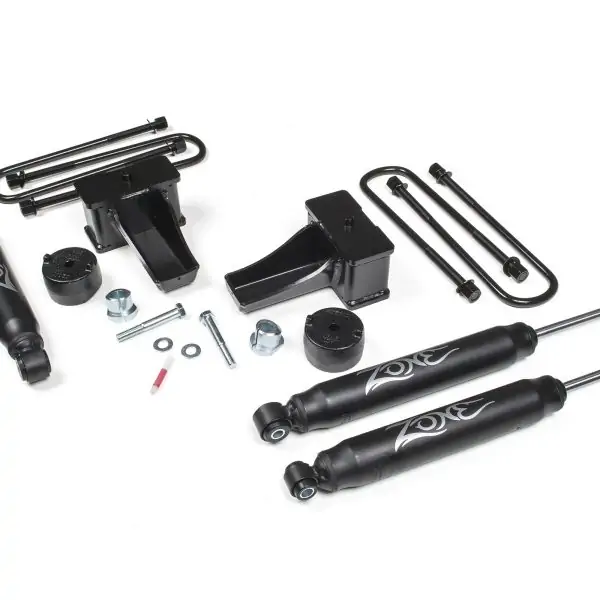

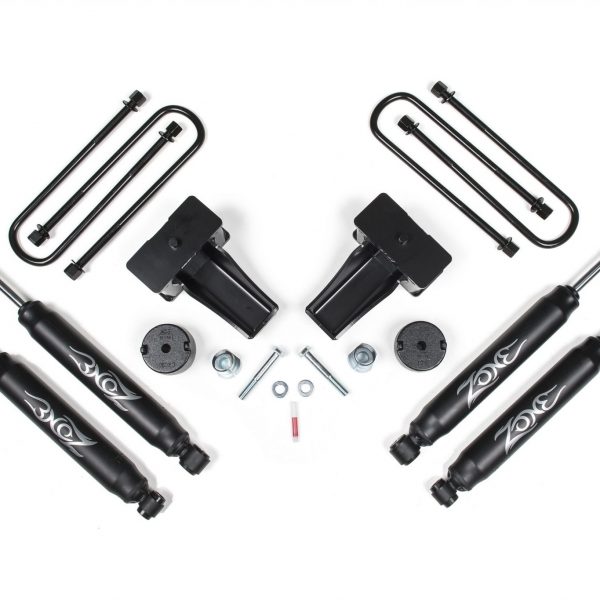

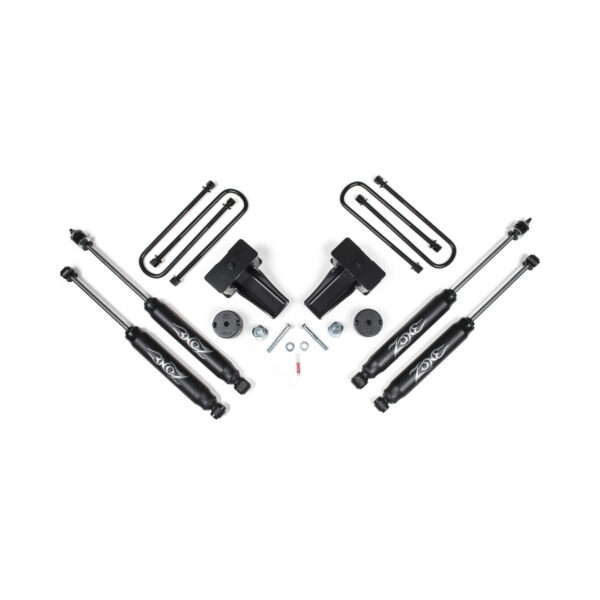

This kit was designed specifically for the 2011-16 F250 owner that is looking for a lifted and level look as well as room to stuff in 35″ tires. The 2011-16 F250 came from the factory with only about 1″ of rake (1″ tail high). That leaves the trucks with a tail low stance when installing just a 2″ front spacer kit. This new kit combines the existing 2″ leveling kit (F1201) with a new 4″ rear block. By replacing the 2″ factory block with the new 4″ block the stock rake is retained and results in a desirable stance for these trucks. The new rear block is a heavy duty fabricated design incorporating a 1-piece center tube and an integrated bump stop wing. U-bolts provided mount in the factory configuration (top-down). In the front, we’ve included upper ball joint cams to dial in the alignment perfectly for factory like ride and handling. Front and rear shocks are included and can be upgraded to optional Nitro shocks.

Important Notes!

• *Kit images show upgraded Nitro (black) shocks*
• Will not work with rear factory top mounted overloads

This product fits the following applications:

• 2011 Ford F250 4WD
• 2012 Ford F250 4WD
• 2013 Ford F250 4WD
• 2014 Ford F250 4WD
• 2015 Ford F250 4WD
• 2016 Ford F250 4WD

Quick Specs

• Front Lift Height: 2
• Front Lift Method: Spacer
• Rear Lift Height: 2
• Rear Lift Method: Block
• Difficulty Level 1-5: 3
• Wheel Size: 17×9
• Back Spacing: 4.5-5″
• Max Tire Size: 35×12.50
