Bilstein B8 5160 2-2.5″ Front and 0-3″ Rear Lift Shocks for 2017-2025 Ford F-350 2WD/4WD

Description
Bilstein B8 5160 2-2.5″ Front and 0-3″ Rear Lift Shocks for 2017-2025 Ford F-350 2WD/4WD

Bilstein B8 5160 Front 2 – 2.5 Inch & Rear 0 – 3 Inch Lift Shocks for 2017 – 2025 Ford F-350 2WD / 4WD

Part: 25-311792_25-311808

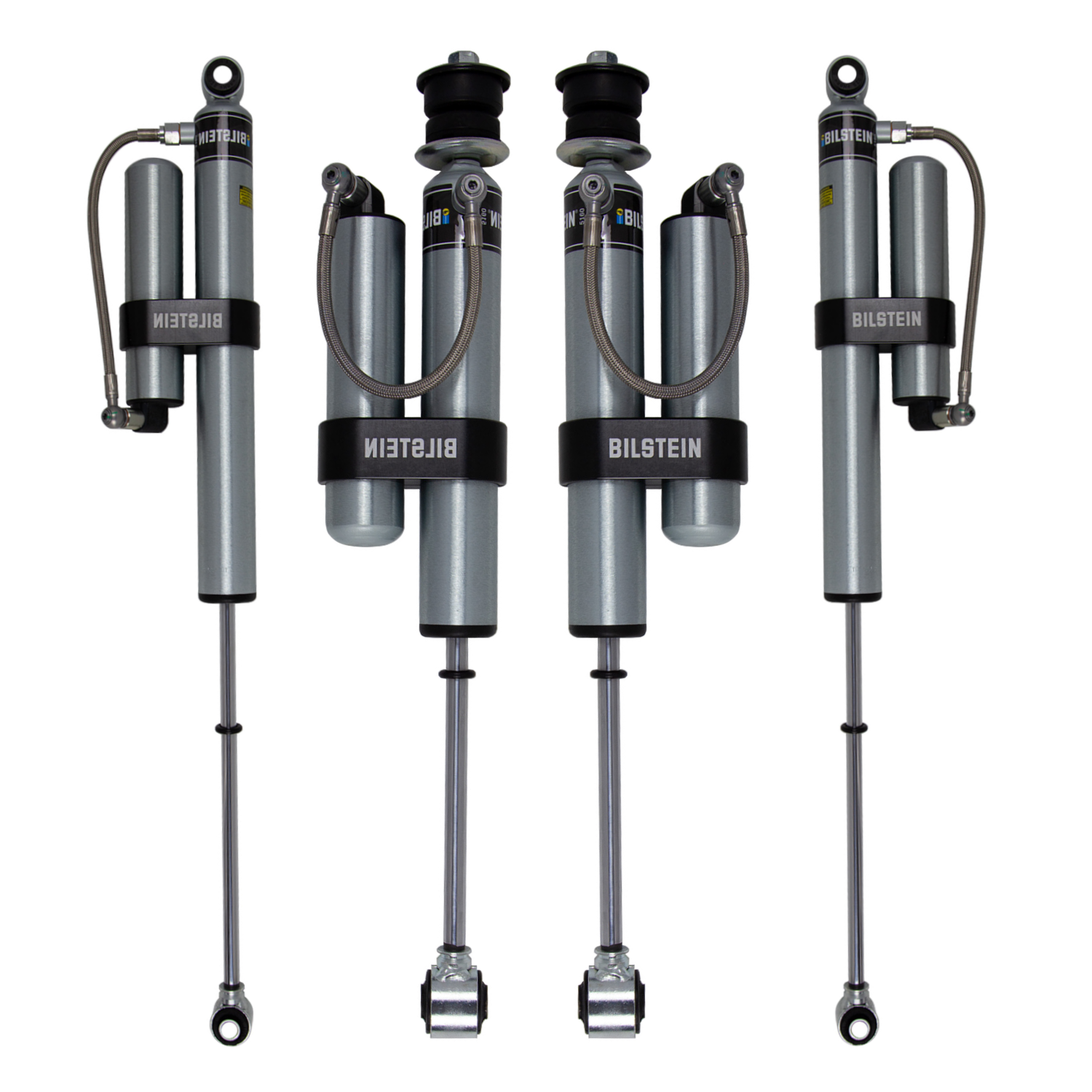

Includes: 2 front reservoir shocks + 2 rear reservoir shocks

Upgrade your Ford F-350 with the Bilstein B8 5160 remote-reservoir shock kit, engineered for trucks running a 2 – 2.5 inch front lift and 0 – 3 inch rear lift. Designed for Super Duty owners who tow, haul, or hit rough terrain, the 5160 series delivers significantly better cooling, improved wheel travel, and consistent performance under heavy load or prolonged off-road use.

The remote reservoir increases oil capacity and heat dissipation, preventing fade during repeated hits and long washboard sections. Bilstein’s digressive valving provides excellent control, especially on heavy trucks like the F-350, without sacrificing daily comfort.

Front Shock Specifications (25-311792)

• Collapsed Length: 13.17 in (334.5 mm)
• Extended Length: 21.01 in (533.7 mm)
• Body Diameter: 46 mm monotube
• Reservoir: Yes, remote reservoir
• Finish: Zinc plated
• Damping: Non-adjustable, velocity-sensitive digressive valving
• Spring Seat: Not included
• Mounting Kit: B4-KT1-Z270A01 (if replacement is needed)
• Design: Smooth-body (non-coilover)
• Reservoir Clamps: Billet clamps included

Rear Shock Specifications (25-311808)

• Collapsed Length: 18.50 in (470.0 mm)
• Extended Length: 31.64 in (803.7 mm)
• Body Diameter: 46 mm monotube
• Reservoir: Yes, remote reservoir
• Finish: Zinc plated
• Spring Seat: Not included
• Design: Smooth-body (non-coilover)
• Reservoir Clamps: Included
• Damping: Non-adjustable

Why Choose Bilstein 5160 for Your F-350?

• Remote reservoirs for higher oil volume and reduced heat fade
• Ideal for towing, hauling, and heavy Super Duty workloads
• More wheel travel and better control on uneven terrain
• Bilstein digressive valving = stable, planted feel at speed
• Direct bolt-on installation for both 2WD and 4WD
• Factory-tuned specifically for 2017 – 2025 F-350 platform

Lift Requirements & Fitment

• Front: Requires 2 – 2.5 inch lift or leveling kit
• Rear: Works with 0 – 3 inch lift
• Fits: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ford F-350 (2WD & 4WD)

Note: Always verify all clearances after installation, especially reservoir hose routing and brake line slack at full droop.

California Proposition 65: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov

Frequently Asked Questions

Do these shocks work with a standard leveling kit?
Yes. They are designed for trucks with a 2 – 2.5 inch front leveling kit.

Are these good for towing or hauling heavy loads?
Absolutely. The 5160 series is ideal for heavy Super Duty use because the remote reservoir improves cooling and consistency under load.

Do I need any special brackets?
No. Reservoir clamps are included, and the shocks are direct bolt-on replacements.

Are these adjustable?
No. Bilstein 5160 uses preset digressive valving tuned specifically for the F-350.
