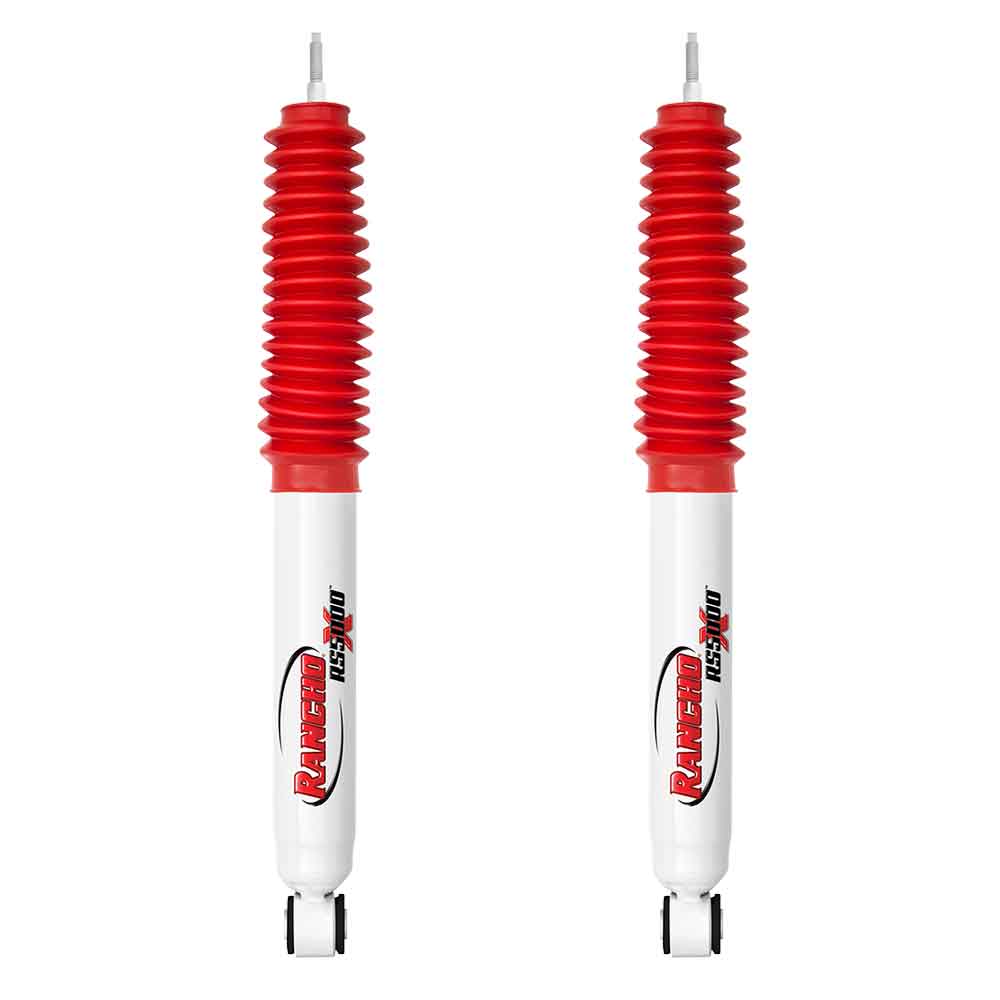

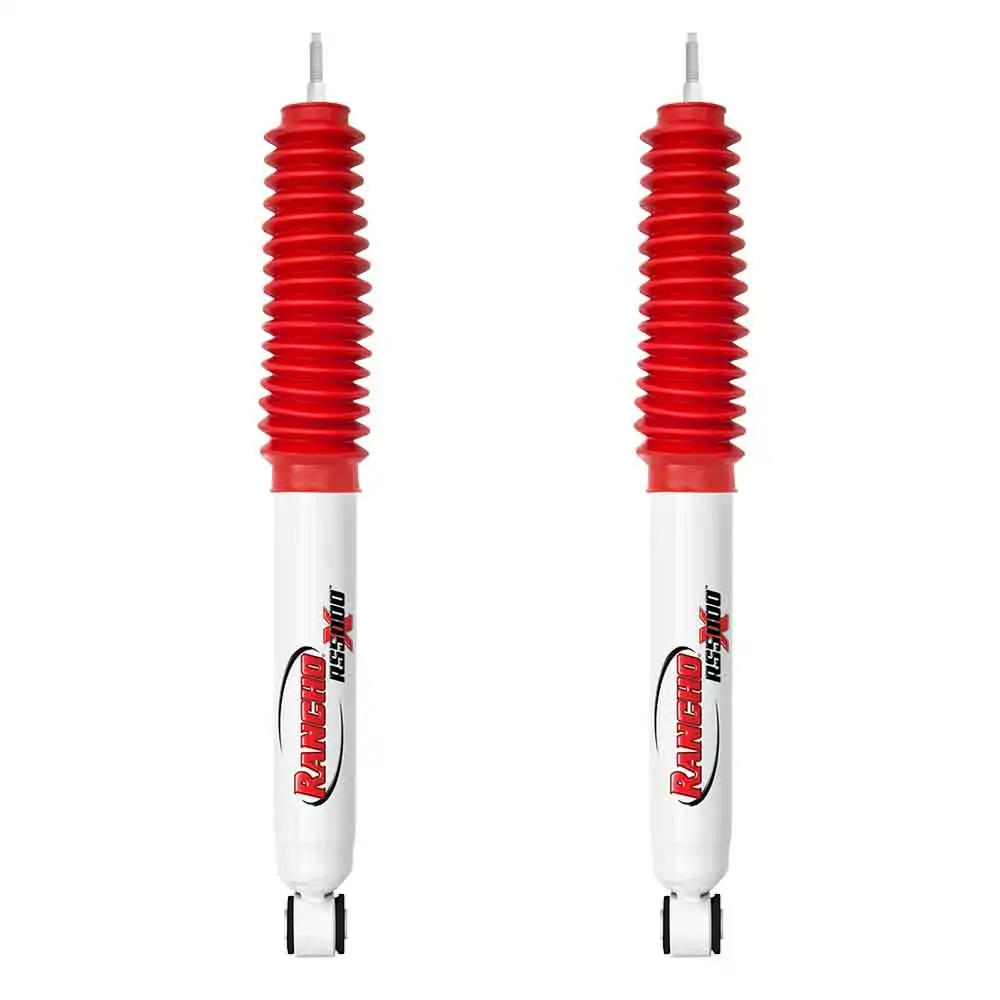

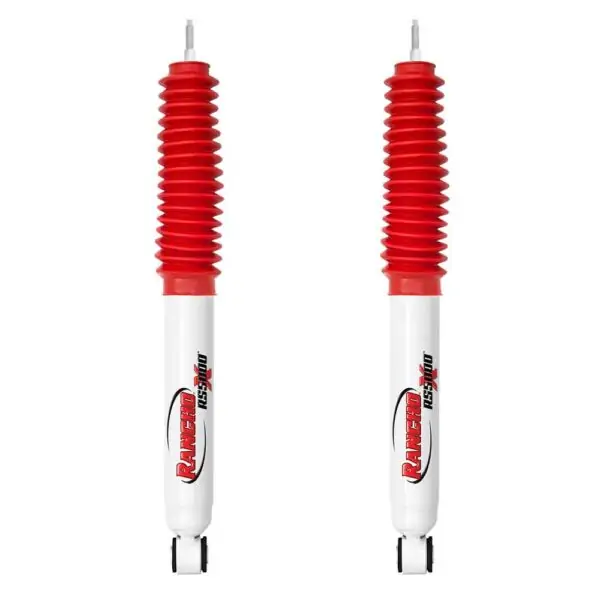

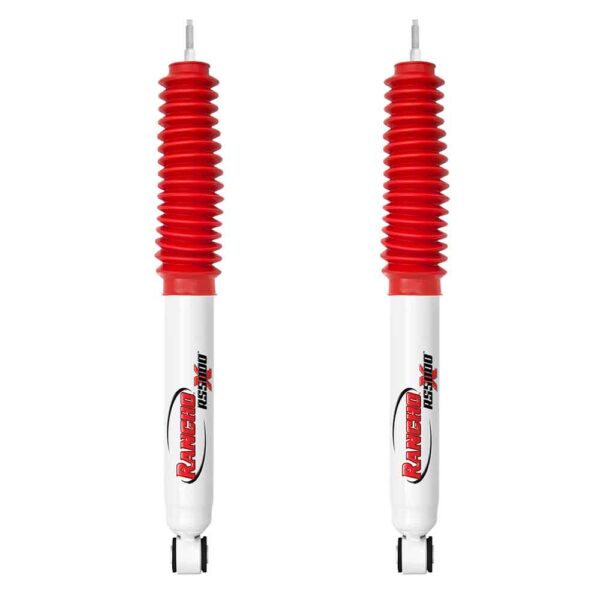

Rancho RS5000X 0″ Front Lift Shocks for 2017-2025 Ford F-350 4WD

Description
Rancho RS5000X 0″ Front Lift Shocks for 2017-2025 Ford F-350 4WD

Rancho RS5000X 0″ Front Lift Shocks for 2017-2025 Ford F-350 4WD

Part Number: RS55042

Summary: The Rancho RS5000X series features a patented progressive engagement valving system that significantly reduces harshness during initial impacts. Designed for the Ford F-350 and F-550, these twin-tube gas-pressurized shocks provide a rugged double-walled body to protect internal components from trail debris. This setup ensures a smooth, controlled street ride while maintaining the durability required for heavy-duty work and off-road environments.

Features

• Progressive Engagement Valving: Custom-tuned compression and rebound circuits provide a gradual transition between damping stages to ensure a smoother ride over small bumps and corrugated surfaces.
• Twin-Tube Gas Pressure: A low-pressure nitrogen gas charge provides a consistent oil-to-gas barrier to ensure reduced aeration and shock fade during continuous cycling.
• Double-Welded Mounts: Reinforced loops and brackets provide increased structural integrity to ensure long-term reliability under heavy payload conditions.
• Nitro-Carburized Piston Rod: A 16mm heavy-duty rod diameter provides superior scuff resistance to ensure the integrity of the pressure seals.

Technical Specifications

Fitment

• 2017-2025 Ford F-350 4WD
• 2017-2025 Ford F-550
• Note: Configured for 0-inch factory height applications.

What’s Included

• Includes 2 Shocks
• Installation Hardware
• Protective Dust Boots

Why Choose This Product?

• Engineering Advantage: Rancho’s Cross-Section Area increase allows for larger oil capacity, resulting in lower internal operating temperatures compared to standard OE shocks.
• Performance Benefit: Improved handling stability and reduced “nose-dive” during braking, providing a more confident driving experience in both loaded and unloaded scenarios.

Related Products

Rear Only (Same Series):
Rancho RS5000X 0" Rear Lift Shocks for 2017-2025 Ford F-350 4WD

RS7MT (Rear):
Rancho RS7MT 0" Rear Lift Shocks for 2017-2025 Ford F-350 4WD

RS7MT (Front):
Rancho RS7MT 0" Front Lift Shocks for 2017-2025 Ford F-350 4WD

RS90000XL (Rear):
Rancho RS90000XL 0" Rear Lift Shocks for 2017-2025 Ford F-350 4WD

RS90000XL (Front):
Rancho RS90000XL 0" Front Lift Shocks for 2017-2025 Ford F-350 4WD

RS5000X (Kit):
Rancho RS5000X 0" Lift Shocks for 2017-2025 Ford F-350 4WD

RS7MT (Kit):
Rancho RS7MT 0" Lift Shocks for 2017-2025 Ford F-350 4WD

RS90000XL (Kit):
Rancho RS90000XL 0" Lift Shocks for 2017-2025 Ford F-350 4WD

Frequently Asked Questions

Will these shocks lift my Ford F-350?
No, these shocks are configured for vehicles at 0-inches of lift (factory height) and do not provide any lift height on their own.

What is the benefit of the RS5000X twin-tube design?
The twin-tube design is exceptionally durable; if the outer body is dented by a rock or debris, the inner cylinder remains unaffected, allowing the shock to continue functioning.

Are boots included with these shocks?
Yes, these Rancho RS5000X shocks include protective boots to shield the piston rod from dirt and contaminants.
