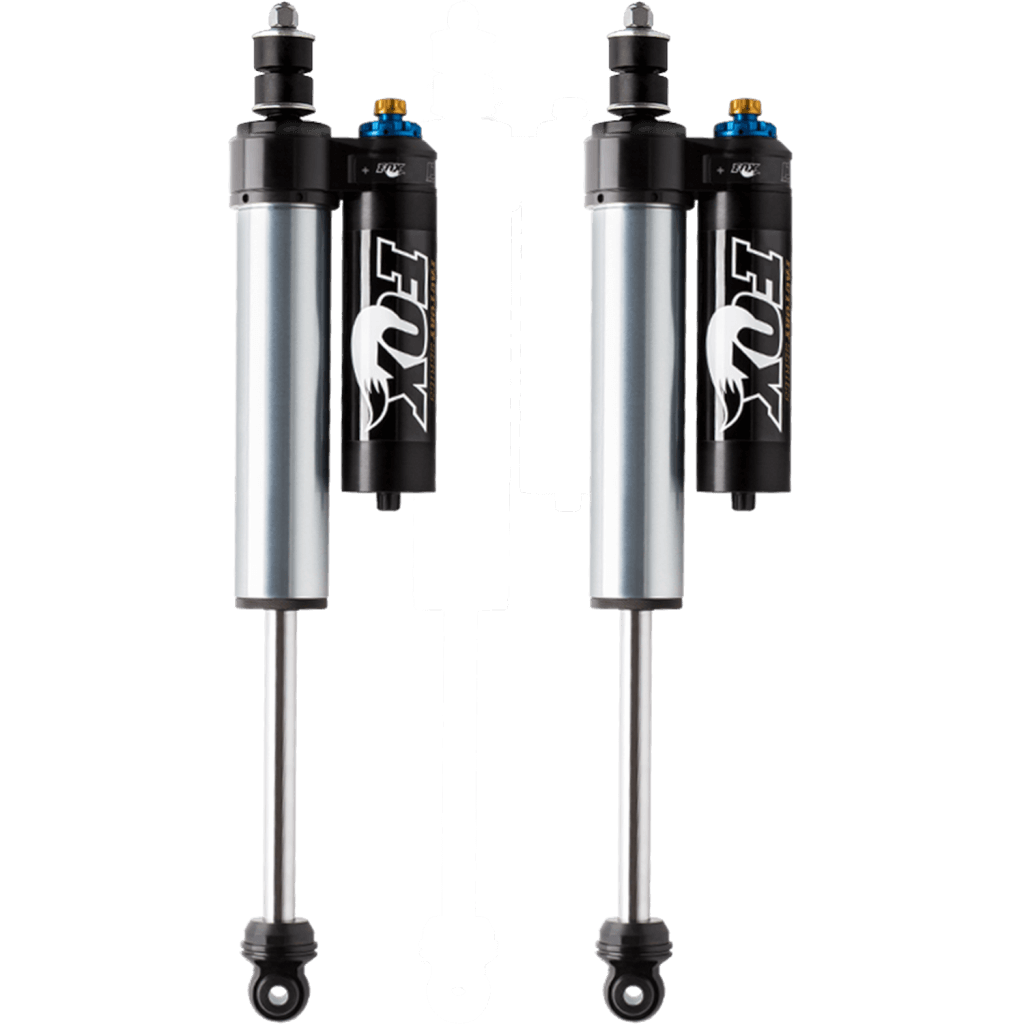

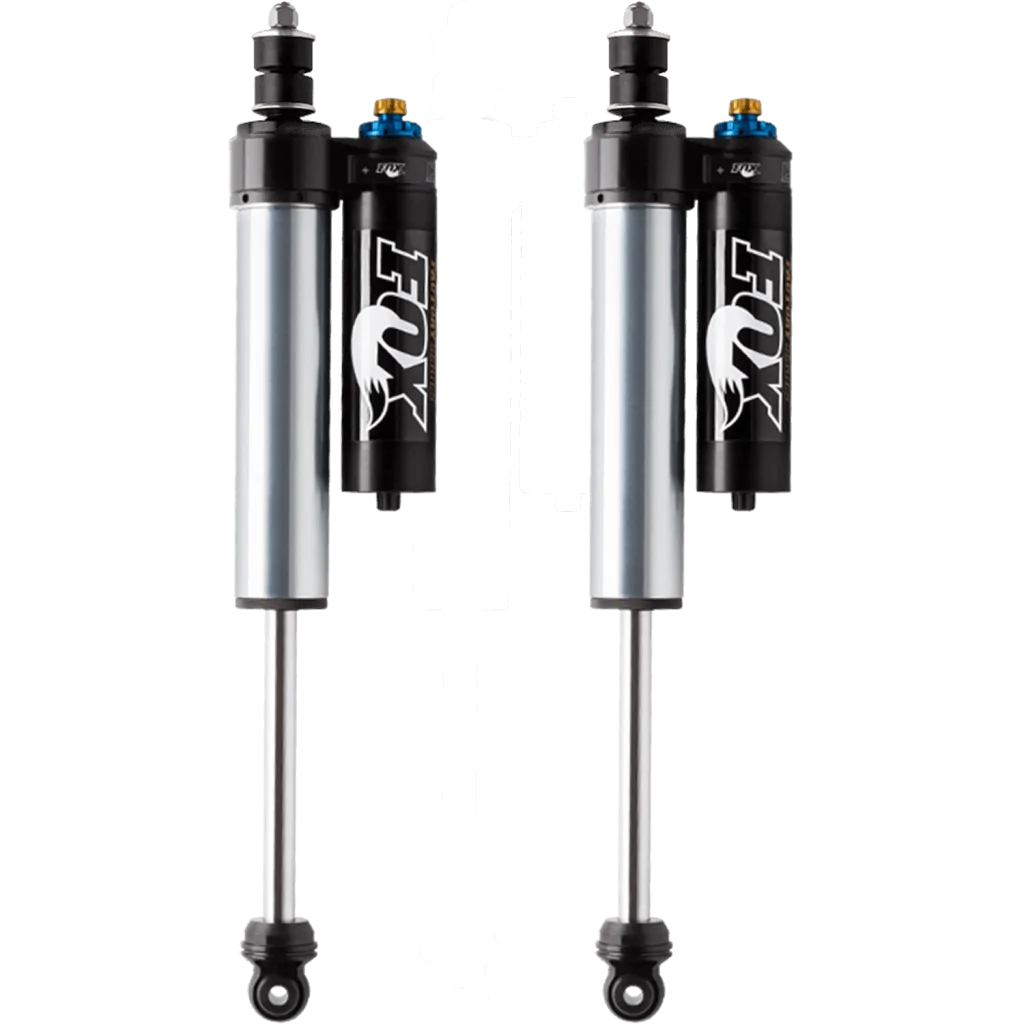

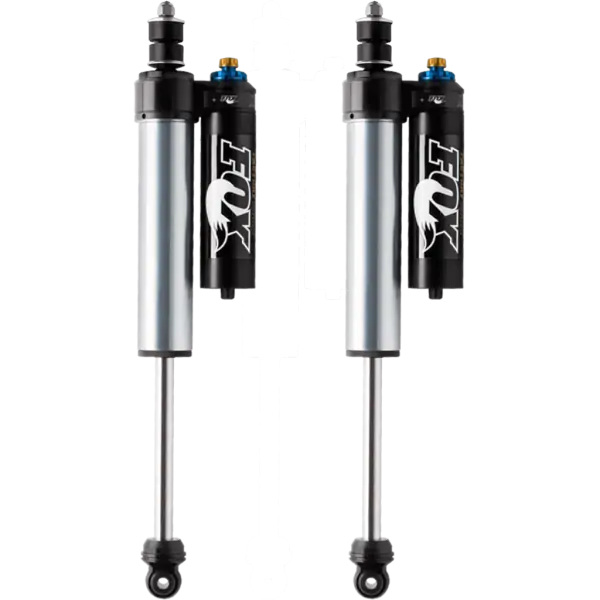

FOX 2.5 Factory Res Adj 4-6 Front Lift Shocks 2005-2007 Ford F550

Description
FOX 2.5 Factory Res Adj 4-6 Front Lift Shocks 2005-2007 Ford F550

FOX 2.5 Factory Res Adj 4-6 Front Lift Shocks 2005-2007 Ford F550

Part Number: 883-26-013

Summary: The FOX 2.5 Factory Series Reservoir smooth body shocks provide enhanced ride quality and precise control for the Ford F550. This system features a Dual Speed Compression (DSC) adjuster, allowing for remarkable versatility and user-defined tuning for various driving conditions. By utilizing an external reservoir, these shocks increase oil and nitrogen capacity to deliver consistent damping performance across any terrain.

Features

• Dual Speed Compression (DSC) Adjuster: Two separate adjuster knobs provide twelve low-speed and ten high-speed compression levels to ensure precise tuning and versatility.
• External Reservoir: Anodized aluminum construction allows for increased oil and nitrogen capacity to provide a race-inspired look and improved thermal management.
• Seamless Alloy Body: A smooth bore and honed seamless alloy body is zinc-plated and double clear coated to ensure a long-lasting finish and durability.
• High-Flow Piston: A race-developed high-flow piston design works with application-specific valving to ensure maximized performance on and off the pavement.
• Alloy Steel Shaft: 7/8-inch hard chrome plated heat-treated alloy steel provides high strength to ensure reliable operation under stress.

Technical Specifications

Fitment

• 2005-2007 Ford F550
• Note: Configured for 4-6 inches of front lift.

What’s Included

• Includes 2 Shocks
• Front Shocks

Why Choose This Product?

• Engineering Advantage: The integration of a DSC Adjuster allows for manual tuning of both high and low-speed compression, paired with a 2.5-inch smooth bore body for increased fluid volume.
• Performance Benefit: Drivers gain the ability to customize their suspension feel for specific loads or terrain while maintaining consistent damping through the redundant sealing pack system.

Frequently Asked Questions

How does the DSC adjuster work?
The Dual Speed Compression (DSC) adjuster uses two knobs to provide twelve separate low-speed and ten high-speed compression levels for precise tuning.

What is the benefit of the external reservoir?
The anodized aluminum external reservoir increases oil and nitrogen capacity, which helps maintain consistent performance during operation.

What lift height are these shocks compatible with?
These front shocks are designed for Ford F550 models with 4 to 6 inches of front lift.
