FOX 3.0 Factory Res 0-2 Front Lift Shocks 10-14 Ford SVT Raptor 4WD

Description

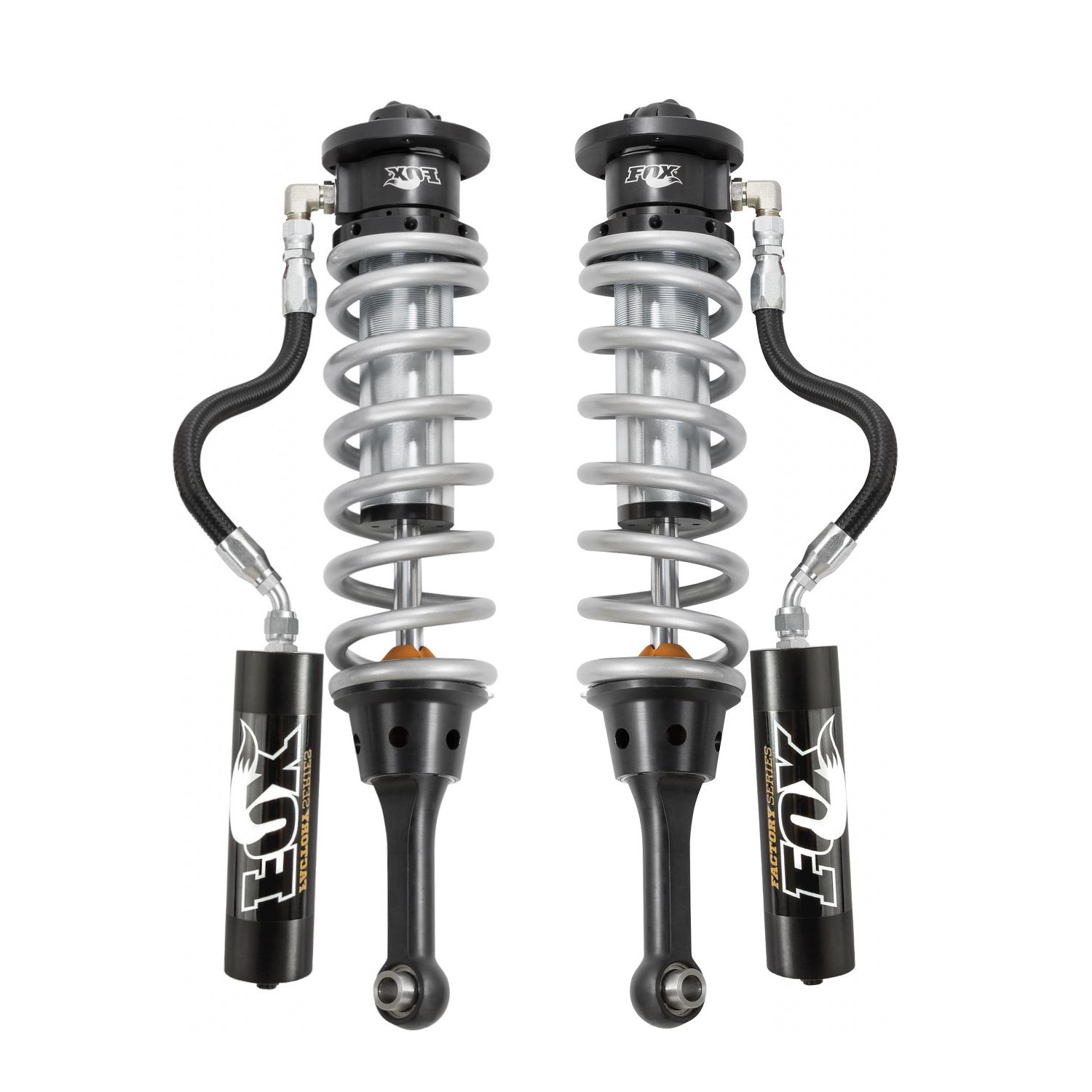

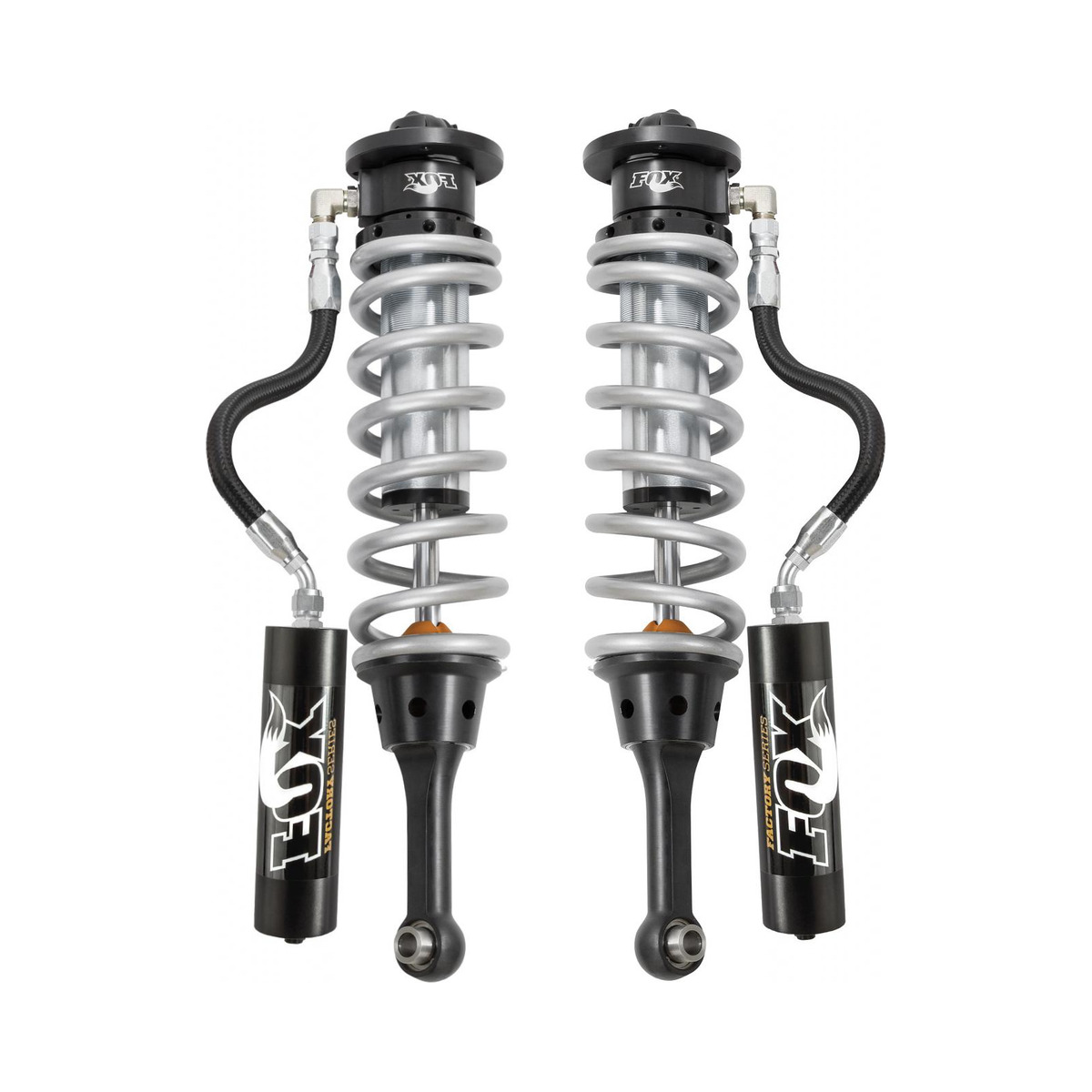

FOX 3.0 Factory Res 0-2 Front Lift Shocks 10-14 Ford SVT Raptor 4WD

FOX 3.0 Factory Res 0-2 Front Lift Shocks 10-14 Ford SVT Raptor 4WD

Part Number: 883-02-046

Summary: The FOX 3.0 Factory Series Coil-over Internal Bypass shocks are engineered to maximize performance for the Ford SVT Raptor. Utilizing position-sensitive damping, these shocks offer 60 percent more damping area compared to stock SVT components for superior control. By integrating an Internal Bypass design and remote reservoirs, these shocks manage extreme off-road impacts while maintaining a plush, predictable ride during normal driving conditions.

Features

• Internal Bypass Technology: Position-sensitive damping provides a plush ride over normal terrain while ramping up damping force for extreme off-road use.
• Remote Reservoirs: Large 2.5-inch reservoirs with -10 hoses provide increased oil capacity to ensure improved cooling capabilities and fade resistance.
• Adjustable Preload: Integrated coil springs allow for adjustable ride height to ensure the vehicle is leveled and properly cleared for terrain.
• High-Flow Aluminum Piston: 6061-T6 hard-anodized construction provides consistent fluid displacement to ensure application-specific off-road performance.
• Redundant Sealing Pack: A specialized system including main, wiper, and scraper seals provides maximum protection to ensure long-term durability in harsh environments.

Technical Specifications

Fitment

• 2010-2014 Ford SVT Raptor
• Note: Designed to bolt right on to factory mounts.

What’s Included

• Includes 2 Shocks
• Eibach Springs
• Remote Reservoir Hoses

Why Choose This Product?

• Engineering Advantage: These shocks utilize Internal Bypass technology and a 3.0-inch steel body to offer a 60 percent increase in damping area over factory equipment.
• Performance Benefit: Drivers experience a Significant increase in heat capacity and oil volume, allowing for sustained high-speed off-road operation without performance fade.

Frequently Asked Questions

Do these shocks provide any lift?
Yes, these shocks feature an integrated coil spring that can be adjusted for preload and ride height, supporting 0 to 2 inches of front lift.

What makes the Internal Bypass design different?
The Internal Bypass allows for position-sensitive damping, which provides a plush ride during standard travel and increased damping force during extreme compression.

Are these shocks a direct fit for the Raptor?
Yes, these 3.0 Factory Series shocks are designed to bolt directly onto the factory mounts of 2010-2014 Ford SVT Raptor 4WD models.
