Bilstein 4600 Front Shocks for 1998-2011 Ford Ranger 4WD also fits Edge/EV submodels
Description

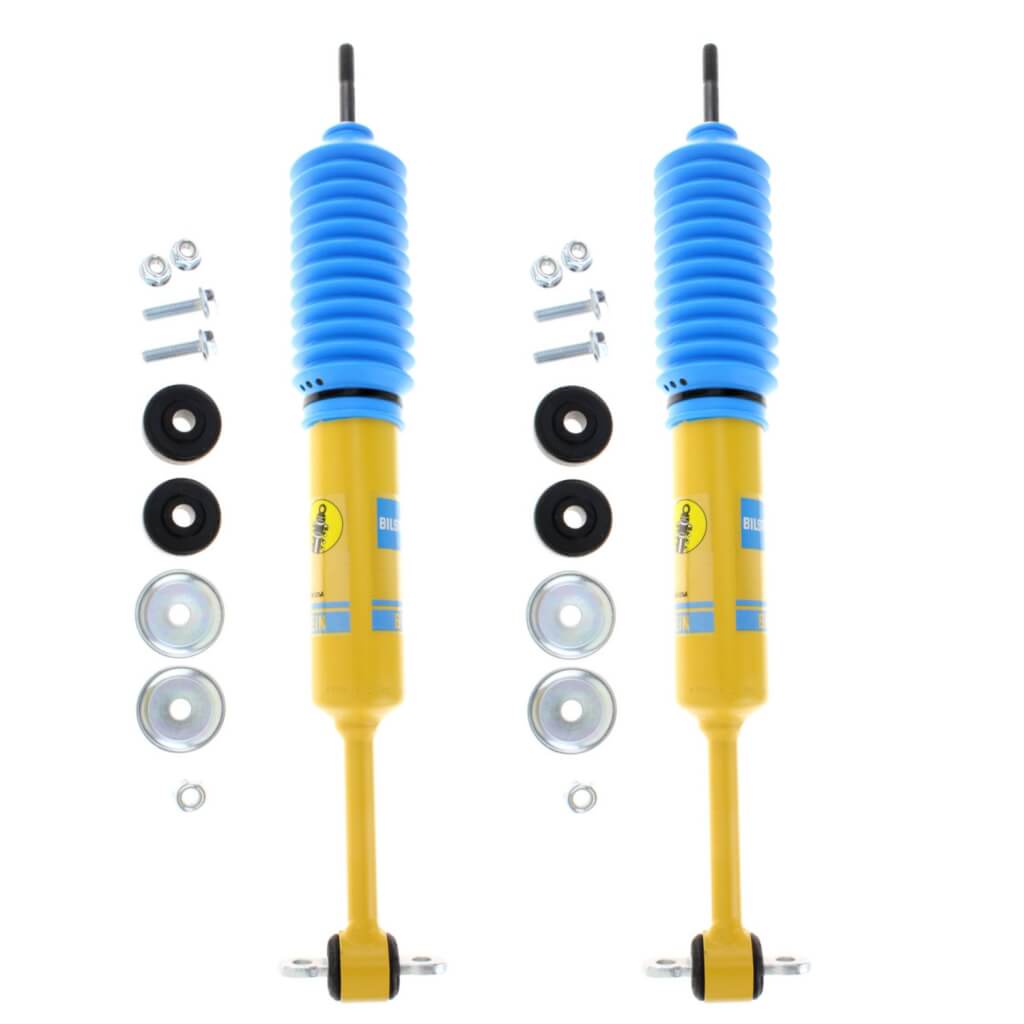

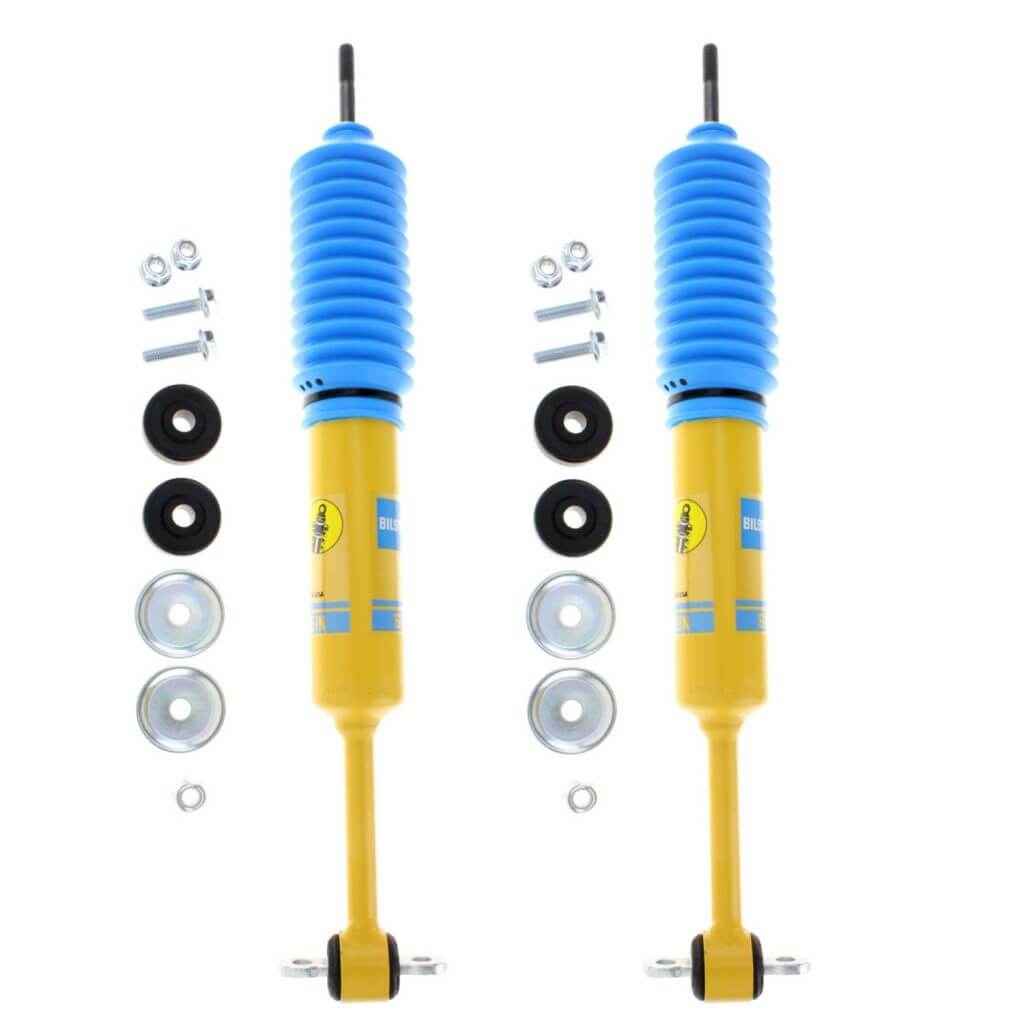

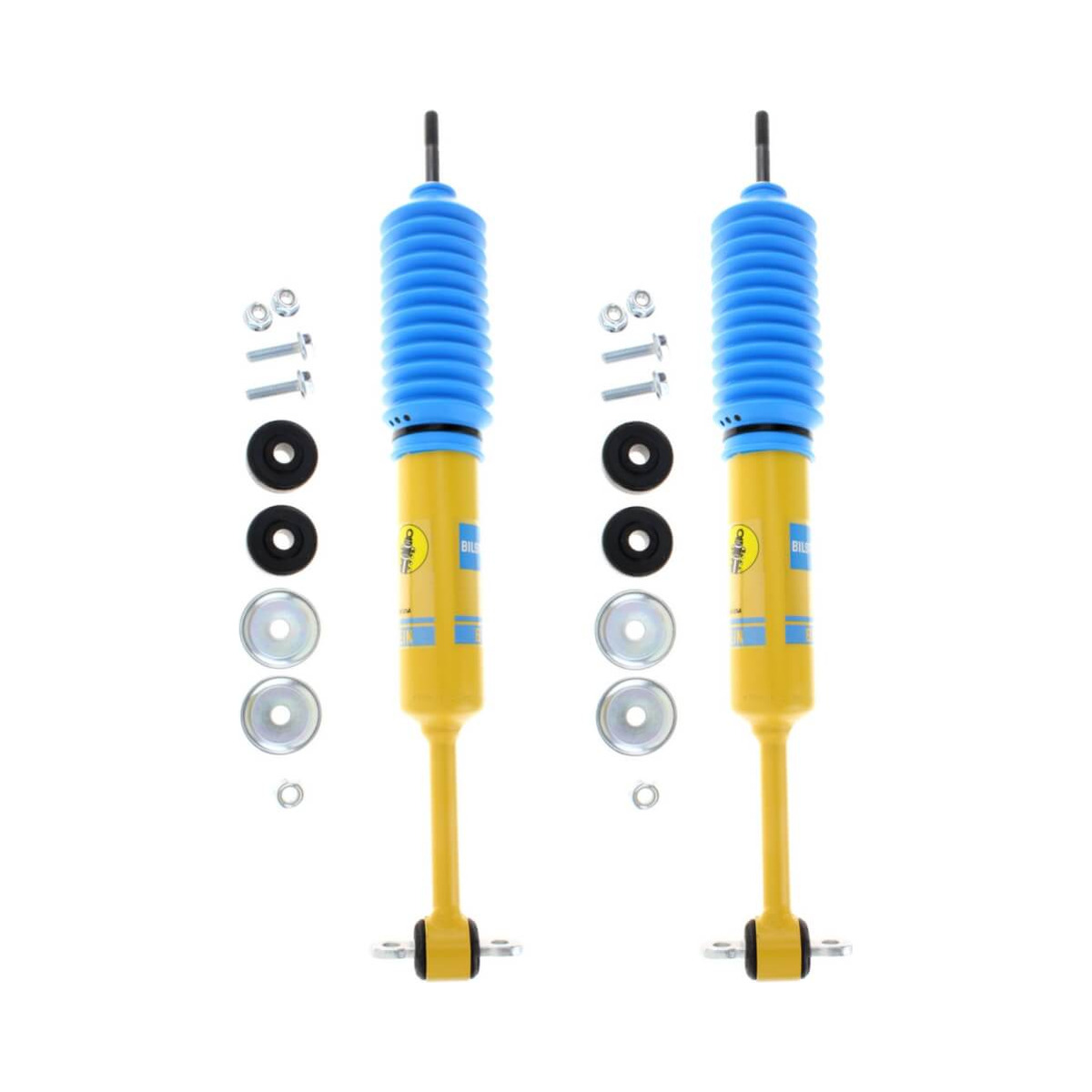

Bilstein 4600 Front Shocks for 1998-2011 Ford Ranger 4WD also fits Edge/EV submodels
Bilstein 4600 Front Shocks for 1998-2011 Ford Ranger 4WD
Part Number(s): 24-188241
Summary: Bilstein B6 4600 shock absorbers are designed as a direct fit OE replacement for the 1998-2011 Ford Ranger 4WD, including Edge and EV submodels. These shocks feature a monotube design that provides consistent, fade-free performance for light trucks and SUVs at stock ride height. By utilizing application-specific tuning, the B6 4600 series offers a significant improvement in ride quality, handling, and comfort over factory equipment.
Features
- Monotube Design: Single-tube construction provides consistent fade-free performance to ensure reliable damping under repeated impacts and extended use.
- Velocity-Sensitive, Digressive Piston: A unique piston design reacts to changing road conditions to ensure optimal performance is achieved across various terrains.
- Direct Fit Upgrade: Application-specific engineering provides a seamless installation as a replacement for OE shock absorbers to ensure a perfect fit for stock height vehicles.
Technical Specifications
| Specification | Value |
|---|---|
| Series | B6 4600 |
| Position | Front |
| Collapsed Length | 13.72″ |
| Extended Length | 17.92″ |
| Collapsed Length (mm) | 348.5 |
| Extended Length (mm) | 455.2 |
| Lower Mount Type | Bar Pin |
| Upper Mount Type | Stem |
| Internal Design | Monotube |
| Finish | Yellow Paint |
| Reservoir | No |
| Body Diameter | 2.0 in. |
| Spring Seat Included | No |
| Adjustable Damping | Non-Adjustable |
| Country of Origin | MX |
| Quantity per Vehicle | 2 |
| Warranty | Limited Lifetime Warranty |
Fitment
- 1998-2011 Ford Ranger 4WD
- 1998-2011 Ford Ranger Edge
- 1998-2011 Ford Ranger EV
- Note: Fits 4WD – All Submodels. Fits Ford Ranger Edge Submodel. Fits Ford Ranger EV.
What’s Included
- Includes 2 Shocks
- Part Number: 24-188241
- Blue Bellows Boots
Interchange Numbers
This product is compatible with the following part numbers:
- AutoZone 199533
- Bilstein 24-185295
- Bilstein BE5-2794
- Bilstein F4-BE5-2794-H3
- Ford 1L5Z 18124-CA
- Ford 1L5Z 18124-EA
- Ford 1L5Z 18124-HA
- Ford 2L5Z 18124-HA
- Ford 3L5Z 18124-DA
- Ford 3L5Z 18124-JA
- Ford 3L5Z 18124-KA
- Ford 3L5Z 18124-LA
- Ford 3L5Z 18124-MA
- Ford 3L5Z 18124-NA
- Ford 4U2Z 18V124-AA
- Ford 6L5Z 18124-A
- Ford 6L5Z 18124-JA
- Ford 7L5Z 18124-AJ
- Ford 7L5Z 18124-AK
- Ford 8L5Z 18124-A
- Ford 8L5Z 18124-AJ
- Ford 8L5Z 18124-AK
- Ford BU2Z 18V124-G
- Ford BU2Z 18V124-H
- Ford F87Z 18124-CA
- Ford F87Z 18124-JA
- Ford F8YZ 18124-AA
- Ford YL5Z 18124-AA
- Ford YU3Z 18124-AA
- Pro Comp Suspension 318595
- Pro Comp Suspension 918595
- Rancho RS5229
- Rancho RS999229
Why Choose This Product?
- OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
- Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
- Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
- Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.
Frequently Asked Questions
Are these shocks designed for lifted Ford Rangers?
No, the Bilstein B6 4600 is designed as a direct fit upgrade for stock height vehicles.
Is the damping adjustable on the B6 4600 series?
No, these shock absorbers feature a non-adjustable design with a velocity-sensitive, digressive piston tuned for the specific vehicle application.
What is the benefit of the monotube design?
The monotube design provides consistent, fade-free performance by managing heat more effectively than traditional twin-tube shocks.
Does this set include both front shocks?
Yes, this listing includes 2 front shocks (Part #24-188241) for your vehicle.
Questions and answers of the customers
-
I have a 1998 Ford ranger super cab four-wheel-drive 4.0 will these shocks fit on it? It’s leveled 1.5 higher then stock.
-
0 votesQ I have a 1998 Ford ranger super cab four-wheel-drive 4.0 will these shocks fit on it? It’s levele...... Read moreA will fit if you have torsion bars front suspension
Will these work good on my 2003 ranger with a 1.5 inch torsion key leveling kit?
-
0 votesQ Will these work good on my 2003 ranger with a 1.5 inch torsion key leveling kit?A yes
Will these fit a 2005 ranger xlt 2wd with a 2.5 inch coil spacer?
-
0 votesQ Will these fit a 2005 ranger xlt 2wd with a 2.5 inch coil spacer?A It will fit only for 4WD on stock lift (0")
Will these fit my 2005 Ford Ranger edge 3.0, with a 2 inch torsion key leveling kit installed in the front ?
-
0 votesQ Will these fit my 2005 Ford Ranger edge 3.0, with a 2 inch torsion key leveling kit installed in ...... Read moreA yes it will fit
Hello, I have a 2004 Ford Ranger Edge 3.0L V6. Will these kind of shocks fit my truck? My suspension type is the kind that has no spring, only the shock and torsion keys. If these were to fit my truck, would it affect these shocks because i lifted the front end a little bit, but using only the stock torsion keys. So its basically a stock lift. Thank you
-
0 votesQ Hello, I have a 2004 Ford Ranger Edge 3.0L V6. Will these kind of shocks fit my truck? My suspens...... Read moreThere are no answers for this question yet.
