FOX Fct Res Adj 0-2 Front Lift Shocks 12-16 Ford Ranger T6 HiRider 2WD

Description
FOX Fct Res Adj 0-2 Front Lift Shocks 12-16 Ford Ranger T6 HiRider 2WD

FOX Fct Res Adj 0-2 Front Lift Shocks 12-16 Ford Ranger T6 HiRider 2WD

Part Number: 883-06-093

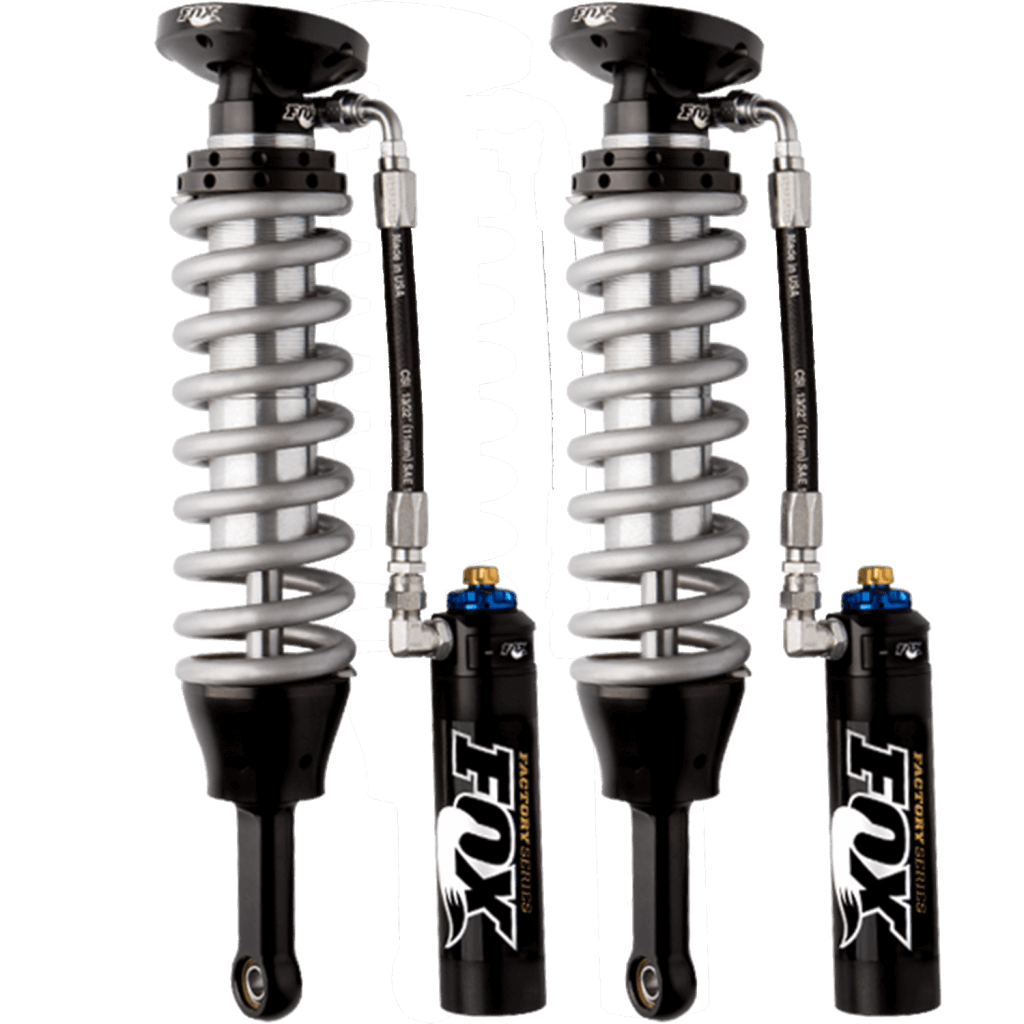

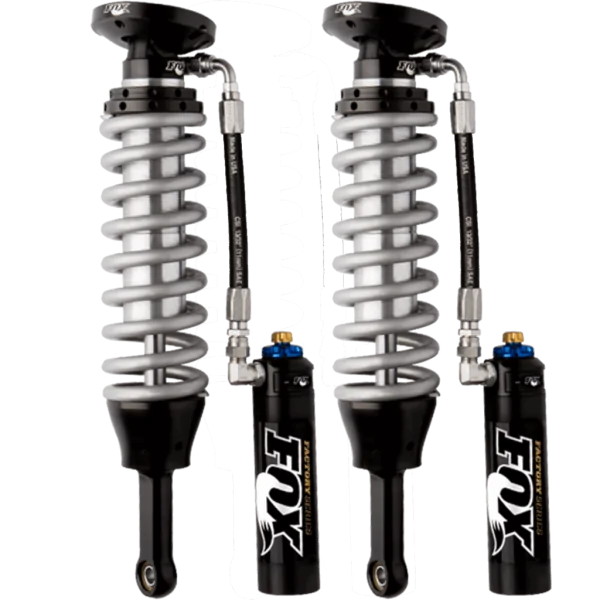

Summary: The FOX Factory Series Coil-over Reservoir shocks are engineered for the Ford Ranger T6 Hi-Rider 2WD, delivering race-proven performance and precise control. Featuring a Dual Speed Compression (DSC) adjuster, these shocks allow for remarkable versatility and manual tuning to suit specific terrain requirements. The integrated coil spring is designed to suspend vehicle weight while providing adjustable preload and ride height to level your vehicle.

Features

• Dual Speed Compression (DSC) Adjuster: Twelve separate low-speed and ten high-speed compression levels provide remarkable versatility to ensure precise tuning for any terrain.
• External Reservoir: Factory Series Coil-over Reservoir design provides improved damping to ensure consistent performance under high-demand operation.
• NitroSteel Shafts: 7/8-inch hardened NitroSteel carbon shafts provide high-strength durability to ensure long-term reliability in harsh conditions.
• Alloy Body: Smooth bore and honed seamless alloy body with zinc plating provides a long-lasting finish to ensure protection against the elements.
• Billet Aluminum Components: Black anodized, CNC-machined 6061-T6 billet aluminum provides structural integrity to ensure precise fitment and performance.

Technical Specifications

Fitment

• 2012-2016 Ford Ranger T6 HiRider
• Note: Fitment for 2WD models.

What’s Included

• Includes 2 Shocks
• Integrated Coil Springs

Why Choose This Product?

• Engineering Advantage: The inclusion of the Dual Speed Compression (DSC) adjuster allows for independent tuning of low and high-speed compression without tools, supported by a high-flow 6061-T6 hard-anodized aluminum piston.
• Performance Benefit: Drivers gain the ability to customize their suspension feel for both street comfort and off-road bottom-out control while achieving a level stance via adjustable ride height.

Frequently Asked Questions

How do the DSC adjusters work?
The Dual Speed Compression (DSC) adjuster features two knobs that allow you to manually select from twelve low-speed and ten high-speed compression levels for precise tuning.

Can I adjust the ride height with these shocks?
Yes, the integrated coil spring can be adjusted for preload and ride height, and they come pre-set to level the vehicle right out of the box.

What is the lift range for these front shocks?
These shocks are configured for a front lift range of 0 to 2 inches on the Ford Ranger T6 HiRider 2WD.
