ICON 1-3 inch Lift Kit For 2017-2018 Ford F150 Raptor (Stage 4)

Description
ICON 1-3 inch Lift Kit For 2017-2018 Ford F150 Raptor (Stage 4)

ICON Ford Raptor Stage 4 1-3 inches Lift Suspension System (2017–2020)

Part Number: K93154

Summary: The ICON Stage 4 suspension system provides a comprehensive performance overhaul for the 2017–2020 Ford Raptor, delivering 1-3 inches of front lift height. This system features massive 3.0 Series bypass shocks and coilovers designed to overcome the limits of OE components during high-speed off-road use and daily driving. By integrating Billet Aluminum Upper Control Arms with Delta Joints and a Multi-Rate Leaf Pack, this stage ensures superior wheel travel, bottom-out resistance, and adjustable damping control.

Features

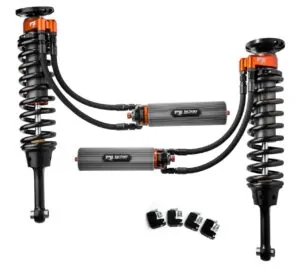

• 3.0 Series Coilover Kit: 3.0 inches diameter shock bodies with 10 inches finned aluminum reservoirs provide increased oil volume and cooling surface area to ensure consistent damping and reduced fade.
• CDC Valve Technology: An externally adjustable Compression Damping Control valve provides 10 distinct settings to ensure the vehicle is optimized for varying terrain or cargo loads.
• Hydraulic Bump Zone: A multi-stage hydraulic internal “Bump Zone” provides an exponential increase in bottom-out resistance during the last 40% of compression travel to ensure protection during hard impacts.
• Billet Upper Control Arms: CNC-machined billet aluminum construction with Delta Joints provides increased strength and high-angle articulation to ensure maximum wheel travel and durability.
• Multi-Rate Leaf Pack: The RXT-inspired rear leaf springs provide adjustable spring rates to ensure improved rear-end progression and load handling across different environments.
• System Durability: CAD-plated shock bodies with hard-anodized top caps provide superior corrosion resistance to ensure long-term structural integrity.
• Installation: A 100% bolt-in design provides a direct fitment into OEM shock locations to ensure a straightforward installation process without major modifications.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 inches w/ 5.00” BS / 6mm Offset, 18×9 inches w/ 5.25 inches BS / 6mm Offset, or 20×9 inches w/ 5.625 inches BS / 16mm Offset
• Aftermarket Tires: 35 inches x 12.50 inches
• Note: Larger tires may fit but fender trimming and modifications will be required. 2019-2020 vehicles with factory Live Valve shocks require ICON Damper Interface Device (PN: 95199) for proper operation.

System Components

• 95002 | 17-20 RAPTOR FRONT 3.0 VS RR CDCV COILOVER KIT
• 98562DJ | 10-20 RAPTOR BILLET UCA DJ KIT
• 95205 | 17-20 RAPTOR REAR 3.0 PB PAIR
• 95121 | 17-20 RAPTOR REAR AIR BUMP KIT
• 198510 | 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF (qty: 2)
• 95225H | 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT

Why Choose ICON Stage 4?

• Performance Engineering: Increased wheel travel and vehicle-specific valving for unrivaled ride quality.
• Delta Joint Reliability: High-angle articulation with a sealed design for long-term durability in harsh environments.
• Fully Serviceable: Shocks are rebuildable and revalveable for an immeasurable service life.

Frequently Asked Questions

Can I use my factory wheels with this kit?
Yes, this system is compatible with OEM wheels and tires.

Is this kit compatible with 2019-2020 Live Valve Raptors?
Yes, however, you must use ICON part #95199 (Damper Interface Device) to allow vehicle drive modes to operate correctly once factory shocks are removed.
