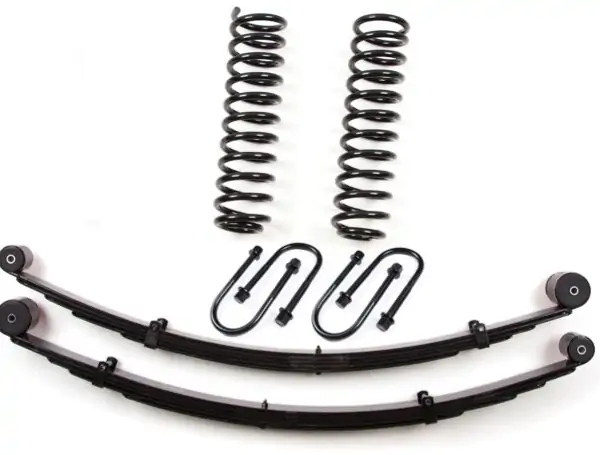

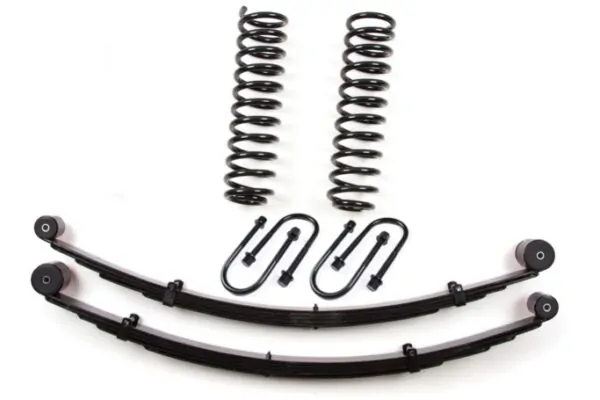

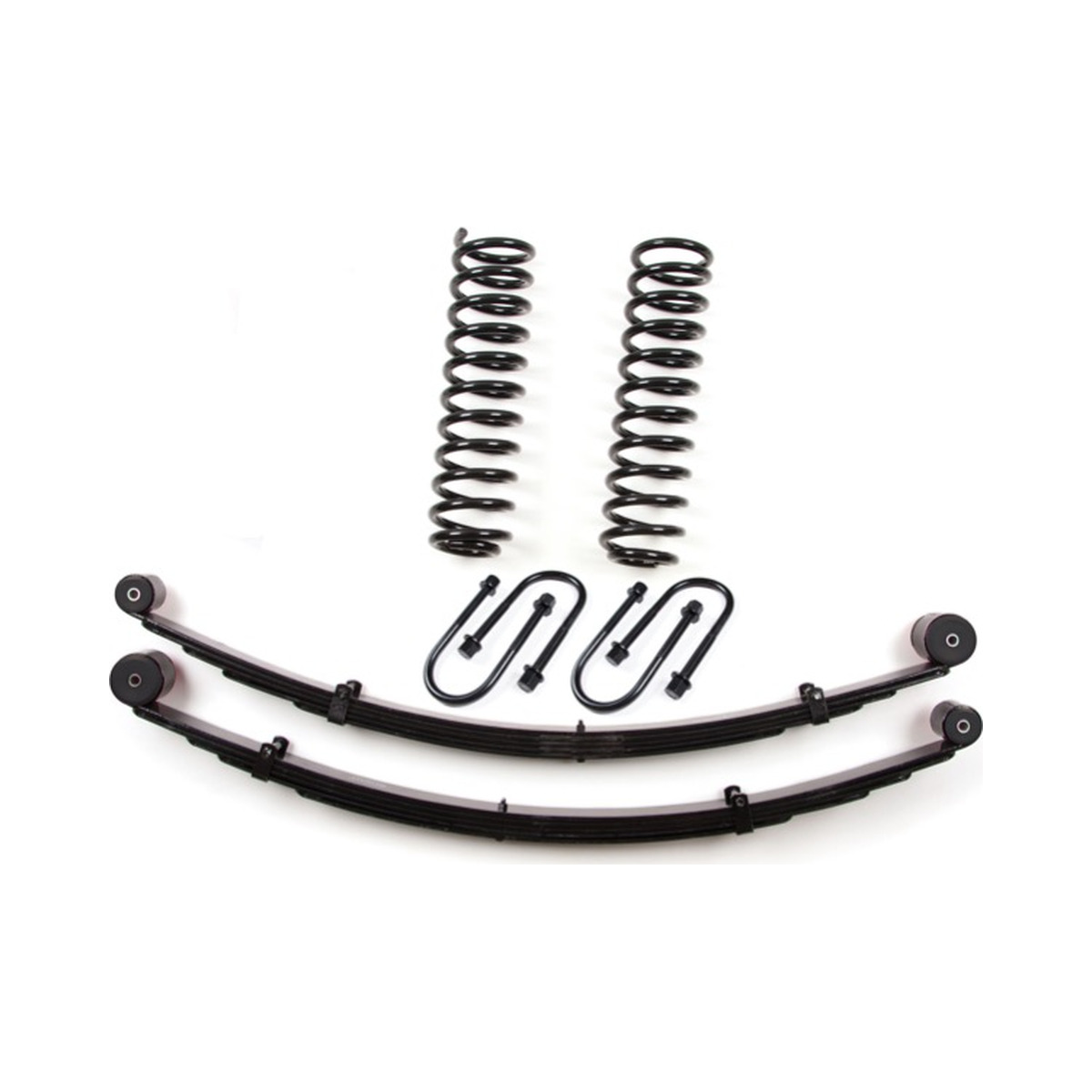

Zone Offroad 3″ Coil Springs Lift Kit 1984-2001 Jeep Cherokee XJ
Sale!Description
Zone Offroad 3″ Coil Springs Lift Kit 1984-2001 Jeep Cherokee XJ
Zone Offroad 3″ Coil Springs Lift Kit 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 Jeep Cherokee XJ
Part: J21/J22
New front coil springs are supplied that are capable of handling anything! Since we design our coil springs for off road use, there is no need for bump stop extensions. Our coils can be smashed to the bottom and will always come back! No, that doesn’t mean they are stiff. The key is using the correct size wire and quality material with the correct spring rate to offer the perfect ride and still hold up over time.
The rear is lifted via new Zone Offroad leaf springs. Many hours of development and testing have finally produced a capable spring that we are proud to introduce to our lineup. The new springs are a 5 leaf pack with anti-friction pads and center leaf spacer plates between each leaf. This design greatly decreases leaf pack internal friction. These springs are designed to give 3″ of lift and are also set up to give the max amount of compression travel before the shackle is limited by the rear portion of the body. This allows the springs to flatten out as much as possible, which translates to increased wheel travel. These are designed to flex, but can still hold up and handle your load of gear.
Optional gas charged Nitro shocks available for added handing control.
Featured Technology & Benefits
- Front coil springs designed to give a full 3″ of lift while maintaining an O.E. style ride
- No bump stops are included because our springs are designed for extreme travel.
- Replacement Rear Leaf Springs that will ride great and replace the tired factory XJ springs.
- New rear U-bolts are included with high nuts and washers
- Optional: New front and rear shocks are included that are valved specifically for your XJ, choose from drop down menu
Important Notes!
- The XJ was produced with different possible rear axles. You will have to identify your rear axle before being able to complete an order. The easiest way to tell the difference is to measure the I.D. of your rear u-bolts. The Chrysler rear end uses a 3″ I.D. u-bolt and the Dana 35 rear axle requires a 2-3/4″ I.D. u-bolt.
- Though not always required, optional 1″ transfer case drop kit (J5006) recommended when using stock driveline.
This product fits the following applications:
- 1984 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1985 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1986 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1987 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1988 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1989 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1990 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1991 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1992 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1993 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1994 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1995 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1996 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1997 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1998 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1999 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 2000 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 2001 Jeep Cherokee XJ w/ Chrysler 8.25 4WD Gas
- 1984 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1985 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1986 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1987 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1988 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1989 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1990 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1991 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1992 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1993 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1994 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1995 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1996 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1997 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1998 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 1999 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 2000 Jeep Cherokee XJ w/ Dana 35 4WD Gas
- 2001 Jeep Cherokee XJ w/ Dana 35 4WD Gas
Quick Specs
- Front Lift Height: 3″
- Front Lift Method: Coil Springs
- Rear Lift Height: 3″
- Rear Lift Method: Leaf Springs
- Install Time Hrs: 5
- Difficulty Level 1-5: 3
- Wheel Size: 15″ x 8″
- Back Spacing: 3.5″-4″
- Max Tire Size: 31″ x 10.50″
Questions and answers of the customers
-
If purchasing this kit for a stock xj, can i buy just what is included in the kit? or will the stock brake lines, control arms, etc be too short? Trying to figure out that sweet spot to get the maximum height without having to do a whole slew of other things too.
- QIf purchasing this kit for a stock xj, can i buy just what is included in the kit? or will the st...... Read more answer nowA This kit comes with everything you need. Longer brake lines not needed Look out for the drop down menu on the right.Will I need spacers with this kit for my stock wheels?
- A no spacers neededWheel Size: 15″ x 8″ Back Spacing: 3.5″-4″ Max Tire Size: 31″ x 10.50″What is the upgrade price to go from the base kit (510.00) to the Bilstein shocks on the 3 inch lift for the 1998 xj sport, 4x4, 4.0,I6??
- QWhat is the upgrade price to go from the base kit (510.00) to the Bilstein shocks on the 3 inch l...... Read more answer nowA Upgrade to 4 Bilstein 5100 shocks is: $211.27How exactly does this kit differ from the MJ 4.5" kit? I'm not trying to be an ass, i promise, i would just rather have this lift on my MJ
- QHow exactly does this kit differ from the MJ 4.5" kit? I'm not trying to be an ass, i promise, i ...... Read more answer nowA Bolts and springs differ
2 reviews for Zone Offroad 3″ Coil Springs Lift Kit 1984-2001 Jeep Cherokee XJ
