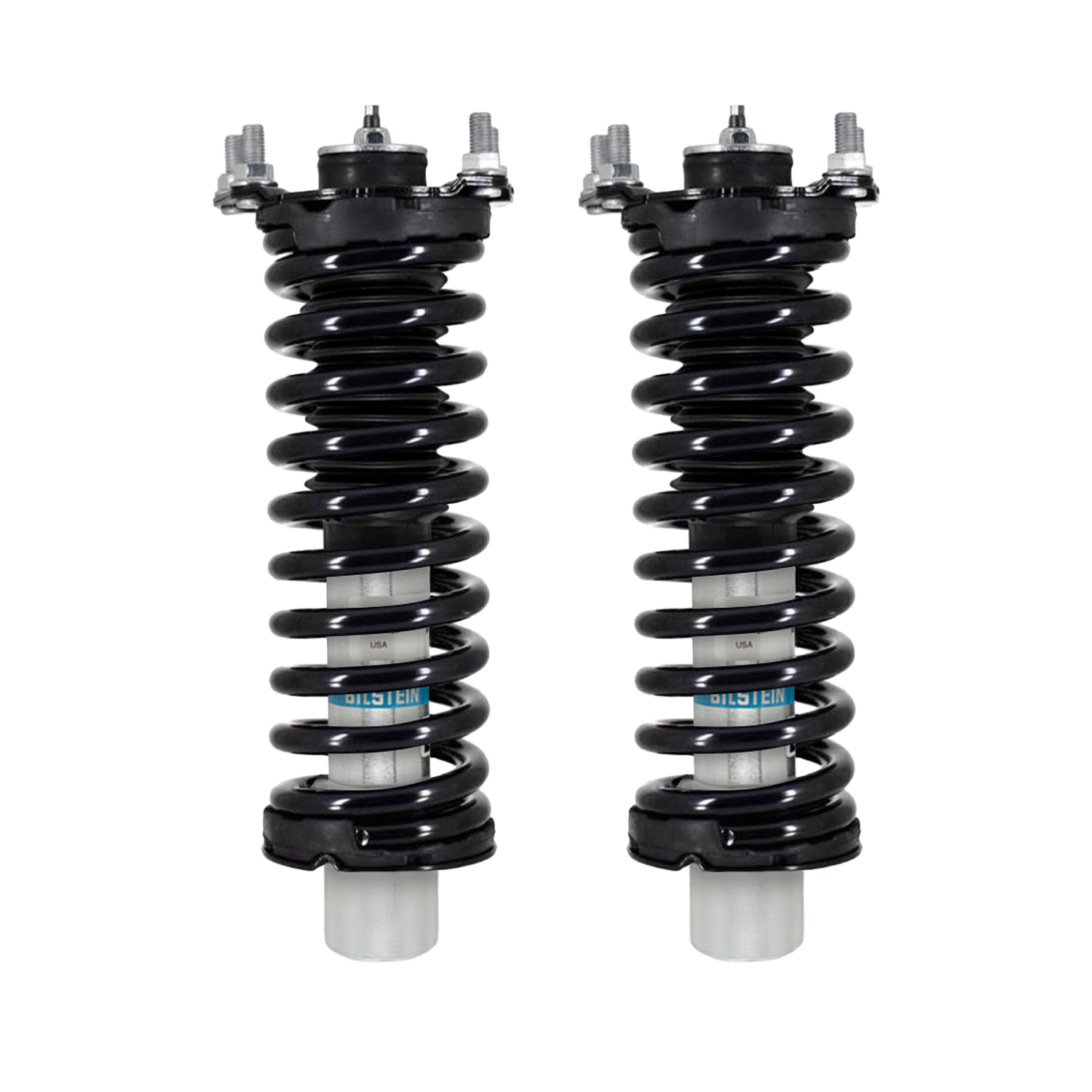

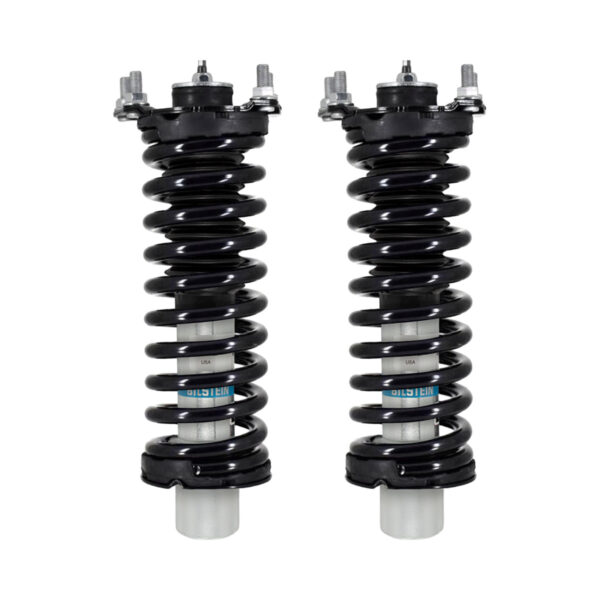

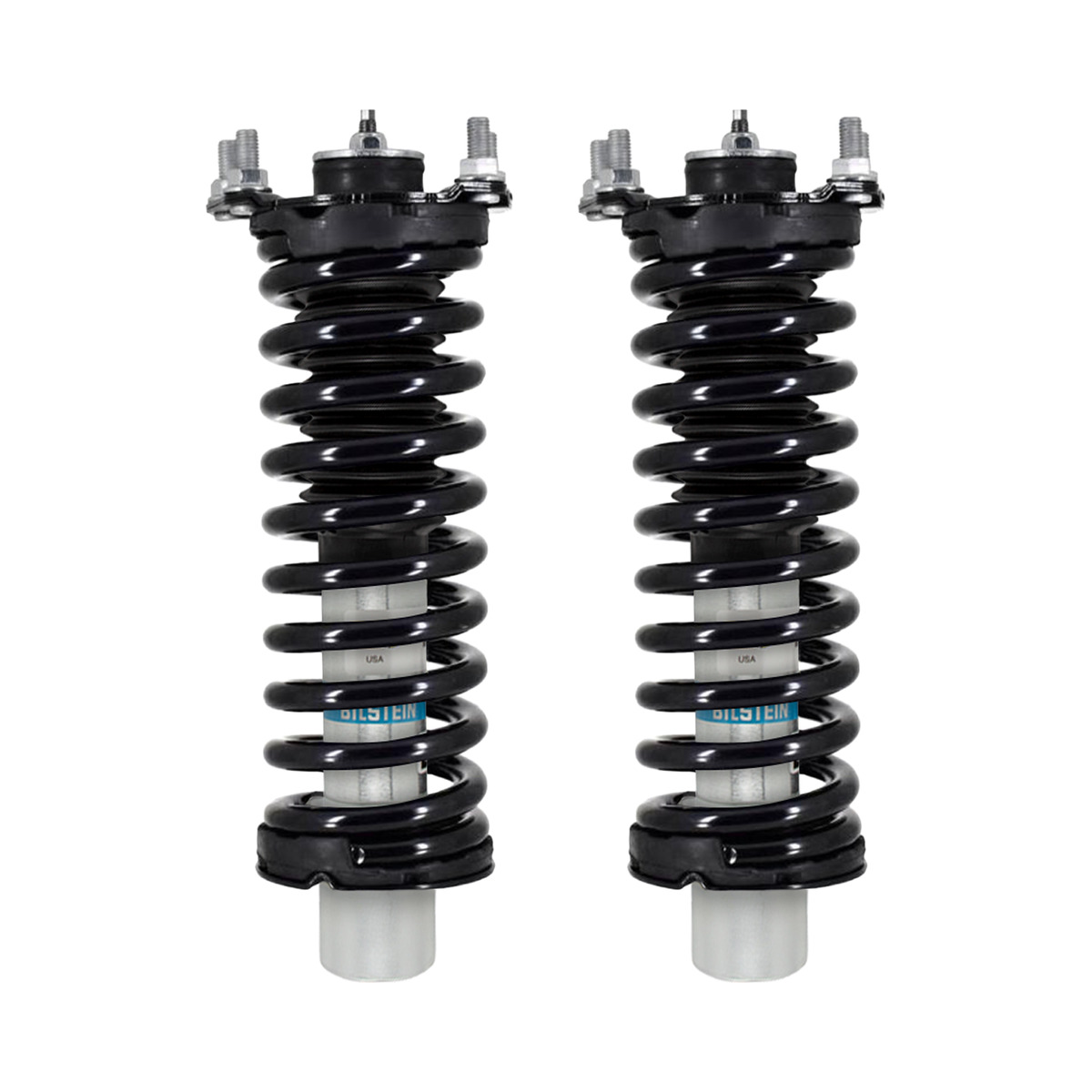

Bilstein 5100 1-2.5″ Front Lift Assembled Coilovers for 2002-2012 Jeep Liberty

Description
Bilstein 5100 1-2.5″ Front Lift Assembled Coilovers for 2002-2012 Jeep Liberty

Bilstein 5100 1-2.5″ Front Lift Assembled Coilovers for 2002-2012 Jeep Liberty

Part Number: BIL51002JL (Shock PN: 24-282642)

Summary: The Bilstein B8 5100 Front Assembled Coilover Kit is a ride-height adjustable front suspension solution engineered by Bilstein for the 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Jeep Liberty. Designed to correct factory rake and improve front-end control, this system uses a monotube shock with snap-ring adjustable spring perch positions to provide approximately 1-2.5 inches of front lift using OE-style springs. Bilstein’s 46mm digressive piston delivers consistent, fade-free damping while increasing wheel travel and stability. Fully assembled with OE replacement coils and new mounting components, this kit offers a straightforward bolt-in leveling upgrade with improved handling.

Features

• Ride-Height Adjustable Snap-Ring Design: Multiple snap-ring grooves allow precise spring seat positioning to achieve approximately 1-2.5 inches of front lift, leveling the vehicle stance without aftermarket lift springs.
• 46mm Monotube Piston: Large-diameter monotube construction increases oil volume and heat dissipation, preventing shock fade during extended on-road or light off-road use.
• Digressive Valving Technology: Self-adjusting deflective disc valve reacts to changing road conditions, providing firm control during braking and cornering while maintaining ride comfort.
• Fully Assembled Coilover: Ships assembled with OE replacement coils, new top mounts, bushings, and hardware to reduce installation time and eliminate spring compressor work.
• Increased Wheel Travel: Optimized shock length and valving improve suspension articulation and front-end stability compared to factory dampers.

Technical Specifications

Fitment

• 2002-2012 Jeep Liberty

What’s Included

• (2) Bilstein B8 5100 Front Ride-Height Adjustable Shocks (24-282642)
• (2) OE Replacement Front Coil Springs
• New Top Mounts
• New Bushings and Installation Hardware

Why Choose This Product?

• Engineering Advantage: Bilstein’s monotube, digressive-valved 5100 platform delivers reliable, fade-free performance with adjustable ride height using factory-style springs.
• Performance Benefit: Leveled stance, improved front-end control, and increased wheel travel without the complexity of a full lift kit.

Frequently Asked Questions

How much lift does this kit provide?
This kit provides approximately 1-2.5 inches of front lift depending on the snap-ring perch position used.

Are these coilovers fully assembled?
Yes. They come pre-assembled with OE replacement coils, mounts, bushings, and hardware.

Are the shocks adjustable?
The ride height is adjustable via snap-ring grooves, but the damping itself is non-adjustable.

Does this kit require aftermarket lift springs?
No. The lift is achieved using OE-style replacement springs on the adjustable Bilstein 5100 shock.
