RCD 3″ Suspension system with Bilstein 5100 for Jeep Wrangler TJ 97-06

Description

RCD 3″ Suspension system / Lift Kit with Bilstein 5100 for Jeep Wrangler TJ 1997-2006

RCD Suspension: Part # 10-45397

Model: Jeep Wrangler TJ

Drive Type: 4WD

Lift Height: 3”

Available Shocks: 24-185257 (Front), 24-185264 (Rear)

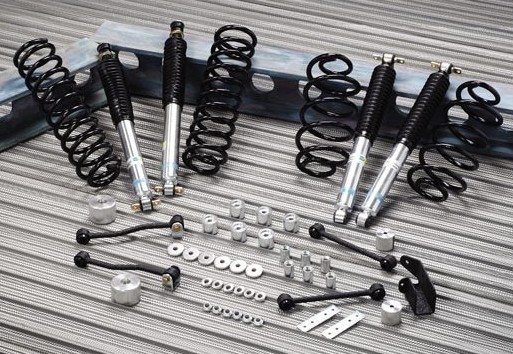

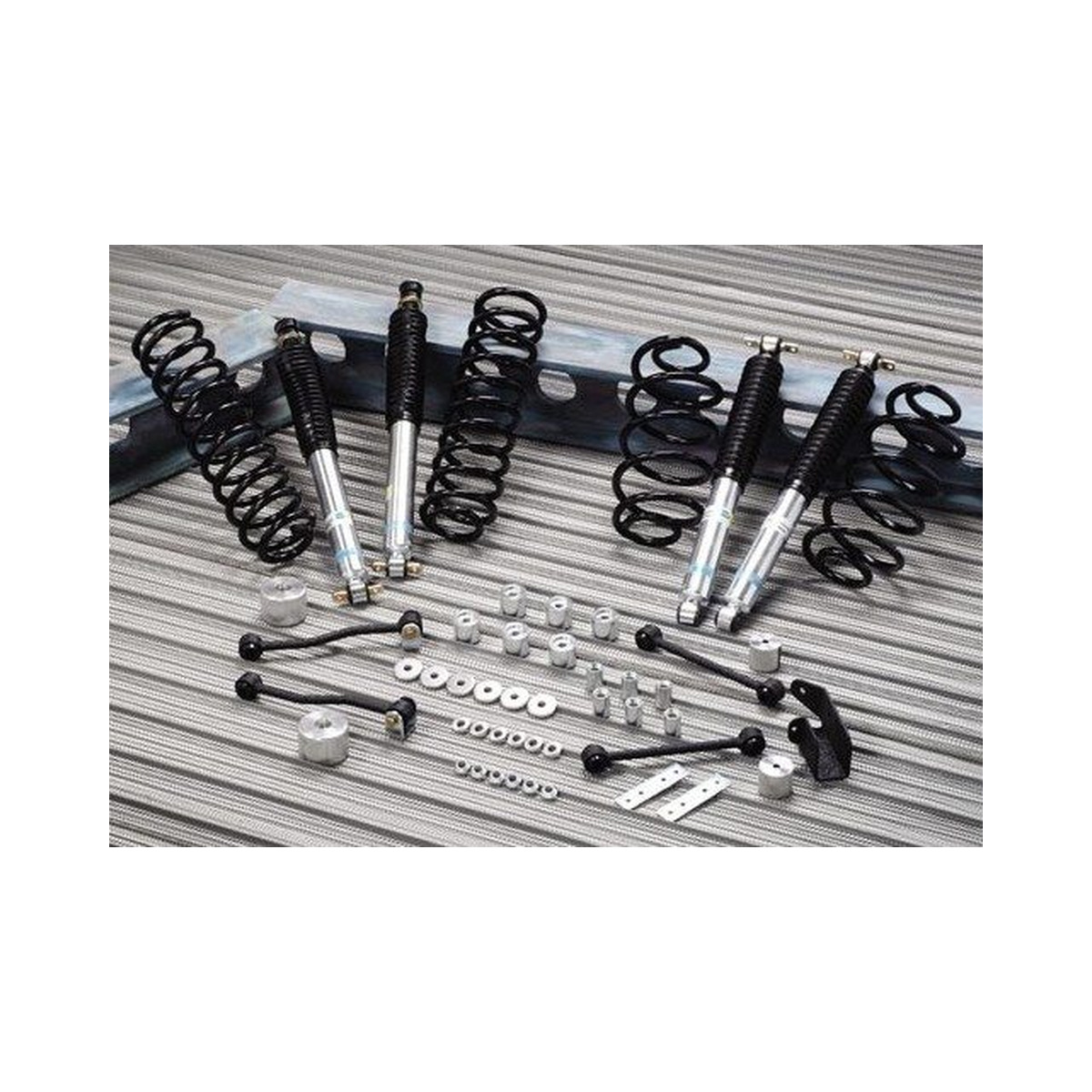

Includes:

• Front Bump Stop Pad
  Rear Track Bar Bracket
  Rear Bump Stop Extension
  Shifter Drop Bracket
  Transfer Case Spacer (Old/New Style)
  Conical Spacer 1/2″ ID
  Front Sway Bar Link
  Sway Bar Mount Bracket
  Rear Sway Bar Link
  Brake Line Hose Support
  3″ TJ Front and Rear Lift Coils
  Front and Rear Bilstein 5100 Series Shocks
  Complete Hardware Pack
  Detailed Installation Instructions

Main Kit
Box Part #: 10-45397-1
Front Coil Springs
Box Part #: 10-45397-2
Rear Coil Springs
Box Part #: 10-45397-3
Bilstein 5100 Series Shock Absorbers
Box Part #: 10-45397-4

Fits Jeep Wrangler TJ 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Max Tire Size:

• 31″ x 10.5″ – No modification necessary
• 33″ x 10.5″ – Minor fender / bumper trimming may be required

Max Backspace:

• 15″ x 8″ – 3.625″ backspacing
