Rock Krawler TJ 3.5″ X Factor 5″ Stretch Stg 1 Long Arm Lift Kit w/ 2.25 RRD Shocks 97-02 Wrangler

Description

Rock Krawler TJ 3.5 Inch X Factor 5 Inch Stretch Stg 1 Long Arm Lift Kit w/ 2.25 RRD Shocks 1997, 1998, 1999, 2000, 2001, 2002 Wrangler

Part: TJ35XFLA-5S01S1

System Benefits:

• Excellent Highway Ride and Handling
• 99 Inch Wheel Base (5 Inch Rear Stretch)
• High Clearance Lower Control Arms
• Long Travel Functional Multi Rate Coil Springs
• Sport Tuned 2.0 RRD Spec’d Prodigy Shocks
• Independent Front 3 Link Design
• Triangulated Rear 4 Link Design
• Pro Front Sway Bar Disconnects
• Allows for up to 33 Inch/35 Inch Tires with OEM Fenders
• Allows for up to 35 Inch/37 Inch Tires with Flat Fenders
• Allows for up to 37 Inch/38 Inch Tires with High Line Fenders
• Abuse Proof Lifetime Warranty on all Hard Parts
• Upgradeable to Coil Overs

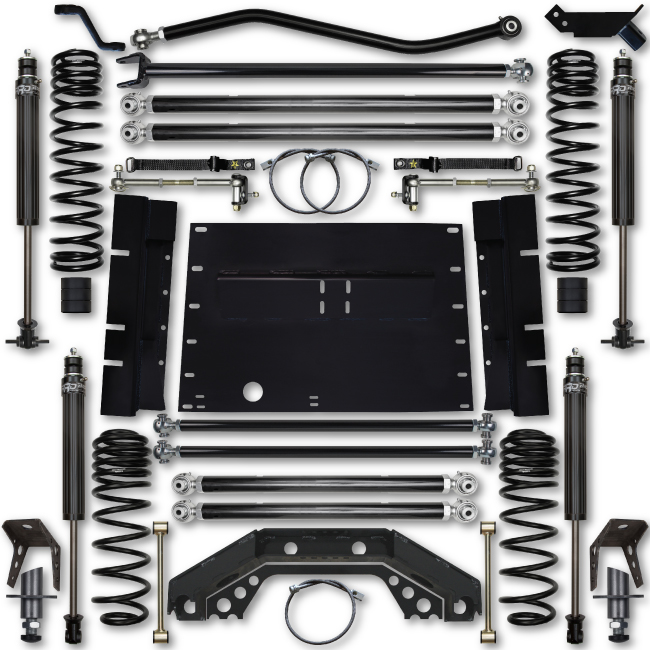

System Includes:
(4) Long travel functional multi rate coil springs
(4) Sport Tuned 2.0 RRD Spec’d Prodigy Shocks
(4) High misalignment/adjustable lower long arms
(1) Adjustable front upper control arm
(1) High misalignment/adjustable front track bar
(2) Front adjustable sway bar disconnects
(2) Front sway bar link straps
(1) Skid plate and skid plate mounting brackets
(2) Rear upper triangulated 4 link arms
(1) Rear triangulated 4 link mounting cradle/axle truss
(3) Extended stainless steel brake lines
(2) Extended rear sway bar links
(1) Pair of front bump stops
(1) Pair of new rear coil spring mounts with integrated bump stops
(1) Pair of rear upper shock mounts made from 1/4 Inch thick laser cut steel
includes hardware and detailed instructions.
Notes:
1. Available for most common axle combinations (Dana 30, 44, 60, Ford 8.8, Dynatrac ProRoc’s). Can be adapted to fit Currie Rock Jock 60’s and Solid 60’s by rotating the rear cradle into the proper position instead of using the alignment tool provided.
2. Requires a SYE with C.V. Driveshaft.
3. With long rear uppers, a custom cat back exhaust is required.
4. Rubicon Edition TJ’s require a new rear driveshaft.
5. 2003 TJ’s equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
6. Requires removal of the OEM rear upper control arm mounts off the rear axle.
7. Requires cutting of the rear quarter panels to allow clearance for the new rear axle position.

YouTube video if available: https://youtu.be/4m-7yvkqkvk

Country of Origin: USA

Lift Height (if applicable): 3.5 Inch

Location (if available): Front and Rear

Fitment Notes (if applicable):

Shocks Included (if applicable):

Remote Reservoirs Included (if applicable):

Coilovers Included (if applicable):

Recommended Tire Size (if applicable): 33/35/37/38

Kit Components (if applicable):

Vehicle Fuel Type (if applicable):
