Rock Krawler TJ 4.5″ X Factor 5″ Stretch Stg 1 Long Arm Lift Kit w/ 2.25 RRD Shocks 03-06 Wrangler

SKU: TJ45XFLA-5S02S1

Description
Rock Krawler TJ 4.5″ X Factor 5″ Stretch Stg 1 Long Arm Lift Kit w/ 2.25 RRD Shocks 03-06 Wrangler

Rock Krawler TJ 4.5 Inch X Factor 5 Inch Stretch Stg 1 Long Arm Lift Kit w/ 2.25 RRD Shocks 2003, 2004, 2005, 06 Wrangler

Part: TJ45XFLA-5S02S1

Rock Krawler TJ 4.5 Inch X Factor 5 Inch Stretch Stg 1 Long Arm Lift Kit with 2.25 RRD Shocks 03-06 Wrangler

System Benefits:

  • Excellent Highway Ride and Handling
  • 99 Inch Wheelbase (5 Inch Rear Stretch)
  • High Clearance Lower Control Arms
  • Triple Rate Coil Springs
  • 2.25 RRD Shocks
  • Independent Front 3 Link Design
  • Triangulated Rear 4 Link Design
  • Pro Front Sway Bar Disconnects
  • Allows for up to 35 Tires with OEM Fenders
  • Allows for up to 37 Tires with Flat Fenders
  • Allows for up to 38/40 Tires with High Line Fenders
  • Abuse Proof Lifetime Warranty on all Hard Parts
  • Upgradeable to Coilovers

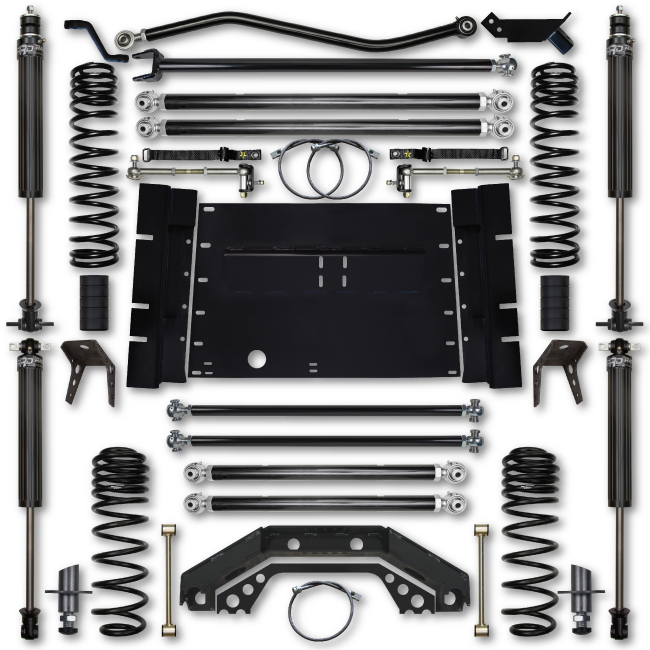

System Includes:
(4) Triple rate coil springs
(2) 2.25 RRD Spec Front Shocks (Travel Length: 10.0 Inch)
(2) 2.25 RRD Spec Rear Shocks (Travel Length: 10.0 Inch)
(4) High misalignment/adjustable lower long arms
(1) Adjustable front upper control arm
(1) High misalignment/adjustable front track bar
(2) Front adjustable sway bar disconnects
(2) Front sway bar link straps
(1) Skid plate and skid plate mounting brackets
(2) Rear upper triangulated 4 link arms
(1) Rear triangulated 4 link mounting cradle/axle truss
(1) Front track bar relocation bracket
(1) Drop pitman arm
(3) Extended stainless steel brake lines
(2) Extended rear sway bar links
(1) Pair of new rear coil spring mounts with integrated bump stops
(1) Pair of rear upper shock mounts

Notes:

  • Includes hardware and detailed instructions.
  • Available for most common axle combinations (Dana 30, 44, 60, Ford 8.8, Dynatrac ProRoc’s). Can be adapted to fit Currie Rock Jock 60’s and Solid 60’s by rotating the rear cradle into the proper position instead of using the alignment tool provided.
  • Requires a SYE with C.V. Driveshaft.
  • With long rear uppers, a custom cat back exhaust is required.
  • Rubicon Edition TJ’s require a new rear driveshaft.
  • 2003 TJ’s equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
  • Requires removal of the OEM rear upper control arm mounts off the rear axle.
  • Requires cutting of the rear quarter panels to allow clearance for the new rear axle position.
  • Recommend using an OEM TJ rear coil when repositioning the rear spring bucket on the frame as shown in the directions.
  • Requires the use of a fuel cell mounted in the bed of the vehicle.
  • Choose your bump stop lengths after you choose your wheel/tire and fender combination.

YouTube video if available:

Country of Origin: USA

Lift Height (if applicable): 4.5 Inch

Location (if available): Front and Rear

Fitment Notes (if applicable):

Shocks Included (if applicable):

Remote Reservoirs Included (if applicable):

Coilovers Included (if applicable):

Recommended Tire Size (if applicable): 33/35/37/38

Kit Components (if applicable):

Vehicle Fuel Type (if applicable):
