AirLift Rear Helper Spring Bellows for 2017-2019 Nissan Titan

Description
AirLift Rear Helper Spring Bellows for 2017-2019 Nissan Titan

AirLift Helper Spring Bellows for 2017-2019 Nissan Titan

Part Number: 50201

Summary:

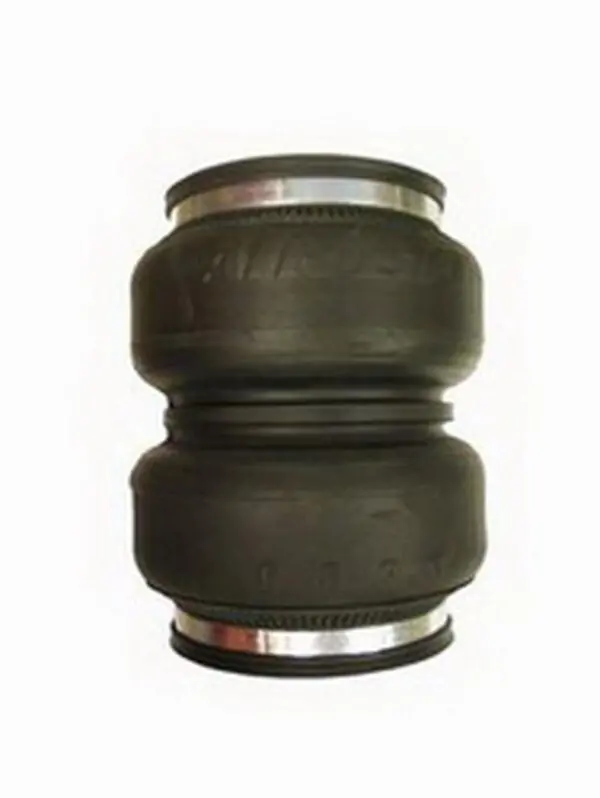

The AirLift 50201 is a LoadLifter 5000 series double bellows helper spring designed for air suspension applications. This rubber air spring provides a load capacity of 2,270 pounds at 100 PSI and features a 7-inch diameter. It is a single component intended for use as a helper spring within a compatible air suspension system.

This product is intended for load support or component replacement only and does not alter factory suspension geometry unless explicitly stated.

Features

• Double Bellows Design: Constructed from rubber with a 7-inch diameter and 1/8 inch NPT inflation port.
• Load Capacity: Rated for 2270 pounds at 100 Pounds Per Square Inch of inflation.
• Operating Range: Provides an extended height of 9.1 inches and a compressed height of 2.3 inches.
• Mounting Specifications: Features 3/8 Inch-24 mounting types on both Side A and Side B.

Technical Specifications

Fitment

• 2017 Nissan Titan
• 2018 Nissan Titan
• 2019 Nissan Titan

What’s Included

• 1 x AirLift Helper Spring Bellows (Single)
• Note: Hardware is not included.

Why This Product Exists

• Purpose: This product addresses the need for load support by providing a bellows with a 2270-pound capacity at 100 PSI.
• Application: Used as a component in air spring systems for the Nissan Titan (2017-2019) to assist with load management.

Frequently Asked Questions

Does this product increase vehicle lift?
No. This product does not increase ride height unless explicitly stated by the manufacturer.

Is this product intended for towing?
Only if explicitly stated in the source description.

Does this product change GVWR?
No. GVWR is determined by the vehicle manufacturer and is not altered by this product.
