Bilstein 5100 Assembled Front 0-2.2″ Lift Coilovers with 0-1″ Rear Lift Shocks for 2017-2024 Nissan Titan Non-XD

SKU: 5100BILNT17
5 out of 5 based on 1 customer rating
(1 customer review)
Bilstein 5100 Assembled Front 0-2.2 Lift Coilovers with 0-1 Rear Lift Shocks for 2017-2023 Nissan Titan Non-XD
Bilstein 5100 Assembled Front 0-2.2 Lift Coilovers with 0-1 Rear Lift Shocks for 2017-2023 Nissan Titan Non-XD

Description
Bilstein 5100 Assembled Front 0-2.2″ Lift Coilovers with 0-1″ Rear Lift Shocks for 2017-2024 Nissan Titan Non-XD

Bilstein 5100 0-2.2″ Front Lift Pre-Assembled Coilovers + 0-1″ Rear 5100 Shocks – 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Nissan Titan (Non-XD)

Part #: 5100BILNT17

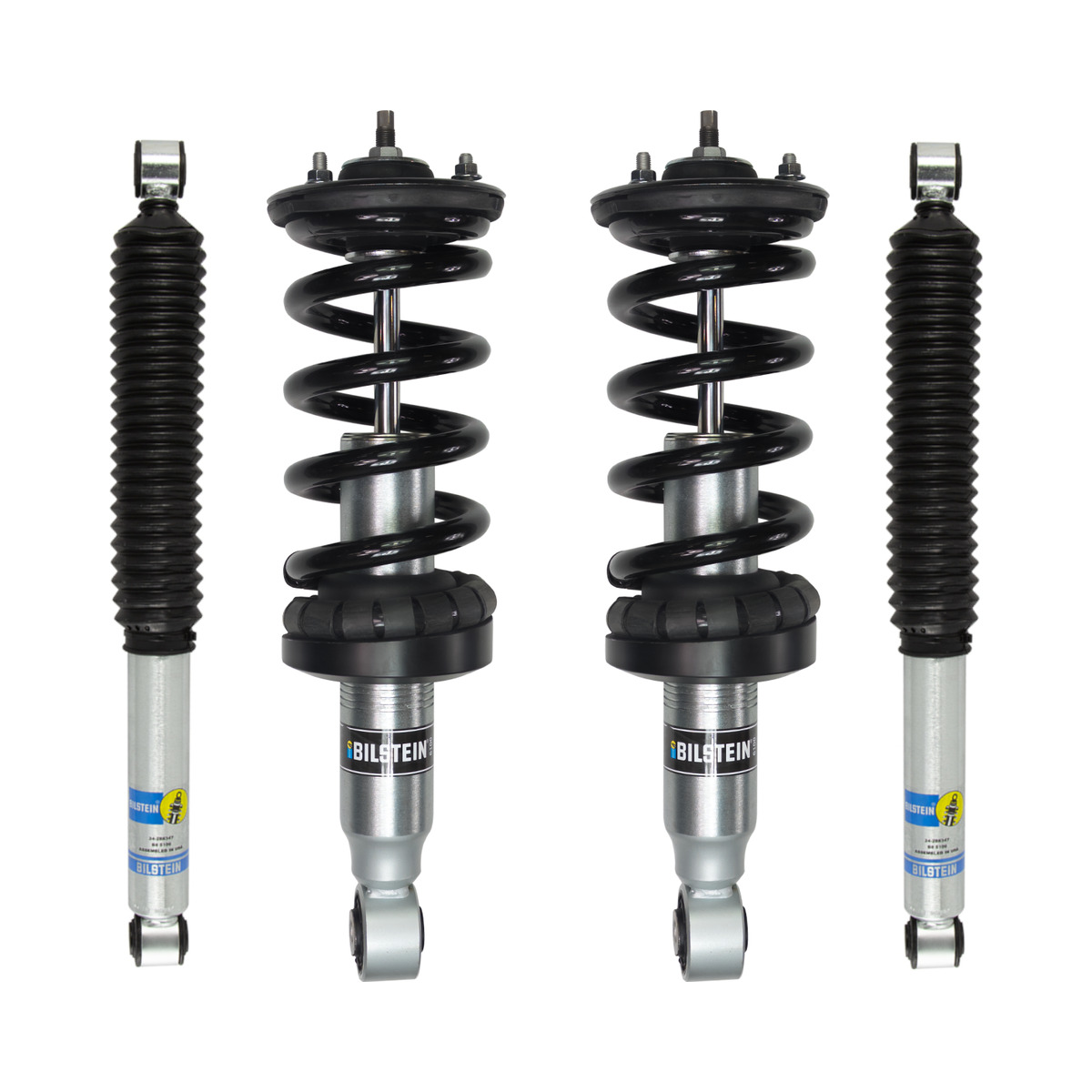

What’s Included

  • Front: Pre-assembled Bilstein B8 5100 coilovers with new top mounts, bushings, hardwareAssembly lead time: 3-7 business days
  • Rear: 2 x Bilstein 5100 shocks 24-288347

Front Coilover Details

  • Adjustable lift: ~0 to 2.2″ target range (5100 hardware supports up to ~2.75″ depending on application)
  • Design: monotube, gas charged, 46 mm digressive piston, snap-ring adjustable spring perch
  • Mounts: upper stem – lower eye
  • Lengths: extended 15.31″, compressed 10.94″
  • Finish: zinc plated, includes dust boots, no external reservoir

Rear Shock Specs – 24-288347

  • Lift range: for 0-1″ rear lift
  • Lengths: collapsed 15.94″ – extended 24.61″ (405.0 mm – 625.2 mm)
  • Body: smooth body, 46 mm ID, zinc plated
  • Reservoir: no – Damping: non-adjustable
  • Spring seat included: no

Why You’ll Like It

  • No spring compressor needed – fronts arrive pre-assembled for a clean, bolt-on install
  • Consistent control – 46 mm monotube design delivers fade-free damping on and off road
  • More travel – adjustable perch increases usable suspension travel and helps level stance
  • OE-style integration – designed to work with OE-format coils and factory hardware interfaces

Fitment

  • Vehicle: Nissan Titan 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
  • Chassis: Non-XD only
  • Drivetrain: 2WD or 4WD
  • Heights: front adjustable 0-2.2″; rear shocks sized for 0-1″ rear lift components

Notes

  • Actual front lift varies with accessories, bumper weight, and spring condition
  • Alignment required after installation

Feature Summary

  • 46 mm monotube design ensures consistent, fade-free performance
  • Increases suspension travel and improves handling
  • Adjustable spring perch design for lifting and leveling
  • Durable, zinc coated, weather resistant shock bodies
  • Made in USA – limited lifetime warranty on dampers

Customer reviews

Rated 5 out of 5 stars
1 review
5 stars 1 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

1 review for Bilstein 5100 Assembled Front 0-2.2″ Lift Coilovers with 0-1″ Rear Lift Shocks for 2017-2024 Nissan Titan Non-XD

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      You replied to a previous question of mine reference the shock/strut kit "Bilstein 5100 Assembled Front 0-2.2″ Lift Coilovers with 0-1″ Rear Lift Shocks for 2017-2023 Nissan Titan Non-XD SKU: 5100BILNT17". You stated it will fit my 2019 Nissan Titan pro4X 4WD (that's great). In your reply it linked to the 2.2" lift on the front (in the drop down menu). Is this correct for replacing stock Bilstein 5100 with your 5100s or should I select 1" stock in drop down?
    1. 0 votes
      Q You replied to a previous question of mine reference the shock/strut kit "Bilstein 5100 Assembled...... Read more
      A  Usually stock (factory) shocks can be 4600 series with only one and only notch setting, if you have 5100s installed now, they may be aftermarket swap. Anyway, our 2,2'' is measured compared to the factory height of usual submodels, Pro-$x usually sits slightly higher than usual submodels from the factory
      2. Do these shocks lift the rear any higher than the factory shocks on a 23 Titan pro4x?
    2. 0 votes
      Q Do these shocks lift the rear any higher than the factory shocks on a 23 Titan pro4x?
      A Rear shocks will not lift your truck by themselves - some lift kit options as add-a-leafs or longer coils or maybe spacers will be required for a lift. These shocks are only longer than the stock shocks - designed for use with the existing lift.
      3. Will they fit on my 2017 Titan two wheel drive and give a little lift.
    3. 0 votes
      Q Will they fit on my 2017 Titan two wheel drive and give a little lift.
      A

      Yes
      It will work, but you'll need to select (4WD/2WD) from the drop-down menu.
      4. I want to maintain the stock lift on my 2019 Nissan Titan Platinum Reserve. How do I determine if the front struts should be set at 0” or 2” lift?
    4. 0 votes
      Q I want to maintain the stock lift on my 2019 Nissan Titan Platinum Reserve. How do I determine if...... Read more
      A

      If you need a stock lift (0"), you need to select clip #1 (stock)
      5. Do you offer just the front pair without rear shocks?
    5. 0 votes
      Q Do you offer just the front pair without rear shocks?
      A Yes We can offer https://www.suspensionlifts.com/shop/nissan/nissan-titan/bilstein-5100-assembled-front-0-2-2-lift-coilovers-for-2017-2023-nissan-titan-non-xd/
      6. I’d like to purchase this kit but would like to run 33 inch tires . I have an sv model and just want a clean look with tires shy outside of fenders should I run 33 11.5 17 what do you recommend and offset .
    6. 0 votes
      Q I’d like to purchase this kit but would like to run 33 inch tires . I have an sv model and just w...... Read more
      A Can't guarantee tires fitment, need test fitment first
      7. How do you adjust these
    7. 0 votes
      Q How do you adjust these
      A the c-clip and the lower coil cup position is moved up and down, we already assemble it on your desired height
      8. Does the pro4x have a different ride height in the front vs lower models
    8. 0 votes
      Q Does the pro4x have a different ride height in the front vs lower models
      A Yes, the Nissan Frontier PRO-4X (and some other Nissan models with PRO-4X trim, like the Xterra or Titan) does have a different ride height compared to lower trims — specifically in the front.
      9. Dear CSR, I want to buy SKU: 5100BILNT17 Kit for my 2017 Nissan Titan . The front Strut to be raised at 2.2" , Will the Truck Level or do I have to buy 1 Inch Block lift for the Rear ? Thank you for your help.
    9. 0 votes
      Q Dear CSR, I want to buy SKU: 5100BILNT17 Kit for my 2017 Nissan Titan . The front Strut to be rai...... Read more
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png we can set them on 1.5'' fif you want
