Synergy Bump Stop Spacers for 2005+ Ford Super Duty 4×4

The Synergy Ford Super Duty f-250 / F-350 front bump stop spacers are highly recommended when lifting or leveling your truck with longer than stock front shocks. These bump stop spacers are designed to add 1” of space between the frame and bump stop cup. When adding longer than stock front shocks, such as Fox 985-24-155, the shock will bottom out before the axle hits the bump stop on the frame. This puts high loads on the shock and frame where the shock mounts, leading to possible damage to the shock or the frame. These 1 inch bump stop spacers position the front bump stop 1 inch lower allowing for shocks with a compressed length of 15”

Fitments:

• 2005+ Ford Super Duty F-250 / F-350 / F-460 / F-550 / F-600

Benefits:

• Allows for running longer shocks
• Spaces bump stop cup 1” from frame
• Allows stock bump stop cup to be reused
• No modifications required to install

Features:

• CNC cut 6061-T6 Aluminum
• Black anodized for corrosion protection
• New hardware included

Includes

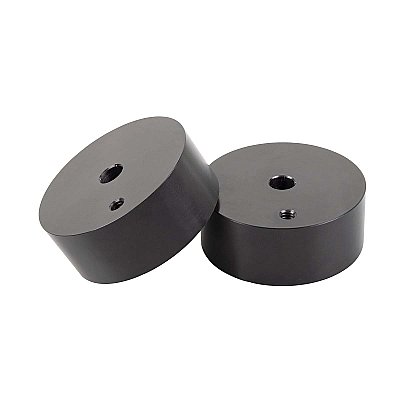

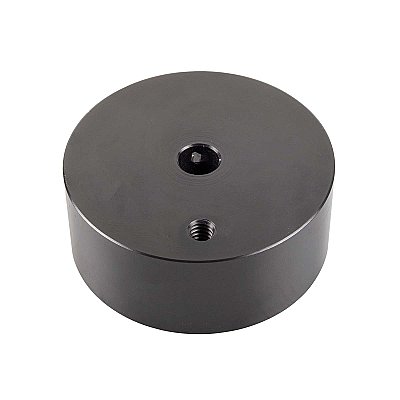

• (2) Aluminum Bump Stop Spacers
• (1) Bump Stop Hardware Kit

Notes:

• Compatible with the 2.5 inch Leveling Kit
• Only compatible with 4×4 front axle
• Shock absorber maximum compressed length: 15”

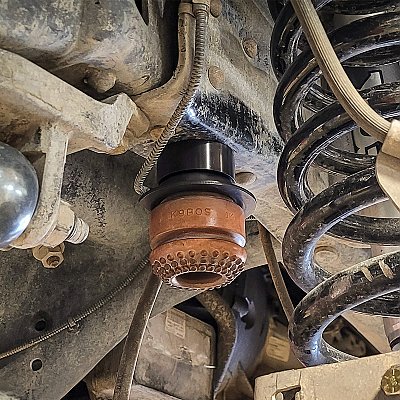

Installation Instructions
