Bilstein 6112 0.6-2.6″ Front Lift Assembled Coilovers with Rear 5100 Shocks for 2019-2025 Ram 1500 2WD/4WD

Description
Bilstein 6112 0.6-2.6″ Front Lift Assembled Coilovers with Rear 5100 Shocks for 2019-2025 Ram 1500 2WD/4WD

Bilstein 6112 0.6-2.6″ Front Lift Assembled Coilovers + Rear 5100 Shocks – 2019, 2020, 2022, 2023, 2024, 2025 Ram 1500 2WD/4WD

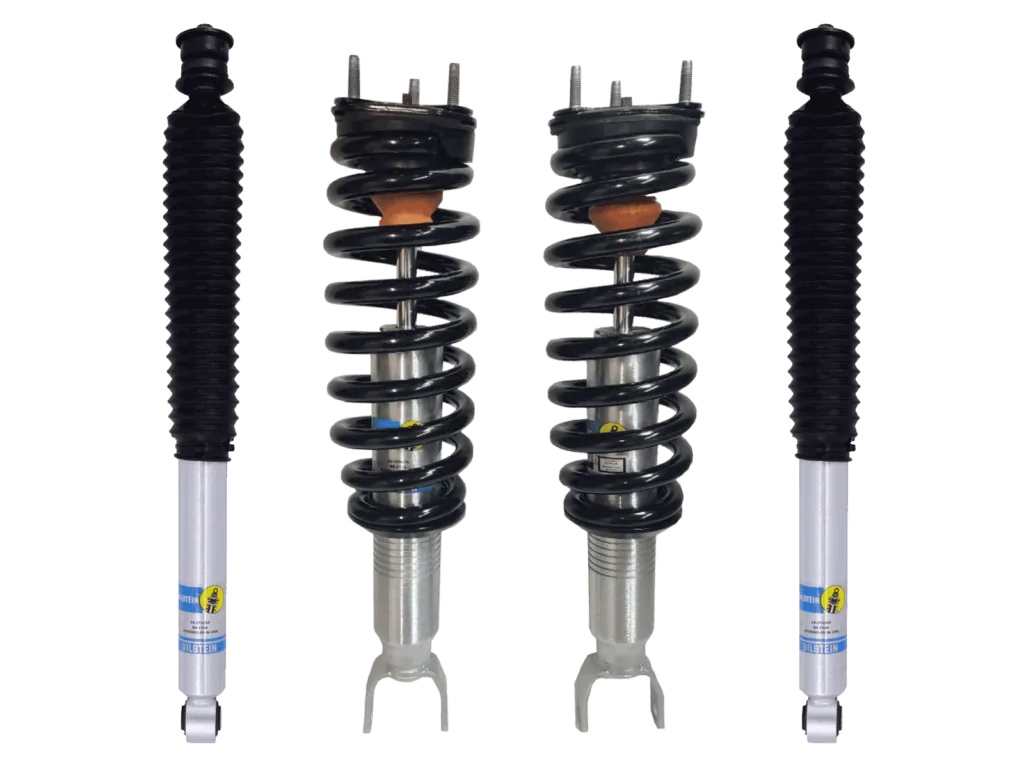

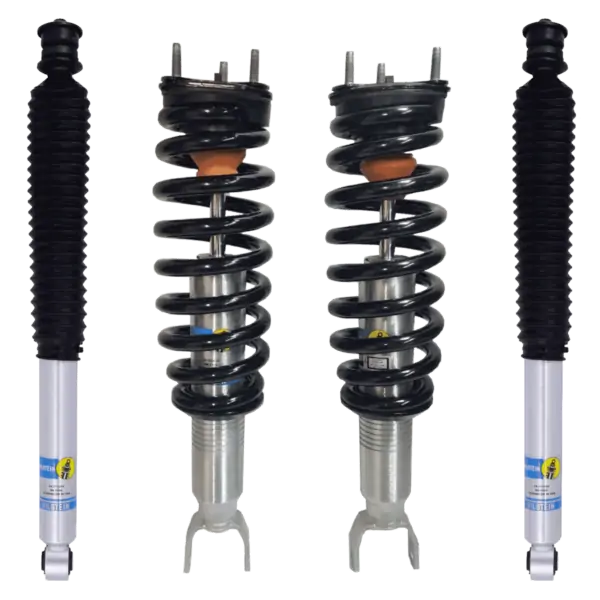

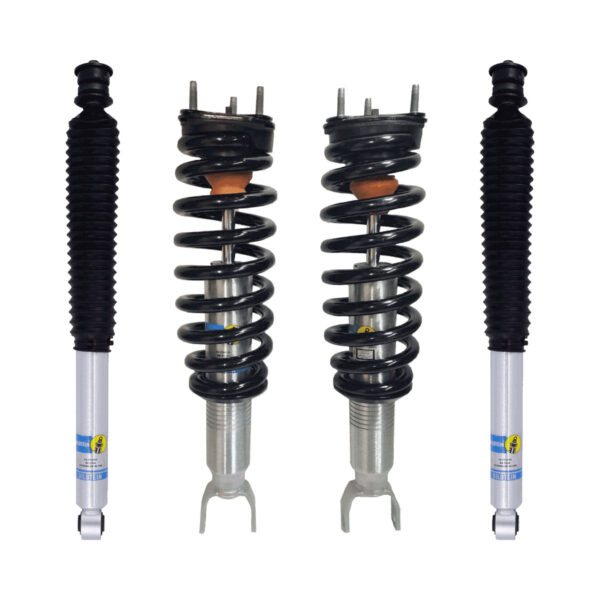

Part #: 47-293540-ASBS (includes 2 x front struts 24-298810 with Bilstein coils, and 2 x rear Bilstein 5100 shocks 24-233354)

Need a kit with rear coils? Bilstein 6112 0.6-2.6" Front Lift Assembled Coilovers with Rear 5100 Shocks and 1.5" ICON Coils for 2019-2025 Ram 1500 2WD/4WD

What is included

• Front (pre-assembled coilovers):
  • 2 x Bilstein B8 6112 60 mm monotube struts 24-298810
  • 2 x Bilstein matched cold-wound coil springs with billet spring seats
  • Assembled with new top mounts, bushings, isolators, and hardware
• Rear:
  • 2 x Bilstein B8 5100 rear shocks 24-233354

Ride height

• Front: adjustable ~0.6-2.6″ via snap-ring spring perch positions (includes trucks with factory Off-Road Package)
• Rear: shocks only – do not add lift by themselves

Why this kit

• Big-body control up front – 60 mm digressive piston improves damping authority on and off road
• Customizable stance – level the truck and clear larger tires with 0.6-2.6″ front adjustability
• Matched rear damping – 5100s provide consistent, fade-free performance
• Pre-assembled convenience – no spring compressor needed

Key specs

Installation instructions – Bilstein 6112 0.6-2.6″ Front Coilovers for 2019-2021 Ram 1500 2WD-4WD

Fitment

• Ram 1500 2WD/4WD: 2019, 2020, 2022, 2023, 2024, 2025
• Works with Rebel submodel
• Without air suspension

Install notes

• Coilovers come assembled – choose your desired clip setting at order
• Alignment required after installation
• Re-torque all fasteners at ride height after initial road test
