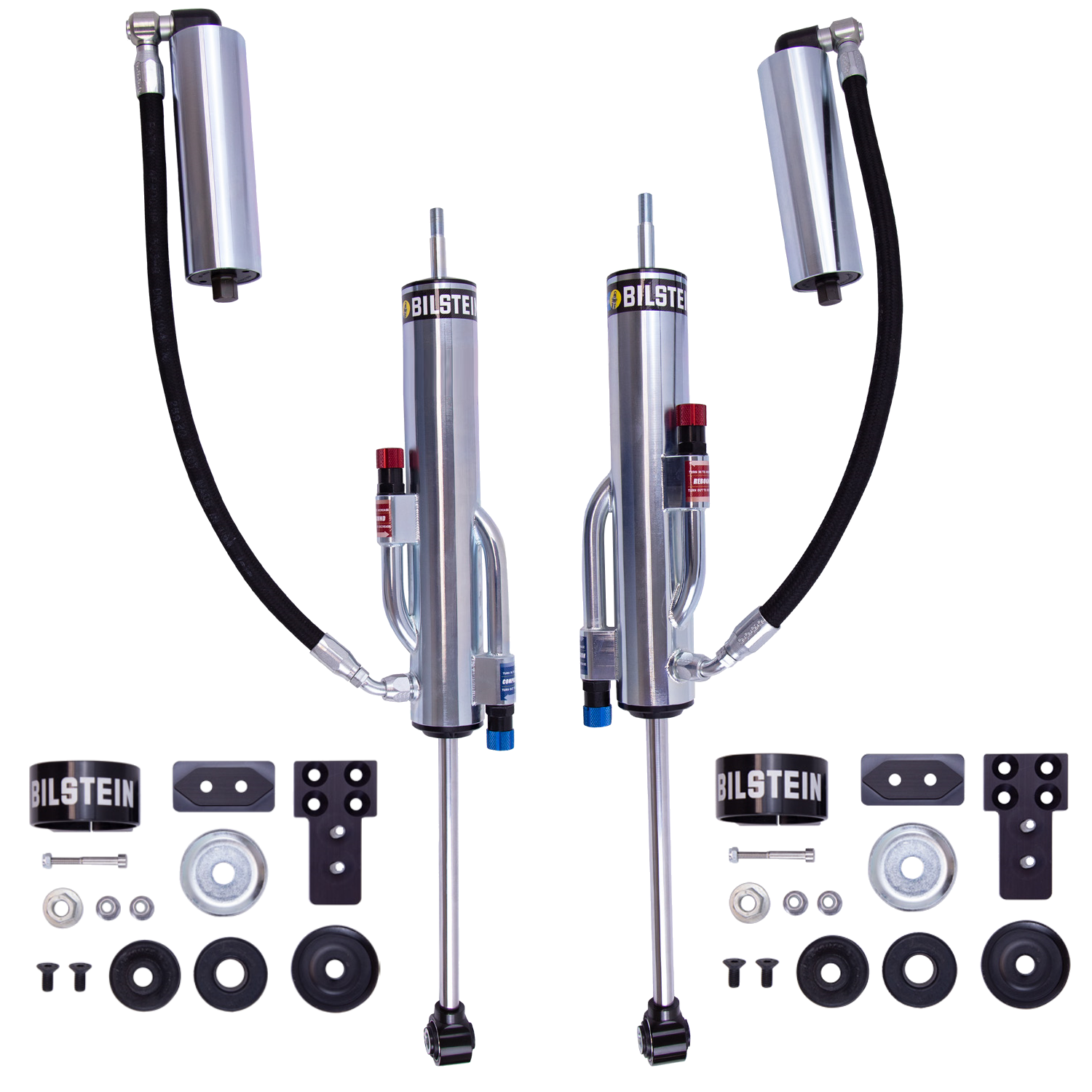

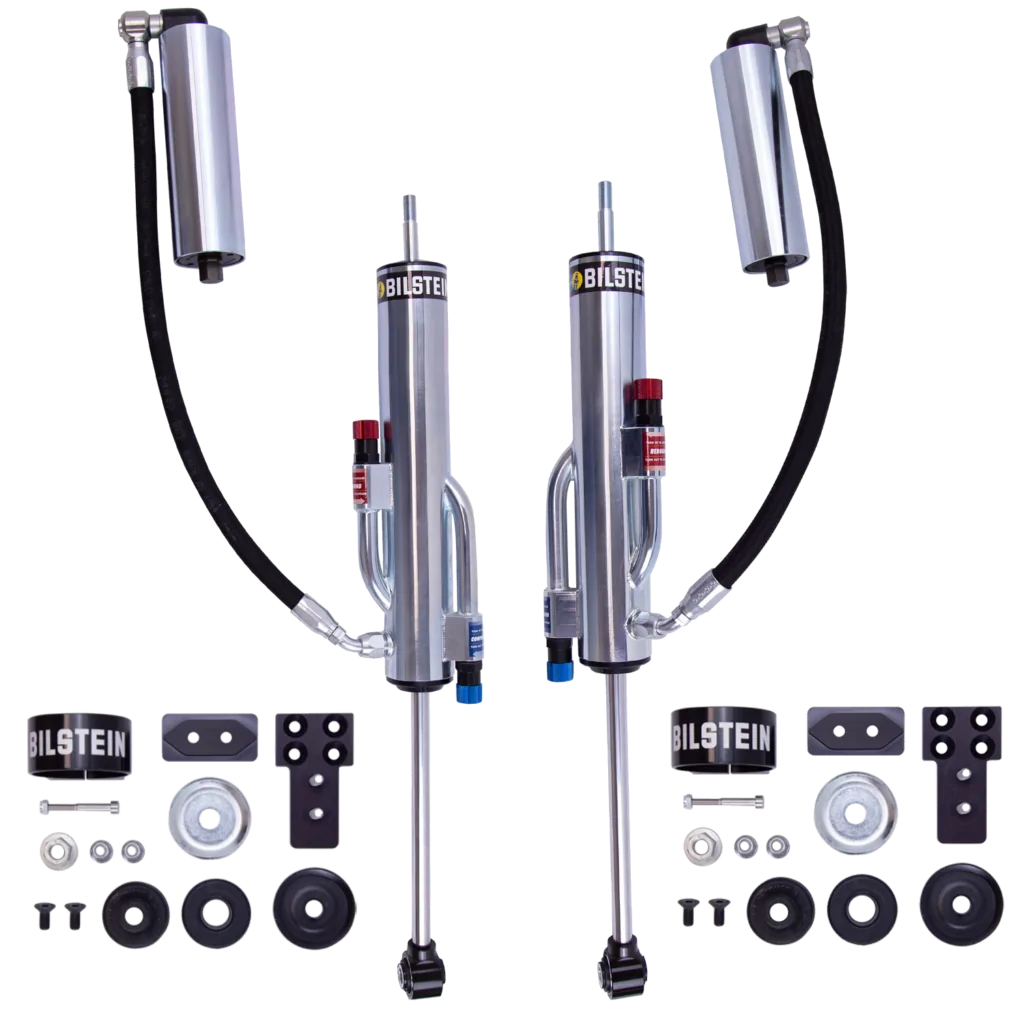

Bilstein B8 8100 (Bypass) 0-2″ Rear Shocks for 2019-2021 Ram 1500 2WD/4WD

SKU: 25-316230_25-316247



Out of stock

Notify me when item is back in stock.

Price Match Request


Bilstein B8 8100 (Bypass) 0-2″ Rear Shocks for 2019, 2020, 2021 Ram 1500 2WD/4WD

Part: 25-316230_25-316247

Sold in sets of 2

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

  • Collapsed Length (IN): 15.69
  • Extended Length (IN): 25.82
  • Collapsed Length (MM): 398.5
  • Extended Length (MM): 655.9
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Bypass Body (Non-Coilover)
  • Body Diameter: 60mm
  • Adjustable Damping: Double Adjustable – Compression and Rebound


  • 6 ft 4 in Bed
  • Without Air Suspension
  • Fits Vehicles with Rear Coil
  • For Rear Lifted Height: 0-2″ without factory Off-Road Package
  • For Rear Lifted Height: 0-1″ with factory Off-Road Package
