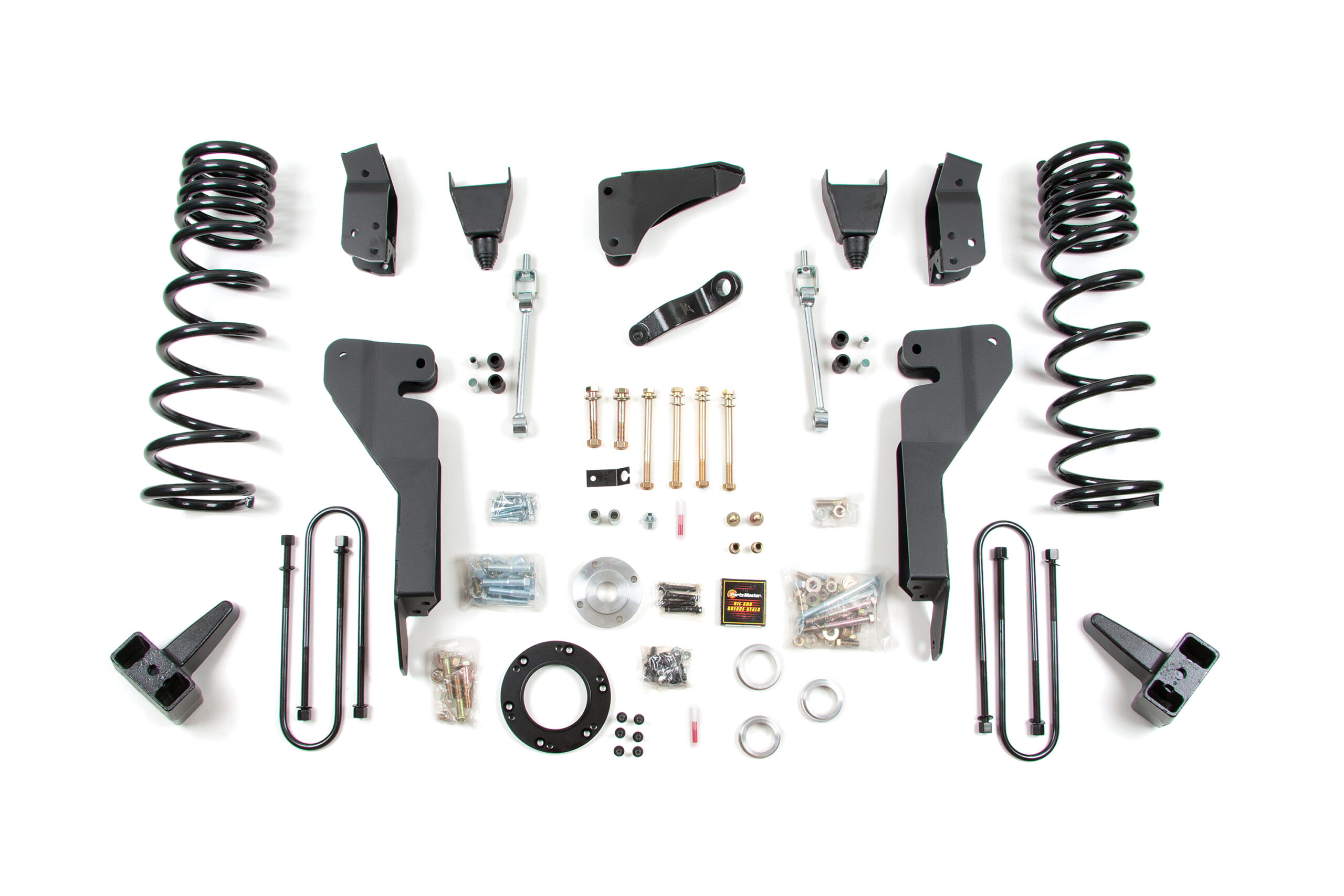

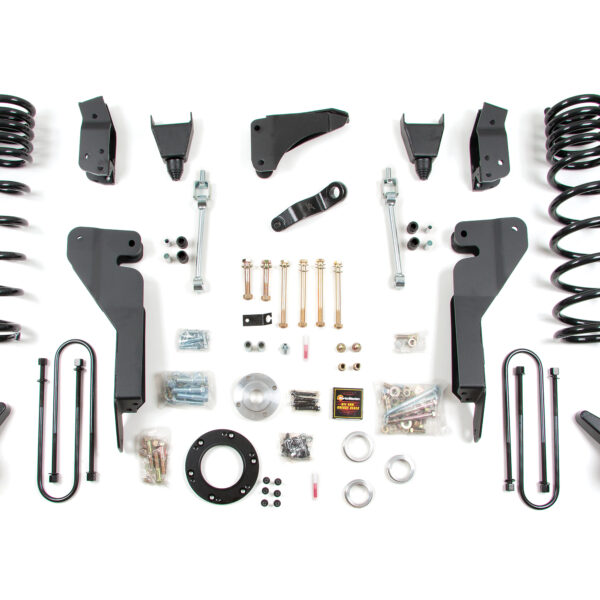

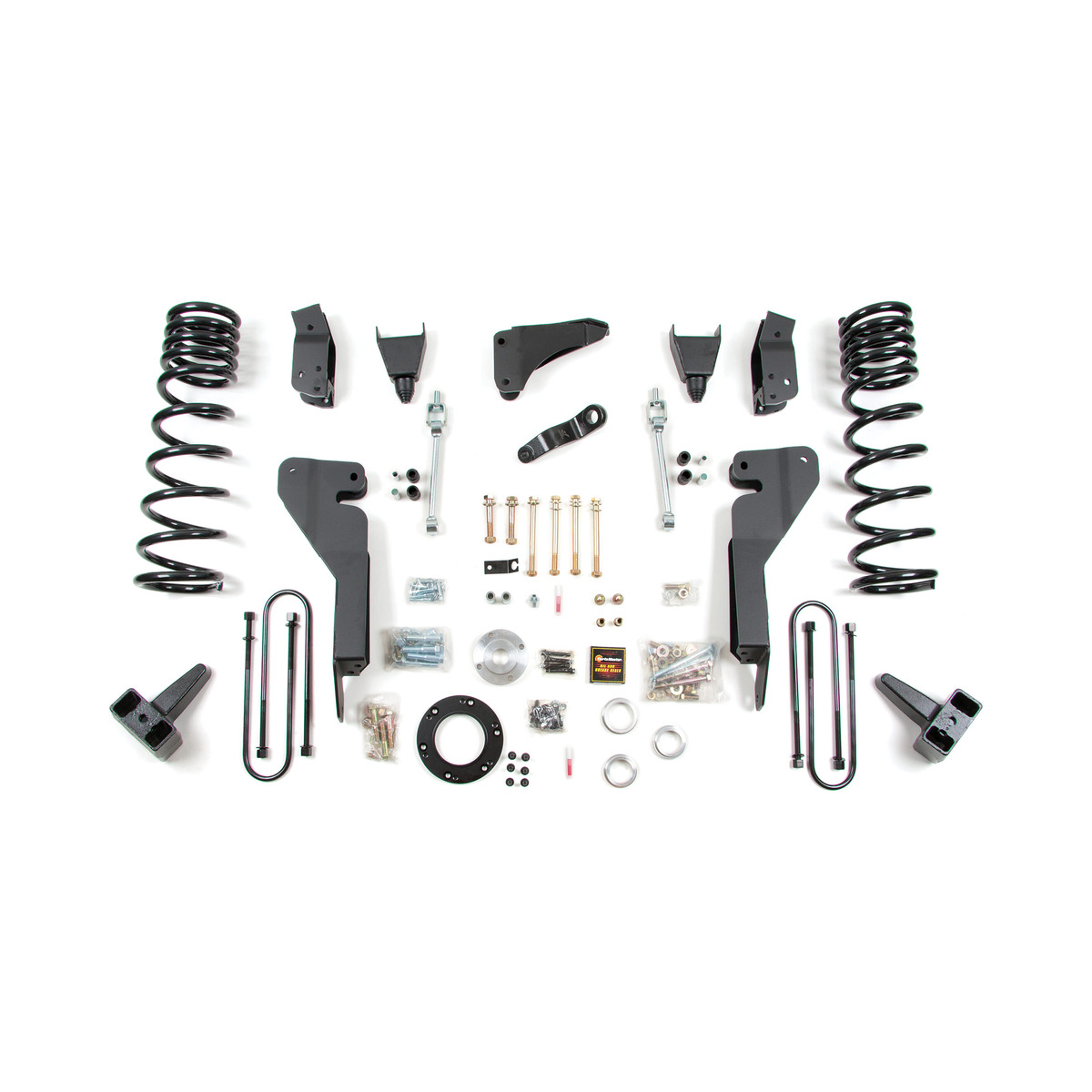

Zone Offroad 8″ Coil Springs Lift Kit 2011-2013 Dodge Ram 2500/3500
Zone Offroad 8″ Coil Springs Lift Kit 2009, 2010, 2011, 2012, 2013 Dodge Ram 2500/3500
This new Zone Offroad 8″ suspension system for the 09-13 Dodge Ram 2500 & 09-12 Dodge Ram 3500 is performance packed and budget friendly for those looking to get 37″ tires under their HD Dodge truck. The lift uses a unique control arm relocation design. Both the stock upper and lower arms are relocated to relieve angles, properly position the front axle and provide good caster and front pinion angle settings. The 1/4″ steel constructed relocation brackets mount directly to stock locations and only require a few new holes to be drilled for extra support. No cutting of the frame or axle mounts is required. Stock alignment adjustability is retained. Stock control arm angles are maintained to provide a great ride, handling and control.
In addition to the control arm brackets, all the necessary additional components are included. Full-length coil springs, dropped pitman arm, track bar relocation, sway bar relocation and bump stops are included. The rear kits feature new lift blocks and u-bolts. A rear carrier bearing drop kit is available for trucks featuring a stock 2-piece rear driveshaft.
Featured Technology & Benefits
- Unique upper and lower control arm relocation bracket design.
- Heavy 1/4″ steel construction.
- No cutting of the frame required.
- High performance at a low price.
- Works on 2013 2500 with 4 link front suspension only. Will not fit 1 Ton 2013 Trucks.
- 2-piece rear driveshaft requires carrier bearing drop kit D5505
- Will not fit dually applications
- Minor trimming may be required with some tire/wheel combinations. A front bumper spacer kit (D5801) is available to gain clearance if necessary
- Depending on the factory transmission mount, in rare cases some 8″ kits may not require the transfer case indexing kit. See installation instructions for details.
- Lift springs are designed for diesel models only.
This product fits the following applications:
- 2009 Dodge/Ram Ram 2500 4WD Diesel
- 2010 Dodge/Ram Ram 2500 4WD Diesel
- 2011 Dodge/Ram Ram 2500 4WD Diesel
- 2012 Dodge/Ram Ram 2500 4WD Diesel
- 2013 Dodge/Ram Ram 2500 4WD Diesel
- 2009 Dodge/Ram Ram 3500 4WD Diesel
- 2010 Dodge/Ram Ram 3500 4WD Diesel
- 2011 Dodge/Ram Ram 3500 4WD Diesel
- 2012 Dodge/Ram Ram 3500 4WD Diesel
- Front Lift Height: 8″
- Front Lift Method: Coil Springs
- Rear Lift Height: 5″
- Rear Lift Method: Block Kit
- Install Time Hrs: 6-8
- Difficulty Level 1-5: 3
- Wheel Size: 17 X 9
- Back Spacing: 4.5-5″
- Max Tire Size: 38 X 13.50
