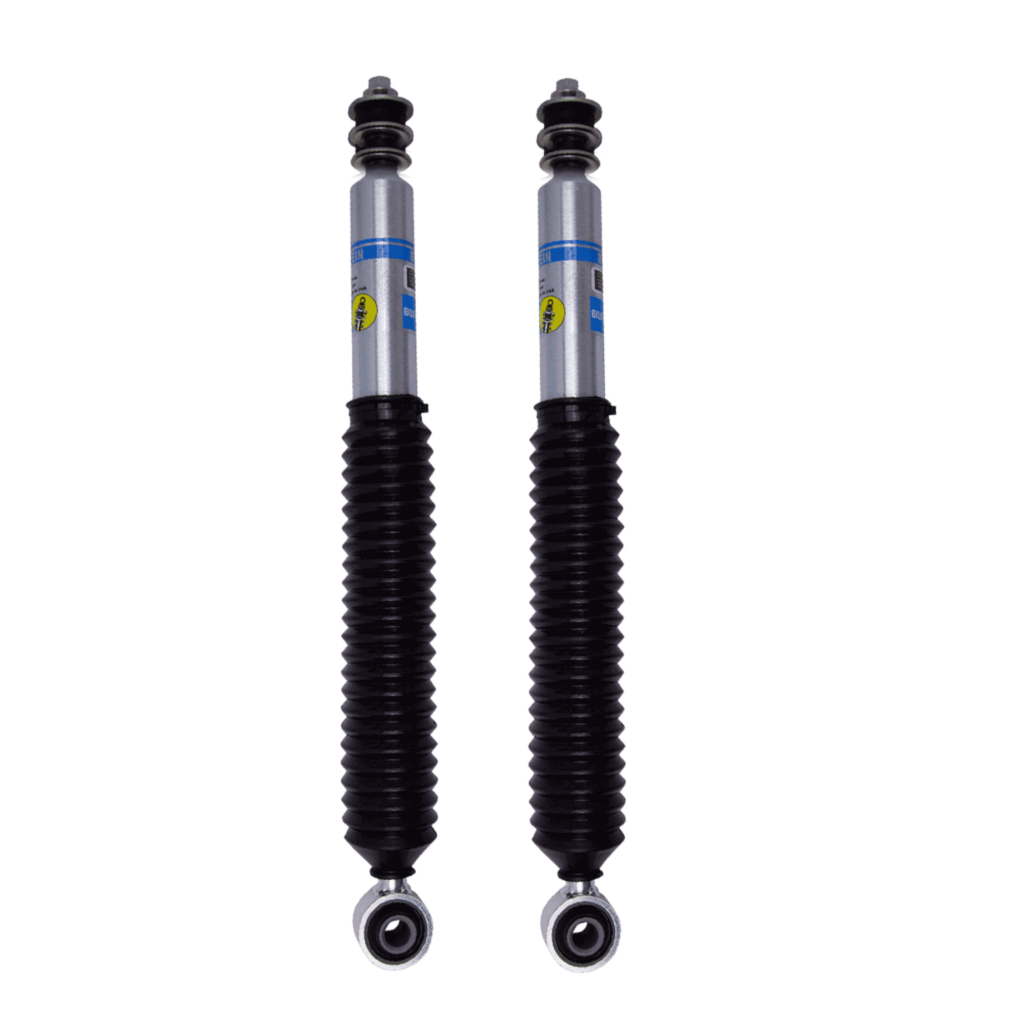

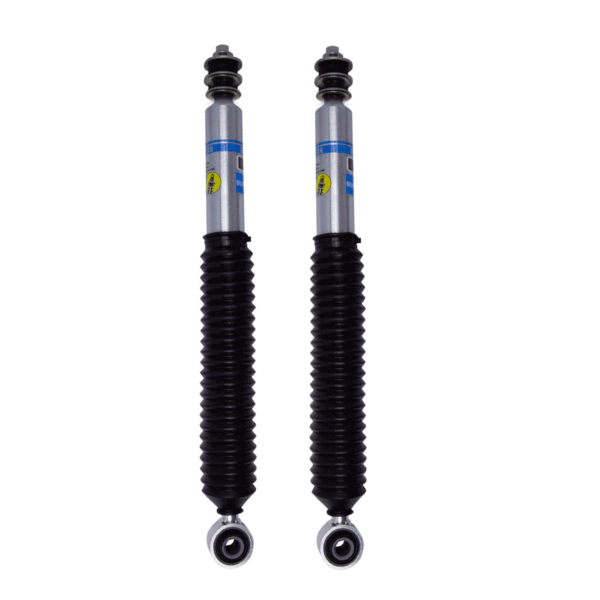

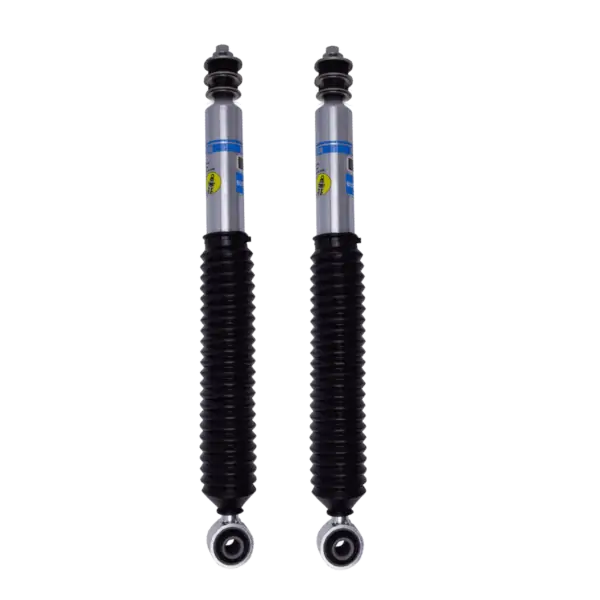

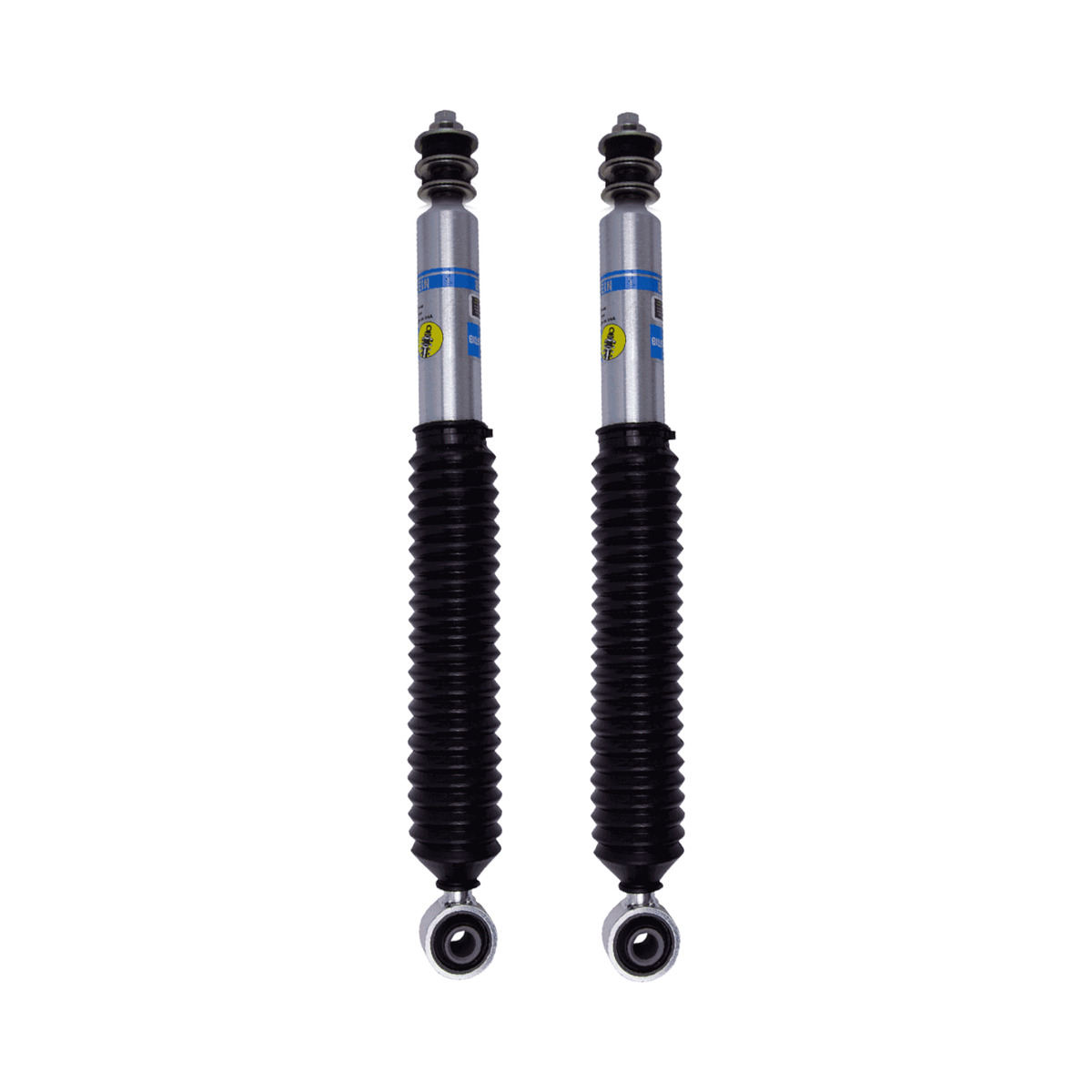

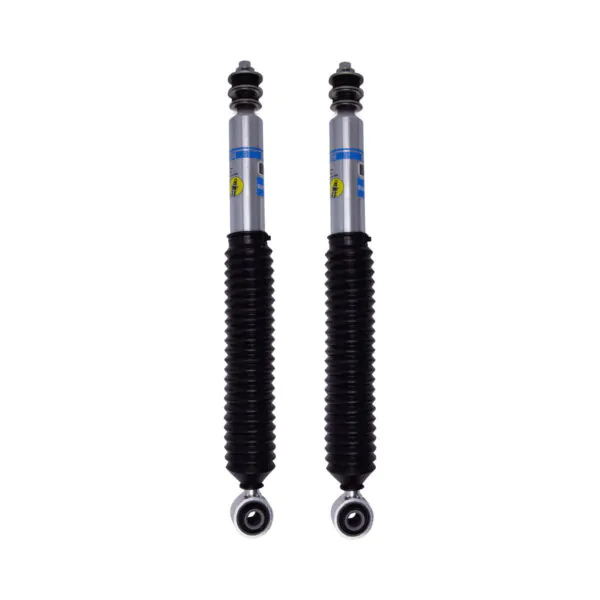

Bilstein 5100 0-2″ Rear shocks for Toyota FJ Cruiser and Toyota 4Runner 2003-2023

SKU: RFJ-BIL
5 out of 5 based on 15 customer ratings
(15 customer reviews)
Sale!
Bilstein 5100 0-2" Rear shocks for Toyota FJ Cruiser and Toyota 4Runner 2003-2023

Description

Bilstein 5100 0-2″ Rear shocks for Toyota FJ Cruiser and Toyota 4Runner 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2021, 2022, 2023

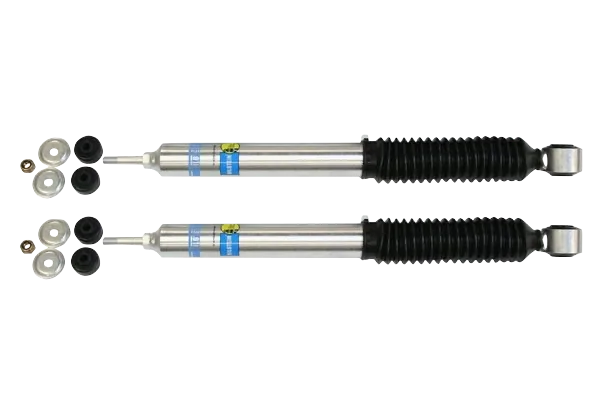

RFJ-BIL 33-313146 (old: 33-187174) – Bilstein 5100 Series Rear shocks

Need the full Kit?

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • Priced per pair
  • These are a longer rear Bilstein 5100 series shock for improved flex off road.
  • Direct bolt on from Bilstein
  • Adds 2″ more flex per side. Nice ride on/off road.
  • Fits 07+ FJ Cruiser, ’03+ 4Runner, with 0-2″ Rear Lift
Collapsed Length (IN): 14.91
Extended Length (IN): 23.5
Collapsed Length (MM): 378.8
Extended Length (MM): 597Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)

Includes 2 Shocks

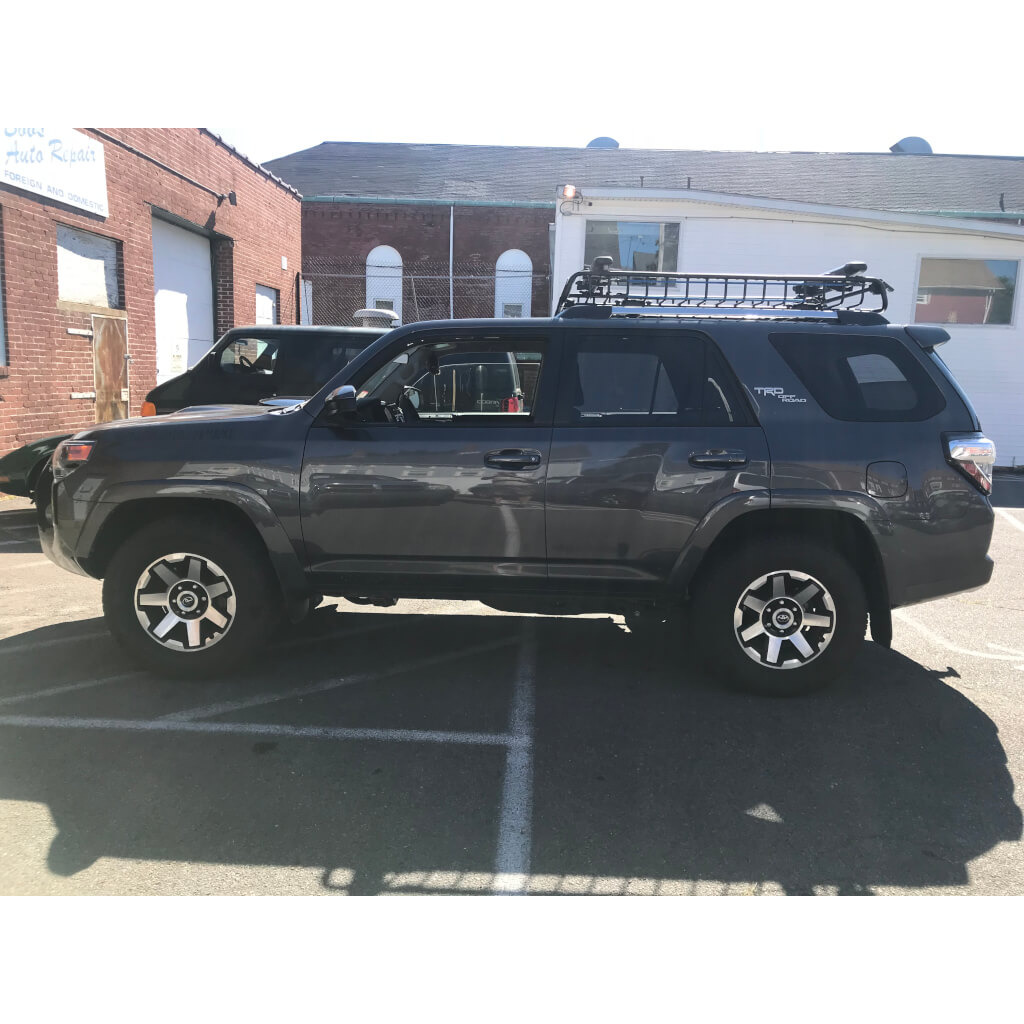

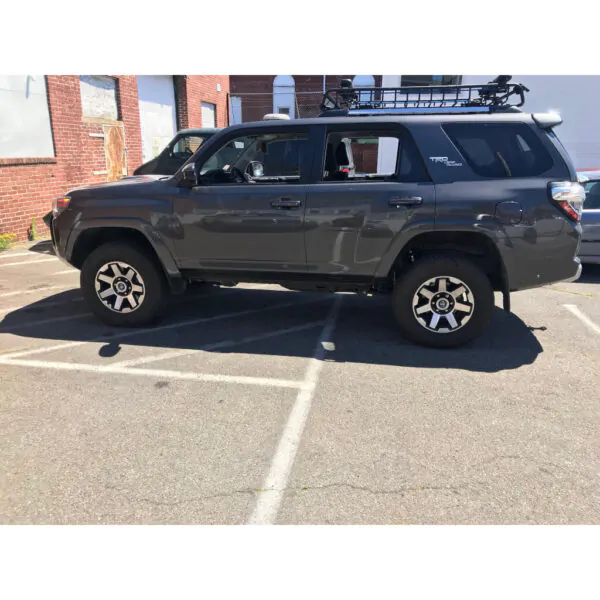

Customer reviews

Rated 5 out of 5 stars
15 reviews
5 stars 15 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

15 reviews for Bilstein 5100 0-2″ Rear shocks for Toyota FJ Cruiser and Toyota 4Runner 2003-2023

Load more

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      What is the shipping speed on this if I were to order today?
    1. 0 votes
      Q What is the shipping speed on this if I were to order today? answer now
      A shipping today/tomorrow  (depends on order time)
      2. Can these be paired with 3" rear coil springs?
    2. 0 votes
      Q Can these be paired with 3" rear coil springs? answer now
      A better use ICON or OME 2.5-3'' rear shocks
      3. 192 for two shocks? is RFJ-BIL (33-187174) – Bilstein 5100 Series Rear shocks in STOCK?
    3. 0 votes
      Q 192 for two shocks? is RFJ-BIL (33-187174) – Bilstein 5100 Series Rear shocks in STOCK? answer now
      A That's right, $ 192.06 for two shocks. Shocks are in stock, you can place an order
      4. Hello - Because these rear shocks are 2" longer (add 2" of flex" compared to stock shocks, is there a risk that when using the stock coils, that at full drop the stock coil can come unseated (spit out)? I would like to maintain stock height in the rear when adding the 5100s, but dont want to risk spitting out a stock coil. (07 FJ Cruiser). Thank you.
    4. 0 votes
      Q Hello - Because these rear shocks are 2" longer (add 2" of flex" compared to stock shocks, is the...... Read more answer now
      A no risk, as the collapsed length is similar as stock shocks you are all good to use stock coils with these shocks
      5. how long before you recieve more inventory....two items needed are out of stock...bilstein 5100 for 2" rear lift and leveling spacer for low side rear
    5. 0 votes
      Q how long before you recieve more inventory....two items needed are out of stock...bilstein 5100 f...... Read more answer now
      A maybe few weeka
      A couple of weeks
      6. What set up is used on the picture above to get that lift all around and those stands?
    6. 0 votes
      Q What set up is used on the picture above to get that lift all around and those stands? answer now
      A These are not adjustable shocks and they themselves do not lift your truck. If you want to lift your truck, then you need longer springs These shocks can work in lifting within 0-2 ″
      7. i installed 5100 front shocks on factory springs now the rear sits 2 low . ? can i lower the fronts to match or can i purchase new ones that will raise it
    7. 0 votes
      Q i installed 5100 front shocks on factory springs now the rear sits 2 low . ? can i lower the fron...... Read more answer now
      A Those front shocks are adjustable to where it would not lift the front, as in stock height. Otherwise you would need some longer rear springs or spacers to lift the rear as well.
      8. Hi will these shocks work as rears on a Pardo 150 with kdss suspension or are they to long in their travel , would i need to change springs also to compensate for the longer shock travel.
    8. 0 votes
      Q Hi will these shocks work as rears on a Pardo 150 with kdss suspension or are they to long in the...... Read more answer now
      A will fit Prado. You may use it with stock coils on use lifted coils for more lift
      9. I currently have Icon 2.0 rear shocks among with the icon Stage 1 suspension system. My question is, what Bilstein shocks can I use to replace the rear shocks?
    9. 0 votes
      Q I currently have Icon 2.0 rear shocks among with the icon Stage 1 suspension system. My question ...... Read more answer now
      A These shocks will fit if you have 0'' to 2'' rear lift
      10. Will these fit an '03 4runner limited with RAS/rear self levelling air bag suspension or are they longer than stock and would cause the airbags to tear?
    10. 0 votes
      Q Will these fit an '03 4runner limited with RAS/rear self levelling air bag suspension or are they...... Read more answer now
      A They are longer then stock but can be used with stock heigh ( 0'' lift). We have no info about using them with air levering susnension, we know that customers use this kit to convert air suspension to coils rear suspension. Also coils are needed https://www.suspensionlifts.com/shop/toyota-4runner/rear-coil-conversion-kit-for-toyota-4runner-lexus-gx470/
      11. Are longer rear coils completely required for these? Or will stock coils work?
    11. 0 votes
      Q Are longer rear coils completely required for these? Or will stock coils work? answer now
      A Stock coils will work.
      12. Will these work with a 2007 4Runner on stock coils?
    12. 0 votes
      Q Will these work with a 2007 4Runner on stock coils? answer now
      A Yes
      13. Do these recommended shocks for me have the 3/4" ID hole in the bottom eye to fit the OEM bolt of the axle's bracket on my 2003 4Runner that had XREAS shocks originally? Also, in the reviews the first one says the shock's top stud seemed too short and he had to trim the upper rubber bushing to get the nut to go on. What about that issue?
    13. 0 votes
      Q Do these recommended shocks for me have the 3/4" ID hole in the bottom eye to fit the OEM bolt of...... Read more answer now
      A Hello We will clarify this point with the manufacturer and give you the answer. But we can say that this shock is for Toyota 4Runner 2018-2003, FJ Cruiser 2014-2007 and that means all mounts are made in accordance with the factory mounts These shocks have parameters Extended Length (IN): 23-1/2 Inch Compressed Length (IN): 14.91 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet Valving Type: Self-Adjusting Deflective Disc Valving Rod Finish: Polished Rod Material: Steel Body Color: Silver Body Material: Steel
      14. I want to lift my rear for towing an Airstream Trailer. I am thinking to use Bilstein 36-281831 over-length springs (1 1/2 ") and pairing with Bilstein 33-187174 shocks. But I am an amateur; is this a reasonable thing to do??
    14. 0 votes
      Q I want to lift my rear for towing an Airstream Trailer. I am thinking to use Bilstein 36-281831 o...... Read more answer now
      A It depends on if you are sure the coils will fit and if you definitely know what length shocks you need. Maybe just rear airbags will help
      15. I would like to add these to a 2016 SR5 4Runner, what rear coil springs do you recommend for light trail driving/ daily driver while giving me a 1-2 inch lift. I have the Bilstein 5100 adjustable shocks in the front already with stock coils but just looking to lift the back.
    15. 0 votes
      Q I would like to add these to a 2016 SR5 4Runner, what rear coil springs do you recommend for ligh...... Read more answer now
      A Hello We can offer ARB Old Man Emu 2″ Rear Lift Black Springs for Toyota Prado 120 & 150/Fj Cruiser/4Runner https://www.suspensionlifts.com/shop/toyota-4runner/2010-2018/arb-old-man-emu-black-rear-springs-for-toyota-prado-120-150-fj-cruiser-4runner/ Sway-A-Way 1.5″ Rear Lift Coils for 2003-2019 Toyota 4Runner, FJ Cruiser https://www.suspensionlifts.com/shop/toyota-fj-cruiser/sway-way-1-5-rear-lift-coils-2003-2017-toyota-4runner-fj-cruiser/ ToyTec Superflex 2″ rear Coils 07-14 FJ Cruiser and 03-18 4Runner https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toytec-superflex-rear-coils-toyota-fj-cruiser-and-03-09-4runner/ ICON 2″ Lift Rear Coil Springs for 07-14 Toyota FJ Cruiser 03-18 4Runner https://www.suspensionlifts.com/shop/toyota-fj-cruiser/rear-icon-coils-for-2007-and-up-toyota-fj-cruiser-and-03-and-up-4runner/
      16. I have the Toytec Superflex rear coils and the 2" 5100 shocks on my 2016 4runner SR5. Later this month with the addition of a rear buper, I will be pushing 380lbs. over stock. I am leaning towards the Icon 3" overland springs and was wondering if you think I will still be able to run the 5100s? I want to upgrade, but need to save up a little for what I really want and would like to use the shocks I have for at least another 9 months. Thanks!
    16. 0 votes
      Q I have the Toytec Superflex rear coils and the 2" 5100 shocks on my 2016 4runner SR5. Later this ...... Read more answer now
      A You can use 5100s on the lowest notch (stock height adjustment) with lifted coils. SuperFlex coils will sag a little with 380lbs, if you carry such load constantly and want to carry more sometimes then HD coils will be better https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/rear-lifts/toytec-superflex-heavy-duty-rear-coils-fj-cruiser-4runner-2003-2014/
      17. With a a 3" spacer added to the rear coil springs, will these shocks work? 2005 4runner.
    17. 0 votes
      Q With a a 3" spacer added to the rear coil springs, will these shocks work? 2005 4runner.
      There are no answers for this question yet. Answer now
      18. Will these fit a 2007 sequioa? Bagless with 2" spacer.
    18. 0 votes
      Q Will these fit a 2007 sequioa? Bagless with 2" spacer. answer now
      A These shocks will fit the 2007 Sequiola https://suspensionlifts.com/shop/toyota-sequoia/00-07-toyota-sequoia/bilstein-4600-replacement-shocks-2001-2007-toyota-sequoia/ we can sell rear shocks separately if you need only rear pair. Please see if your old shocks have similar dimensions:
      19. are these longer than the rear OME shocks? will the lift be higher when used with ome springs 895e vs using the ome shocks
    19. 0 votes
      Q are these longer than the rear OME shocks? will the lift be higher when used with ome springs 895...... Read more answer now
      A The lift depends on springs, blocks, add a leafs, but not on the shocks. These shocks are not height adjustable - they will not lift the truck by themselves. The lift on your coils will remain the same.
      20. are these shocks on backorder and whats the estimated time for delivery
    20. 0 votes
      Q are these shocks on backorder and whats the estimated time for delivery answer now
      A Plenty in stock as of 23 feb 2017. Shipping timeframes will depend on where you are, but typically 1-4 business days.
