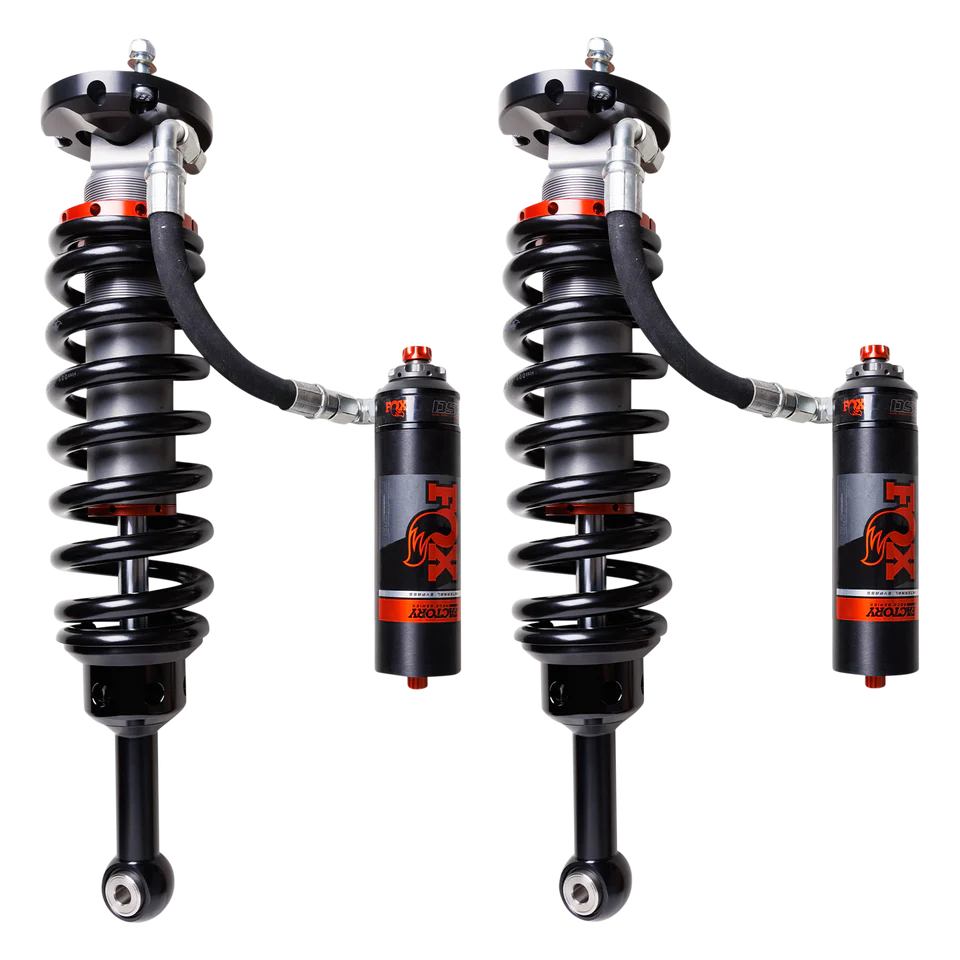

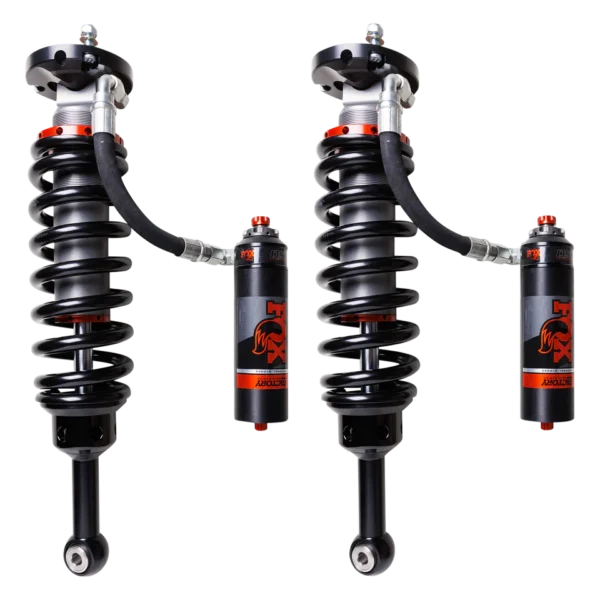

FOX Factory Race Series 2.5 Internal Bypass 2-3″ Front Lift Shocks for 2007-2014 Toyota FJ Cruiser 2WD/4WD

Description
FOX Factory Race Series 2.5 Internal Bypass 2-3″ Front Lift Shocks for 2007-2014 Toyota FJ Cruiser 2WD/4WD

FOX Factory Race Series 2.5 Internal Bypass 2-3 inches Front Lift Shocks for 2007-2014 Toyota FJ Cruiser 2WD/4WD

Part Number: 883-06-227

Summary: The FOX Factory Race Series 2.5 Internal Bypass shocks provide professional-grade damping technology for the 2007-2014 Toyota FJ Cruiser. Utilizing patented Internal Bypass technology, these shocks offer position-sensitive damping that adapts to the terrain to provide a comfortable ride and increased capacity during high-speed operation. Equipped with Dual Speed Compression (DSC) adjusters and external reservoirs, this system is engineered to manage heat and maintain consistent performance in rugged environments.

Features

• Internal Bypass Technology: Patented internal bypass design provides multiple zones of damping control to ensure a comfortable ride with increased capacity through rough terrain.
• Dual Speed Compression (DSC): External DSC adjuster provides manual tuning for load, environment, and driving style to ensure the vehicle is dialed in for specific conditions.
• Aluminum Body: 2.5-inch impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body provides corrosion resistance to ensure long-term durability.
• External Reservoir: External reservoir with Internal Floating Piston (IFP) provides increased oil capacity to ensure consistent damping and cool operating temperatures.
• Hard Chromed Shafts: 7/8 inches hard chromed steel shafts provide high-strength performance to ensure reliability during hard bottom-outs and landings.

Technical Specifications

Fitment

• 2007-2014 Toyota FJ Cruiser
• Note: Compatible with both 2WD and 4WD models.

What’s Included

• Sold Individually
• Application-specific springs
• External reservoirs and DSC adjusters

Why Choose This Product?

• Engineering Advantage: The Internal Bypass design allows fluid to bypass the main piston through bleed holes in the ride zone, progressively increasing force as the shock extends to prevent harsh top-outs and bottom-outs.
• Performance Benefit: Drivers gain the confidence of race-derived position-sensitive damping and the ability to manually tune compression settings for varied loads and high-speed off-road use.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows for multiple zones of damping control, providing a comfortable ride in the initial travel zone while progressively increasing damping force to control hard impacts and landings.

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows you to manually dial in your shock performance based on your specific load, environment, and driving style.

How does the external reservoir improve performance?
The external reservoir increases oil capacity and uses an Internal Floating Piston (IFP) to separate oil from the nitrogen charge, which helps maintain cool temperatures and consistent damping.
