ReadyLift 3″ Lift Kit for 2003-2022 Toyota FJ Cruiser, 4Runner
ReadyLift 3″ Lift Kit for 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2021, 2022 Toyota FJ Cruiser, 4Runner
Part: 69-5060 / RDY69-5060
ReadyLIFT® Suspension Leveling and Mild Kits are one of the most popular aftermarket products for Toyota truck and SUV owners. Leveling systems not only transform trucks like the FJ Cruiser into a taller, better looking vehicle, but they also provide a more commanding view of the road. Mild kits from ReadyLIFT® Suspension Inc., the leader in suspension leveling and mild lift systems, are the most economical and safe method of altering vehicle ride height, which also allows the consumer to upgrade his tires to a preferred larger size. Nothing looks better than a truck fit with an aggressive stance and that is exactly what ReadyLift® Smart Suspension Systems (SST) provide! The ReadyLIFT® 69-5060 SST Lift Kit is the complete lifting solution for FJ Cruiser owners.
ReadyLIFT® Suspension Inc. has used their proven engineering methods to produce a true 3-inch SST Suspension Lift System for the 2006-2014 Toyota FJ Cruiser & 4Runner (P/N 69-5060). This system lifts the FJ Cruiser 3.0” in front and 2.0” in the rear, all while maintaining the factory ride. Our 3-inch intermediate Smart Strut Technology system fits all FJ Cruisers and provides the owner with the opportunity to upgrade to larger wheel and tire combinations up to 33-inches in diameter while retaining the great stock ride and handling characteristics.

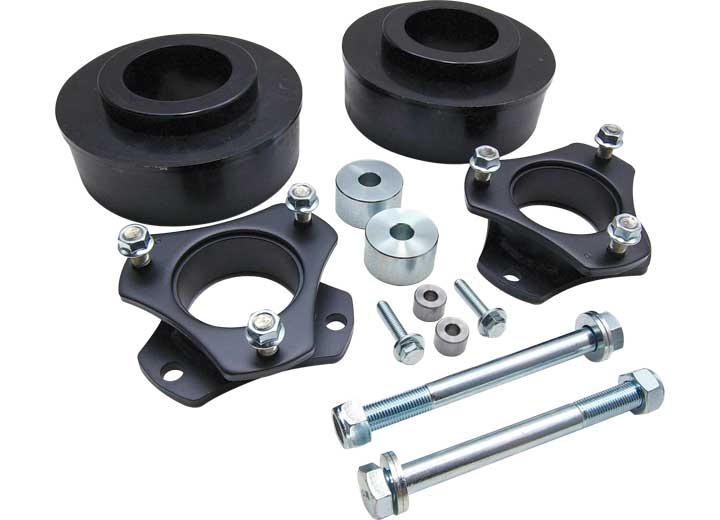

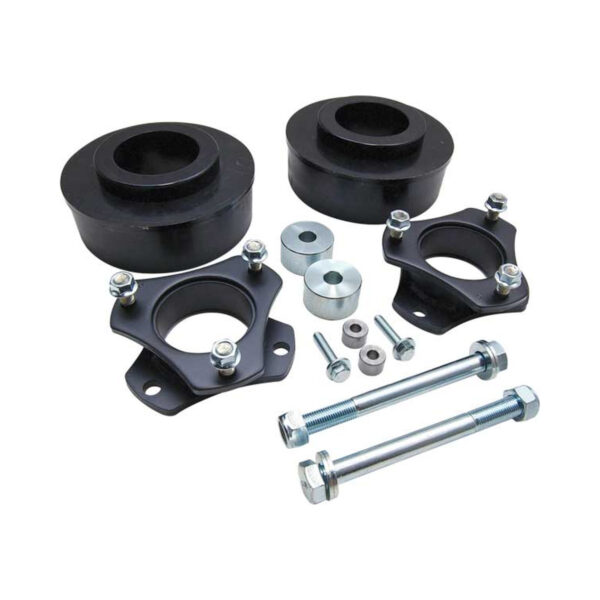

This is a complete suspension lift kit that includes a pair of powder coated steel strut extensions, two front differential drop brackets, two skid plate spacers and a set of rear lift spring spacers. The SST strut extension and diff drop bracket has been designed to provide 3-inches of front suspension lift while retaining the OEM safe suspension geometry. Unlike other kits, the ReadyLIFT® 3-inch suspension system requires no cutting or strut spring pre-loading and installs quickly and safely using the provided heavy-duty hardware. Quality step-by-step instructions are provided with every kit.
Professional installation time is estimated at two to three hours. An alignment will be necessary upon completion of installing the kit. Like all other ReadyLIFT kits, our FJ Cruiser mild lift kit is guaranteed for life against manufacturing defects.
NOTE: 2011-2014 models will require modification to the rear bump stop (shorten the bump stop) for rear spring installation.
Information about tire and wheel size:
|Make||Model||Year||2WD / 4WD||Max Lift||DIA(Max)||Tires(Max)||Width||Backspacing||Part|
|TOYOTA||FJ CRUSIER / 4RUNNER SST LIFT KIT||2007-2014||2WD & 4WD||3.0″F-2.0″R||33″||33″ x 11.5”||8″||4.5″||69-5060|
NOTE: Does not work with 4Runner Trail Edition or 4Runner or FJ Cruiser models equipped with Hydraulic Sway Bar.
Questions and answers of the customers
Will this work with the 2014 FJ ultimate trails edition?
Q Will this work with the 2014 FJ ultimate trails edition? answer nowA yes
Sir, I want to achieve 3” lift my 4Runner 2011 SR5 4x2. What kind of kits do i need? Would also like your advice if it’s necessary to go with 285/70/17 or 305/55/20 tires. Thank you...
Q Sir, I want to achieve 3” lift my 4Runner 2011 SR5 4x2. What kind of kits do i need? Would also l...... Read more answer nowA it will fit, but springs + longer shocks will give a better ride These wheels will fit without rubbing: Rim* 8" Tire Width* 12" Tire* 32.5" Backspace* 4.5" Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
Will this kit fit the 2021 TRD Off road premium?
Q Will this kit fit the 2021 TRD Off road premium?
Do i need a new rear longer struts or the oem will be fine?
Q Do i need a new rear longer struts or the oem will be fine? answer nowA you are right, longer rear shocks are recommended
Does it work with the Fox suspension on the 2020 red pro 4runner?
Q Does it work with the Fox suspension on the 2020 red pro 4runner? answer nowA unfortunately no
I put a 3" in the front 2" in the back readylift sst package on my 2019 limited 4runner nightshade and my rear shocks are maxed out and don't take too kindly to rough terrain. Is there a shock extender for this model . Or something else that can remedy this problem .
- Will this kit fit my 2020 4Runner Nightshade? Will this kit void the manufacturers warranty?
Q Will this kit fit my 2020 4Runner Nightshade? Will this kit void the manufacturers warranty? answer nowA It will fit for 2003-2020 TOYOTA FJ/4RUNNER 2WD/4WD SST LIFT KIT - NON TRAIL EDITION Max Lift 3-in Max Tire Diameter 33-in - INCLUDES DIFFERENTIAL AND SKID PLATE SPACERS Note: Will not work on TRD Pro Note: Will not work with X-REAS Suspension Note: Will not work with KDSS Suspension As for the warranty, it is better to ask this question to the store where you bought the truck.
Is X-REAS the same thing as KDSS? Will this fit a '19 trd off-road w/ KDSS?
Q Is X-REAS the same thing as KDSS? Will this fit a '19 trd off-road w/ KDSS? answer nowA No, it's completely different system. It will fit 2019 trd off-road w/ KDSS
The Toyota dealership said the 3 inch lift can create instabilities in the suspension. What issues are created in driving on and off road with the 3 Inch lift. Please give detailed technical answer. If issues, what added feature can improve the issues. Steve
Q The Toyota dealership said the 3 inch lift can create instabilities in the suspension. What issue...... Read more answer nowA Not issues but rough ride. Exceeding 3'' is not recommended. For ride comfort coils + longer shocks are better then spacers https://bilsteinlifts.com/shop/toyota-4runner/03-09-4runner/bilstein-b12-special-for-2003-18-toyota-4runner-1-5in-rear-coil-springs/ https://bilsteinlifts.com/shop/toyota-4runner/03-09-4runner/bilstein-b12-special-for-2003-18-toyota-4runner-1-5in-front-coil-springs-heavy-load-package/ https://bilsteinlifts.com/shop/toyota-4runner/2010-2018/bilstein-height-adjustable-front-and-matching-5100-rear-shocks-for-2010-2015-4runner-fj/ https://bilsteinlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/complete-lift-kits/toytec-3-inch-lift-kit-bilstein-5100-coilovers-fj-cruiser-4runner-2010/
Can I run 33’s with this lift on the stock black trd 17” wheels on a 2018 trd off road premium 4Runner?
- Will this fit 2018 4runner 3rd off road
Q Will this fit 2018 4runner 3rd off road answer nowA Yes, it will fit
Will this kit fit my 2012 4runner limited awd
Q Will this kit fit my 2012 4runner limited awd answer nowA Yes, it will fit
