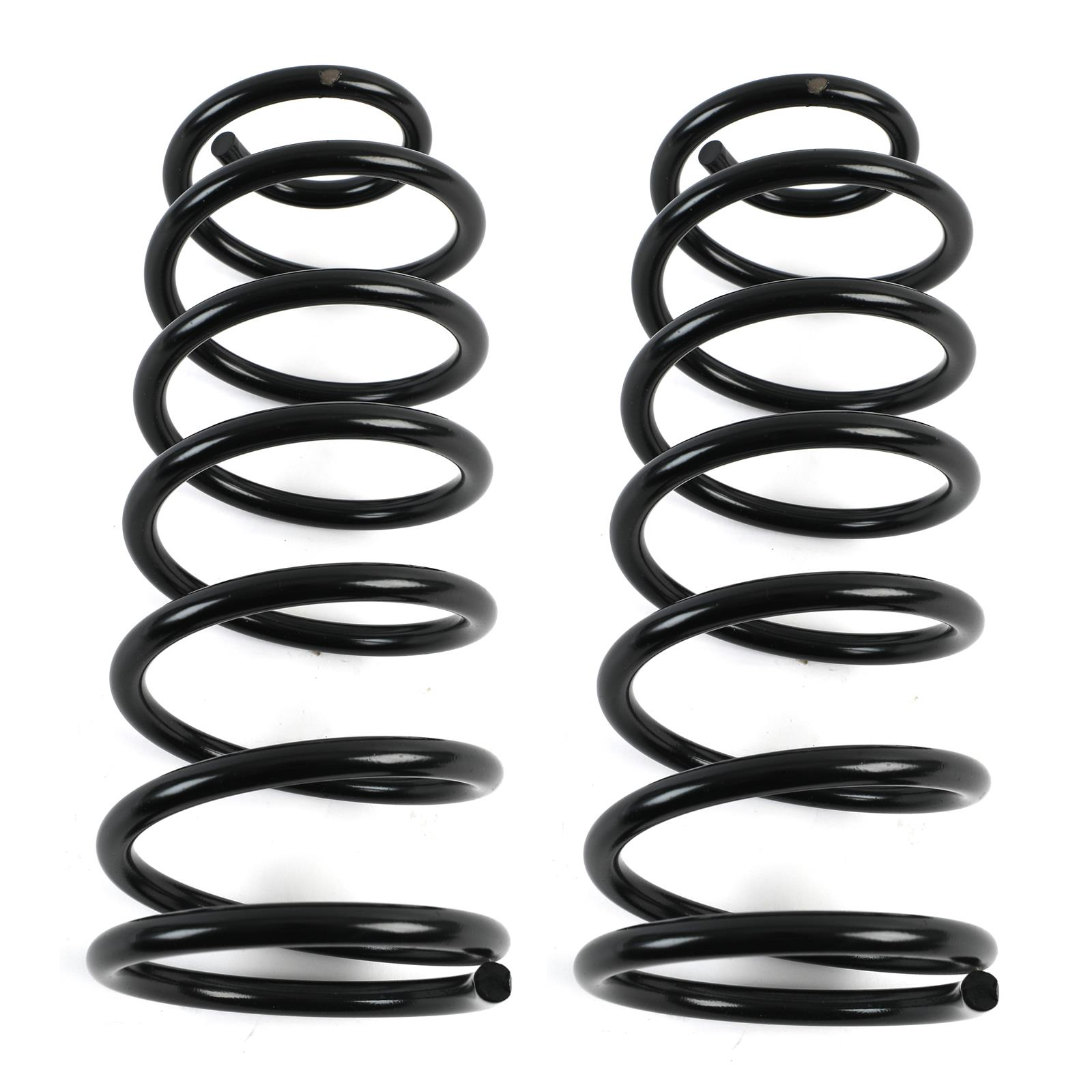

MOOG Rear Coil Springs for 1996-2002 Toyota 4Runner 2WD/4WD
Description
MOOG Rear Coil Springs for 1996-2002 Toyota 4Runner 2WD/4WD
MOOG Rear Coil Springs for 1996, 1997, 1998, 1999, 2000, 2001, 2002 Toyota 4Runner 2WD/4WD
Part: 81043
Moog’s Coil Springs
Designed to be more than OE replacements, Moog’s coil springs come with a variety of shapes and ends. This selection, combined with Moog’s lifetime warranty handled right here at DST, lends security to whichever choice you might make. While they are certainly higher quality than the OE springs, each of Moog’s coil springs were designed to still have the same spring rate. Having the same spring rate allows for an easier install and a more accurate restoration for your vehicle’s ride.
End Type
Coil Springs have three types of ends: Square, Tangential and Pigtail. It is important that you select a coil spring that matches BOTH your end types, otherwise the coil spring won’t fit. Your OE coil spring could have the same type ends, or a combination of both.
Type 1: Squared
With a Squared end, the final coil is bent back to touch the coil before it. The easiest way to know if you have a squared end is to stand the coil spring straight up. A squared end will let the spring sit flat on the ground and stay standing.
Type 2: Tangential
A Tangential end looks like it would just keep on going forever if the spring continued. The last coil is not bent back and it is not the pigtail (see below). Instead, the tangential coil spring looks as though a normal coil was just cut, otherwise, it would have kept winding on forever. If you tried to stand it up straight, it would fall.
