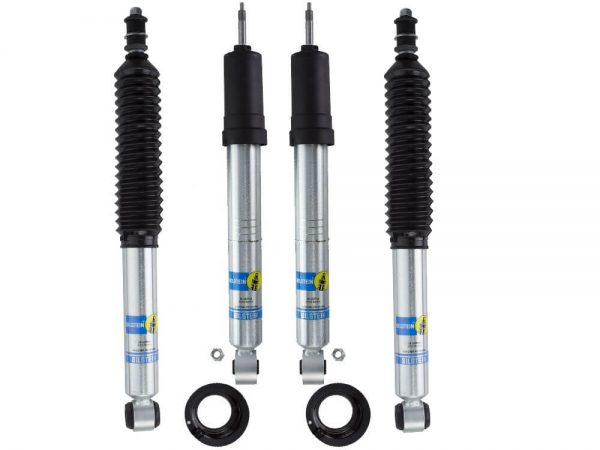

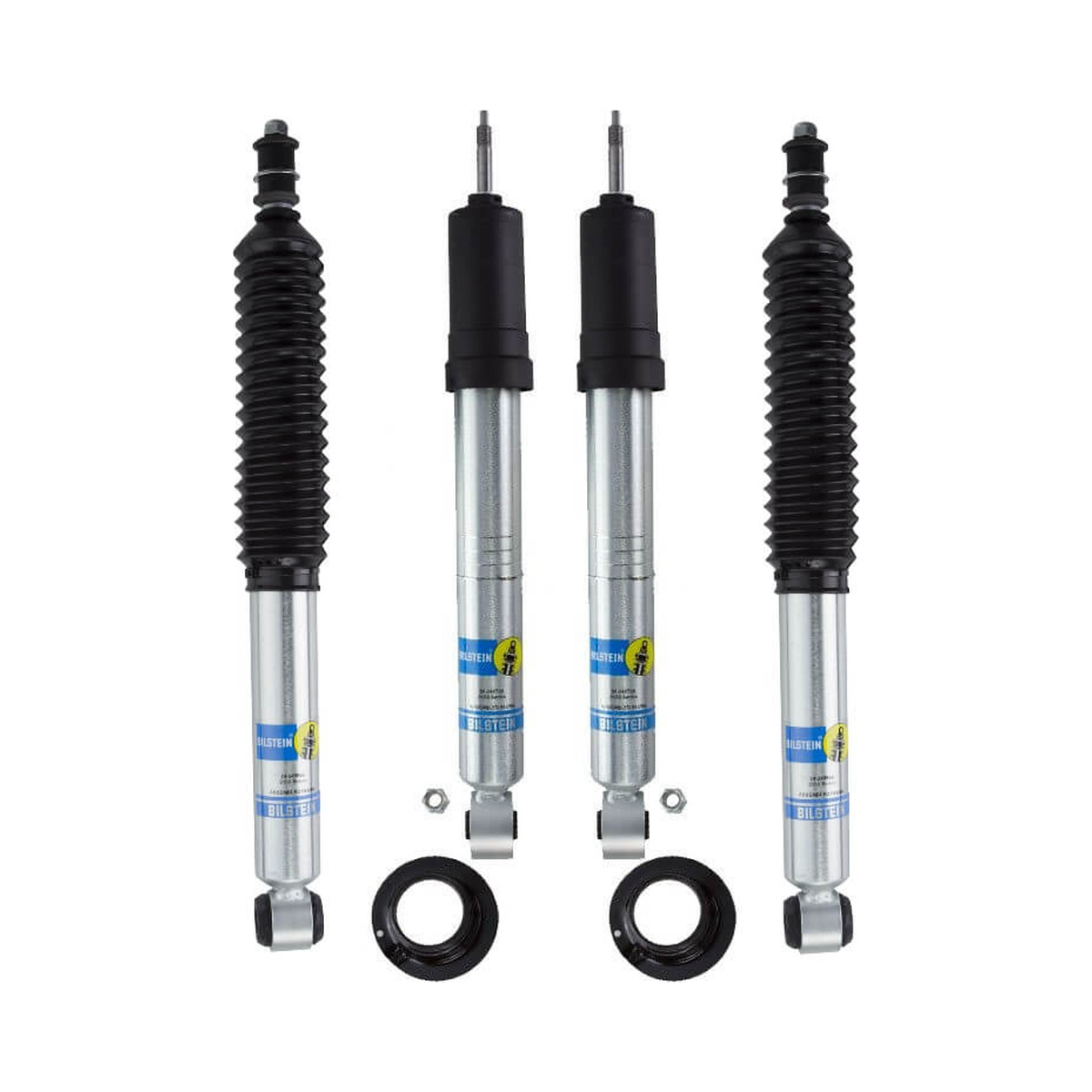

Bilstein 5100 0-2.3″ Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

SKU: 2x24-248730-2x24-249966
4.75 out of 5 based on 12 customer ratings
(12 customer reviews)
Sale!
Bilstein 5100 0-2.3" Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

Description
Bilstein 5100 0-2.3″ Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

Bilstein 0-2.3″ Height Adjustable Front Lift & 0-2.3″ Rear Lift Shocks for 1996, 1997, 1998, 1999, 2000, 2001, 2002 Toyota 4Runner 4WD/2WD

BILSTEIN B8 5100 series are designed specifically to help your lifted truck, Jeep or SUV reach its pinnacle in ride performance, while supplying the correct tuning and length for your specific lift.

Part: 2×24-248730-2×24-249966

Need them assembled?

Front: 24-248730

  • Extended Length (IN): 18.27 Inch
  • Compressed Length (IN): 13.66 Inch
  • Upper Mounting Style: Eyelet
  • Lower Mounting Style: Cross Pin

Rear: 24-249966

  • Extended Length (IN): 20.79 Inch
  • Compressed Length (IN): 12.91 Inch
  • Upper Mounting Style: Stud
  • Lower Mounting Style: Eyelet



  • An Extremely Affordable And Practical Alternative To Coil Spring Spacers
  • Superior Monotube Design
  • Utilizes The Vehicle’s Stock Front Coil Springs
  • Zinc Finish With Multi-Layer Unique BILSTEIN Coating For Extreme Protection
  • Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning
  • Limited Lifetime Warranty





TYPICAL FRONT LIFT HEIGHT**
snap ring

location #

with 2″ lift rear coil

spring installed

(Rate = 220lb/in)

with 1.5″ lift rear

coil spacers

installed

with OE rear

coil springs

1stockstockstock
20.78″0.53″0.63″
31.61″1.05″1.25″
42.3″Do NOT use1.88″

** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.
Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system.

Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.

Frequently bought together with:

Interested in a full kit?

Includes 4 Shocks

Customer reviews

Rated 4.75 out of 5 stars
12 reviews
5 stars 11 91 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 1 8 %
1 star 0 0 %

12 reviews for Bilstein 5100 0-2.3″ Lift Front, Rear Shocks for 1996-2002 Toyota 4Runner

    Load more

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        Have a stock 99 4 runner. If I do a 5100 shock setup with a 1 to 2 inch lift, will I need a diff drop or anything else so I don't have premature wear on components?
      1. 1 vote
        QHave a stock 99 4 runner. If I do a 5100 shock setup with a 1 to 2 inch lift, will I need a diff ...... Read more answer now
        A Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
        2. I intend to lift my 2021 4wd toyota 4runner with the 5100 adjustable shocks. Right now, the rear sits about 1.5" higher than the front. If i leave the rear stock and set the front shock on clip #3, will I achieve a 1.25' inch lift in front? leaving roughly a .25" rake? Also, with this lift scenario, can i fit 285/70 r-17?
      2. 0 votes
        QI intend to lift my 2021 4wd toyota 4runner with the 5100 adjustable shocks. Right now, the rear ...... Read more answer now
        A If you use a stock spring with this front shock, you will get a lift height of 1.25 ″ in third ring position. If you don't have a heavy bumper or winch
        3. I plan to lift my 2001 toyota 4runner 2wd for only 1 inch front and rear. any suggestions on what to buy? and with that said, do i need a coil spring to do this? i basically bought 5100s front and rear shocks for my 2015 toyota 4runner. lifted the front on the 1st snap-0.78" and left the rear on stock so i did not buy a coil with it. so, will this be the same for the 2001 4unner? or do i need a coil spring?
      3. 0 votes
        QI plan to lift my 2001 toyota 4runner 2wd for only 1 inch front and rear. any suggestions on what...... Read more answer now
        A 5100s will lift the front suspensionfor the rear you'll need to find 1'' lift coils or maybe spacers
        4. Hi guys! I don’t know what should I do for front lift, Leave a stock springs and adjust the circling location height or put a new springs like ,OME2880, and stay on first lower position.??? What is the better solution for my front suspension???? Thanks! All the best Igor S.
      4. 0 votes
        QHi guys! I don’t know what should I do for front lift, Leave a stock springs and adjust the circl...... Read more answer now
        A Yes ! we are speaking about b8 5100 for front suspension.
        5. Hi there! I am wondering, is it possible get 1 inch lift around, with stock springs on my 3d. gen. 4Runner 1997 ????
      5. 0 votes
        QHi there! I am wondering, is it possible get 1 inch lift around, with stock springs on my 3d. gen...... Read more answer now
        A As for the front shocks and stock springs, you can get 0.8 ”(snap ring location # 2) or 1.6” (snap ring location # 3) Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y485A00_1.pdf For rear we can offer only https://www.suspensionlifts.com/shop/toyota-4runner/1996-2002/other-96-02-toyota-4runner/1-12-inch-lift-rear-spacers/ or https://www.suspensionlifts.com/product-category/toyota-4runner/1996-2002/rear-lifts-96-02-toyota-4runner/?swoof=1&pa_product-type=coils&really_curr_tax=55-product_cat
        6. Will these fit my 04 4runner v6 sport and do I need to replace the rear springs too ?
      6. 0 votes
        QWill these fit my 04 4runner v6 sport and do I need to replace the rear springs too ?answer now
        A for 2004 we can offerhttps://www.suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-shocks/bilstein-height-adjustable-front-and-matching-5100-rear-shocks/you can keed pe rear stock coils but the rear height will remain stock in this case
        7. Does this kit include all the necessary bushings as well?
      7. 0 votes
        QDoes this kit include all the necessary bushings as well?answer now
        A This kit comes with everything as shown in the picture
        8. will this fit a gx470?
      8. 0 votes
        Qwill this fit a gx470?answer now
        A these shocks will fit GX470https://www.suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-shocks/bilstein-height-adjustable-front-and-matching-5100-rear-shocks/
        9. I see that these are “frequently” bought with 3in coils. I only want the 2/2.5” lift. What coils are needed for front and rear to achieve a level 2ish inch lift.
      9. 0 votes
        QI see that these are “frequently” bought with 3in coils. I only want the 2/2.5” lift. What coils ...... Read more answer now
        A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.pngusually 2'' coils are used for leveling but it depends on particular truck
        10. does it also fit Land Cruiser 100 series model 1998, I need both Front and Rear
      10. 0 votes
        Qdoes it also fit Land Cruiser 100 series model 1998, I need both Front and Rear
        There are no answers for this question yet. Answer now
        11. I have a 2002 Toyota 4Runner SR5 2WD, and currently on 265/70/16..would like to lift it for looks..what would be the easiest and cheapest way to do this? Has 250k on it.
      11. 0 votes
        QI have a 2002 Toyota 4Runner SR5 2WD, and currently on 265/70/16..would like to lift it for looks...... Read more answer now
        A you may add lift coilshttps://www.suspensionlifts.com/product-category/toyota-4runner/1996-2002/?swoof=1&pa_product-type=coils&really_curr_tax=32-product_cat
        12. Will this fit on a 1999 limited 4runner with the OME3-Run 3 inch lift springs?
      12. 0 votes
        QWill this fit on a 1999 limited 4runner with the OME3-Run 3 inch lift springs?answer now
        A Yes it will fit
        13. I see that this item is on sale but when i add it to my cart it has the full price listed Why ?
      13. 0 votes
        QI see that this item is on sale but when i add it to my cart it has the full price listed Why ?
        There are no answers for this question yet. Answer now
        14. Can use these in my 1997 4runner SR5 with stock coil springs and keep my stock height?
      14. 0 votes
        QCan use these in my 1997 4runner SR5 with stock coil springs and keep my stock height?answer now
        A Yes
        A Yes you can use these shocks with stock coils and get 0'' of lift
        15. Was wondering if these will work with my Land Cruiser spings I have installed in the rear of my 99 4runner
      15. 0 votes
        QWas wondering if these will work with my Land Cruiser spings I have installed in the rear of my 9...... Read more answer now
        A Hello Rear shock has parameters Extended Length (IN): 20.79 Inch Compressed Length (IN): 12.91 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Eyelet Position On Vehicle: Rear; With 0 To 2-1/2 Inch Lift These rear shocks will work with a coil from 0 to 2-1/2 inches.
        16. Before I purchase, product description for 5100 says this will apply towards 2wd 2001 4Runner. Some Q&A say only for 4wd. Please advise. Also, if it is possible to install, I intend to keeping rear stock height, whats the recommended front height adjustment to maintain best ride?
      16. 0 votes
        QBefore I purchase, product description for 5100 says this will apply towards 2wd 2001 4Runner. So...... Read more answer now
        A it will fit. You may use any notch adjustment, 2nd notch will be good for ride .Basicly it is only not recommended to have more then 3'' of lift.You can keep rear stock height
        17. I ordered 1997 front and rear shocks and u guys sent me the correct rear shocks but the front were from a 2005 Toyota. What's my next process. T
      17. 0 votes
        QI ordered 1997 front and rear shocks and u guys sent me the correct rear shocks but the front wer...... Read more answer now
        A Please send us photos of the incorrect shocks through email or contact form and order number - we'll get it corrected
        18. I wanna purchase the set of 5100s for my 97 4runner 4x4 but im not sure if i should buy a 3' lift coils for the rear ..i know that its only .5 inch difference than the front , how stiff are the medium duty coils? Also will i need the hardware for the shocks , i read that you need it for 5100s not sure .??
      18. 0 votes
        QI wanna purchase the set of 5100s for my 97 4runner 4x4 but im not sure if i should buy a 3' lift...... Read more answer now
        A Your old bushings can be reused if they are in a good shape.Othervise new bushings may be purchased https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/front-shock-replacement-bushing-washer-kit/You may consider these coils for no additional constant load such as bumpers or winches https://suspensionlifts.com/shop/toyota-4runner/1996-2002/rear-ome-906-coils-for-1996-2002-toyota-4runner/
        19. i have a 2001 4runner sr5 will this lift it 2.5" all around on stock springs?
      19. 0 votes
        Qi have a 2001 4runner sr5 will this lift it 2.5" all around on stock springs?answer now
        A It will lift only the front on stock coils.For rear lift you'll need https://suspensionlifts.com/shop/toyota-4runner/1996-2002/1-12-inch-lift-rear-spacers/or https://suspensionlifts.com/shop/toyota-4runner/1996-2002/rear-ome-906-coils-for-1996-2002-toyota-4runner/without it you'll have stock rear height
        20. 96 4wd running on 2.5 inches lift coil with stock shocks on front and rear. Would they be simple drop in option?
      20. 0 votes
        Q96 4wd running on 2.5 inches lift coil with stock shocks on front and rear. Would they be simple ...... Read more answer now
        A These shocks can be used with 2.5'' lift coils.Please be sure not to exceed 3'' lift
        21. I have a 1997 4Runner V6 4WD without a lift. Can I use these shocks? After installed will I need to make any adjustments for it to be level height?
      21. 0 votes
        QI have a 1997 4Runner V6 4WD without a lift. Can I use these shocks? After installed will I need ...... Read more answer now
        A Yes, you can use these shocks.Use the middle clip setting on the front shocks for leveling
        22. Will the front bilstien shocks work with 883 coils? And if so would it provide about 3 inches of lift on a 2000 4runner with a Plate bumper?
      22. 0 votes
        QWill the front bilstien shocks work with 883 coils? And if so would it provide about 3 inches of ...... Read more answer now
        A Yes, it may work.Please don't use highest notches not to acheive more then 3'' of front lift - can be harmful for the suspension
        23. To clarify....by using this kit, one will get 2.5" of lift in the front end; in order to get lift in the rear, you would have to purchase add-a-leaf or place blocks. Is this a correct statement?
      23. 0 votes
        QTo clarify....by using this kit, one will get 2.5" of lift in the front end; in order to get lift...... Read more answer now
        A You are right, rear spacers or stronger coils will be needed for lifting the rear endhttps://suspensionlifts.com/shop/toyota-4runner/1996-2002/1-12-inch-lift-rear-spacers/https://suspensionlifts.com/shop/toyota-4runner/1996-2002/rear-ome-906-coils-for-1996-2002-toyota-4runner/
        24. I have a 2000 4runner limited 4wd with a v6. I'd love to use these for the front, what is the max. lift height? Also recommendations on the rear coils. I'd like to order all the parts at one time.
      24. 0 votes
        QI have a 2000 4runner limited 4wd with a v6. I'd love to use these for the front, what is the max...... Read more answer now
        A 2.5'' front and rear lift is the maximum recommended lengthThese coils can be recommended: https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/front-lifts/toytec-eibach-front-coil-lift-springs/ https://suspensionlifts.com/shop/toyota-4runner/1996-2002/rear-ome-906-coils-for-1996-2002-toyota-4runner/
        25. So for these shocks, you use the existing springs on your car?
      25. 0 votes
        QSo for these shocks, you use the existing springs on your car?answer now
        A Yes, these shocks will fit the stock springs. Front shocks will allow to make your front higher up to 2,5'' on stock height
        26. Does this fit for 2001 4wd Tundra
      26. 0 votes
        QDoes this fit for 2001 4wd Tundraanswer now
        A https://suspensionlifts.com/shop/toyota-tundra/00-06-toyota-tundra/bilstein-5100-height-adjustable-front-rear-shocks-for-2000-2006-toyota-tundra/theese will fit 2001 Tundra 4.7 4WD
        27. Do these come with strut mounts?
      27. 0 votes
        QDo these come with strut mounts?
        There are no answers for this question yet. Answer now
        28. I have a 98 4runner SR5 4WD, and I want to put shocks and springs on it. I just bought it and they haven't been replaced in a long time (maybe never). I'm not trying to lift it, but I also wouldn't mind if it was an inch or two higher. Will the adjustable 5100's (set to "0" lift) be just as good as the 4600's (I don't like the yellow and blue)? Will they work with stock springs? Will they work with 99 Highlander springs (which I've read sit 1" higher than any 3rd gen 4runner)? If not, what would you recommend (springs and/or shocks)? I'm on a budget like most people are. Would like to find shocks and springs and get maybe 0-2" of lift. Thanks in advance!
      28. 0 votes
        QI have a 98 4runner SR5 4WD, and I want to put shocks and springs on it. I just bought it and the...... Read more
        There are no answers for this question yet. Answer now
        29. Where can I find something like this for a 2wd
      29. 0 votes
        QWhere can I find something like this for a 2wd
        There are no answers for this question yet. Answer now
        30. Will these fit a 2wd 02 4runner?
      30. 0 votes
        QWill these fit a 2wd 02 4runner?
        There are no answers for this question yet. Answer now
        31. Will they fit 2015 4runner
      31. 0 votes
        QWill they fit 2015 4runner
        There are no answers for this question yet. Answer now
        32. I have 881/890 old man emu springs for my 2000 4runner that would raise it 3". I would like to purchase a set of bilsteins to complement them. What model numbers do I need for front and rear application.
      32. 0 votes
        QI have 881/890 old man emu springs for my 2000 4runner that would raise it 3". I would like to pu...... Read more
        There are no answers for this question yet. Answer now
        33. I have a 1999 Limited 4wd. Looking to replace the suspension with standard '99 ride height (+1"). At the most I would go 1.5"-2". Would buying these Bilstein's and some inexpensive springs do the trick?
      33. 0 votes
        QI have a 1999 Limited 4wd. Looking to replace the suspension with standard '99 ride height (+1")....... Read more
        There are no answers for this question yet. Answer now
        34. What would be some good springs to match up with these to achieve close to a 2" lift?
      34. 0 votes
        QWhat would be some good springs to match up with these to achieve close to a 2" lift?
        There are no answers for this question yet. Answer now
        35. Would this fit a 2wd
      35. 1 vote
        QWould this fit a 2wdanswer now
        A No
        36. Does it also work on a 1999 4Runner 2wd limited?
      36. 1 vote
        QDoes it also work on a 1999 4Runner 2wd limited?answer now
        A No, they will not fit 2WD according to Bilstein
        A according to the description is says it will fit "2002 Toyota 4Runner 4WD/2WD" keywords being 2WD so is the first answer 100% correct or not ?
