Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2023 Toyota 4Runner
Description
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2023 Toyota 4Runner
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2021, 2022, 2023 Toyota 4Runner
Part: 24-328258_33-187174+Rr-Coils_4R
Need it assembled?
- Sale!
Bilstein/OME 2.5″ 5100 Assembled Coilover Lift Kit for 2010-2023 Toyota 4Runner
(1 review)Original price was: $1,186.99.$965.95Current price is: $965.95.

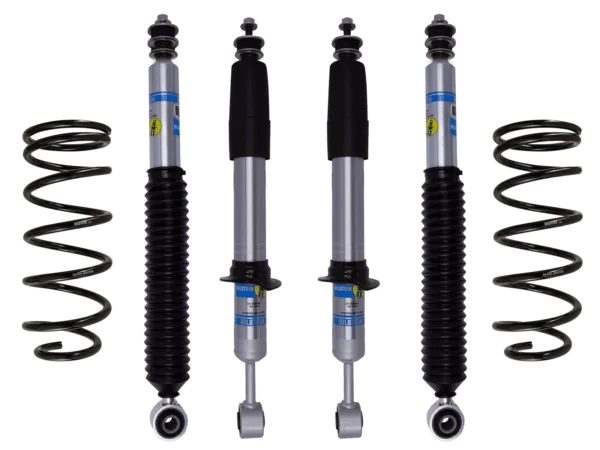

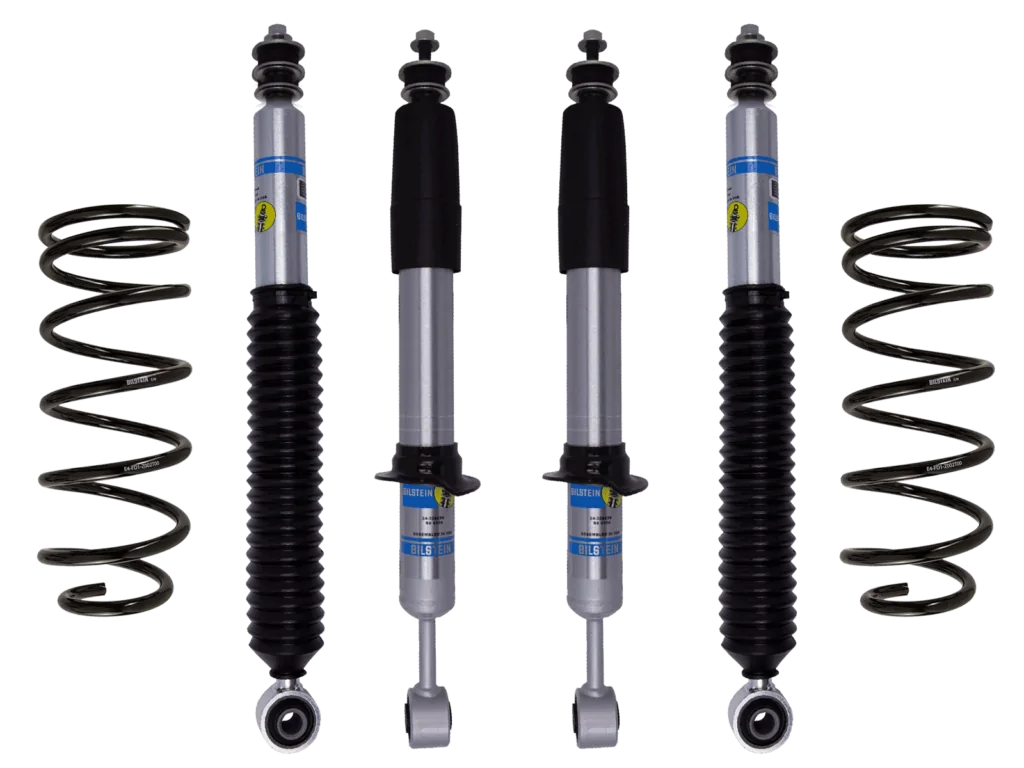

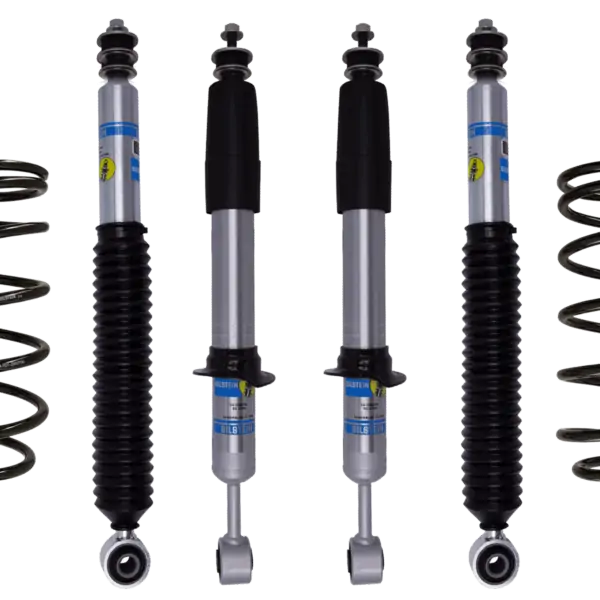

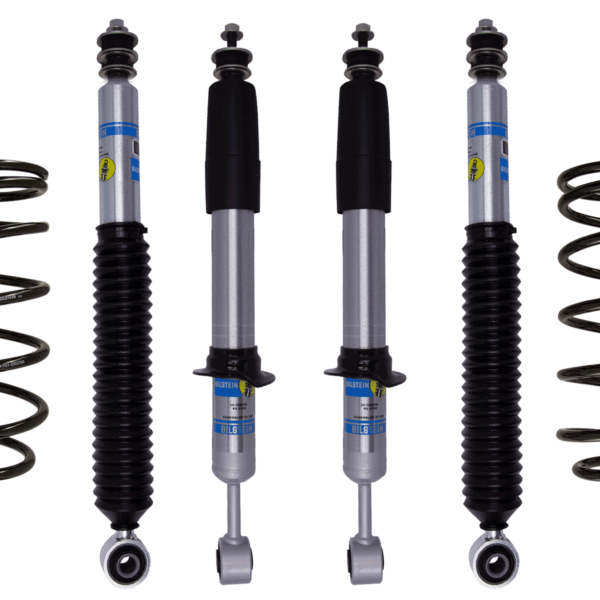

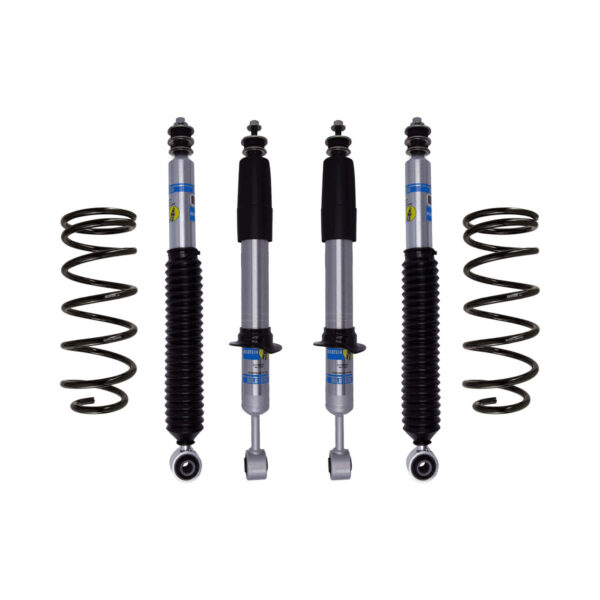

The Bilstein 0-2.5″ Lift Kit with Rear Coils is the perfect solution for your 2010-2023 Toyota 4Runner. This kit includes height adjustable 5100 shocks for the front (24-328258) and rear (33-313146) of your vehicle.
Bilstein 5100 Shocks:
The Bilstein 5100 shocks are height adjustable and provide a lift range of 0-2.5″ for the front of your vehicle, and 0-2″ for the rear. These shocks are engineered to provide superior handling, stability, and comfort, even under heavy loads or off-road conditions. The 5100 series shocks are made with the highest quality materials and are rigorously tested to ensure durability and long-lasting performance.
Front Shocks:
- Part Number: 24-328258
- Height Adjustable: 0-2.5″ Lift
- Extended Length: 22.48 Inch
- Compressed Length: 17.58 Inch
Rear Shocks:
- Part Number: 33-313146
- Height Adjustable: 0-2″ Lift
- Extended Length: 23-1/2 Inch
- Compressed Length: 14.91 Inch
- Rod Diameter: 1.81 Inch
- Upper Mounting Style: Stem
- Lower Mounting Style: Eyelet
Rear Coil Springs:
The rear coils are available in three options to best suit your needs:
- Rear Coil Springs 36-281817:
- Toyota 4Runner 2WD: Rear Lift Height: 1.5″
- Toyota 4Runner 4WD: Rear Lift Height: 1″
- Rear Coil Springs 36-281824:
- Toyota 4Runner 2WD: Rear Lift Height: 2″
- Toyota 4Runner 4WD: Rear Lift Height: 1.5″
- Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831:
- Toyota 4Runner 2WD: Rear Lift Height: 2″
- Toyota 4Runner 4WD: Rear Lift Height: 1.5″
Note: This kit does not include X-REAS Suspension and the front lift is achieved by the adjustment of the front shocks. The stock front coils must be reused. The kit includes shocks exactly as pictured.
Questions and answers of the customers
-
With the rear spring providing a 2" lift, what should I set the fronts up as to have an overall 2" lift?
- QWith the rear spring providing a 2" lift, what should I set the fronts up as to have an overall 2...... Read more answer nowA In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png usually rear sits 0.5-1'' highest than stock from the factoryI have a 2022 limited 4runner. Ideally I want to have a 3 inch lift in front and a 2 inch lift on the rear.. I'm eliminating the xreas system. After removal, does the 4runner need new front and rear springs or will I only need 4 new shocks. Also would it need an updated controller arm with this lift?

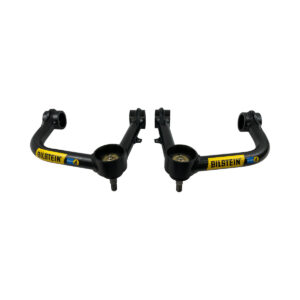

- QI have a 2022 limited 4runner. Ideally I want to have a 3 inch lift in front and a 2 inch lift on...... Read more answer nowA UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.you can keep your old coils and change only shocks first, but you will be able to lift only the front keeping OEM coils and use front shocks height adjustmentrear shocks are not height adjustable they are only longer than stock / Rear end can be lifted only by longer rear coilsI want to go with the Bilstein 5100 front and rear no more then 2.5 with 285 70 17 , it has kdss , the place that is doing the work says the kdss has to be removed is this true, I dont want to remove the kdss if i dont have to, 2016 4runner trail
- QI want to go with the Bilstein 5100 front and rear no more then 2.5 with 285 70 17 , it has kdss ...... Read moreThere are no answers for this question yet. Answer nowWill I be able to fit 285's on my stock SR5 with this kit alone, or will I need to get front coils as well?
- QWill I be able to fit 285's on my stock SR5 with this kit alone, or will I need to get front coil...... Read more answer nowA can use OEM front coils if without front heavy bumper/winchWill 17x9 fuel wheels work with this lift?
- A These wheels will fit without rubbing:Rim* 8" Tire Width* 12" Tire* 32.5" Backspace* 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may helpDo you know how long it will be before the BILSTEIN 0-2.5” Lift kit with real coils for a 2020 TOYOTA 4 RUNNER will be back in stock?
- QDo you know how long it will be before the BILSTEIN 0-2.5” Lift kit with real coils for a 2020 TO...... Read moreThere are no answers for this question yet. Answer nowI have a 2013 4runner Limited. Using the 2in option and factory wheels, what are the recommend tire size?
- QI have a 2013 4runner Limited. Using the 2in option and factory wheels, what are the recommend ti...... Read more answer nowA These wheels will fit without rubbing on the highest notch adjustment (at 2,5'')Rim* 8" Tire Width* 12" Tire* 32.5" Backspace*4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may helpJust finished my install of this kit with 2.5” setting on the front, there seems to be a whistling noise when I get above 45mph. Is there any cure for this? Still need an alignment and new tires.
- QJust finished my install of this kit with 2.5” setting on the front, there seems to be a whistlin...... Read more answer nowA alignment is recommendedA Do you have cross bars on your roof rack. Those are notorious for noise.Similar to above, does this REQUIRE a Diff Drop?
- A Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.I have a 2019 4Runner OffRoad Premium with KDSS. Are the rear springs in this kit heavier duty than stock?
- QI have a 2019 4Runner OffRoad Premium with KDSS. Are the rear springs in this kit heavier duty th...... Read more answer nowA not much, maybe 10% strongerI want to use this set up mostly to level my 2019 4Runner TRD Offroad premium and give it a slight lift over stock. If the Rear Coil Springs 36-281817 provide one inch of lift on this vehicle, what would I set the 5100's to make the vehicle level? Would I be better off just going with stock rear springs and only the 5100 shocks front and rear?
- QI want to use this set up mostly to level my 2019 4Runner TRD Offroad premium and give it a sligh...... Read more answer nowA 2.75 inches, I think it take is by 1.75 inches so back stock is 1.75ish inches higherI bought the front 5100s and was going to do spacers only in the back, but now I want to go ahead and get the rear 5100 shocks and coils. So to achieve a 2 inch lift in the back, what coils do you recommend? The 2 inch OME, OR THE 1.5-2 inch coil that is offered, and what are the differences? Also, do i need to return the front only package of 5100s or can I call and get the remainder of the front and back package for the difference in price? 2017 4wd 4Runner
- QI bought the front 5100s and was going to do spacers only in the back, but now I want to go ahead...... Read moreThere are no answers for this question yet. Answer nowAt what point should you replace Upper Control Arms?
- A anything over a 2" liftWill this make for a better on road ride of a 2016 4runner? Tired of the nose dive at stops and bounce at acceleration.
- QWill this make for a better on road ride of a 2016 4runner? Tired of the nose dive at stops and b...... Read more answer nowA Yes, this is a good kit for 2016 4runner, you can use it with a stock coils if you don't have a heavy bumper or winch Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y323A00.pdfsorry this will be my first time lifting but does this come with complete package? Front and rear lift? Will it fit my 2020 4runner off road with kdss? Can this kit go as high as 3”?
- Qsorry this will be my first time lifting but does this come with complete package? Front and rear...... Read moreThere are no answers for this question yet. Answer nowDo I need spacer for the front and rear? Looking to buy for my 17 sr5 4runner
- A Front shocks work with stock spring. The required lift is selected by adjusting the rings on the shock Here is the installation instructions for you https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y323A00.pdf The rear springs are selected from the drop-down menu on the right side if you want to get a lift 0-2.5 "spacers are not neededWill this fit a 2002 Toyota 4Runner? If so, where can I find the front coils for a 2" lift?
- QWill this fit a 2002 Toyota 4Runner? If so, where can I find the front coils for a 2" lift?answer nowA For 2002 we canvoffer kit with front coilshttps://www.suspensionlifts.com/shop/toyota-4runner/1996-2002/lift-kits-96-02/3-lift-kit-with-bilstein-shocks-for-1996-2002-toyota-4runner/Is it recommended to replace the upper control arms if only doing a 2 inch lift in the front? If so what is the limit for not replacing the UCA’s.
- QIs it recommended to replace the upper control arms if only doing a 2 inch lift in the front? If ...... Read more answer nowA UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.UCAs are always not a bad idea, but the lifts up to 3'' can go without UCAs.Will this kit fit a 2019 TRD Off-road with KDSS?, and will it level front and rear?
- A Yes, it will fit.Front shocks are height adjustable so you may set at desired height.In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.pngMe again...So it is a 2011 limited 4wd . I want to replace the xreas with this kit. If I use the heavy coils will the unloaded lift be higher than the 1.5 inches stated? I am attempting to raise the front and rear 2 inches.
- QMe again...So it is a 2011 limited 4wd . I want to replace the xreas with this kit. If I use the ...... Read more answer nowA With heavy coils you'll get 2'' but ride comforf will get worse without additional constant loadCan I use a spacer to rear for more lift (2inches) 2011 4runner limited? I would use the heavy springs as I often pull a trailer.
- QCan I use a spacer to rear for more lift (2inches) 2011 4runner limited? I would use the heavy sp...... Read more answer nowA It is not recommended to have more than 2.3'' rear lift with these shocksDoes this fit a 2019 TRD off-road 4RUNNER with KDSS?!
- A Yes, it will fitCan I put 33”x12.50’s on a 17x8 rim with mild offset with this lift without any rubbing or cutting?
- QCan I put 33”x12.50’s on a 17x8 rim with mild offset with this lift without any rubbing or cuttin...... Read more answer nowA These wheels will fit without rubbing:Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may helpWould I only need the heavy duty rear coil if I'm adding bigger heavier bumpers and permanent after market stuff etc? I occasionally put on a large Roof tent with camping gear that seems to really lower the back but I do most of my driving without the extra weight, I don't want stiff ride for the sake of an occasional weight load. What do you recommend thanks 2014 sr5
- QWould I only need the heavy duty rear coil if I'm adding bigger heavier bumpers and permanent aft...... Read more answer nowA For occasional heavy loads we'd recommend usual (not heavy) lift coils + airbagshttps://www.suspensionlifts.com/shop/toyota-tacoma/2016-and-up/accessories-2016-and-up/firestone-rear-airbags/Hi,Will SKU: 24-196499_33-187174+Rr-Coils_4R fit on a 2019 Toyota 4Runner SR5?
- A Yes. it will fit (SKU: 24-196499_33-187174) for '2019 Toyota 4Runner SR5 4WD'Do you do installations for these products?
I live in SoCal, if I brought in my truck, would you install the parts?
- QDo you do installations for these products? I live in SoCal, if I brought in my truck, would you ...... Read more answer nowA We do not install, but any professional mechanic in the store can do it.Can use this system with TRD Pro front springs?
- A No sir, it's for usal (non TRD PRO) coils1) Using this kit on a 2013 4runner Trail Edition with KDSS - using 36-281824 Rear Coil Springs, what is the maximum lift I can achieve while remaining level (or a slight rake with the front lower than the rear)?
2) Do I need a spacer on one side to counteract the KDSS, so I don't get a lean?Any other parts I'll need besides UCA's, bushings and a drop kit?Thanks!
- Q1) Using this kit on a 2013 4runner Trail Edition with KDSS - using 36-281824 Rear Coil Springs, ...... Read more answer nowA Front shocks give approximately 2.5'' lift on stock coils. You may get a spacer foe driver side lean if you ahve the lean.No other parts neededThese rear coils will provide lift?. No need for spacer if I would like max front setting?.
Which diff drop kit and UCA would you recommend?.
Anything else would need to complete install?.
- QThese rear coils will provide lift?. No need for spacer if I would like max front setting?. Which...... Read more answer nowA Hi. Rear coils provide the next lift: Rear Coil Springs: Rear Coil Springs 36-281817 4Runner 2WD – Rear Lift Height: 1.5″ 4Runner 4WD – Rear Lift Height: 1″ or Rear Coil Springs 36-281824 4Runner 2WD – Rear Lift Height: 2″ 4Runner 4WD – Rear Lift Height: 1.5″ or Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831 4Runner 2WD – Rear Lift Height: 2″ 4Runner 4WD – Rear Lift Height: 1.5″Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life. we can offer https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/complete-lift-kits/front-differential-drop-kit/UCAs are always not a bad idea, but the lifts up to 3'' can go without UCAs. we can offer https://www.suspensionlifts.com/shop/toyota-tacoma/2005-2015/light-racing-upper-control-arms-for-2005-toyota-tacoma/ https://www.suspensionlifts.com/shop/toyota-fj-cruiser/total-chaos-uca-for-tacoma-05-fj-cruiser-07-4runner-03/Does this include a diff drop?
- QDoes this include a diff drop?There are no answers for this question yet. Answer now
You may also like…
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
Related products
- Sale!
Fox IFP 0-1.5″ Rear Lift Shocks for 2010-2023 Toyota 4Runner
(0 reviews)Original price was: $445.18.$404.71Current price is: $404.71.

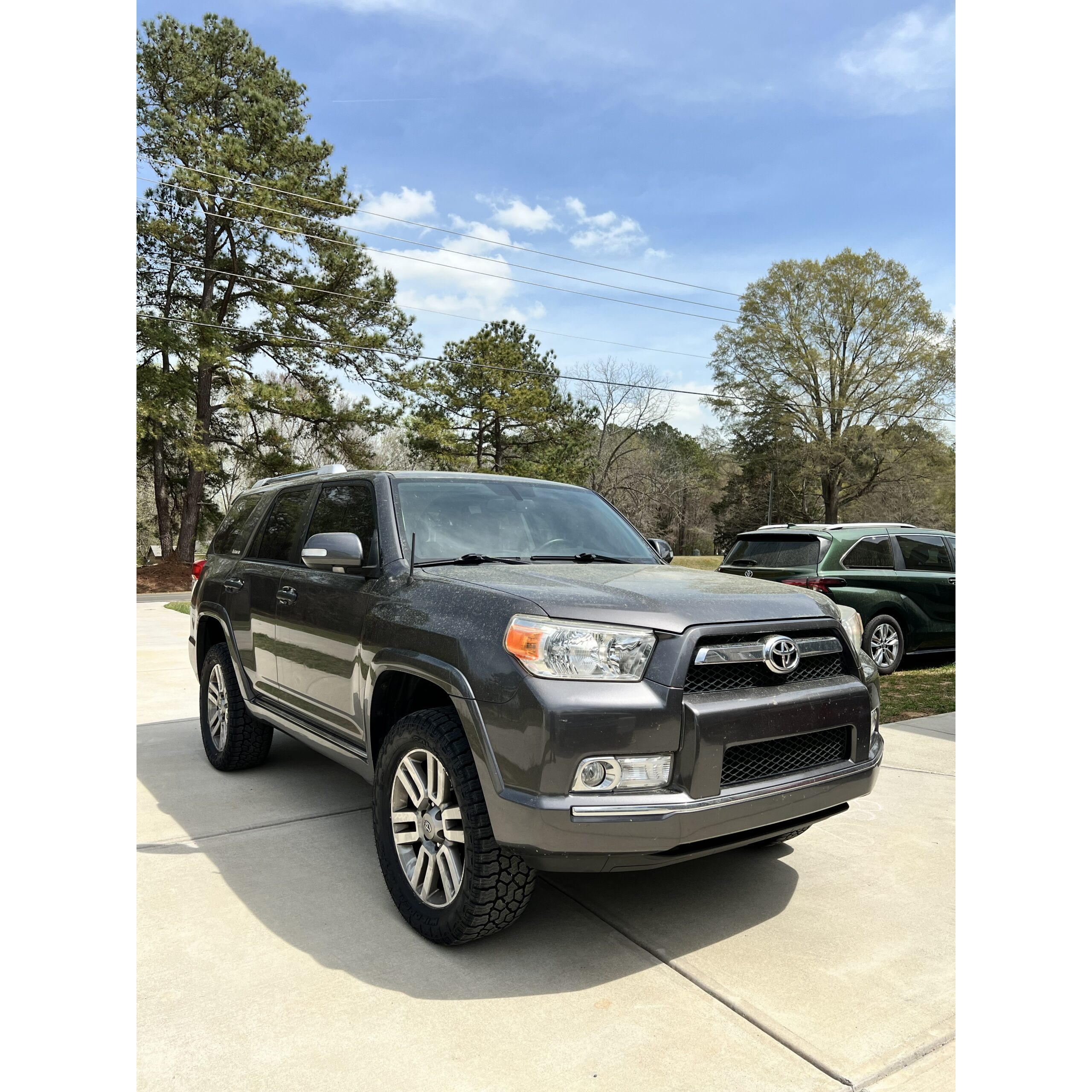

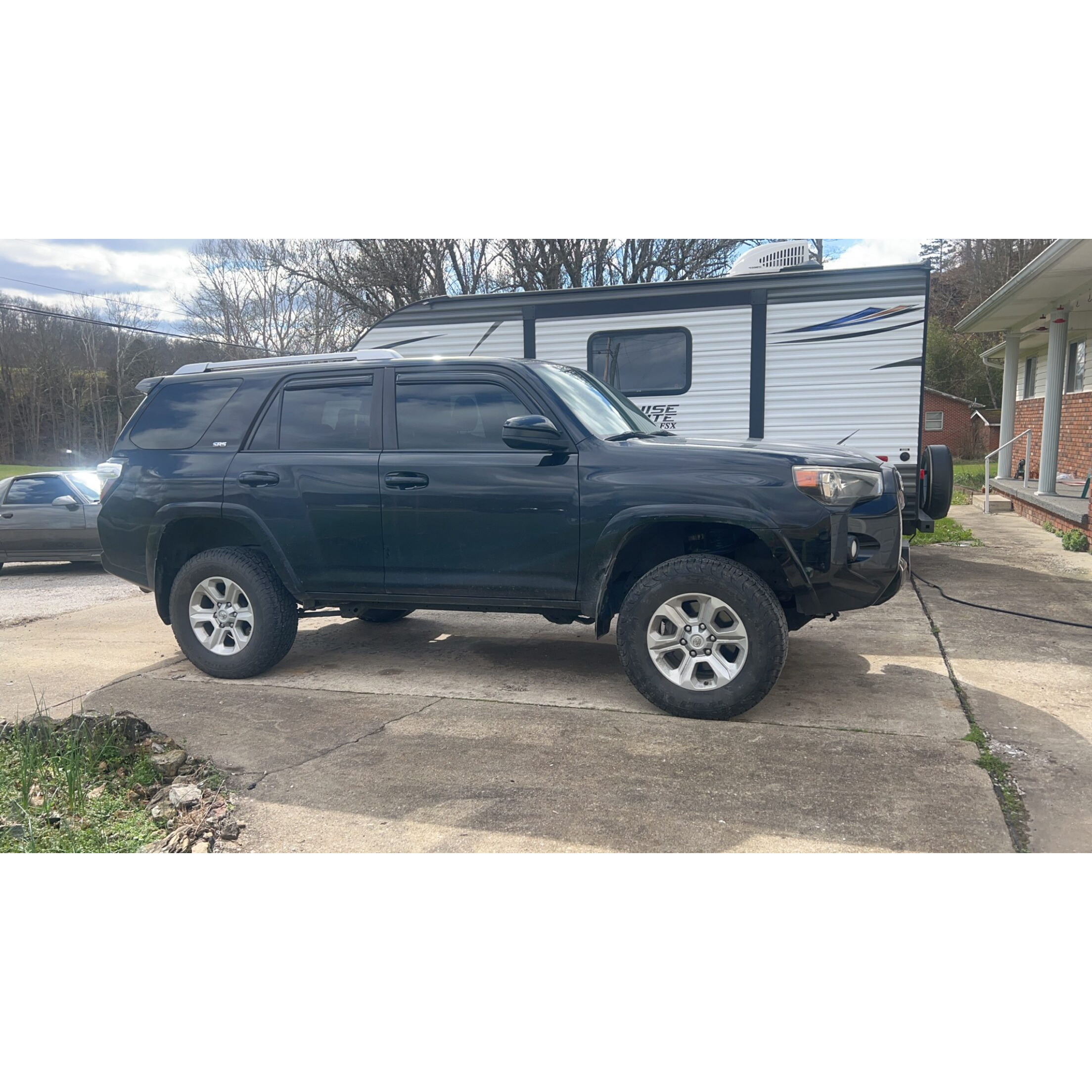

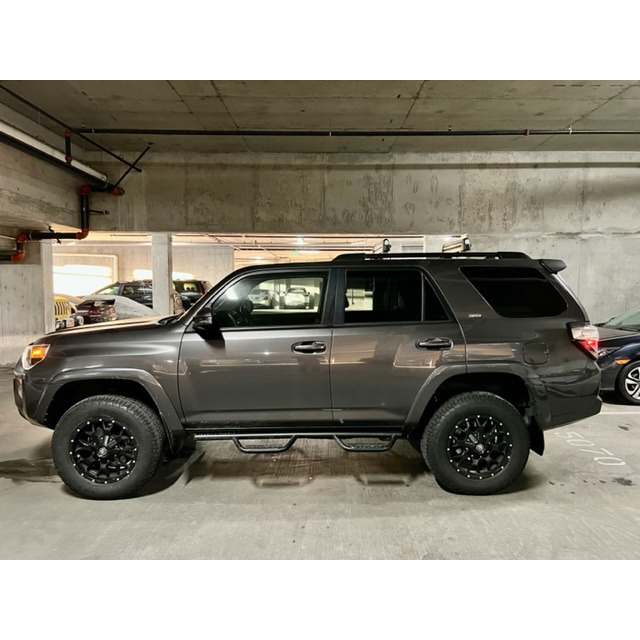

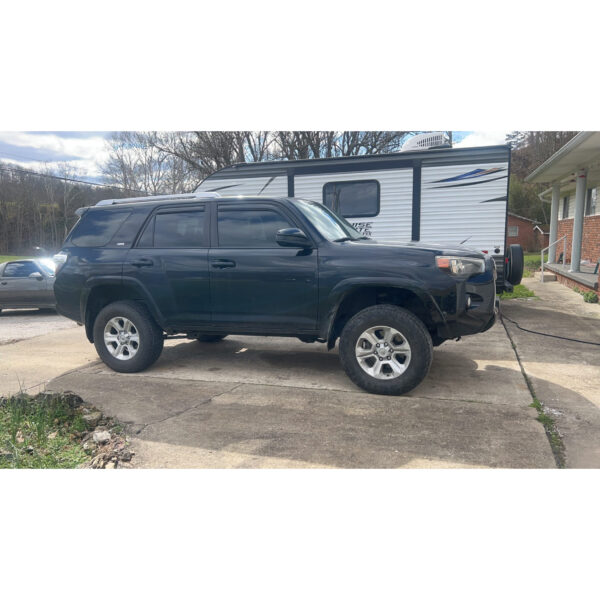

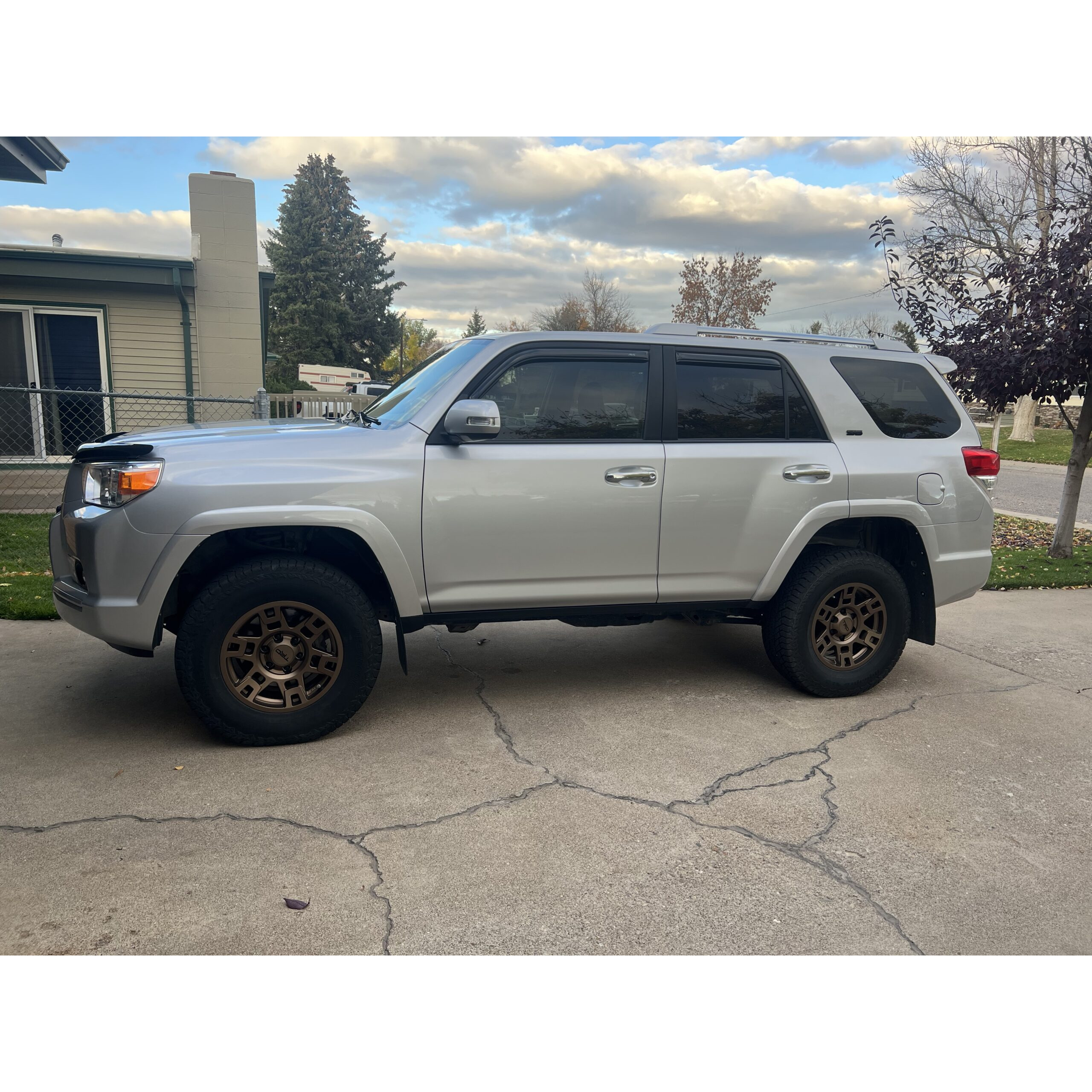

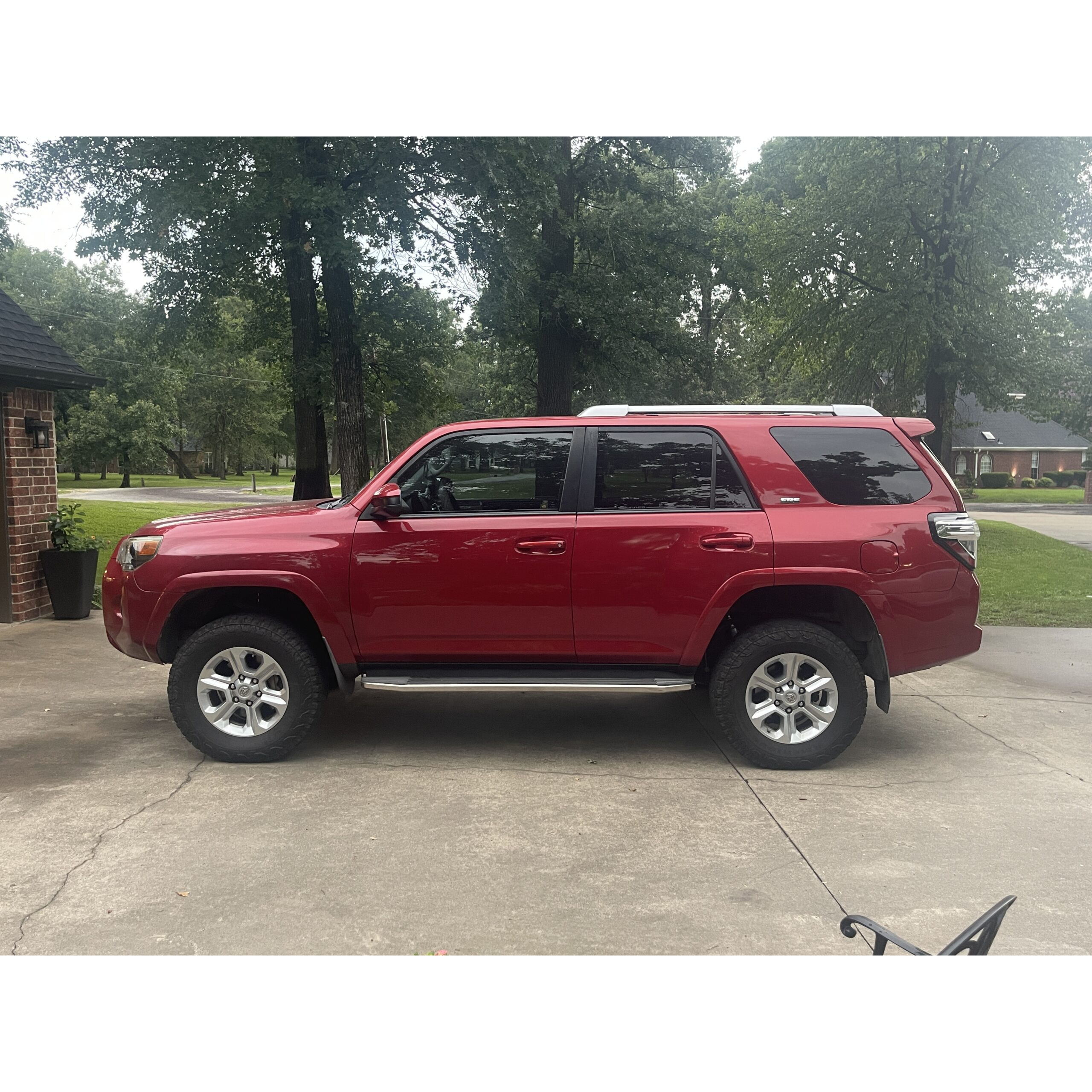

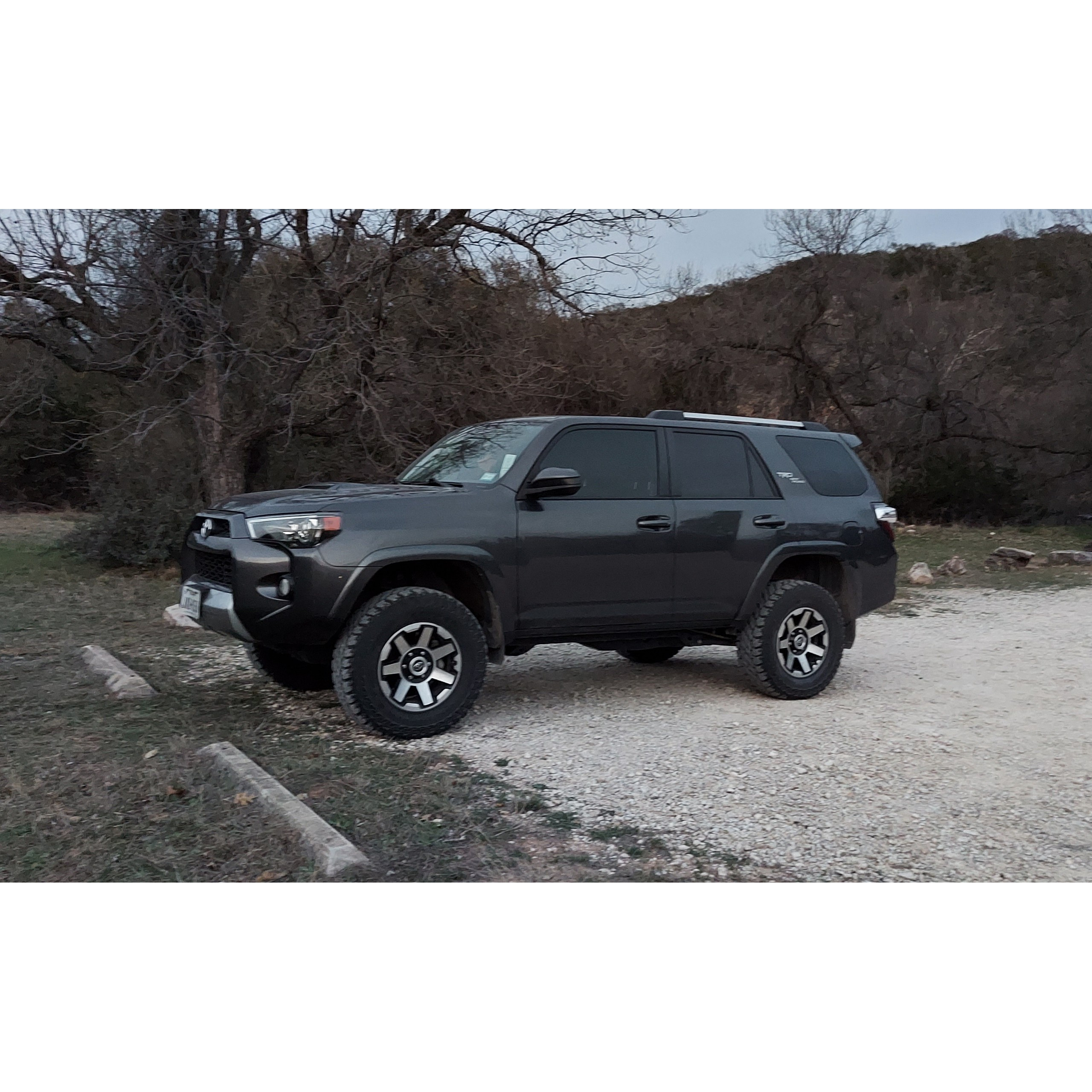

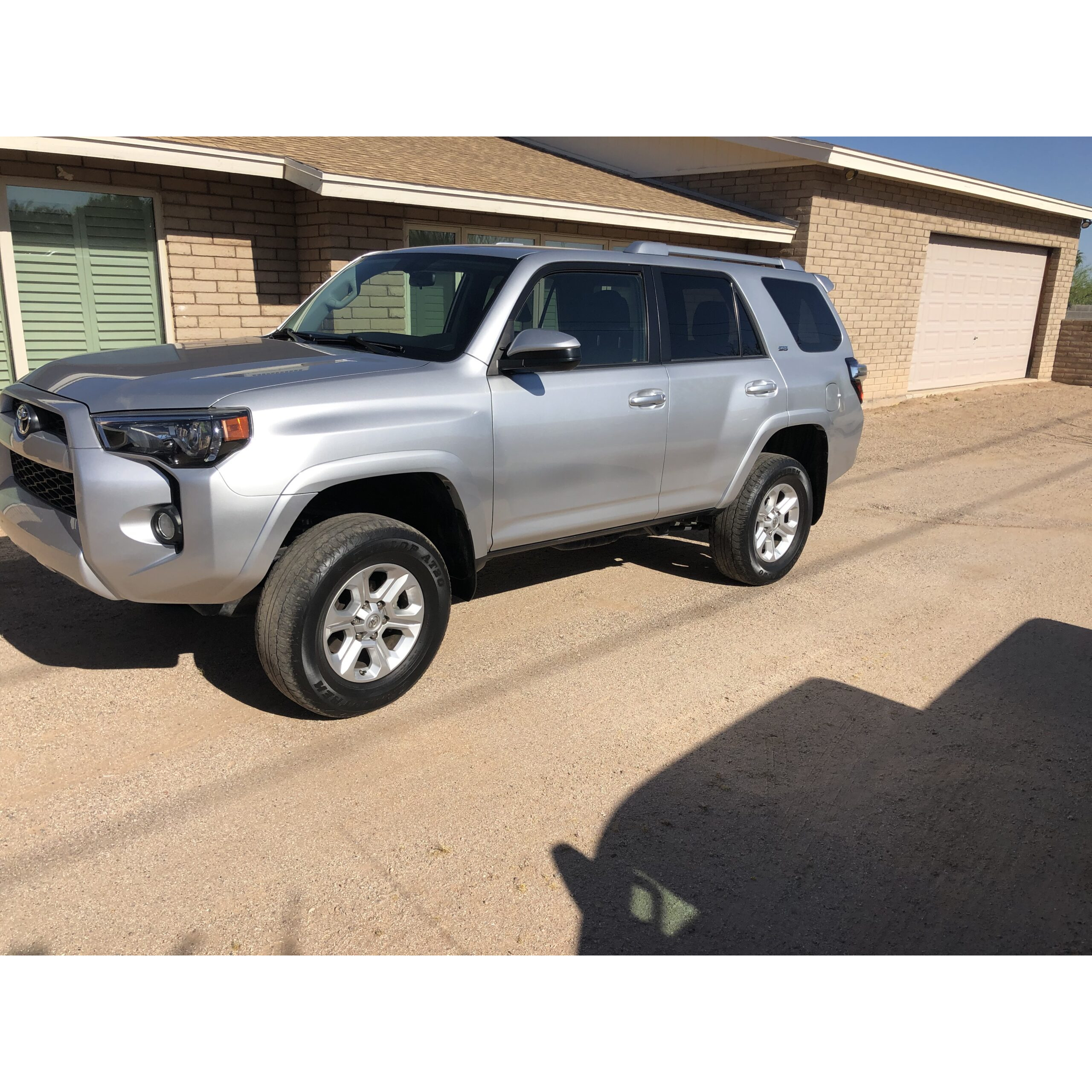

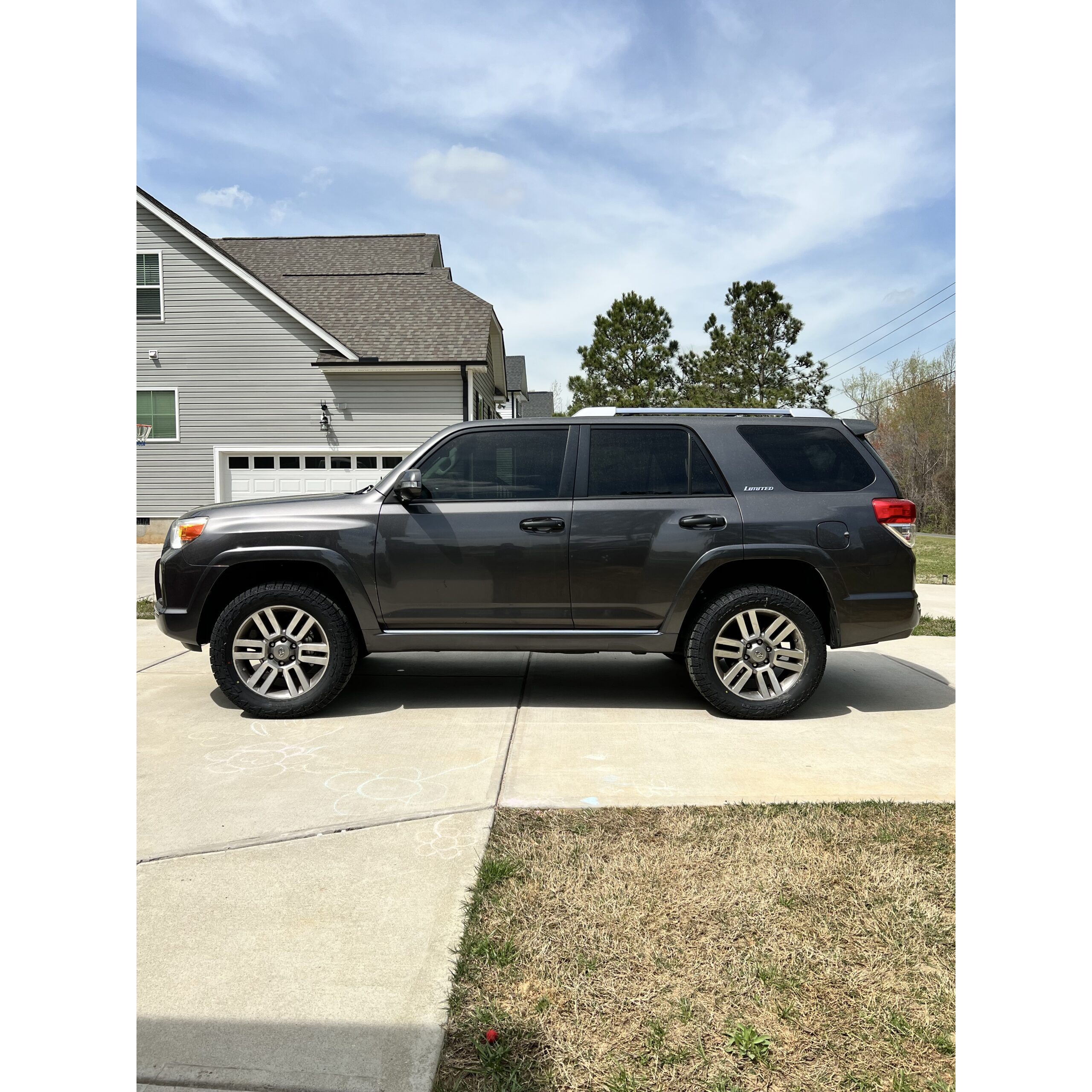

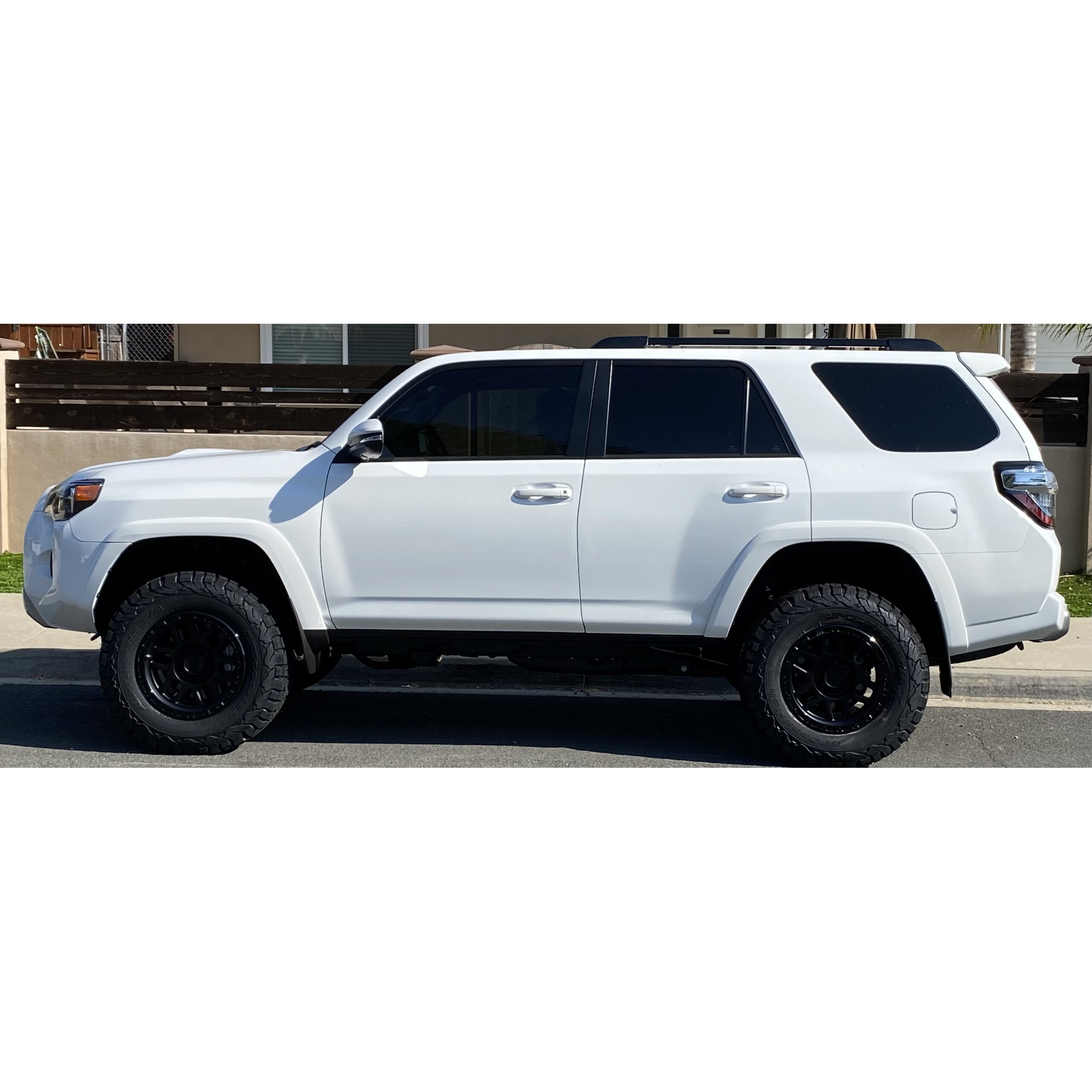

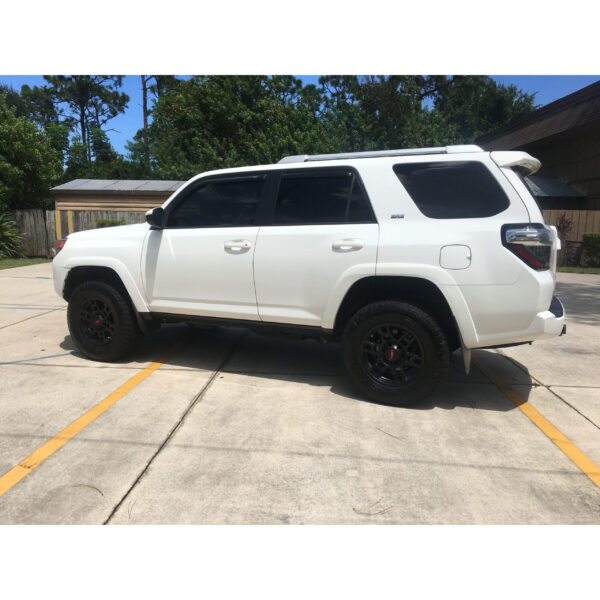

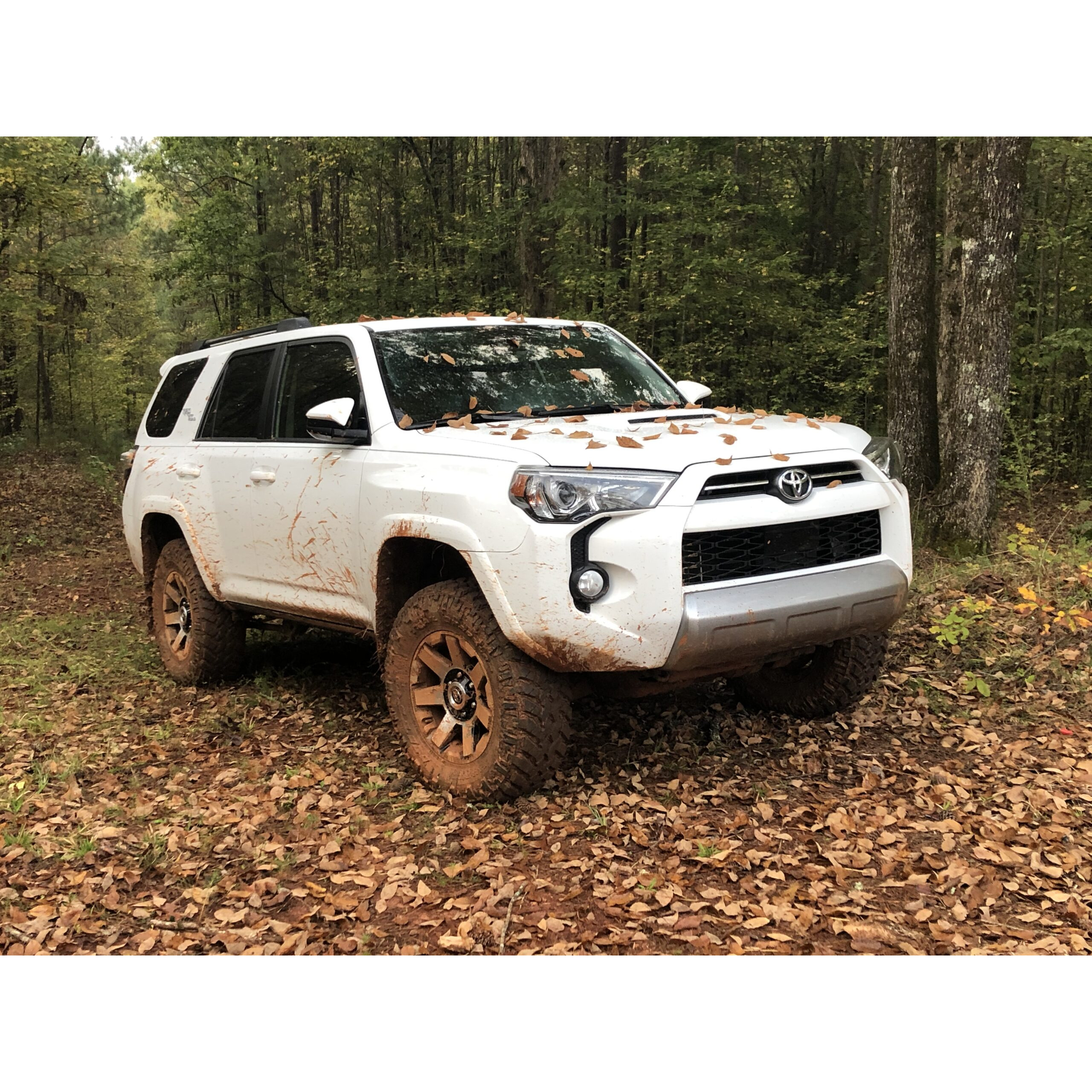

28 reviews for Bilstein 0-2.5″ Lift Kit With Rear Coils For 2010-2023 Toyota 4Runner
