Description
ICON 0-3.5″ Lift Kit Stage 1 for 2010-2024 Toyota 4Runner, FJ Cruiser

ICON 2010–2024 Toyota 4Runner / 2010–2014 Toyota FJ Cruiser 0-3.5 inches Lift Stage 1 Suspension System

Part Number: K53061

Summary: The ICON Stage 1 Suspension System is an entry-level performance upgrade designed for the 2010–2024 Toyota 4Runner and 2010–2014 FJ Cruiser, providing 0-3.5 inches of adjustable front lift height. This system is engineered to significantly reduce factory body roll and improve overall driving dynamics both on and off-road. Featuring vehicle-specific tuned 2.5 Series front coilovers and 2.0 Aluminum Series rear shocks, this system delivers a balanced and consistent damping profile across any terrain.

Features

  • 2.5 Series Front Coilovers: Vehicle-specific tuning and 7/8 inches shafts provide superior shock damping and control to ensure a premium ride quality.

  • 2.0 Aluminum Series Rear Shocks: Internal Float Piston (IFP) design with 5/8 inches shafts provides smooth and consistent damping performance to ensure matched handling with the front coilovers.

  • Increased Wheel Travel: Specialized shock architecture provides increased wheel travel over stock to ensure improved off-road capability.

  • CNC Machined Components: 6061 aircraft-grade aluminum construction provides high strength-to-weight ratios to ensure long-term component integrity.

  • System Durability: Corrosion-resistant CAD plated coilover bodies and FK Rod End bearings provide maximum longevity to ensure minimal deflection under load.

  • Installation: 100% Bolt-on design provides a straightforward upgrade path to ensure no cutting or welding is required for installation.

Technical Specifications

Specification Value
Stage Stage 1
Front Lift Range 0-3.5 inches
Shock Series 2.5 Series Front / 2.0 Aluminum Series Rear
UCA Type Not Included
Rear Spring Type 2 inches Lift Coil Springs

Wheel & Tire Fitment

  • OEM Wheels & Tires: Yes

  • Aftermarket Wheels: 17×8.5 inches w/ 4.75” BS / 0mm Offset, 18×9 inches w/ 5.00” BS / 0mm Offset, or 20×9 inches w/ 5.00” BS / 0mm Offset

  • Aftermarket Tires: 33 inches x 11.50 inches

  • Note: Larger tires may fit but fender trimming and modifications will be required. KDSS equipped vehicles require rear track bar part #54200. An adjustable track bar is recommended to realign the axle but not required for non-KDSS models.

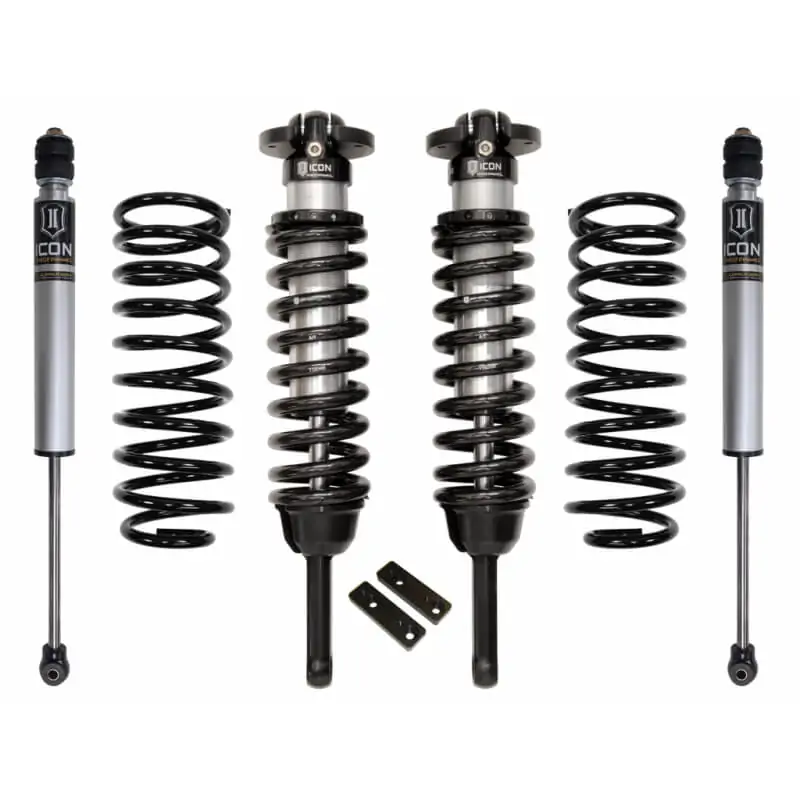

System Components

  • 58646 (qty: 1) | 10-14 FJ/10-24 4RNR/10-23 GX 2.5 VS IR COILOVER KIT

  • 52700 (qty: 1) | 07-14 FJ/03-24 4RNR/03-23 GX REAR 2 inches SPRING KIT

  • 56505 (qty: 2) | 07-14 FJ/03-24 4RNR/03-23 GX 1-3\” REAR 2.0 VS IR

Why Choose ICON Stage 1?

  • Performance Engineering: Increased wheel travel and damping for superior control.

  • Vehicle Specific Tuning: Every shock is valved specifically for the weight and geometry of the 4Runner and FJ Cruiser.

  • Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance.

Frequently Asked Questions

Can I use my factory wheels with this system?
Yes

Customer reviews

Rated 5 out of 5 stars
2 reviews
5 stars 2 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for ICON 0-3.5″ Lift Kit Stage 1 for 2010-2024 Toyota 4Runner, FJ Cruiser

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      What height do the fronts come out of the box at? I’m planning to do a 2.5 lift in the front but not sure if I’ll need the wrench
    1. 0 votes
      Q What height do the fronts come out of the box at? I’m planning to do a 2.5 lift in the front but ...... Read more
      A usually come preset at about 2.5'' but it can vary from truck to truckusually come preset at about 2.5'' but it can vary from truck to truck
      2. I bought this package. upgraded to the 3in spring. for 50 bucks. Just realized that the if I would have bought it separately it said its only for the FJ cruiser. Is the 3in rear coil spring still okay to go in a 5th gen 4runner? Will I need to adjust the front coilovers? If so by how much?
    2. 0 votes
      Q I bought this package. upgraded to the 3in spring. for 50 bucks. Just realized that the if I woul...... Read more
      A ICON 3" Rear Lift Overland Dual Rate Coils (52800) (+$50)|50 fit for 2010-2020 TOYOTA 4RUNNER, FJ CRUISER You may need to adjust the front coilovers to get the lift you need.
      3. If I buy the rear 3” spring. Do I need to change the height of the front coil overs or are they already pre loaded to the correct height?
    3. 0 votes
      Q If I buy the rear 3” spring. Do I need to change the height of the front coil overs or are they a...... Read more
      A usually not needed, but as every truck has some individual front/rear height and load can't guarantee that slight height adjustment will not be needed at all fronts are usually preset at about 2.8-3'' (depends on truck)
      4. With this set up is the lift gonna be leveled?
    4. 0 votes
      Q With this set up is the lift gonna be leveled?
      A yes, as front coilovers are height adjustable
      5. Will this work for a 2018 SR5 Premium 4Runner? Feel like I have gotten conflicting answers from different places.
    5. 0 votes
      Q Will this work for a 2018 SR5 Premium 4Runner? Feel like I have gotten conflicting answers from d...... Read more
      A This is our entry level suspension system for the 2010-UP Toyota 4Runner and 2010-2014 FJ Cruiser Fit for 2018 Toyota 4Runner SYSTEM COMPONENTS:   52700 (QTY: 1) | 07-UP FJ/03-UP 4RUNNER REAR 2" SPRING KIT 56505 (QTY: 2) | 07-UP FJ/03-UP 4 RUNNER 1-3" REAR 2.0 VS IR 58646 (QTY: 1) | 10-UP FJ/4RUNNER 2.5 VS IR COILOVER KIT
      6. Are these the standard or extended travel? Do you have extended travel icon shocks available?
    6. 0 votes
      Q Are these the standard or extended travel? Do you have extended travel icon shocks available?
      A No If you have 4RUNNER we can offer https://www.suspensionlifts.com/shop/toyota-4runner/2010-2019/icon-extended-travel-front-coilovers-2010-2018-toyota-4runner/
      7. Will this work with a 2013 FJ Cruiser 4x4
    7. 0 votes
      Q Will this work with a 2013 FJ Cruiser 4x4
      A Yes
      8. DOES THIS WORK WITH kdss
    8. 0 votes
      Q DOES THIS WORK WITH kdss
      A Yes, it will work
      9. will this lift work for my 2wd 4runner?
    9. 0 votes
      Q will this lift work for my 2wd 4runner?
      A Yes, it will work for 2010+ 4Runner 2WD and 4WD
      10. You suggest 8-8.5 in wheels with 4.75 backspacing, but if I am correct, the stock 7.5x17 TRD Off-Road wheels with 4 mm offset yield about 4" backspace. So the suggested size would have even LESS inboard clearance with the suspension. Can you explain why that would be better?
    10. 0 votes
      Q You suggest 8-8.5 in wheels with 4.75 backspacing, but if I am correct, the stock 7.5x17 TRD Off-...... Read more
      A It's the manufacturers'data - maybe for stability or bearings lifte increase. We haven't tested suc wheels by ourselves and always recommend test fitmenf first
      11. Do these stage 1 front shocks require an aftermarket UCA or work with OEM parts? If it works with OEM would upgraded UCA still be recommended?
    11. 0 votes
      Q Do these stage 1 front shocks require an aftermarket UCA or work with OEM parts? If it works with...... Read more
      A UCA's are recommended but not require, the benefit of the UCA's is to  fix the caster when the vehicle is getting aligned and also helps you a  lot with articulation on the front end.
