Bilstein 5100 0-2″ Front and 0-1″ Rear Lift Shocks for 2005-2025 Toyota Hilux 4WD

Description
Bilstein 5100 0-2″ Front and 0-1″ Rear Lift Shocks for 2005-2025 Toyota Hilux 4WD

This is the complete Bilstein B8 5100 shock package for a 2005-2025 Toyota Hilux 4WD — both axles, four shocks, matched damping front to rear. The front pair is the Ride Height Adjustable version, so you set 0 to 2 inches of front lift on the factory coil by moving the spring seat between snap ring grooves; the rear pair suits 0 to 1 inch of rear lift on an added leaf or heavier pack. Buying the axles together is how you get a truck that is level and damped consistently, rather than a fresh nose chasing a tired tail.

What You Get

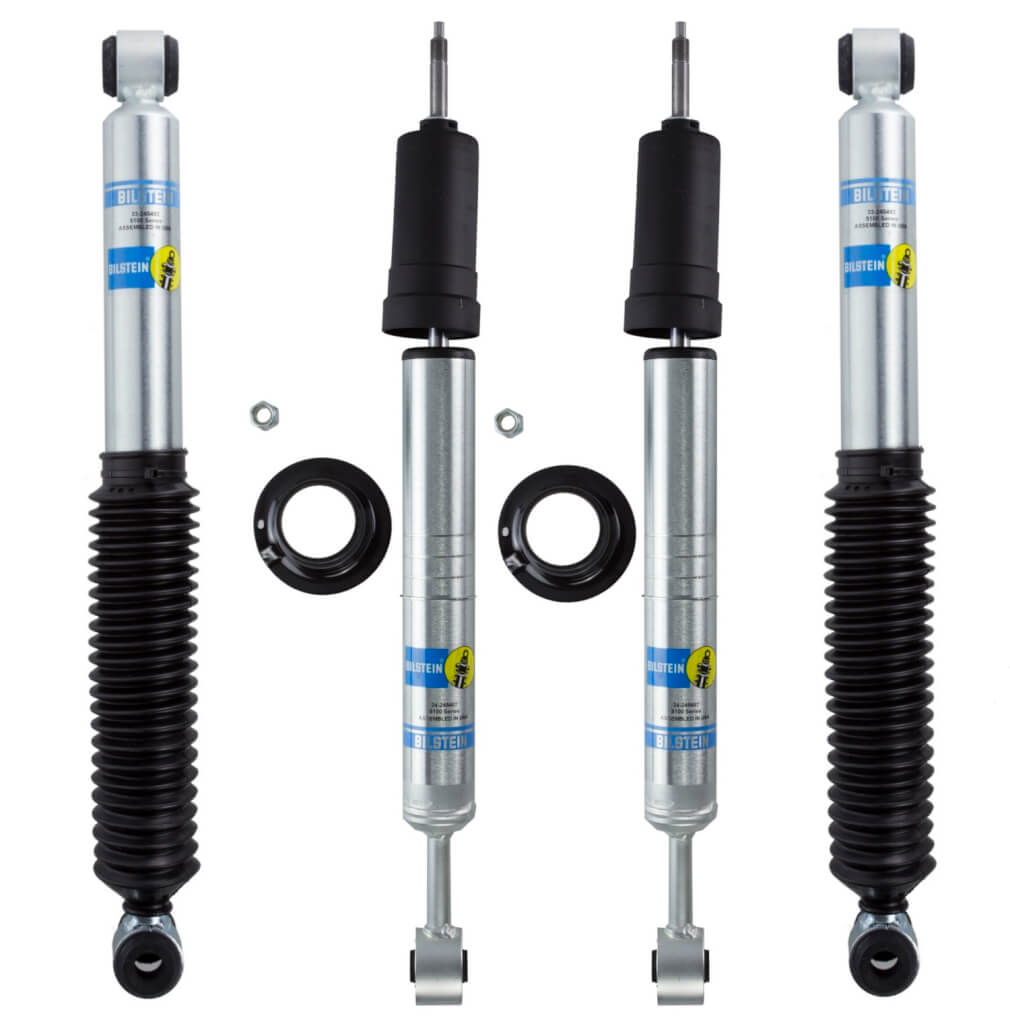

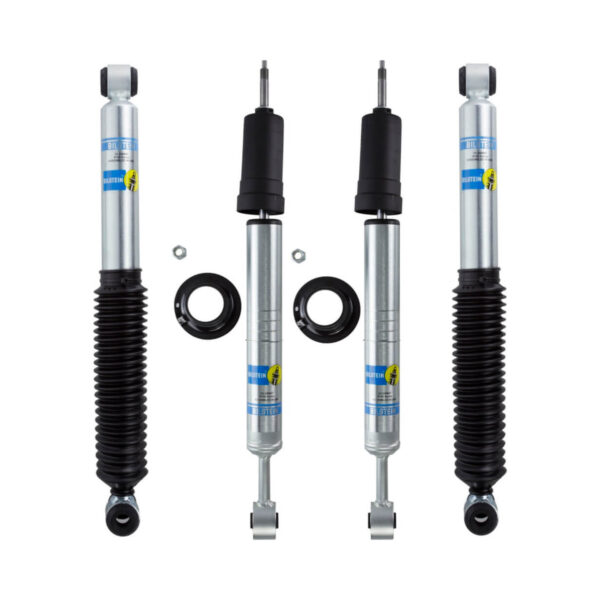

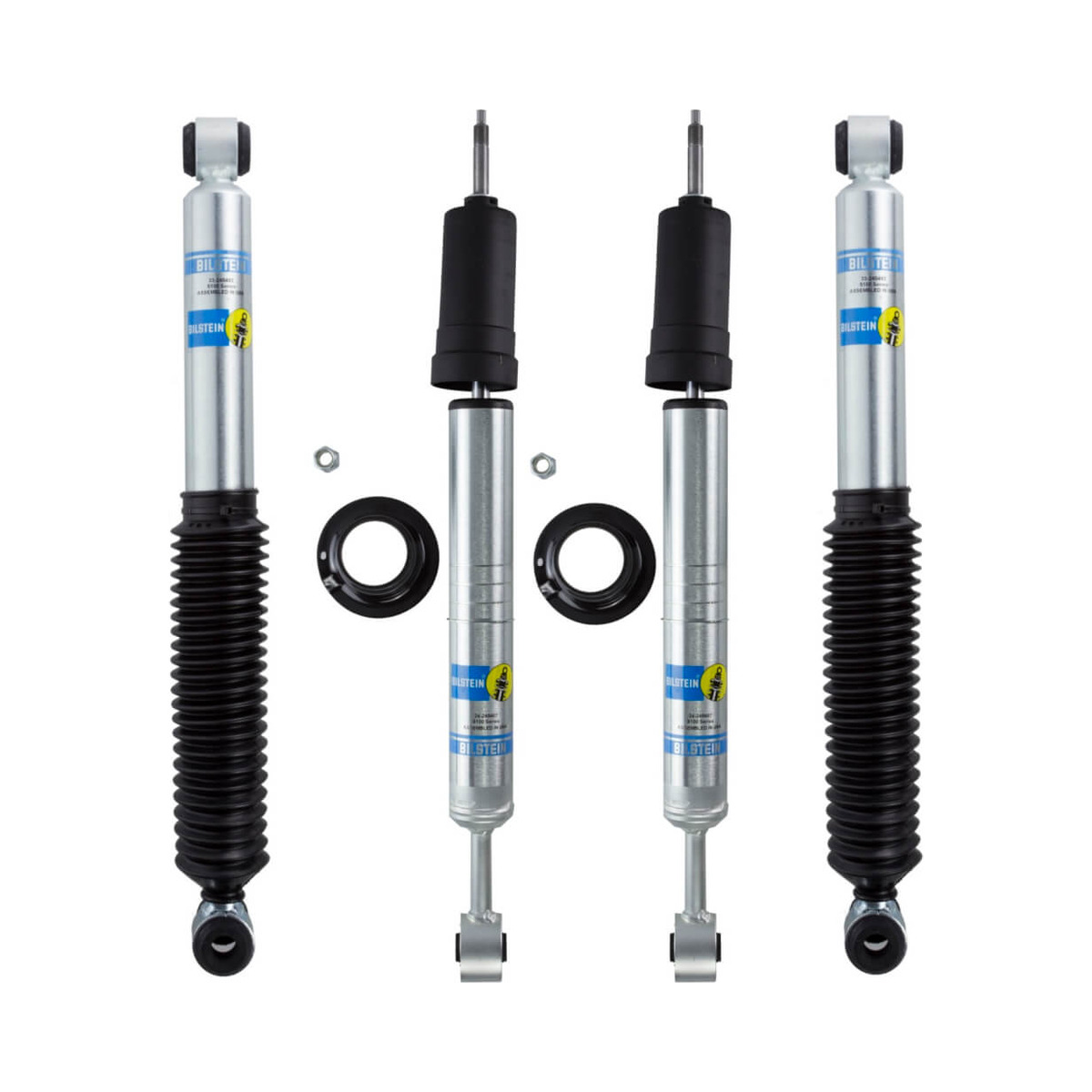

• 2 × Bilstein 24-245487 B8 5100 (Ride Height Adjustable) front shock absorbers, with adjustable spring seats and black straight boots.
• 2 × Bilstein 33-245492 B8 5100 rear shock absorbers, with black bellows boots.
• Four shocks total — complete front and rear axle sets.

Why Bilstein B8 5100

• 46mm monotube at all four corners, with velocity-sensitive digressive pistons and self-adjusting deflective disc valving tuned per application.
• Front: snap ring grooved coilover body, Stem upper and 14.1mm eyelet lower mount, 17.03 in. collapsed and 22.59 in. extended with 5.55 in. of stroke.
• Rear: smooth body with 19mm eyelets at both ends, 14.25 in. collapsed and 22.49 in. extended with a long 8.20 in. stroke for a lifted leaf axle.
• Zinc-plated 2.0 in. bodies on 14mm shafts, with protective boots fitted throughout.
• Direct bolt-in to the factory mounting points at both axles, no bracket changes.
• Covered by Bilstein’s Limited Lifetime Warranty.

Best suited to a Hilux carrying accessories and heavier tires that needs both height and damping restored in one go.

Fitment

Fits 2005-2025 Toyota Hilux 4WD. Bilstein lists this part across the whole run of the truck — N70, AN120, the 2024-2025 facelift, and the 2025 48V diesel hybrid and MLM variants — in both Standard Cab and Crew Cab bodies. Front and rear axles, four shocks per vehicle. Replacement mounting kits are B4-KT1-Z237A01 front and B4-KT1-Z234A00 rear if the factory hardware is worn.

Bilstein has been building monotube dampers since 1957 and supplies suspension to manufacturers as original equipment, so a 5100 is the same engineering discipline as an OE part with a wider working range. Genuine Bilstein product with US-based fitment support if you want help choosing between the front pair, the rear pair, or the complete four-shock package.
