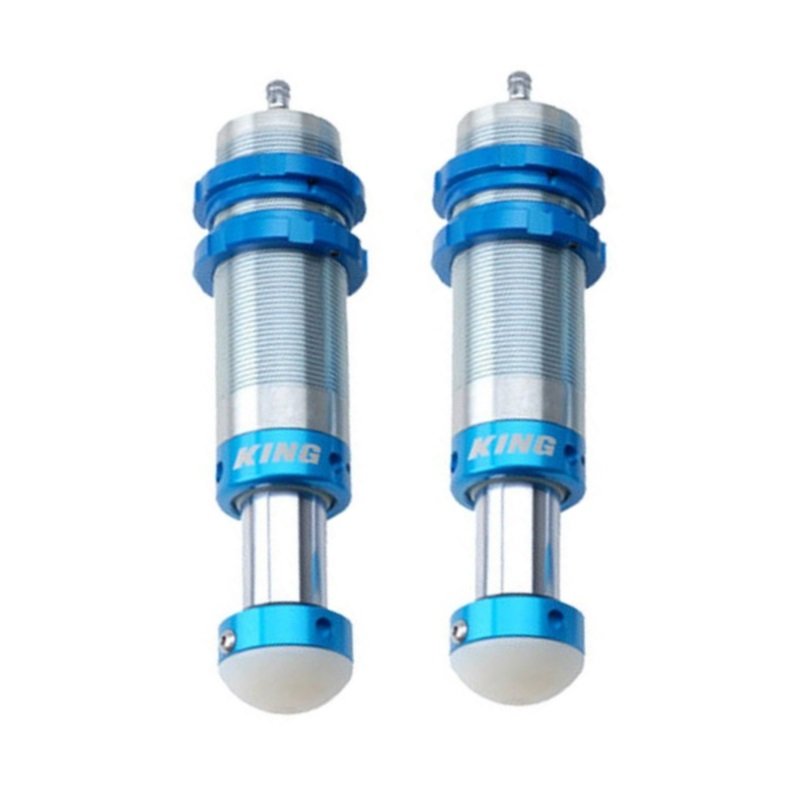

King Front 2.0 Dia. Hydraulic Bump Stops For 1989-1997 Toyota Land Cruiser 80

Description

King Front 2.0 Dia. Hydraulic Bump Stops For 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 Toyota Land Cruiser 80

Part: 20AB001-101

Specifications:

Position: Front
Outer Diameter: 2.0″ (50.8 mm)

Includes:

• (2) Hydraulic Bump Stops

Features:

Double Sealed Schrader Cover
Double sealed Schrader cover that mounts to the body, not the valve itself creates a positive seal and keeps dirt and moisture out.

Unique Mounting Boss Design
Unique mounting boss design with indexing pin securely locates the bump stop without pinching the outside of the tube.

Bump-Stop Bodies
Stout 1/8″ thick Chromoly bump stop bodies are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function.

Aluminum Components
Aluminum components are machined from aircraft quality billet.

Large Diameter Shafts
Large diameter shafts have a minimum tensile strength of 75,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.

Contact Pad
Long wearing nylon contact pad insures quiet operation and mounts with a simple yet effective single bolt design.

O-Ring
O-ring on shaft helps to gauge shaft travel.

King bump stops provide an additional level of bottoming control when you are using every bit of suspension travel available. King Shocks offer 2.0 and 2.5 inch diameter bodies with stroke lengths from 2 to 4 inches to fit any mounting location requirements and handle any suspension arresting loads. 4130 Chromoly mounting sleeves are precision machined to size and offer a secure and sturdy mount without pinching the bump stop body. Unique Schrader cover mounts to the housing not the Schrader valve itself to protect it and acts as a double seal to keep dust and moisture out. Bump stops contain a unique piston design that offers superior flow characteristics and the same quality micro polished shafts and advanced seal technology as race shocks. Long wearing nylon contact pad insures quiet operation and mounts with a simple yet effective single bolt design.
