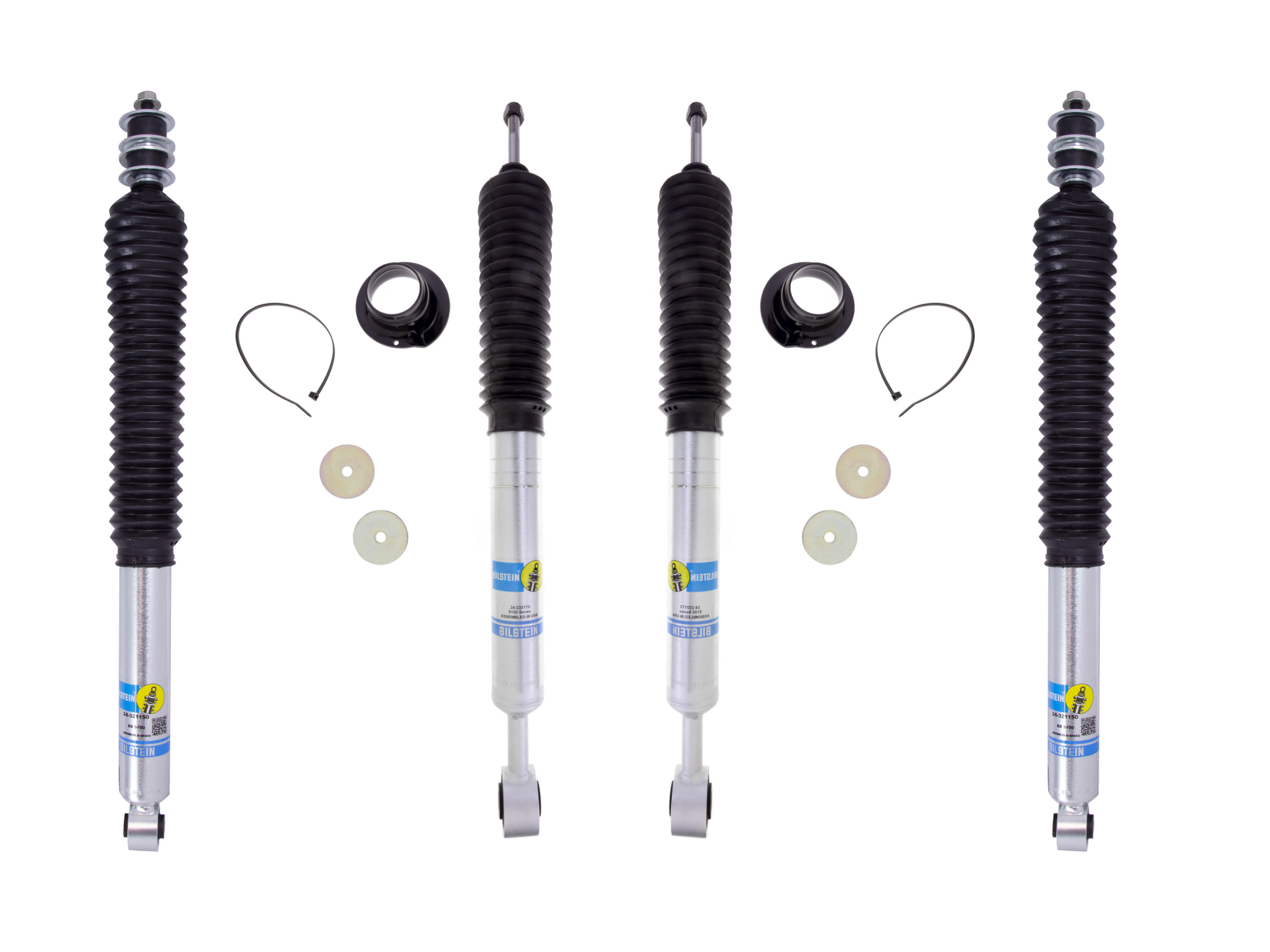

Bilstein B8 5100 (Ride Height Adjustable) 0-2.3″ Front and 0-1″ Rear Lift Shocks for 2023-2025 Toyota Sequoia (Heavy Load – 500 lb)

Description
Bilstein B8 5100 (Ride Height Adjustable) 0-2.3″ Front and 0-1″ Rear Lift Shocks for 2023-2025 Toyota Sequoia (Heavy Load – 500 lb)

Bilstein B8 5100 (Ride Height Adjustable) 0-2.3″ Front and 0-1″ Rear Lift Shocks for 2023, 2024, 2025 Toyota Sequoia (Heavy Load Option – 500 lb)

Part: 24-329200_24-332903

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Front Shocks:

Collapsed Length (in) :15.91

Extended Length (in) :20.22

Collapsed Length (mm) :404.0

Extended Length (mm) :513.5

Finish :Zinc Plated

Reservoir :No

Body Design :Snap Ring Grooved Body (Coilover)

Body Diameter (id) :46mm

Spring Seat Included :Yes

Adjustable Damping :Non-Adjustable

Notes:

• Provides 0-2.3″ Front Lift
• Without TRD Sport Package

Rear Shocks:

Part Number: 24-332903

Notes:

• Heavy Load Option – 500 lb Constant Rear Weight
• Recommended for use with Heavy Load B12 Special spring kit 53-329275
• Fits Vehicles With 0-1″ Rear Lift– Without Rear Air Suspension
• Without Adaptive Variable Suspension (AVS)

Collapsed Length (in): 16.59

Extended Length (in): 25.06

Collapsed Length (mm): 421.4

Extended Length (mm): 636.5

Stroke/travel Length (in): 8.47

Lower Mount Type: Eye 19.1mm

Upper Mount Type: Stem

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Non-coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: Black Bellows

Spring Seat Included: No

Shaft Diameter: 14mm

Adjustable Damping: Non-Adjustable
