Bilstein 4600 Front and Rear Shocks for 1995-2004 Toyota Tacoma 5 Lug 2WD
Sale!
Description
Bilstein 4600 Front and Rear Shocks for 1995-2004 Toyota Tacoma 5 Lug 2WD
Bilstein 4600 Front and Rear Shocks for 1995-2004 Toyota Tacoma 5 Lug 2WD
Part Number(s): 24-184991, 24-026758
Summary: Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers for the 1995-2004 Toyota Tacoma 5 Lug 2WD. These shock absorbers feature a monotube design which provides consistent fade-free performance for stock height light trucks and SUVs. Utilizing a unique, velocity-sensitive, digressive piston, the B6 4600 series reacts to changing road conditions to offer a significant improvement in ride quality, handling, and comfort.
Features
- Monotube Design: Single-tube construction provides consistent fade-free performance to ensure reliable damping under repeated impacts and extended use.
- Digressive Piston: Velocity-sensitive, digressive piston design provides instant reaction to changing road conditions to ensure optimal handling and control.
- Application Specific Tuning: Custom valving for the Toyota Tacoma 5 Lug provides a tailored suspension feel to ensure maximum performance is achieved for this specific vehicle.
Technical Specifications
| Specification | Value |
|---|---|
| Series | B6 4600 |
| Position | Front and Rear |
| Collapsed Length | Front: 9.09 in / Rear: 12.11 in |
| Extended Length | Front: 13.98 in / Rear: 18.8 in |
| Lower Mount Type | Front: Bar Pin / Rear: Eyelet |
| Upper Mount Type | Front: Stem / Rear: Eyelet |
| Internal Design | Monotube |
| Finish | Yellow Paint |
| Reservoir | No |
| Body Diameter | 2.0 in. |
| Boot Included | Blue Straight |
| Adjustable Damping | Non-Adjustable |
| Country of Origin | US |
| Warranty | Limited Lifetime Warranty |
Fitment
- 1995-2004 Toyota Tacoma 5 Lug 2WD
- Note: WILL NOT FIT 6 LUG models.
- Compatible with stock height vehicles.

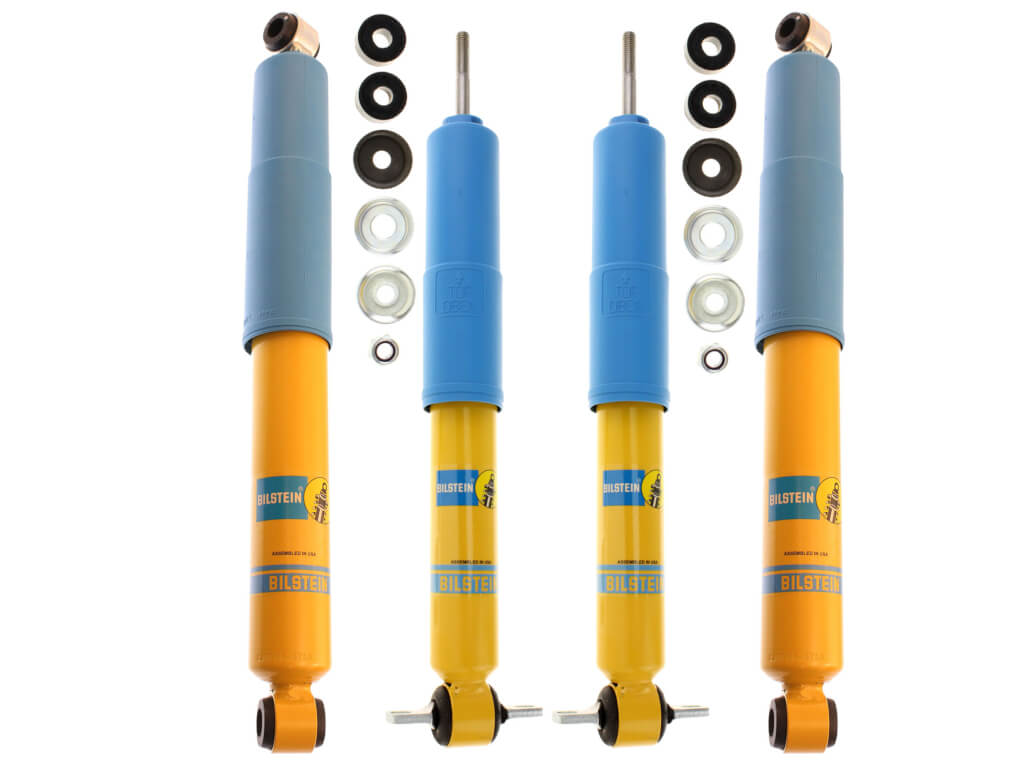

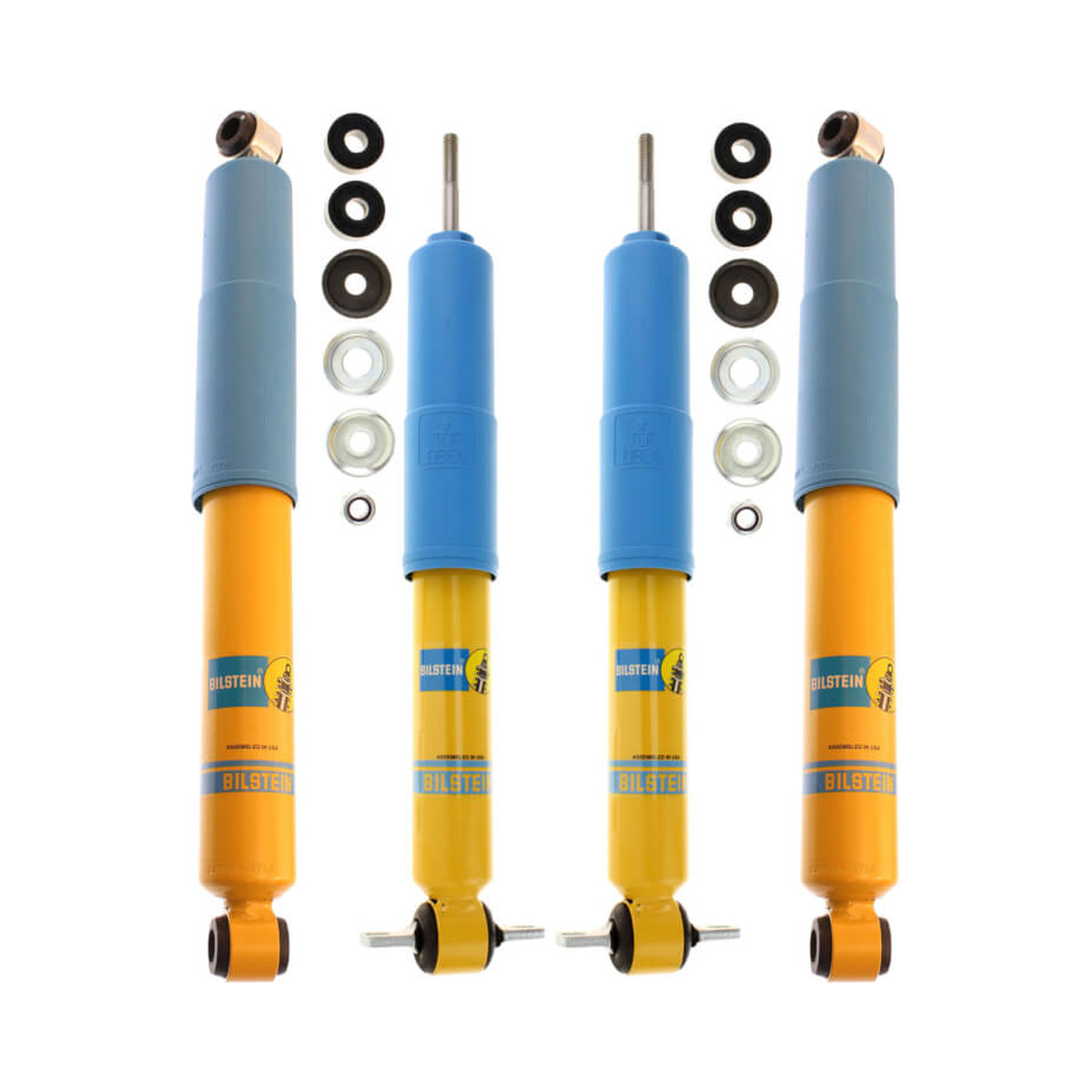

What’s Included
- Includes 4 Shocks
- Includes 2 Front Shocks (Part #24-184991) and 2 Rear Shocks (Part #24-026758)
- Blue Straight Boots
Interchange Numbers
This product is compatible with the following part numbers:
- AutoZone 174934
- Bilstein BE3-2674
- Bilstein F4-BE3-2674-H0
- BQNV 24184991
- Rancho RS5609
- Rancho RS999006
- Toyota 48510-09280
- Toyota 48510-39436
- Toyota 48510-39665
- Toyota 48510-49080
- Toyota 48510-80012
- Toyota 48510-80025
- Toyota 48510-A9080
- Toyota 48510-A9140
- Toyota 48510-A9160
- Toyota 48511-80046
- Toyota 48511-80083
Why Choose This Product?
- OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
- Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
- Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
- Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.
Frequently Asked Questions
Will these shocks fit my 6-lug Toyota Tacoma?
No, these shocks are specifically designed for the 5-lug 2WD Toyota Tacoma and will not fit 6-lug models.
Does this kit include all four shocks?
Yes, this set includes 2 front shocks and 2 rear shocks for a complete vehicle upgrade.
Are these shocks adjustable?
No, the Bilstein B6 4600 series features a non-adjustable, velocity-sensitive design tuned specifically for your vehicle.
Will these shocks lift my truck?
No, these shocks are designed as a direct OE replacement for stock height vehicles and do not create lift.
Questions and answers of the customers
-
will this set fit my 2002 5 lug base tacoma xtracab? it has coilovers in the front.
thank you
-
0 votesQ will this set fit my 2002 5 lug base tacoma xtracab? it has coilovers in the front. thank youA yes it will fit 5-lug coilovers need to be disassembled and oem coils are reused with new shocks
Would these work on stock front height and a rear 2” drop 2004 2wd Tacoma?
-
0 votesQ Would these work on stock front height and a rear 2” drop 2004 2wd Tacoma?A haven't tested it with rear drop these shocks are definitely designed for stock height ( 0'' drop)
Do these come with the seat where the spring sits?
-
0 votesQ Do these come with the seat where the spring sits?A Hello. this set goes without a spring seat as shown in the picture.
Will the shocks alone level out the car?
-
0 votesQ Will the shocks alone level out the car?A Hello, in order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. http://prntscr.com/gfgxwt These shocks will not level your truck by themselves - some level kit options as add-a-leafs or longer coils or maybe spacers will be required for a level.
Do you have springs for this shocks oem
-
0 votesQ Do you have springs for this shocks oemA We have no springs for stock suspension unfortunately. For 5-lug here are the items that we have * * * https://suspensionlifts.com/product-category/toyota-tacoma/1995-2004/1995-2004-5-lug-tacoma/
Are these brand new unused shocks?
-
0 votesQ Are these brand new unused shocks?A Yes, you are right. Please note they are for 5-lug Tacoma. For 6-lug we can offer other shocks
This may be a dumb question but will this part fit on a 99 Tacoma with a 6 lug wheel hub that is also 2WD
-
0 votesQ This may be a dumb question but will this part fit on a 99 Tacoma with a 6 lug wheel hub that is ...... Read moreA Unfortunatelly no. ^-lug 2WD Tacomas have different fromt 5-lug Tacos suspension. here are the right shocks for 6-lug 2WD * * * https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/shocks-95-04/bilstein-4600-front-rear-shocks-1995-2004-toyota-tacoma-4wd/
