Bilstein 6112 .06-2.5″ Front Assembled Coilovers and 5100 0-1″ Rear Lift Shocks for 2005-2015 Toyota Tacoma

Bilstein 6112 0.6-2.5″ Front Lift Assembled Coilovers + 0-1″ Rear 5100 Shocks – 2005-2015 Toyota Tacoma

Part #: 47-309975 (old: 46-241627) + 2×24-186728

Want the same kit not assembled?
Bilstein 6112 06-2.5″ Front and 5100 0-1″ Rear Lift Shocks for 2005-2015 Toyota Tacoma

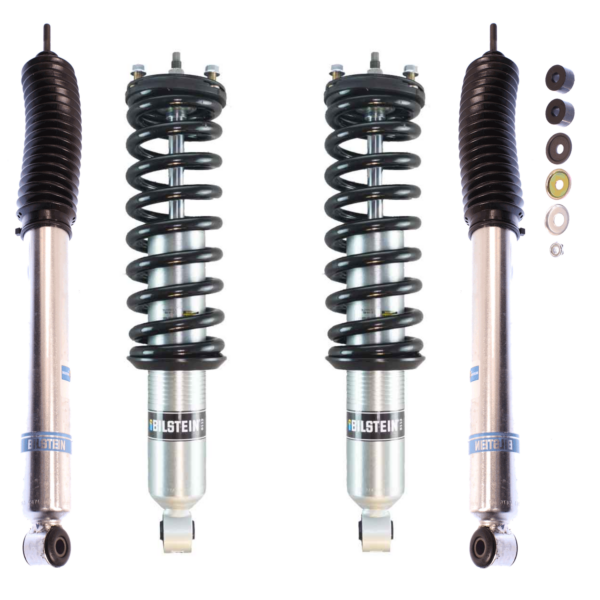

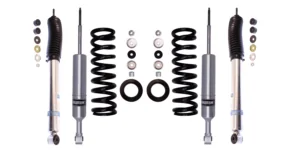

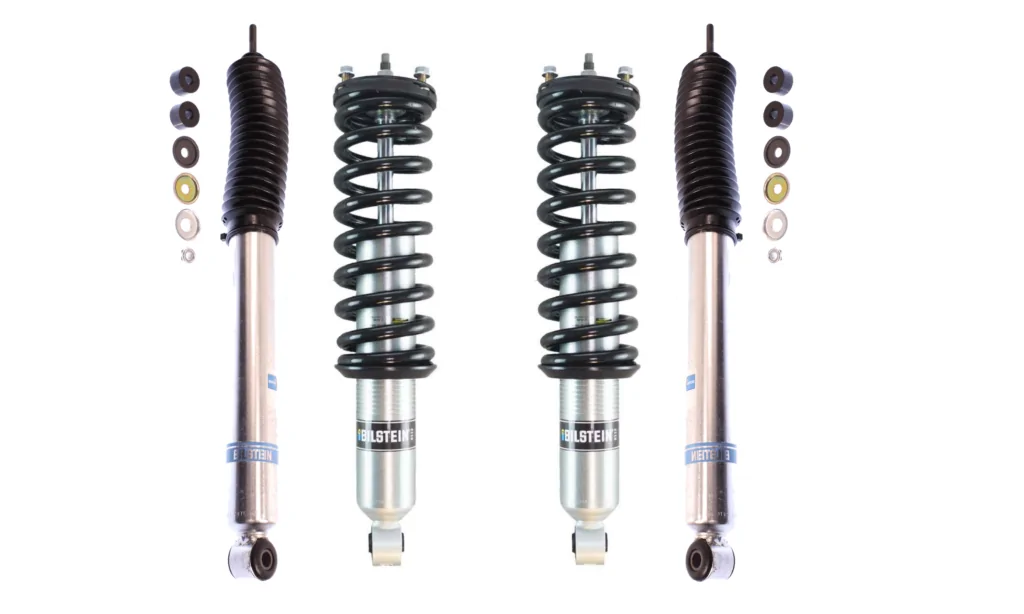

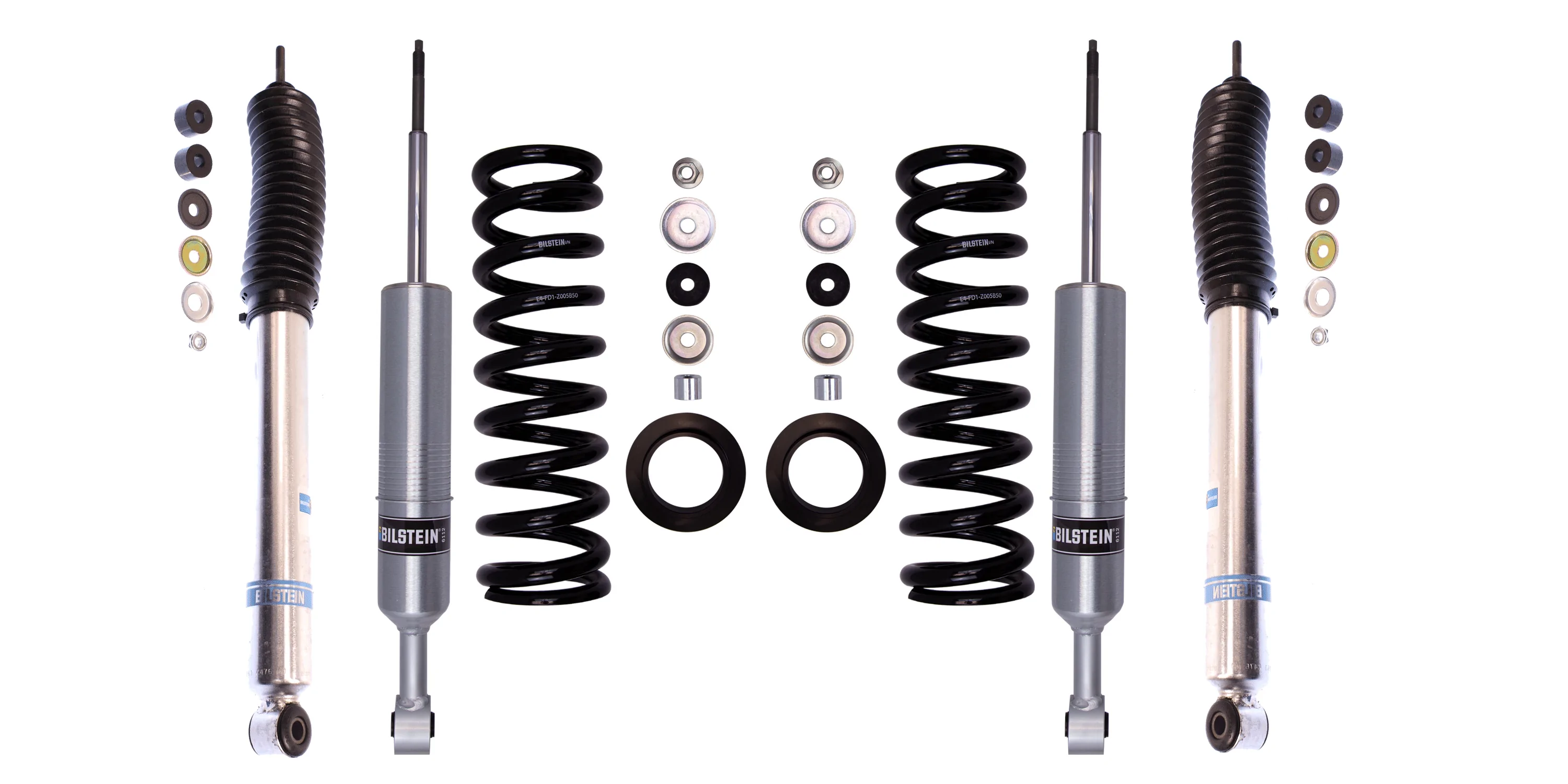

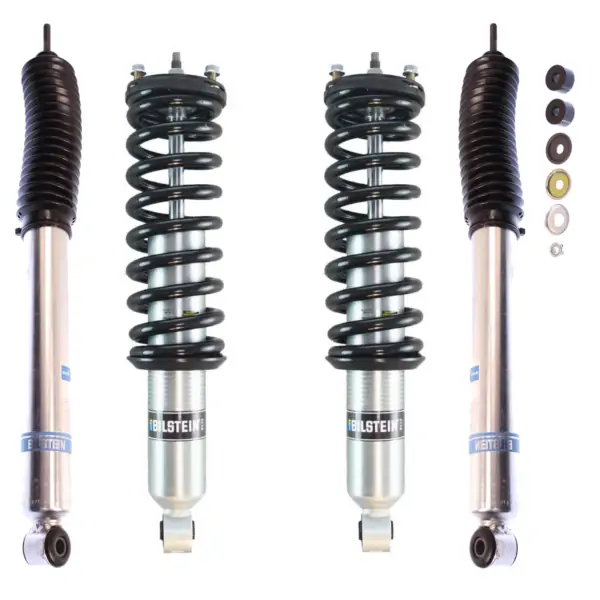

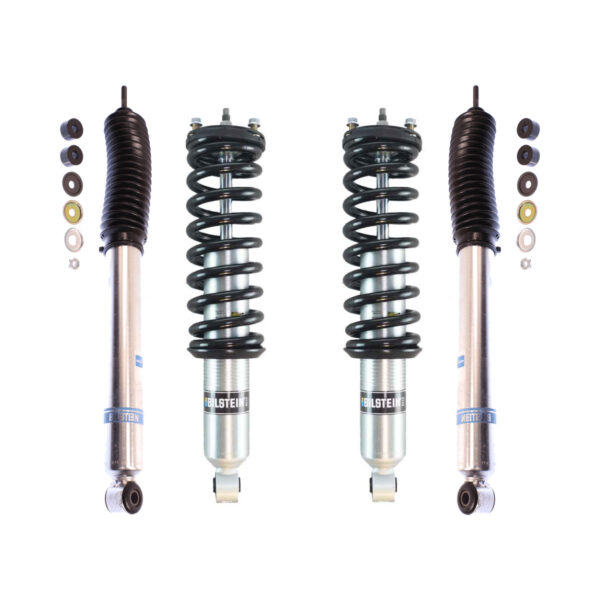

This kit combines Bilstein B8 6112 big body front coilovers with Bilstein B8 5100 rear shocks to give your 2005-2015 Toyota Tacoma a controlled, adjustable front lift and matched rear damping. The 6112 struts are pre-assembled with lift springs and new KYB top mounts so you get true bolt-on install with no spring compressor.

What’s Included

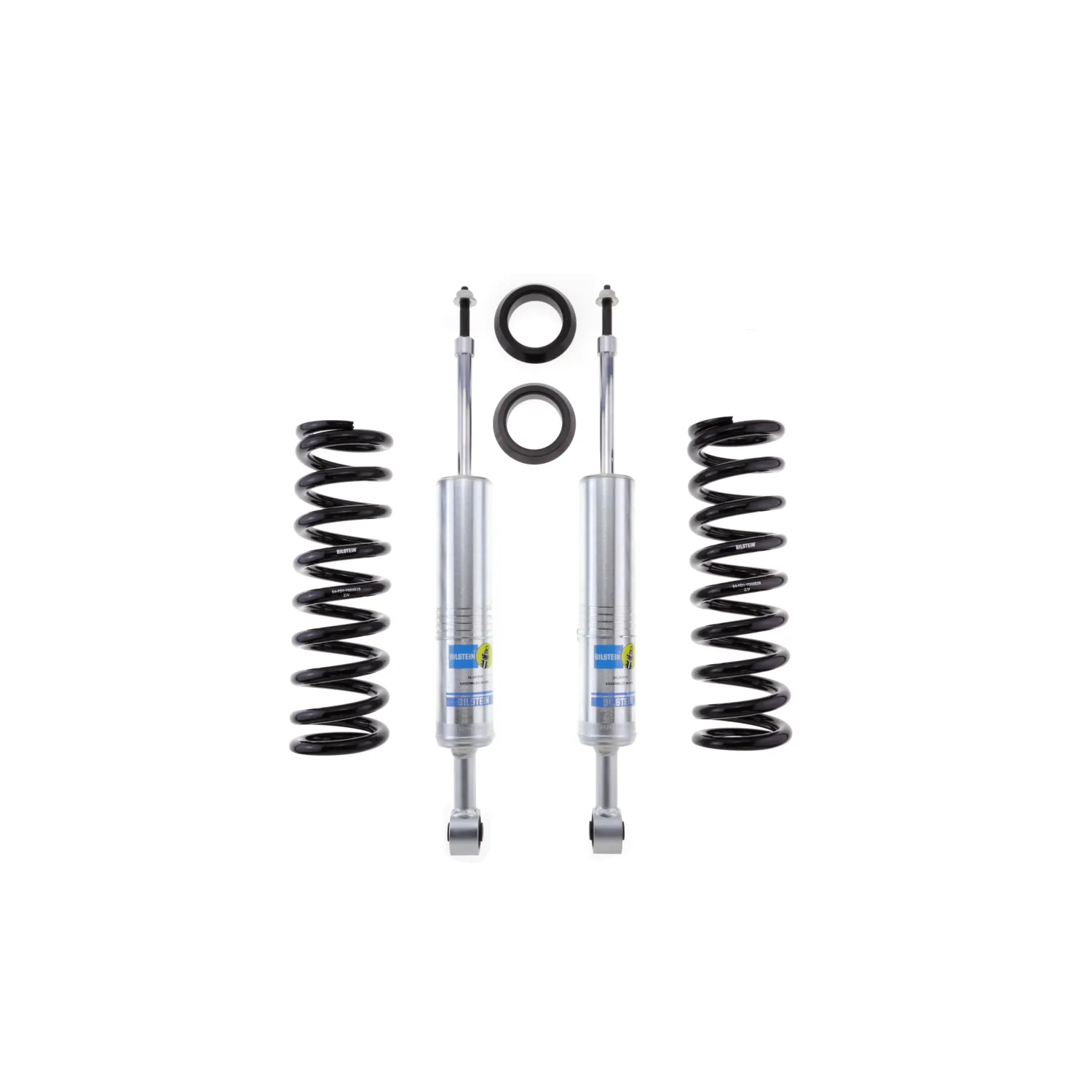

• Front (pre-assembled coilovers):
  • Bilstein B8 6112 60 mm monotube struts – part number 47-309975 (replaces 46-241627)

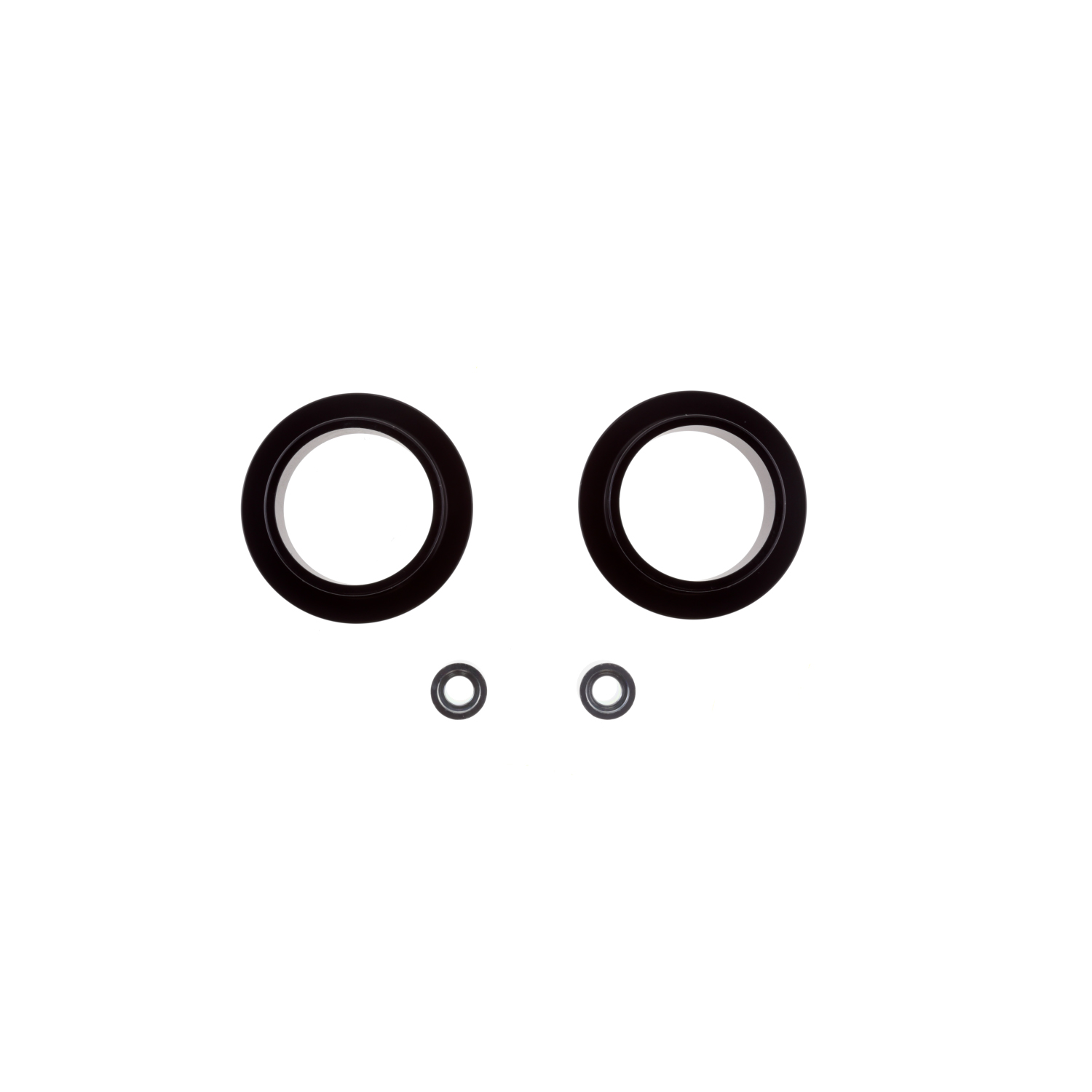

  • Bilstein matched cold-wound lift coil springs and billet aluminum spring seats

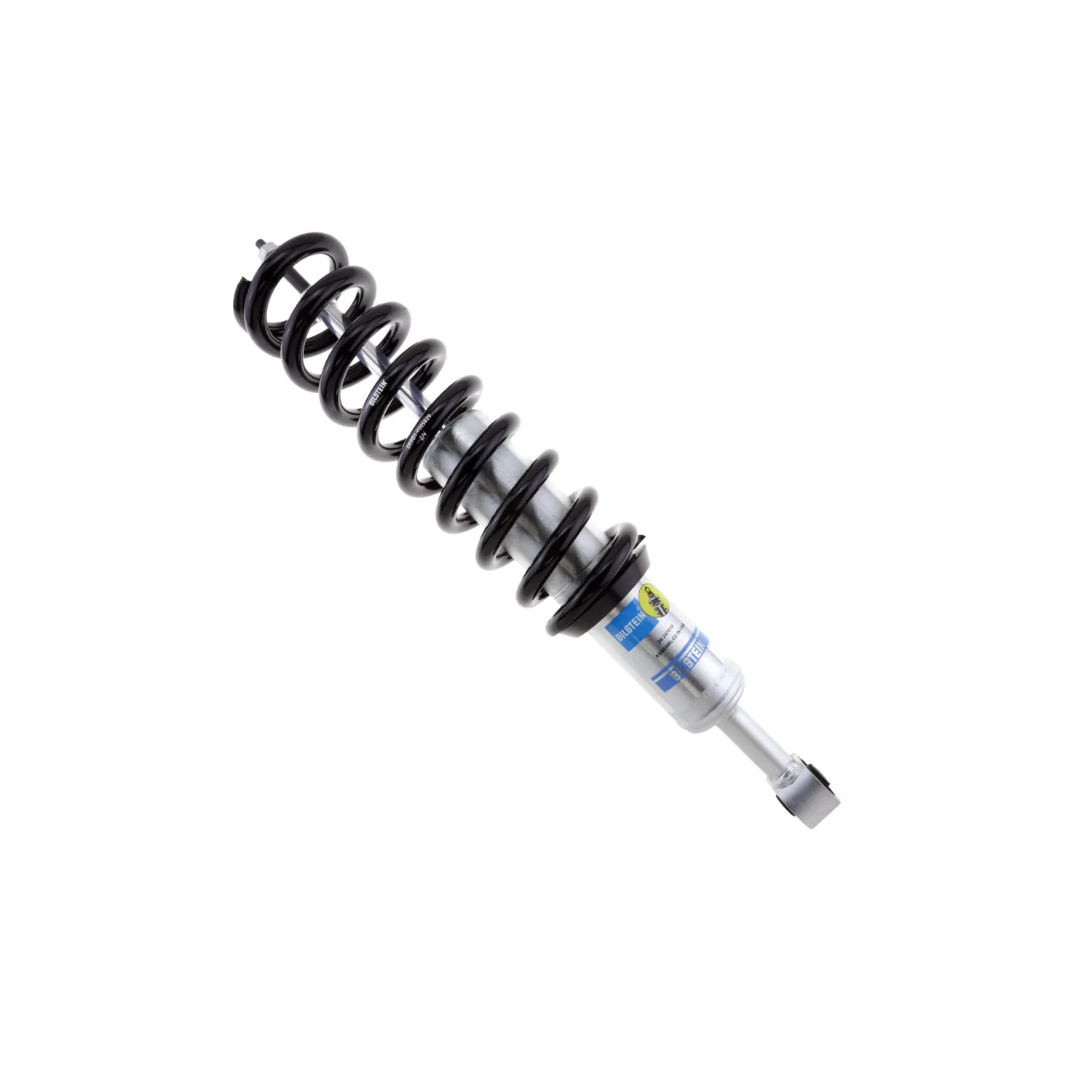

  • ASSEMBLED with new KYB top mounts, bushings, isolators, and hardware

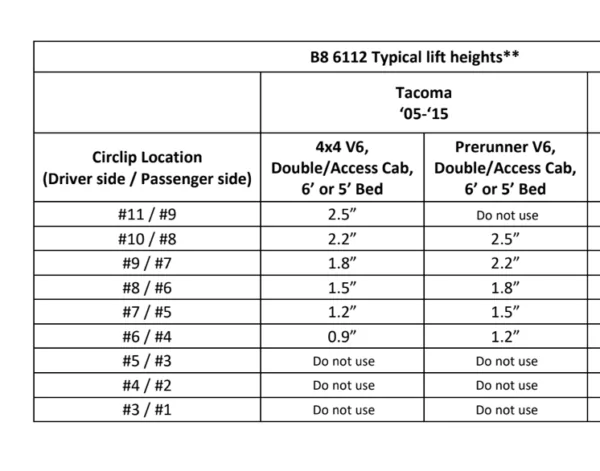

  • Adjustable snap-ring perch for approximately 0.6-2.5″ of front lift (vehicle and load dependent)
• Rear:
  • 2 x Bilstein B8 5100 rear shocks 24-186728 (compatible with 0-1″ rear lift)

Why This Kit

• Big-body control up front – 60 mm 6112 digressive piston offers more damping authority for rough roads, washboard, and trail use
• Pre-assembled convenience – front coilovers come built with springs and KYB mounts, so there is no spring compressor needed

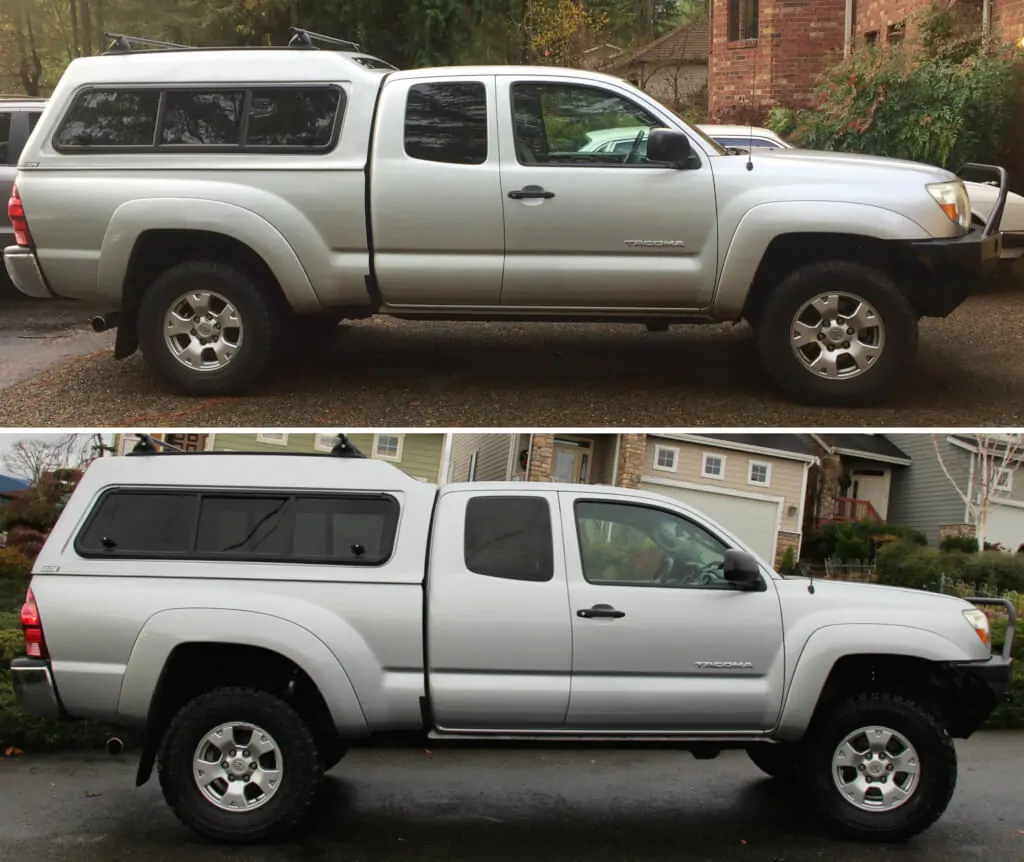

• Adjustable stance – use the snap-ring positions to level the truck, clear larger tires, and add ground clearance in the 0.6-2.5″ range
• Matched rear damping – 5100 rears help control bed bounce and body roll while keeping daily ride comfort
• Monotube design – consistent, fade-free performance with better heat management than twin-tube shocks

Rear Shock Specifications – Bilstein 5100 24-186728

Fitment

• Vehicle: Toyota Tacoma
• Model years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Front lift range: approximately 0.6-2.5″ depending on snap-ring position, cab/bed configuration, and added weight (bumper, winch, armor)
• Rear compatibility: shocks sized for stock to 1″ rear lift springs or spacers

Install Notes

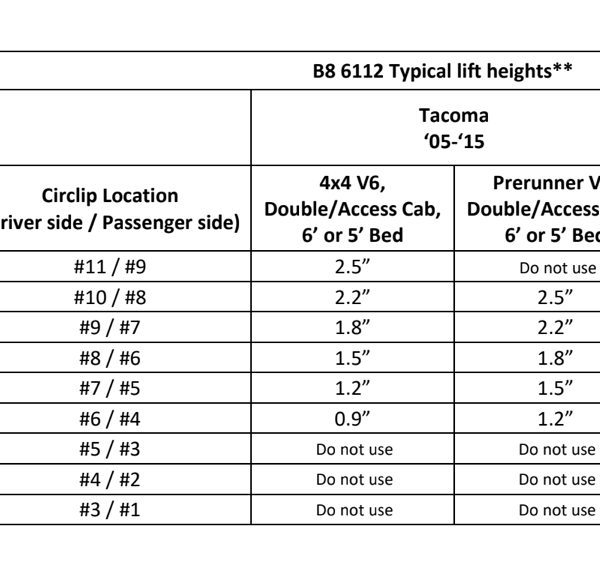

• Select your desired front snap-ring position before installation to target final ride height
• Alignment is required after installation and any change in front ride height
• Actual lift will vary with front accessories (bumper, winch, skids) and spring condition
• Always check clearance with your tire size and wheel offset after install
