King 2.5 Front Coilover Pair for 2005-2023 Toyota Tacoma – 4WD

SKU: 25001-119
5 out of 5 based on 1 customer rating
(1 customer review)
King 2.5 Front Coilover Pair for 2005-2023 Toyota Tacoma - 4WD
King 2.5 Front Coilover Pair for 2005-2023 Toyota Tacoma - 4WD

Description
King 2.5 Front Coilover Pair for 2005-2023 Toyota Tacoma – 4WD

Application Overview

King 25001-119 is the front coilover configuration for 2005-2023 Toyota Tacoma; 4WD; Front. King identifies this as an application-tuned package, with damping selected for the listed vehicle and suspension position. King reports using vehicle testing to establish the damping curve and, where applicable, spring rate for this application. The package retains King’s application-specific configuration together with the exact contents and operating dimensions documented below.

What’s Included

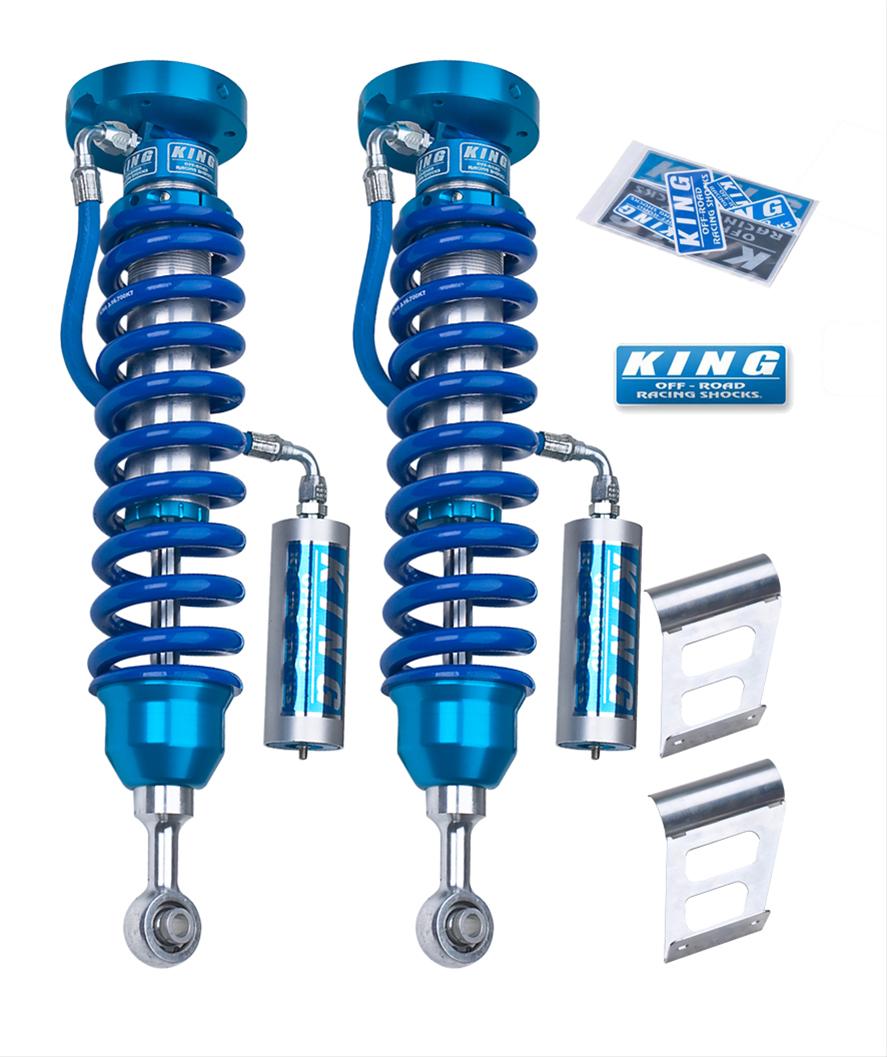

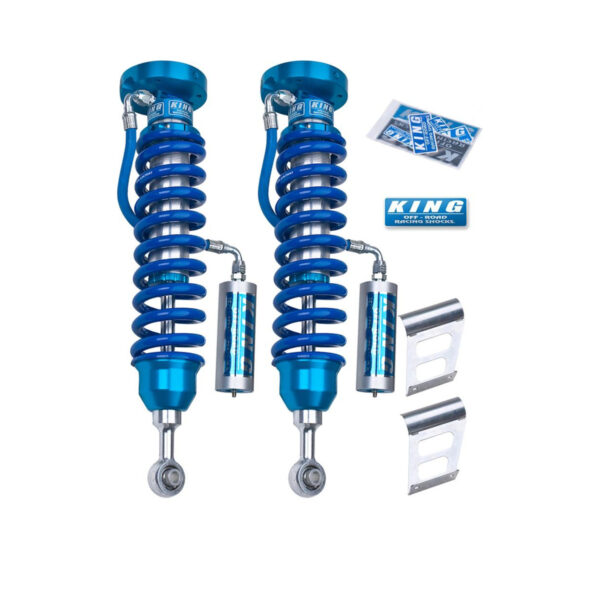

One King 25001-119 package containing 2 × front coilovers.

King Technology

  • The remote-reservoir layout adds fluid volume and heat capacity to support consistent damping during repeated use.
  • King reports using dynamometer development and real-world vehicle testing to develop the application-specific damping curve and spring rate.
  • King lists an optional wide-range compression adjuster with 20 click positions for external compression-damping changes.
  • The 2.5-inch shock body increases fluid volume to support cooler, smoother operation.
  • King identifies the damping as tuned for the listed vehicle and suspension position.
  • King states that the component is built to the material and tolerance standards used for its race shocks.
  • King documents increased wheel travel for this application.

Specifications

King documents stroke, extended length, compressed length, gas pressure, position, drivetrain for 25001-119. These exact values define the component configuration and should be checked against the intended vehicle and suspension setup before installation.

  • Stroke: 5.067 in
  • Extended length: 22.376 in
  • Compressed length: 17.308 in
  • Gas pressure: 150.000 psi
  • Position: Front
  • Drivetrain: 4WD

Fitment

2005-2023 Toyota Tacoma; 4WD; Front. Position, drivetrain, lift, and other qualifiers shown in the specifications apply to King 25001-119.

Installation

View the King installation instructions for 25001-119.

Customer reviews

Rated 5 out of 5 stars
1 review
5 stars 1 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

1 review for King 2.5 Front Coilover Pair for 2005-2023 Toyota Tacoma – 4WD

Add a review

Add photos from your phone or computer. We’ll prepare them automatically. Up to 20 MB each.

    Questions and answers of the customers

      Do these come pre-set at a certain height for a 2022 Tacoma 4WD?
    1. 0 votes
      Q Do these come pre-set at a certain height for a 2022 Tacoma 4WD?
      A yes, preset at close to stock height
      2. Are these ride-height adjustable? As in, can left-to-right lean be adjusted for?
    2. 0 votes
      Q Are these ride-height adjustable? As in, can left-to-right lean be adjusted for?
      A Yes
      A That is correct, fully adjustable BUT the spring rate on KING shocks is only about 550-600 lbs so if a bumper and winch are involved we highly recommend to upgrade the spring rate
      3. Will a 2” lift require upgraded UCA? What is the biggest tire size that will fit without rubbing on a 17” wheel
    3. 0 votes
      Q Will a 2” lift require upgraded UCA? What is the biggest tire size that will fit without rubbing ...... Read more
      A UCA's are recommended but not require, the benefit of the UCA's is to  fix the caster when the vehicle is getting aligned and also helps you a  lot with articulation on the front end. 32'' wheels will fit without rubbing, 33'' may require minor trimming. Precise castercamber adjustments may help
      4. Thanks for the quick response. These king shocks only have a 2 inch lift? Can I fit 285 with the shock upgrade? Or do I need to go 275? Current sitting on 265.
    4. 0 votes
      Q Thanks for the quick response. These king shocks only have a 2 inch lift? Can I fit 285 with the ...... Read more
      A it'll depend on your front additinal load and rims 32'' wheels will fit, for bigger tires precise castorcamber adjustment or some trimming may be required
      5. What's are the cons if I replace these with my stock shocks and not replace the rear? I have a 2015 trd off road with 18,000 miles
    5. 0 votes
      Q What's are the cons if I replace these with my stock shocks and not replace the rear? I have a 20...... Read more
      A You'll get a leveled look and perfect front axle roadoffroad handling, will be able to change the rear shocks later if needed
      6. Does the upper studs have enough room to run a spacer to gain a full 3in of lift? I have the toytec .5in spacers and they run well on top of my rancho quicklifts, but looking at reservoir shocks.
    6. 0 votes
      Q Does the upper studs have enough room to run a spacer to gain a full 3in of lift? I have the toyt...... Read more
      There are no answers for this question yet.
