ICON 2.625″ Stage 3 Rear RXT Lift Kit for 2005-2023 Toyota Tacoma

Description
ICON 2.625″ Stage 3 Rear RXT Lift Kit for 2005-2023 Toyota Tacoma

ICON 2005–2023 Toyota Tacoma Stage 3 RXT Suspension System

Part Number: K53163

Summary: The ICON Stage 3 RXT Suspension System is a premium performance upgrade designed for the 2005–2023 Toyota Tacoma, providing a rear lift range of 1.375–2.625 inches depending on configuration. This system is engineered to maximize off-road capability by integrating the RXT Multi-Rate Leaf Pack and 2.5 Series Omega Bypass shocks. It serves as the ultimate solution for Tacoma owners looking to balance daily drivability with aggressive trail performance and adjustable damping control.

Features

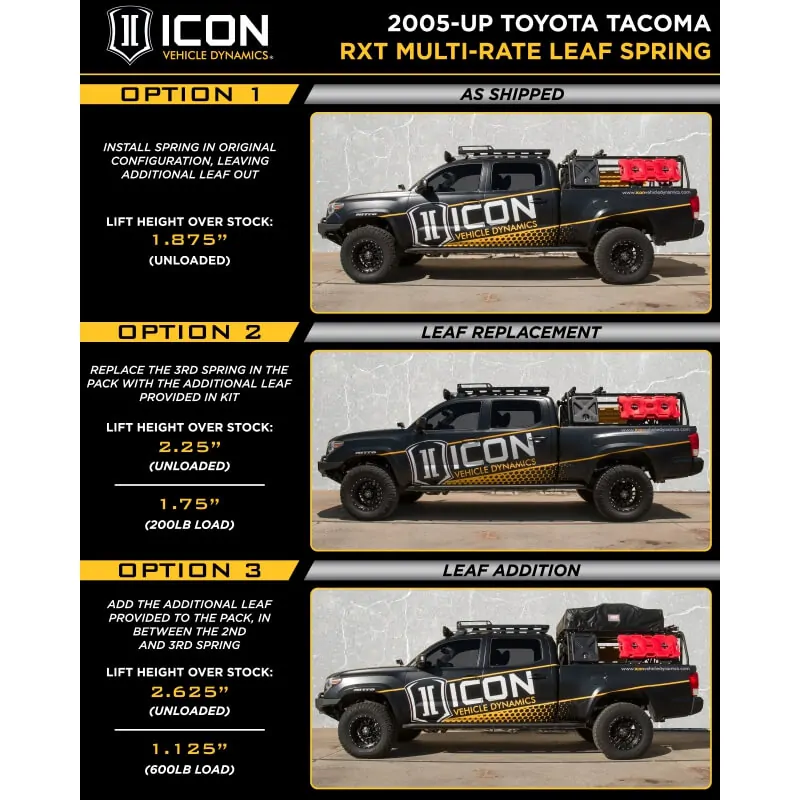

• RXT Multi-Rate Leaf Spring: Three user-adjustable spring rates provide customizable load-carrying capacity to ensure optimal ride quality for unique vehicle configurations.

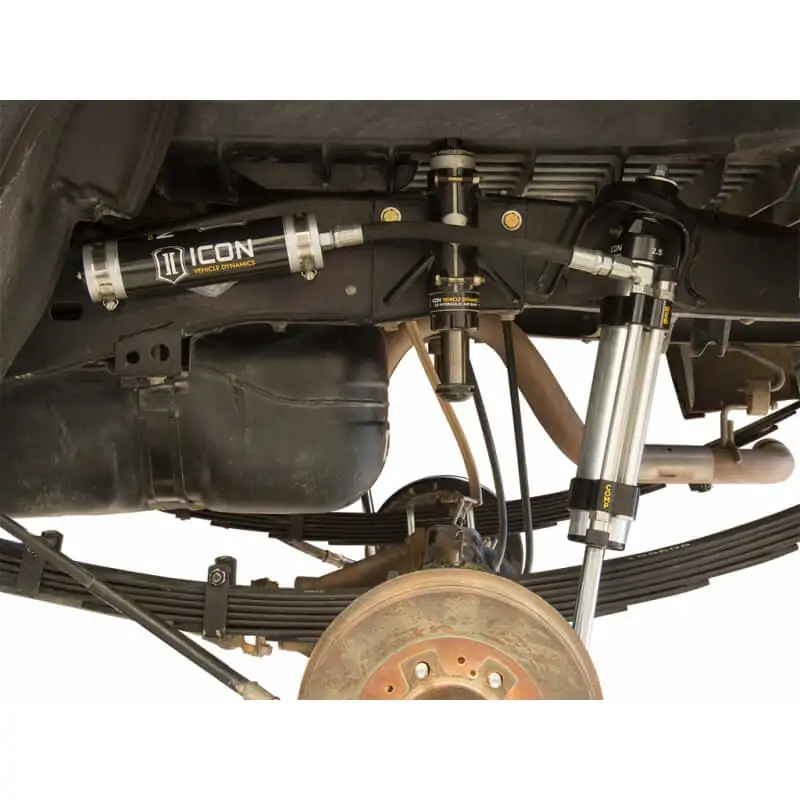

• Omega Series Bypass Shocks: Two-tube bypass design provides 28 levels of compression and rebound adjustment to ensure precise damping control for any terrain.
• Hydraulic Rear Bump Stops: 2.5” travel velocity-sensitive technology provides exponentially increased bottom-out resistance to ensure chassis protection during hard impacts.
• Increased Wheel Travel: Specialized RXT components provide up to a 20% increase in wheel travel to ensure superior articulation without sacrificing up-travel.
• System Durability: Impact-extruded aluminum cylinders and galvanized leaf separators provide superior corrosion resistance to ensure long-term performance in harsh environments.
• Installation: Direct bolt-in design provides a straightforward fitment process to ensure reduced shop time using factory mounting locations.

Technical Specifications

Wheel & Tire Fitment

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 17×8.5 inches w/ 4.75” BS / 0mm Offset, 18×9 inches w/ 5.00” BS / 0mm Offset, or 20×9 inches w/ 5.00” BS / 0mm Offset
• Aftermarket Tires: 33 inches x 11.50 inches
• Note: Larger tires may fit but fender trimming and modifications will be required. Not compatible with 2005-2015 2WD 5-Lug models. Installation of complete ICON system required to attain advertised wheel travel.

System Components

• 56103 (qty: 1) | 05-23 TACOMA REAR HYD BUMP STOP KIT
• 59926P (qty: 1) | 05-23 TACOMA RXT REAR 2.5 OMEGA RR PAIR
• 158505 (qty: 2) | 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
• 52050 (qty: 1) | TOYOTA REAR 8.0 inches U-BOLT KIT

Why Choose ICON Stage 3 RXT?

• Performance Engineering: Increased wheel travel and damping for superior control.
• Damping Adjustability: Omega Series bypass technology allows for 28 settings of compression and rebound tuning.
• Fully Serviceable: Shocks are rebuildable and revalveable for long-term performance.

Frequently Asked Questions

What is the lift height for the TRD Pro model?
2017-2023 Tacoma TRD Pro models will see 1.375-2.125 inches of rear lift over stock, depending on the spring rate configuration and vehicle weight.

Can I use this with other lift kits?
No, these are stand-alone kits and are not to be used in conjunction with any other aftermarket suspension kits.
