ReadyLift 2.75″ Lift Kit for 2005-2015 Toyota Tacoma

SKU: RDY69-5056

Tacoma Max Lift: 3.0″Front /2.0″Rear – Max Tire Diameter: 32.5″

2005-2015 2WD/4WD 6-lug


Out of stock

Notify me when item is back in stock.

Price Match Request


ReadyLift 2.75″ Lift Kit for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 Toyota Tacoma

Part: RDY69-5056 / 69-5056

Suspension Leveling and Mild Kits are one of the most popular aftermarket products for Toyota truck owners. Leveling systems not only transform trucks like the Tacoma into taller, better looking vehicle, but they also provide a more commanding view of the road. SST Lift Kits from ReadyLift® Suspension Inc., the leader in suspension leveling and lift systems, are the most economical and safe method of altering vehicle ride height, which also allows the consumer to upgrade his tires to a preferred larger size. Nothing looks better than a truck fit with an aggressive stance and that is exactly what ReadyLift® Smart Suspension Systems (SST) provide!

* Note: 2013-UP (and some 2012 models) Tacoma TRD/Rock Warrior models may require purchase of kit 69-5212 if equipped with larger diameter sway bar.

ReadyLIFT® Suspension Inc. has used their proven technological engineering methods to produce a SST Suspension Lift System for the 2005-2012 Six-Lug Toyota Tacoma trucks (P/N 69-5056) that lifts the truck 2.75″-3.0″ andincludes a new tapered 2.0″ rear lift block. The intermediate Smart Strut Technology system fits all 2005-2012 Tacoma and Prerunner models including both 2WD and 4WD models. This kit provides the owner with the opportunity to upgrade to larger wheel and tire combinations up to 33-inches in diameter while retaining the great stock ride and handling characteristics. 32.5″ tire diameter is recommended. In order to fit 33″ tires you will have to do some minor trimming of the inner fenderwell.

Information about tire and wheel size

Make Model Year 2WD / 4WD Max Lift DIA(Max) Tires(Max) Width Backspacing Part
Toyota Tacoma 2005-2014 2WD & 4WD 3.0″F-2.0″R 33″ 33″ x 11.5” 8″ 5″ 69-5056

NOTE: Our objective is to have your truck sit level or slightly below level. Each truck is different so the amount of lift achieved may vary between 2.75″ and 3.0″ in the front. TRD-equipped trucks often have less rake compared to a non-TRD truck. Measurements on some customer’s trucks have revealed as much as 1.0” difference in the factory front end height. Some earlier model Tacoma trucks came factory with a 2 leaf plus overload rear spring pack that had sagging issues. Toyota is replacing these packs with a 3+1 rear leaf pack. Trucks with 2+1 packs will want to take advantage of this new lift system that includes a 2.0″ rear lift block for a complete lift wall the way around and a stance which will give approximately a .5″ rear to front rake.

NOTE: 2011-2014 Tacoma applications: Toyota made minor changes to the Tacoma upper control arm suspension geometry. In some cases adding a leveling kit MAY affect the ability to correct the caster alignment to within factory specifications. If you have a 2011-2014 Tacoma with a leveling kit and the caster alignment specs cannot be put back to factory your truck will require an aftermarket upper control arm with adjustable caster/camber.

* Note: 2013-UP Tacoma TRD models require  purchase of Sway Bar Relocation bracket or purchase kit 69-5212.

Features & Benefits

 Will never wear, break or fail – Guaranteed

Toughest finish – Guaranteed

Safest way to lift – Guaranteed

Maintains your factory ride — Guaranteed

Includes new 2.0″ tapered pinion angle corrected OEM Style cast iron rear lift blocks protected by black E-coating to last the life of your Toyota Tacoma

Differential drop brackets provided for use with 4WD models to lower the differential and maintain factory CV angles

Steel upper strut extensions are the strongest on the market and are designed to position the strut alignment properly with the control arm and upper frame mount

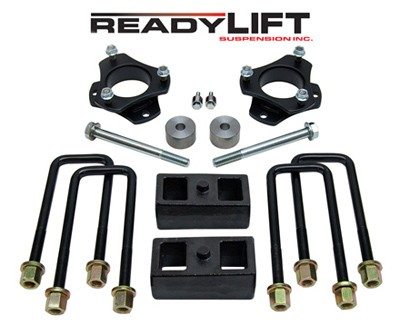

This is a complete suspension lift kit that includes a powder coated steel strut extension, front differential drop bracket, skid plate spacers and a 2-inch rear lift block. The SST strut extension and diff drop bracket has been designed to provide between 2.75″-3.0″-inches of front suspension lift while retaining the OEM safe suspension geometry. Unlike other kits, the ReadyLift® 3-inch suspension system requires no cutting or strut spring pre-loading and installs quickly and safely using the provided heavy-duty hardware. Quality step-by-step instructions are provided with every kit.

  • Professional installation time is estimated at two to three hours.  An alignment will be necessary upon completion of installing the kit. Like all other ReadyLift kits, the 2005-2013 Six-lug Tacoma/Prerunner lift kit is guaranteed for life against manufacturing defects.Allows for up to a 33 x 11.5 tire on an 8″ wide wheel with 5″ backspacing with minor trimming of the inner fender liner. 32.5″ tires on and OEM or 5″ backspacing wheel should fit with no trimming required.

Customer reviews


There are no reviews yet.

Be the first to review “ReadyLift 2.75″ Lift Kit for 2005-2015 Toyota Tacoma”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Can I add to a OME BP51 suspension lift safely so I can fit bigger tires?
    1. 0 votes
      Q Can I add to a OME BP51 suspension lift safely so I can fit bigger tires? answer now
      A It is not recommended to stack lifts and get more than 3'' suspension lift These wheels will fit without rubbing: Rim* 8"   Tire Width* 12" Tire* 32" Backspace* 4.5" Bigger tires may require some trimming.  Also precise caster/camber adjustment and body lift may help
    2. If I get this kit for my 05 Tacoma 4x4 crew cab will I need bigger shocks for the rear?
    3. 0 votes
      Q If I get this kit for my 05 Tacoma 4x4 crew cab will I need bigger shocks for the rear? answer now
      A You are right, rear shocks for 2'' rear lift will be needed - such as * * *
    4. I have an 07 Tacoma 2wd ,5 lug rim, would and which kit would be the right one for me?
    5. 0 votes
      Q I have an 07 Tacoma 2wd ,5 lug rim, would and which kit would be the right one for me? answer now
      A No,this kit is for 6-lugTacoma. We can offer springs or spacers for the front lift and blocks or add a leafs for the rear lift separately. Please specify the desired lift amound, year of production of your truck and what cab do you have.
