Bilstein 4600 Assembled Coilover, Rear Shock & Leaf Spring Kit for 2005–2015 Toyota Tacoma 6-Lug

Description
Bilstein 4600 Assembled Coilover, Rear Shock & Leaf Spring Kit for 2005–2015 Toyota Tacoma 6-Lug

Bilstein Part Numbers

• Bilstein part number: 24-325462.

Complete Stock-Height Suspension Refresh for 2005–2015 Toyota Tacoma

Refresh the front and rear suspension on your 6-lug Tacoma without adding lift. This complete package combines preassembled Bilstein B6 4600 front coilovers, matching rear shocks, and a matched driver-side and passenger-side pair of OE-style replacement rear leaf springs.

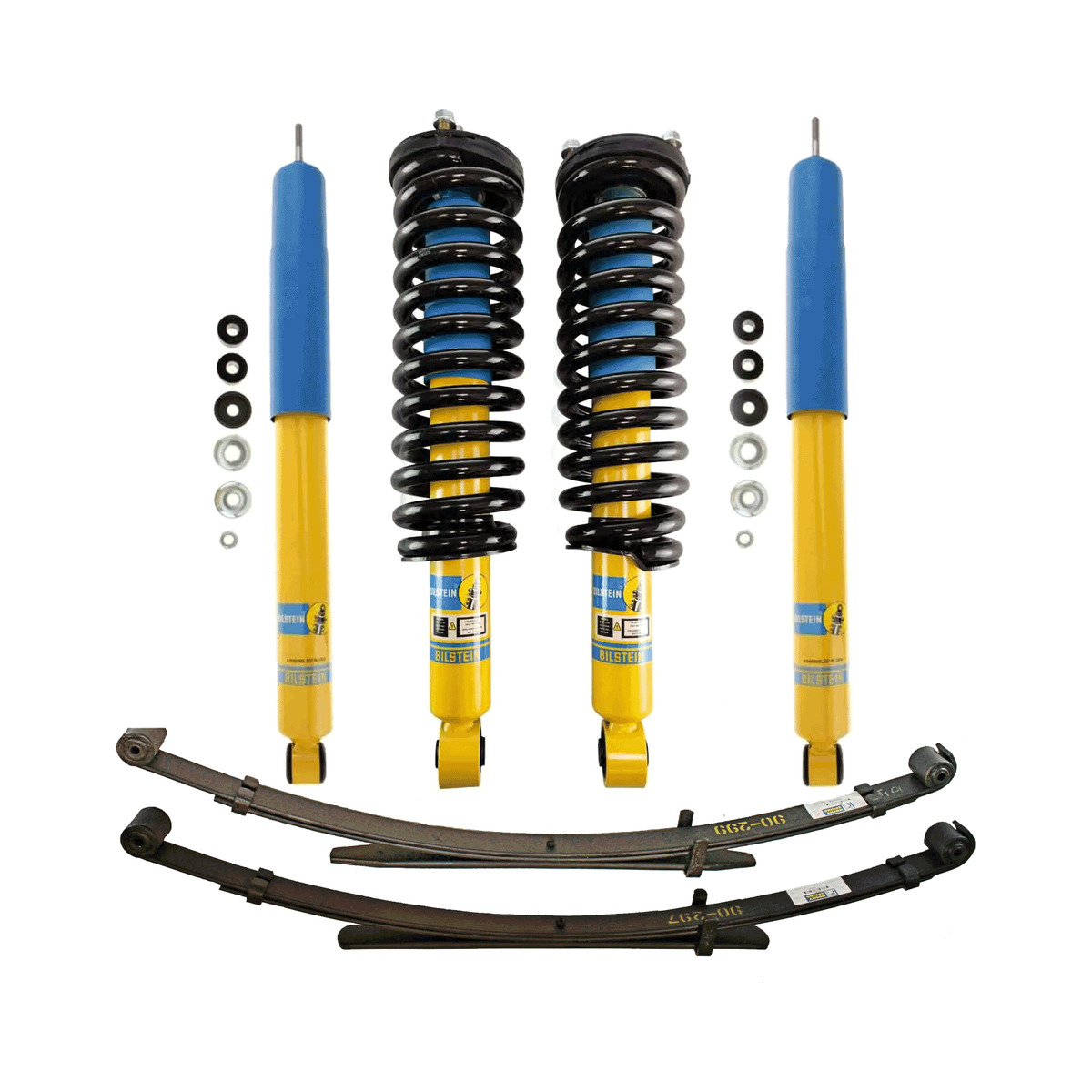

What’s Included

• Two preassembled front coilover units built around Bilstein B6 4600 front shocks, with OE-style coil springs, new upper mounts, isolators, bushings, and assembly hardware
• Two Bilstein B6 4600 rear shocks matched to the front dampers
• One matched left/right rear leaf-spring pair in the configuration selected below, with spring-eye bushings installed

The front units arrive assembled, so the original front springs do not need to be transferred and a spring compressor is not required for front-unit installation.

Choosing the Correct Rear Leaf Spring Pack

Toyota used more than one rear spring configuration, and some 2005–2011 Tacomas may now have a revised four-leaf pack. Inspect the springs currently installed on the truck before ordering – model year alone is not enough to identify the correct replacement.

• 3-leaf pack: A 2-over-1 stock-height configuration with a nominal pack thickness of approximately 1-7/16 inches and a width of approximately 2-3/8 inches. Cataloged for select 2005–2011 6-lug PreRunner and 4WD applications; not for the 2.7L Regular Cab.
• Revised 4-leaf pack: A 3-over-1 stock-height configuration with a nominal pack thickness of approximately 1-11/16 inches and a width of approximately 2-3/8 inches. Offered for select 2005–2015 applications, including trucks currently equipped with the revised four-leaf configuration.

Both choices include one side-specific spring for each side of the truck. They are OE-style, stock-height replacements – not lift springs or advertised payload-capacity upgrades. Rear-spring mounting hardware is not included.

Bilstein B6 4600 Performance

Bilstein B6 4600 shocks are designed for stock-height trucks and use a high-pressure monotube design with velocity-sensitive digressive valving. The application-specific tuning provides consistent damping and improved suspension control without reservoirs or external adjustments.

Fitment and Installation Notes

• Fits supported 2005–2015 Toyota Tacoma models with 6-lug wheels
• Does not fit 5-lug Tacoma models
• Use the product selectors to identify drive type, engine, front coil, and current rear leaf-spring configuration
• This is a stock-height replacement package and does not provide suspension lift
• Professional installation is recommended, followed by a front-end alignment

Frequently Asked Questions

Does this kit include both rear leaf springs?
Yes. The selected option supplies one driver-side and one passenger-side spring.

How should I choose between the 3-leaf and 4-leaf options?
Count the leaves and check the approximate thickness of the spring packs currently installed on the truck. Also confirm the cab, engine, and drivetrain application before ordering.

Will this kit lift my Tacoma?
No. The shocks and leaf springs are intended for a stock-height suspension configuration.
