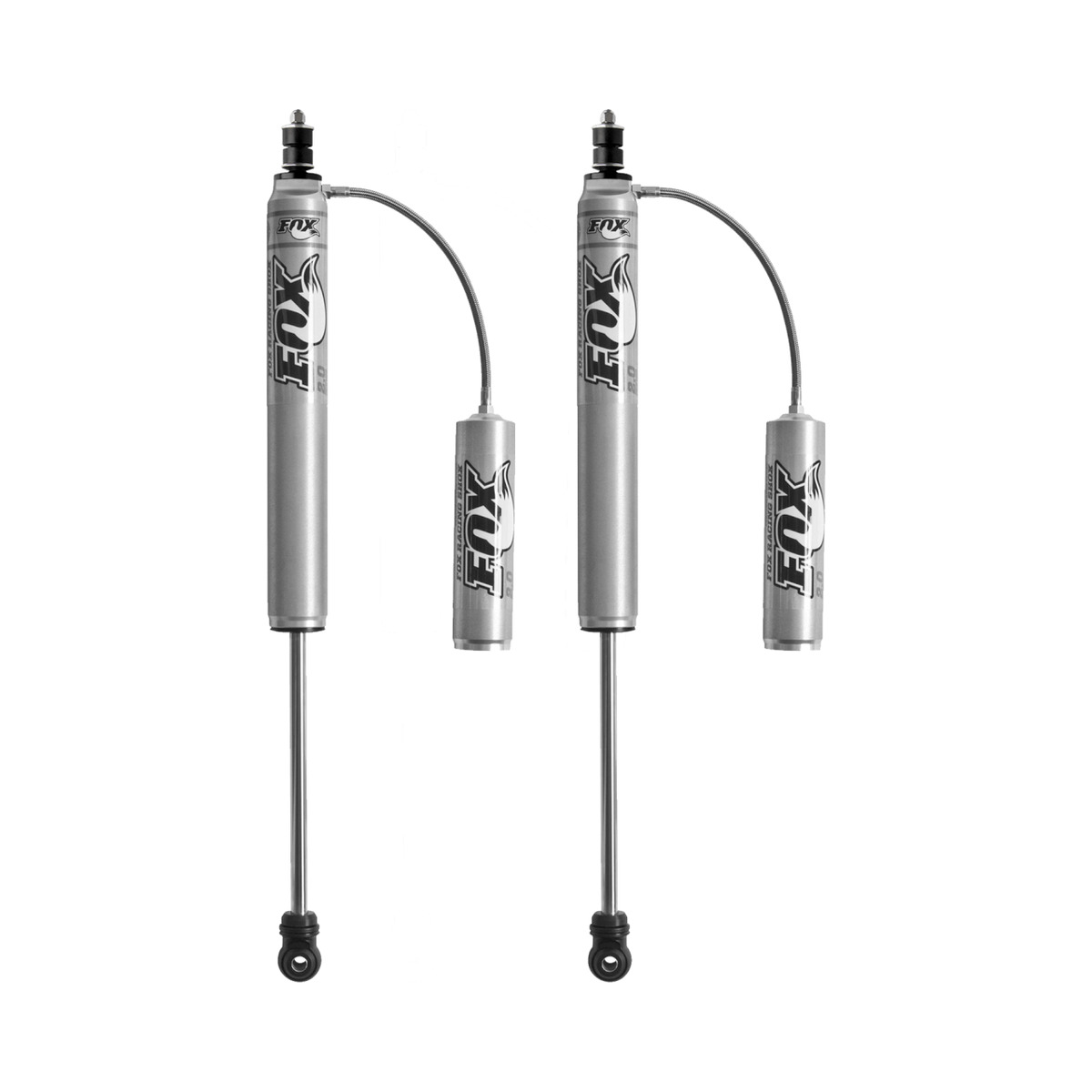

FOX 2.0 Perf Res 3.5-5″ Rear Lift Shocks 2005-2023 Toyota Tacoma 4WD
Sale!
Description
FOX 2.0 Perf Res 3.5-5″ Rear Lift Shocks 2005-2023 Toyota Tacoma 4WD
FOX 2.0 Perf Res 3.5-5 inches Rear Lift Shocks 2005-2023 Toyota Tacoma 4WD
Part Number: 985-24-118
Summary: The FOX 2.0 Performance Series Reservoir shocks are engineered for the 2005-2023 Toyota Tacoma 4WD equipped with 3.5-5 inches of rear lift. These shocks utilize an external reservoir to increase oil and nitrogen capacity, addressing the heat management needs of lifted trucks. By moving the reservoir externally, this system provides enhanced cooling and fade resistance during sustained off-road operation and high-speed impacts.
Features
- External Reservoir: The reservoir design provides increased oil and nitrogen capacity to ensure heat-resistant performance and reduced damping fade.
- Billet Reservoir Clamp: The included billet aluminum clamp provides a secure mounting solution for the reservoir to ensure durability in off-road environments.
- Extended Travel Configuration: The 24.8 inches extended length provides the necessary reach for vehicles with 3.5 inches to 5 inches of rear lift to ensure proper suspension articulation.
Technical Specifications
| Specification | Value |
|---|---|
| Series | Performance |
| Position | Rear | 2.0 inches |
| Collapsed Length | 15.2 inches |
| Extended Length | 24.8 inches |
| Upper Mount | Stud |
| Lower Mount | Eyelet |
| Notes | Designed for 3.5-5 inches Rear Lift |
Fitment
- 2005-2023 Toyota Tacoma 4WD
- Note: Configured specifically for vehicles with 3.5-5 inches of rear lift.
What’s Included
- Includes 2 Shocks
- Billet Reservoir Clamps
Why Choose This Product?
- Engineering Advantage: The external reservoir architecture significantly increases the shock’s heat capacity compared to standard smooth body shocks, allowing for more aggressive use without losing damping consistency.
- Performance Benefit: Drivers experience sustained off-road performance and improved control over rough terrain, specifically tuned for the geometry of a lifted Tacoma.
Frequently Asked Questions
What is the benefit of the external reservoir on these shocks?
The external reservoir increases the total oil and nitrogen capacity, which improves heat dissipation and prevents performance fade during repetitive impacts.
What lift height are these shocks compatible with?
These rear shocks are specifically designed for 2005-2023 Toyota Tacoma 4WD models with 3.5 inches to 5 inches of rear lift.
Are the mounting clamps included for the reservoir?
Yes, these shocks include billet reservoir clamps to securely mount the reservoir to the shock body or frame.
Be the first to review “FOX 2.0 Perf Res 3.5-5″ Rear Lift Shocks 2005-2023 Toyota Tacoma 4WD”
Questions and answers of the customers
-
Can you tell me what separation gum is as I did not know "gum" was a part of a shocks measurements.
-
0 votesQ Can you tell me what separation gum is as I did not know "gum" was a part of a shocks measurements.A Extended 24.800 Compressed 15.200 Travel 9.600 Top Mount Stem Top Bottom Mount Eyelet The length is measured from the center of the hole to the separation gum.
Is the compressed length from center of mounting bolt hole on the bottom to center of the two rubber pieces on the top or total shock length?
-
0 votesQ Is the compressed length from center of mounting bolt hole on the bottom to center of the two rub...... Read moreA Extended 24.800 Compressed 15.200 Travel 9.600 Top Mount Stem Top Bottom Mount Eyelet The length is measured from the center of the hole to the separation gum.
What is the collapsed and extended length of these shocks I am looking for a high quality set for my 6” lift 2010 Tacoma 5” Block in rear
-
0 votesQ What is the collapsed and extended length of these shocks I am looking for a high quality set for...... Read moreA Extended Length (IN): 24.8 Inch Compressed Length (IN): 15.2 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet
