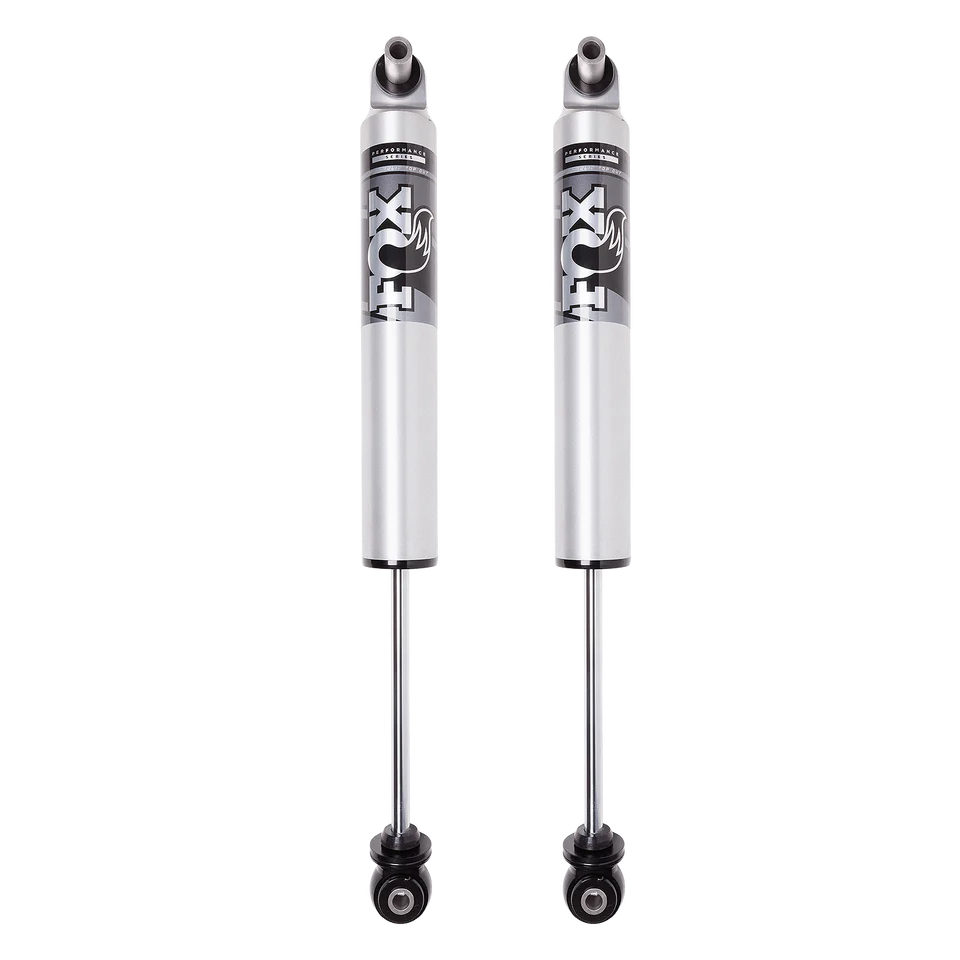

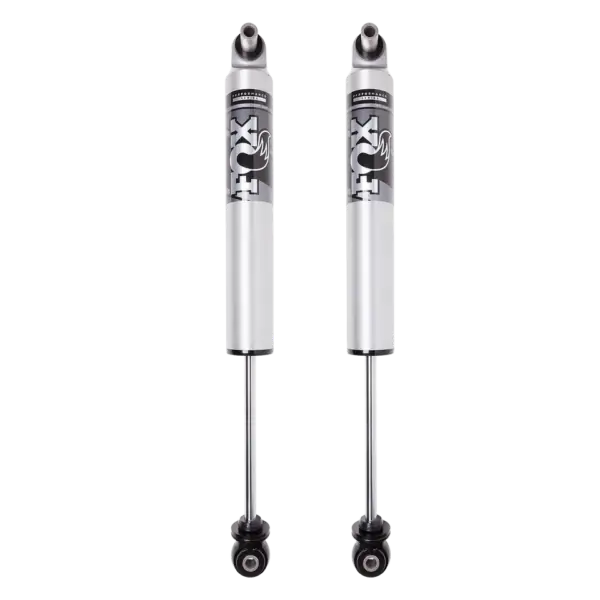

FOX 2.5 Performance Smooth Body HTO 6-8″ Front Lift IFP Shocks for 2017-2025 Ford F-350 Super Duty 4WD

Description
FOX 2.5 Performance Smooth Body HTO 6-8″ Front Lift IFP Shocks for 2017-2025 Ford F-350 Super Duty 4WD

FOX 2.5 Performance Smooth Body HTO 6-8 inches Front Lift IFP Shocks for 2017-2025 Ford F-350 Super Duty 4WD

Part Number: 987-24-022

Summary: The FOX 2.5 Performance Series HTO is a high-capacity smooth body shock engineered for Ford F-350 Super Duty trucks equipped with 6-8 inches of front lift. This series features position-sensitive technology and vehicle-specific valving designed to manage the increased demands of lifted applications and heavier tire setups. By utilizing an internal floating piston (IFP) and a larger 2.5-inch aluminum body, these shocks provide improved heat dissipation and consistent damping performance across varying terrain.

Features

• Hydraulic Top Out (HTO): A secondary shim stack provides position-sensitive rebound damping control to slow shock shaft speed and reduce harsh top-outs.
• Internal Floating Piston (IFP): The IFP design separates the shock oil from the high-pressure nitrogen to ensure optimized damping and prevent aeration.
• 6061-T6 Aluminum Body: An impact-extruded 2.5-inch aluminum body with Type II clear-anodized plating provides efficient heat dissipation and corrosion resistance.
• High-Flow Damping: Velocity-sensitive valving combined with a 5/8-inch hard chrome shaft provides rapid response to terrain changes for improved ride quality.

Technical Specifications

Fitment

• 2017-2025 Ford F-350 Super Duty 4WD
• Note: Lift: 6-8 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The integration of Hydraulic Top Out (HTO) technology offers position-sensitive rebound control, specifically addressing the mechanical stresses found in high-lift applications.
• Performance Benefit: Drivers experience increased comfort and reduced harshness when encountering full suspension extension, particularly after installing heavier, aggressive tires.

Frequently Asked Questions

What is Hydraulic Top Out (HTO) technology?
HTO is a position-sensitive rebound control system that uses a secondary shim stack to slow down the shock shaft speed, preventing harsh top-out sensations.

Are these shocks compatible with my lifted F-350?
These shocks are specifically designed for 2017-2025 Ford F-350 Super Duty 4WD models with a front lift height of 6 to 8 inches.

How does the IFP benefit my truck?
The Internal Floating Piston (IFP) separates the nitrogen gas from the shock oil, which prevents oil aeration and ensures the damping remains consistent during off-road use.
