Rock Krawler TJ 3.5″ X Factor 5″ Stretch Long Arm Lift Kit w/ Twin Tube Shocks for 97-02 Jeep Wrangler TJ

SKU: TJ35XFLA-5S01TT

Description
Rock Krawler TJ 3.5″ X Factor 5″ Stretch Long Arm Lift Kit w/ Twin Tube Shocks for 97-02 Jeep Wrangler TJ

Rock Krawler TJ 3.5″ X Factor 5″ Stretch Long Arm Lift Kit w/ Twin Tube Shocks for 97-02 Jeep Wrangler TJ

Part: TJ35XFLA-5S01TT

Rock Krawler TJ 3.5 Inch X Factor 5 Inch Stretch Long Arm Lift Kit with Twin Tube Shocks 97-02 Wrangler

System Benefits:

  • Excellent Highway Ride and Handling
  • 99 Inch Wheelbase (5 Inch Rear Stretch)
  • High Misalignment Lower Control Arms
  • Triple Rate Coil Springs
  • RRD Spec Twin Tube Shocks
  • Independent Front 3 Link Design
  • Triangulated Rear 4 Link Design
  • Pro Front Sway Bar Disconnects
  • Allows for up to 33/35 Inch Tires with OEM Fenders
  • Allows for up to 35/37 Inch Tires with Flat Fenders
  • Allows for up to 37/38 Inch Tires with High Line Fenders
  • Abuse Proof Lifetime Warranty on all Hard Parts
  • Upgradeable to Coilovers

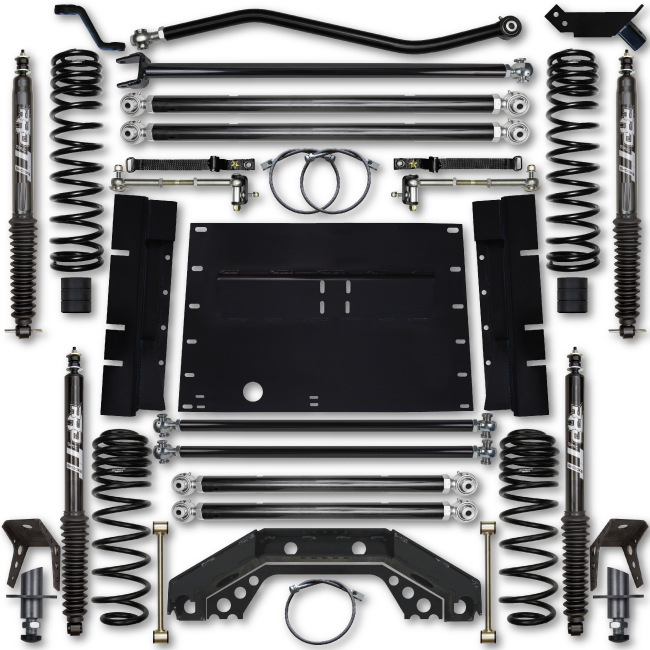

System Includes:
(4) Triple rate coil springs
(2) 11.6 Inch Inch Travel RRD Spec Twin Tube Front Shocks (Collapsed Length: 16.2 Inch Inch)
(2) 10.8 Inch Inch Travel RRD Spec Twin Tube Rear Shocks (Collapsed Length: 16 Inch Inch)
(4) High misalignment/adjustable lower long arms
(1) Adjustable front upper control arm
(1) High misalignment/adjustable front track bar
(2) Front adjustable sway bar disconnects
(2) Front sway bar link straps
(1) Skid plate and skid plate mounting brackets
(2) Rear upper triangulated 4 link arms
(1) Rear triangulated 4 link mounting cradle/axle truss
(3) Extended stainless steel brake lines
(2) Extended rear sway bar links
(2) Front bump stops
(2) Rear coil spring mounts with integrated bump stops
(2) Rear upper shock mounts made from 1/4 inch thick laser cut steel
(1) Front track bar relocation bracket
(1) Drop pitman arm

Notes:

  • Available for most common axle combinations (Dana 30, 44, 60, Ford 8.8, Dynatrac ProRoc’s). Can be adapted to fit Currie Rock Jock 60’s and Solid 60’s by rotating the rear cradle into the proper position instead of using the alignment tool provided.
  • Requires a SYE with C.V. Driveshaft.
  • With long rear uppers, a custom cat back exhaust is required.
  • Rubicon Edition TJ’s require a new rear driveshaft.
  • 2003 TJ’s equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel.
  • Requires removal of the OEM rear upper control arm mounts off the rear axle.
  • Requires cutting of the rear quarter panels to allow clearance for the new rear axle position.

YouTube video if available:

Country of Origin: USA

Lift Height (if applicable): 3.5 Inch

Location (if available): Front and Rear

Fitment Notes (if applicable):

Shocks Included (if applicable):

Remote Reservoirs Included (if applicable):

Coilovers Included (if applicable):

Recommended Tire Size (if applicable): 33/35/37/38

Kit Components (if applicable):

Vehicle Fuel Type (if applicable):
